PRICE ON APPLICATION - Contact us for details

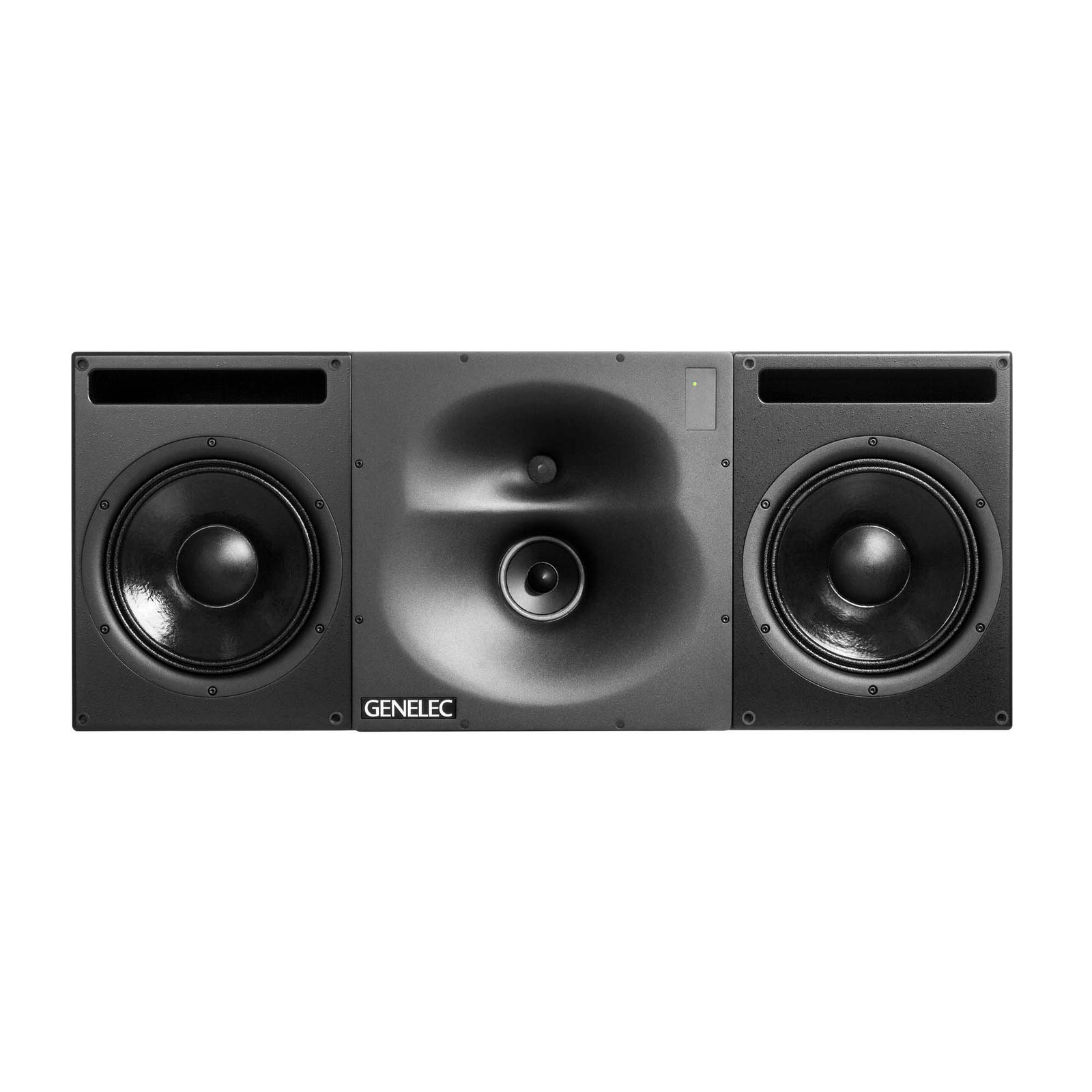

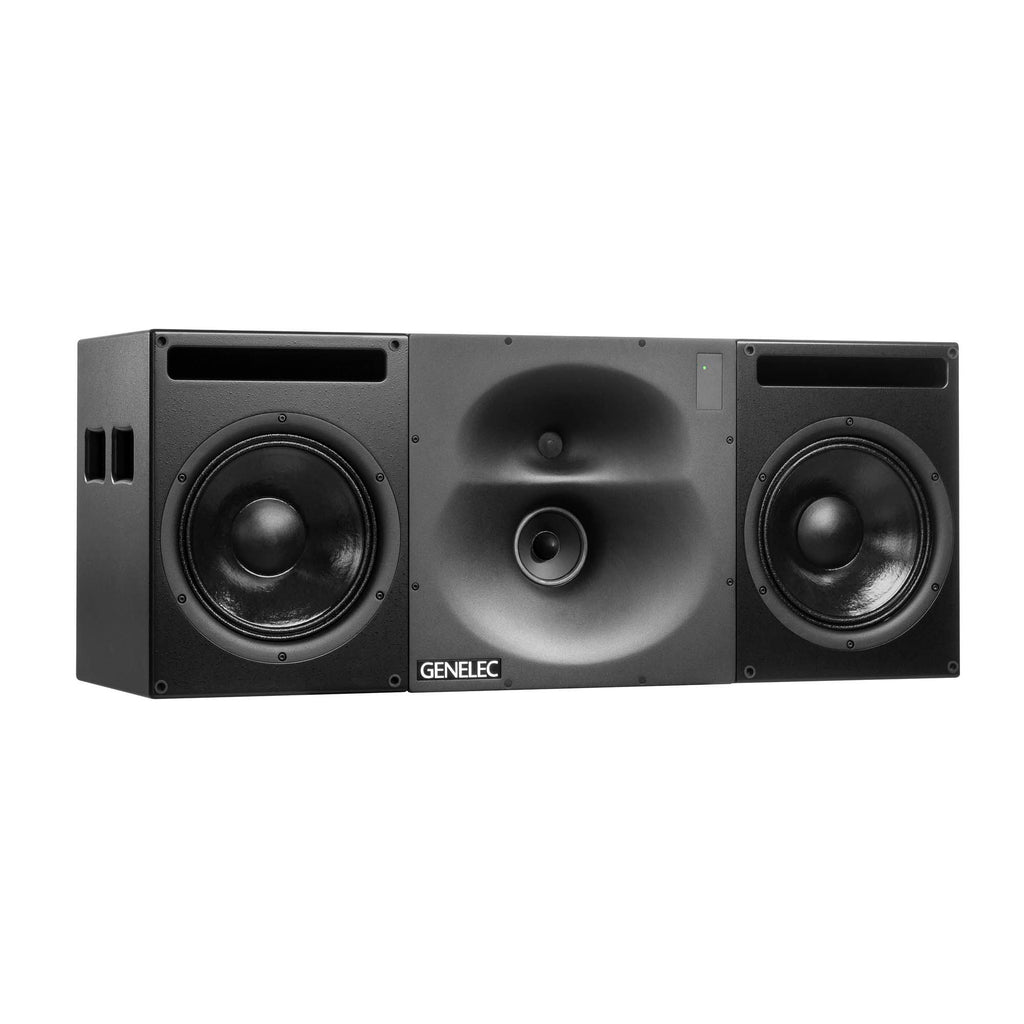

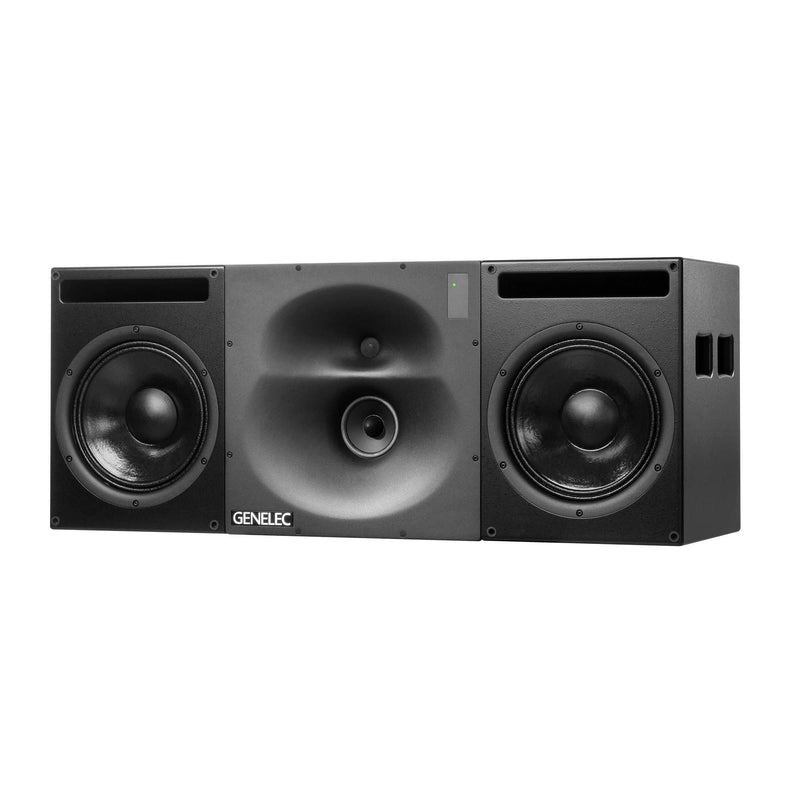

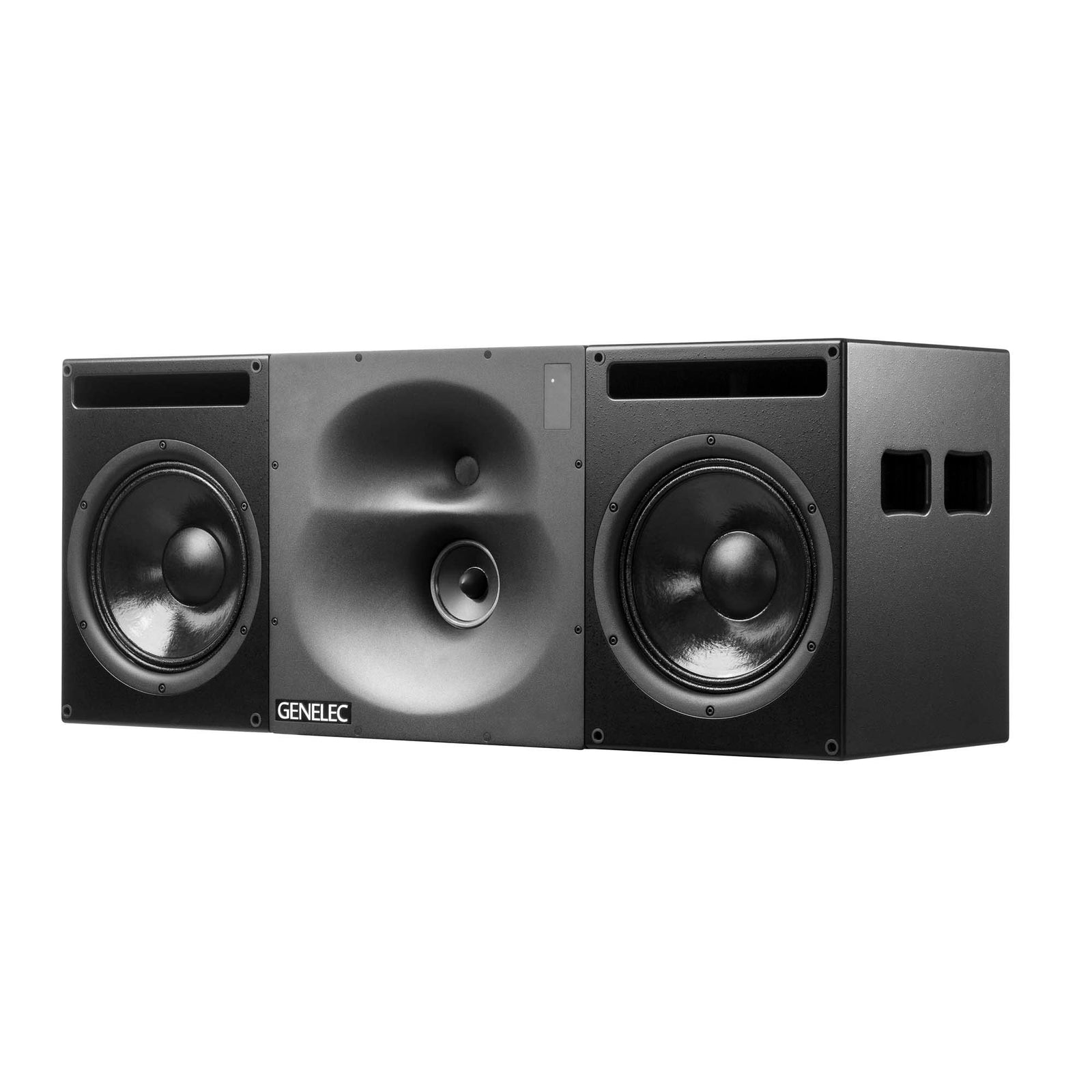

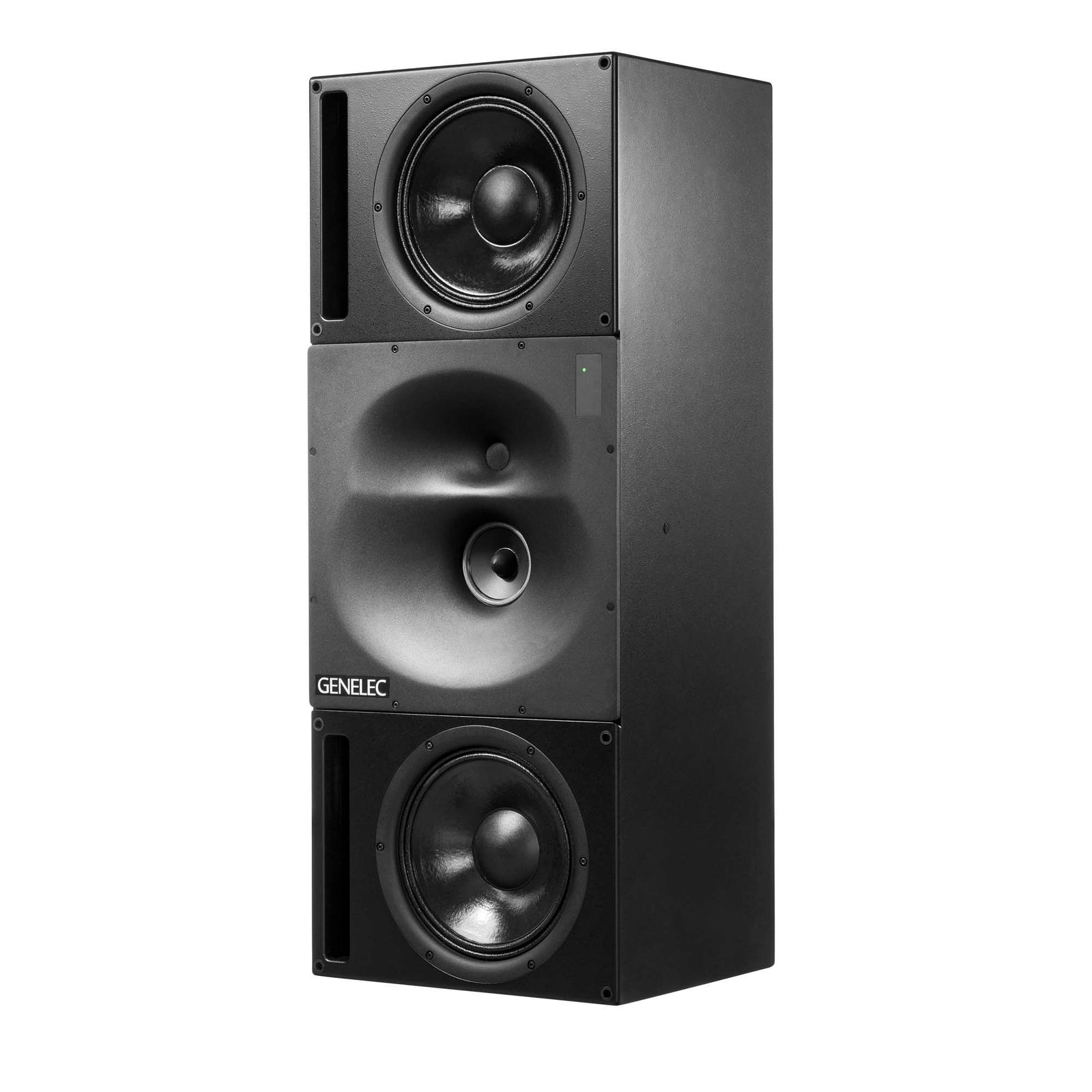

The 1234AC is a smart main studio monitor for use in demanding film and post production work, where perf screen or hi-res LED displays are employed.
Make accurate decisions

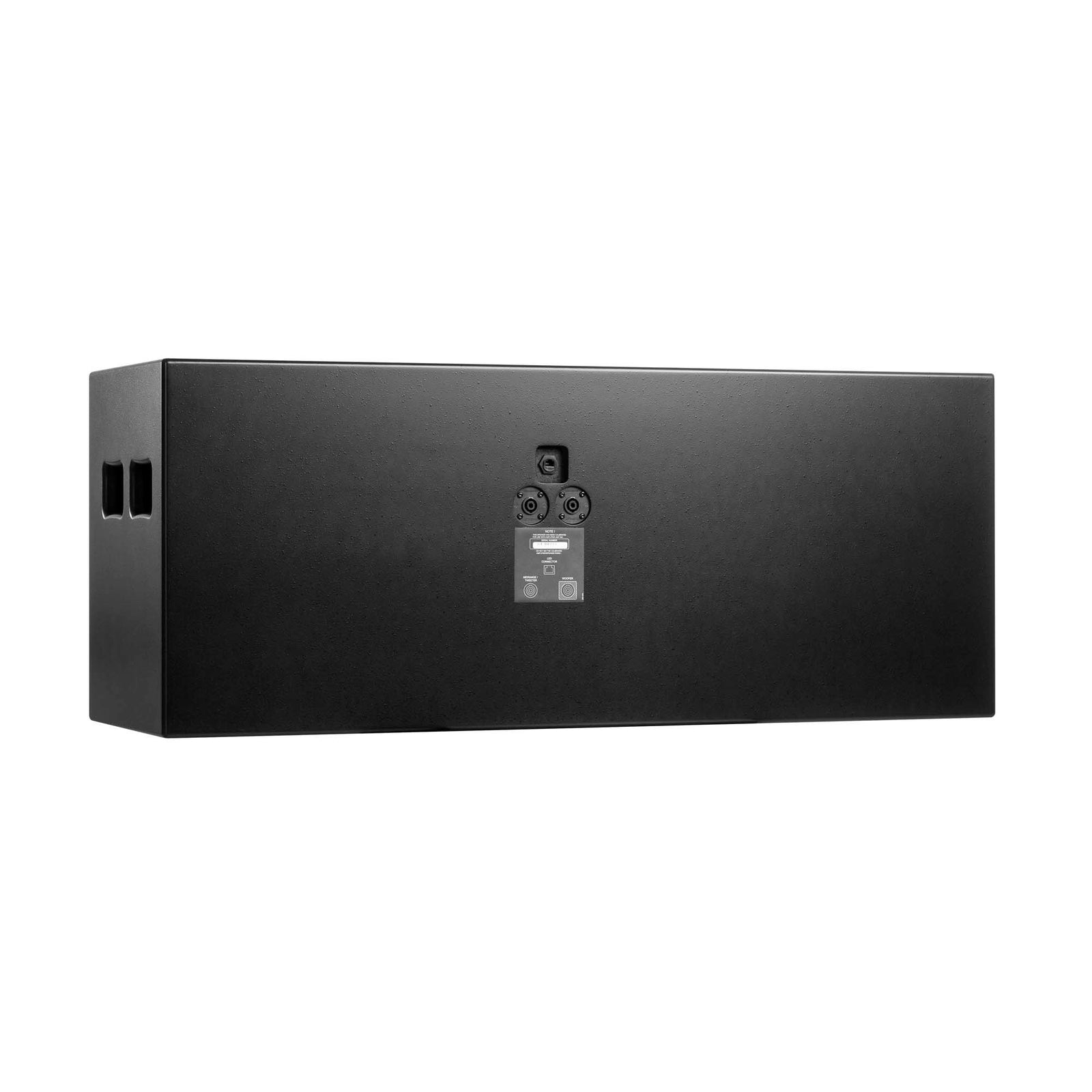

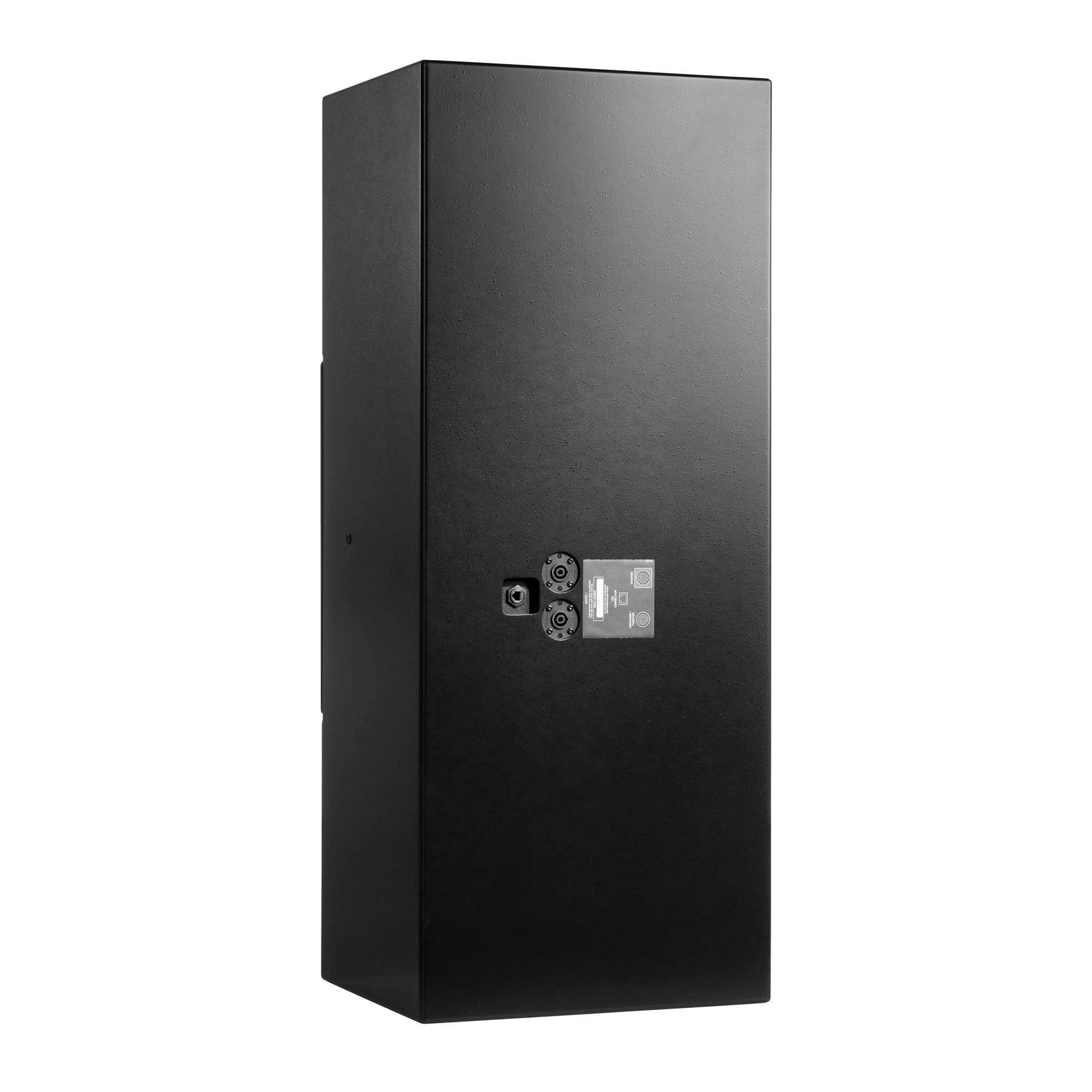

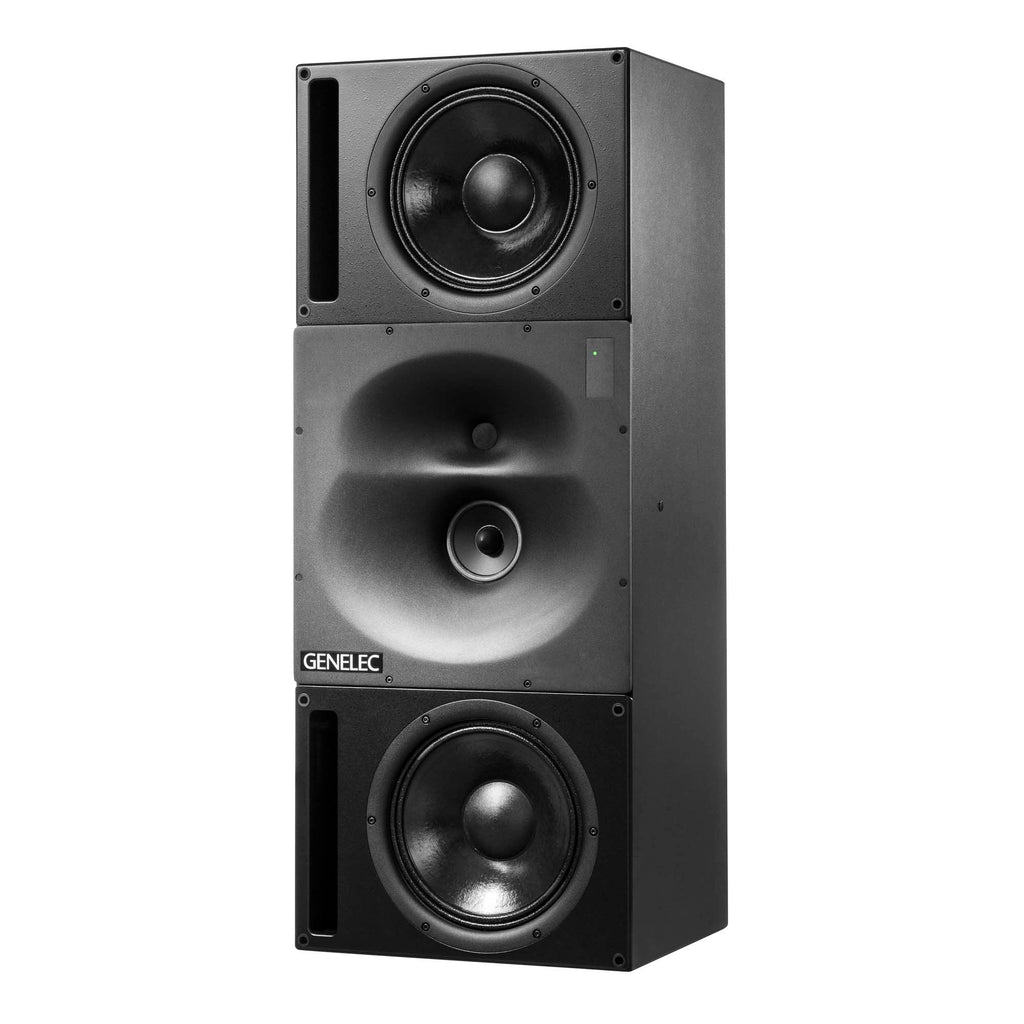

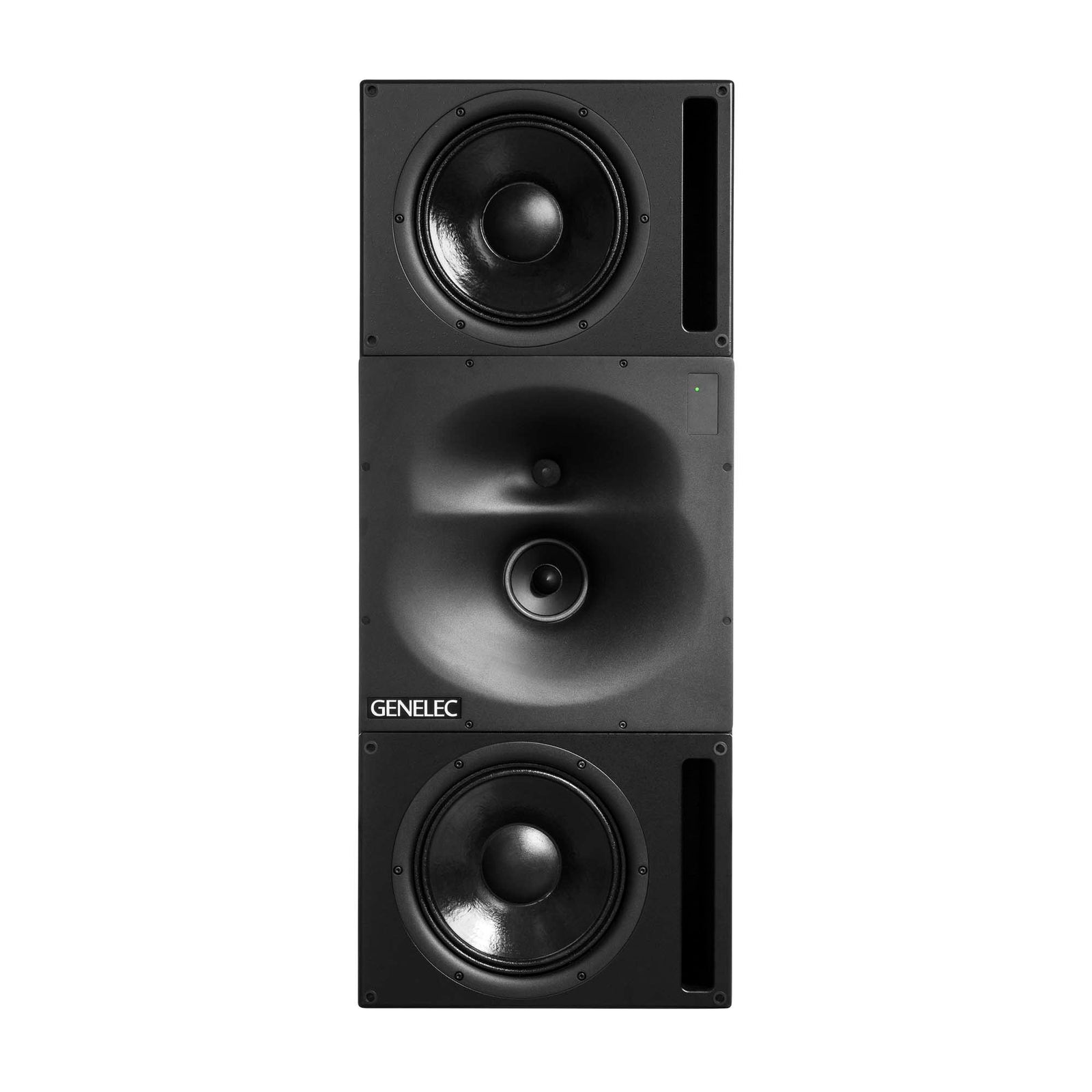

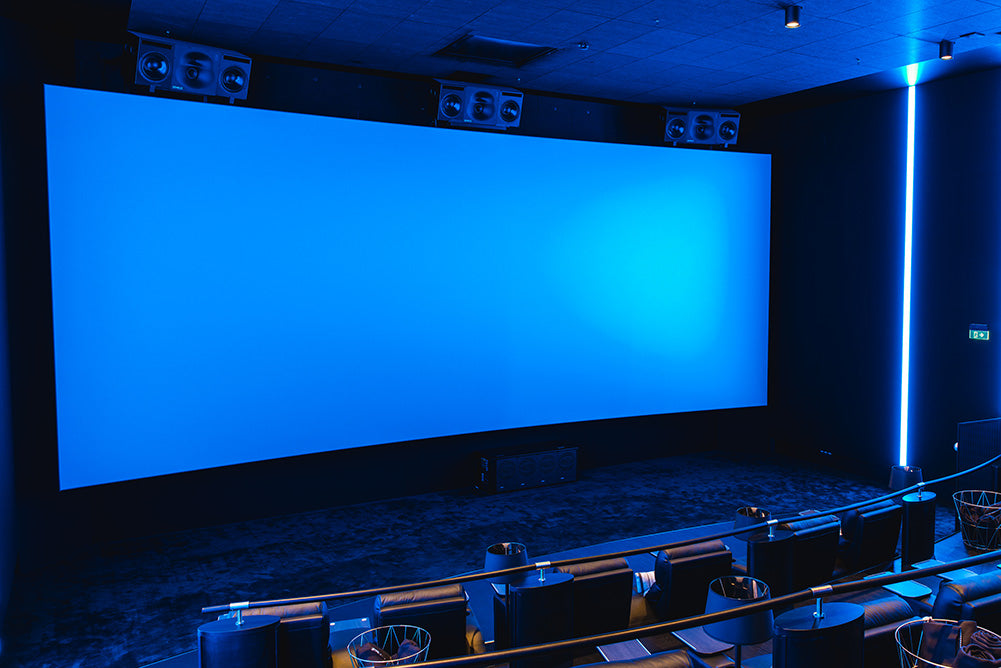

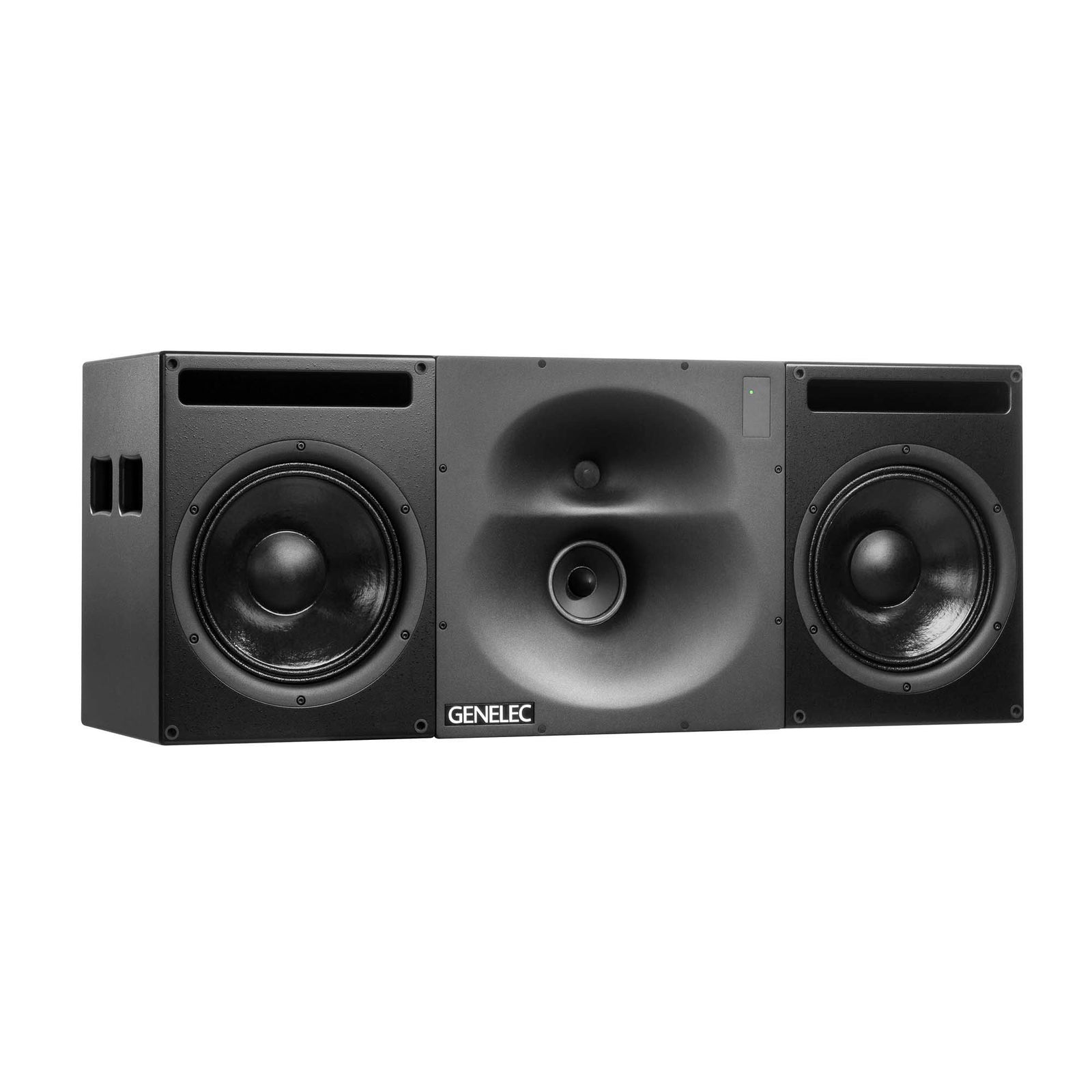

Designed for mixing stages and large control rooms, the directivity and SPL capability of the 1234AC is compatible with typical screen channels in commercial cinema, but with the higher performance required for professional monitoring. The 1234AC may be used in either horizontal or vertical orientation - thereby tailoring the LF directivity to both the room and the monitor placement - while precise on and off axis imaging allows you to make accurate mix decisions even when sitting outside the narrow sweet spot of most studio monitors.
Optimise for your room
The 1234AC tightly integrates with our GLM calibration application, which compensates for detrimental room influence, perf screen effects and delay, regardless of whether you work with traditional or large immersive formats. GLM also builds complete monitoring systems, so that the 1234AC can easily be combined with other types of Genelec smart monitors and subwoofers to deliver truly optimised reference monitoring - and material that translates perfectly.
Package contains:
- 1 x 1234AC main monitor
- 1 x individually calibrated RAM-XL amplifier unit
- 1 x mains cable 1,8 m
- 1 x RJ45 cable 5 m
- 1 x RJ45 cable 10 m
- 2 x 4-pole Speakon cable 10 m
- 1 x operating manual
Warranty:
- 2 years parts-and-labour (extended to 5 years with free registration).
GLM Calibration:
- Requires free GLM software and either our 9320A SAM™ Reference Controller or GLM Calibration Kit device (both sold separately) for calibration.
System Specifications
Frequency Response
34 Hz - 20 kHz (± 2 dB)
Low cutoff -6dB
29 Hz
High cutoff -6dB
21 kHz
SPL
Peak SPL
≥130 dB
Maximum peak acoustic output per pair in a listening room with music material at 2 m.
Short term max SPL
≥125 dB
Maximum short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz at 1 m.
Long term max SPL
≥120 dB
Maximum long term RMS acoustic output in the same conditions with IEC weighted noise (limited by driver protection circuit) at 1 m.
Self-generated noise
Self-generated noise
≤0 dB SPL
Self generated noise level in free space at 2 m on axis (A-weighted).
Weight
Weight
79.5 kg (175.3 lb)
Dimensions
Height
489 mm (19 1/4 in)
Width
1210 mm (47 5/8 in)
Depth
412 mm (16 1/4 in)
Enclosure
Enclosure material
MDF
Enclosure type
Reflex port
Drivers
Bass
Driver type
Cone
2 x 305mm (12 in) cone
Count
2
Diameter
305 mm (12 in)
Midrange
Driver type
Cone
125mm (5in) cone.
Diameter
125 mm (4 7/8 in)
Treble
Driver type
Metal dome
25mm (1 in) metal dome.
Diameter
25 mm (1 in)
Directivity

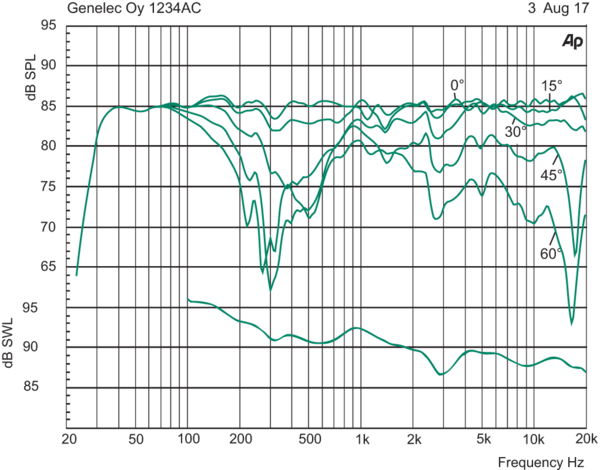

Horizontal directivity
Harmonic distortion
50…200 Hz ≤3 %
> 200 Hz ≤0.5 %
Group delay
The latency at high frequencies from the input to the acoustic output, measured in the analog input:
Extended Phase Linearity in GLM set to OFF
5.2 ms
In Genelec performance graphics, the time of converting the from an electronic input signal to the acoustic output in a Genelec monitor is described by two factors – latency and group delay. The group delay factor can be read in the graphics for a specific frequency. The total frequency-specific input-to-output delay is a sum of the latency and group delay factors. To understand the significance of this total delay, consider that moving a loudspeaker away by 1 meter creates an additional delay of about 3 ms.
Amplifier Section
Amplifiers
1234AC Bass amplifier
2 x 750 W Class D
3U rack mounted external amplifier.
Height
132 mm (5 1/4 in)
Width
483 mm (19 in)
Depth
286 mm (11 1/4 in)
Weight
11.2 kg (24.7 lb)
1234AC Midrange amplifier
400 W Class D
3U rack mounted amplifier.
Height
132 mm (5 1/4 in)
Width
483 mm (19 in)
Depth
286 mm (11 1/4 in)
Weight
11.2 kg (24.7 lb)
1234AC Treble amplifier
250 W Class D
3U rack mounted amplifier.
Height
132 mm (5 1/4 in)
Width
483 mm (19 in)
Depth
286 mm (11 1/4 in)
Weight
11.2 kg (24.7 lb)
Mains voltage
100-240 VAC 50/60Hz
Power consumption
ISS Active
≤6 W
Idle
≤40 W
Full output
2500 W
Signal processing section
Connectors
Input
Analog signal input connector XLR female, balanced 10 kOhm.
Input
Digital signal input connector XLR female 110 Ohm.
Output
Digital signal output / Thru connector XLR male 110 Ohm.
2 x Control
Two CAT5 (RJ45) GLM Network connectors for computer control using the Genelec Loudspeaker Manager (GLM) software.
Crossover
Bass/Mid
420 Hz
Mid/Treble
3168 Hz
