Stereo Headphone And Line Output, PoE Supplied
RedNet AM2 is a compact, Power-over-Ethernet (PoE) -supplied stereo analogue output device for any Dante audio-over-IP network. Featuring a powerful headphone amp, capable of driving both high and low impedance headphones, RedNet AM2 is the ideal signal monitoring device to add extra functionality to your audio network.

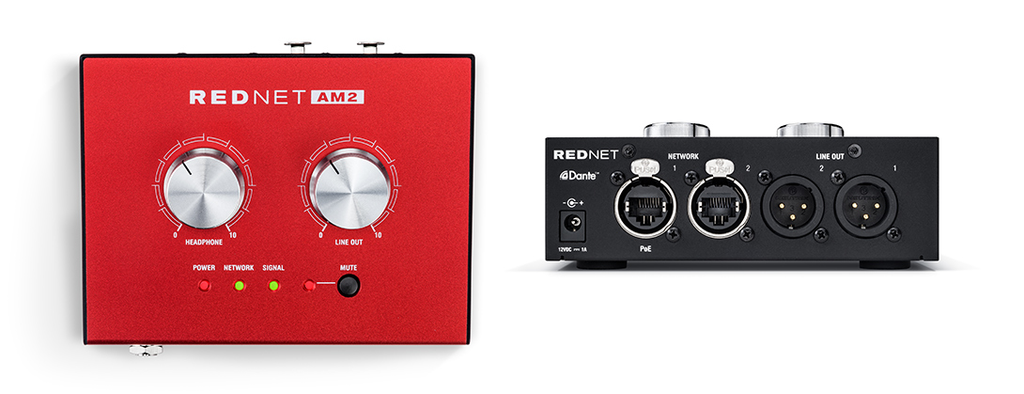

A pair of rear-panel XLR outputs offers line level signals of up to 24dBu with top panel level control and mute switch, while the front panel 1/4" headphone output is capable of driving high signal levels perfect for monitoring in high-SPL environments. The bottom of the sturdy aluminium and steel chassis features a threaded mic stand boss allowing RedNet AM2 to be placed in any convenient location whether on a desk or at a performer's fingertips on a stand. Finally, the IEEE standard PoE input allows a single Ethernet cable to provide power, remote control, clocking and audio data to RedNet AM2.
- Stereo line output and headphone for Dante audio-over-IP networks
- Power-over-Ethernet supplied: IEEE 802.3af compliant
- Up to 24-bit, 96kHz sampling rates
- Robust steel and aluminium chassis
- Powerful headphone output even with high-impedance headphones
- Up to 24dBu line output levels
- Independent level control of headphone and line outputs
- Mute switch for line output
- Mic stand mount
- Kensington security slot
- Integrated network switch allowing daisy-chaining of network devices
LINE LEVEL OUTPUTS
0 DBFS Reference Output Levels: 18 or 24dBu (switchable)
Frequency Response Output: 20Hz - 20kHz ±0.05dB
THD N Output: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input
Dynamic Range: 120dB A-weighted (typical), 20Hz - 20kHz
CROSSTALK
Output To Output: <-100dB unweighted, 20Hz - 20kHz; -20dBFS input
HEADPHONE OUTPUT
0 DBFS Reference Levels Headphones: 19dBm
Headphone Frequency Response: 20Hz - 20kHz ±0.05dB
Headphone THD N: <-100dB (0.001) unweighted, 20Hz - 20kHz; -1dBFS input
Headphone Dynamic Range: 118dB A-weighted (typical), 20Hz - 20kHz
Output Impedance: 5O
Headphone Impedance: 32O - 600O
DIGITAL PERFORMANCE
Supported Sample Rates: 44.1 / 48 / 88.2 / 96 kHz (-4 / -0.1 / 0.1 / 4.167) at 24 bit
Clock Sources: Internal or from Dante Network Master
Minimum Latency: 1ms
FRONT PANEL CONNECTIVITY
Headphone Outputs: 1 x 1/4" stereo jack
Line Outputs: 2 x Male XLR
PSU (PoE And DC): 1 x PoE (Port 1) Input and 1 x DC 12V Barrel Input Connector
Network: Green LED: Indicates device is network master or network slave, shows valid network lock
REAR PANEL CONNECTIVITY
TOP PANEL INDICATORS
Power: LED illuminates Green when PoE is connected and Red when DC power is connected
Signal: Signal indicator LED for both network input channels
Mute: Red LED
Control Functions: 2 x Pots
DIMENSIONS
Height (Chassis Only): 48mm/ 1.89"
Height (Inc. Pots And Feet): 58mm/ 2.28"
Width: 140mm/ 5.51"
Depth (Chassis Only): 106.5mm/ 4.19"
Depth (Inc. Connectors): 116mm/ 4.57"
WEIGHT
Weight: 0.81kg
POWER
Power Over Ethernet (PoE): Complies with IEEE 802.3af class 0 Power-over-Ethernet standard
DC Power Supply: 1 x 12V 1.2A DC Power Supply
Power Consumption: PoE: 11.0W - DC: 9.8W
Operating Temperature: Operates at up to an ambient temperature of 50 degrees Celcius
