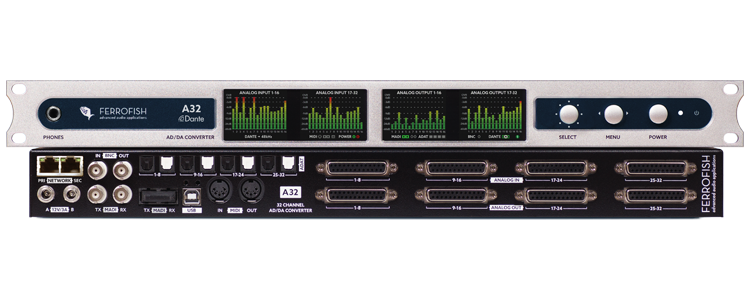

The A32 Dante is the “fully loaded” Version of the A32.
As well as all the I/Os of the renowned A32 this model features 64×64 I/O of DANTE channels in addition, which makes integrating the device into an existing Dante network easy.
Of course it also offers all of the various features of the original A32.
Extremely flexible
The A32 Dante offers an unrivalled flexibility due to its 32×32 A/D – D/A channels, optical and coaxial MADI ports, 32×32 ADAT I/Os (ADAT4 switchable to S/PDIF) and headphone output with monitoring matrix.
The four hi-res TFT colour screens give a detailed view of all digital and analog levels and settings.
This is all complemented by an intuitive one-knob control and an always-on help system.

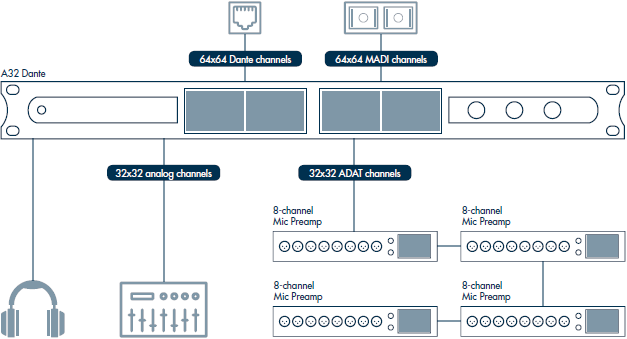

Converter and Routing Matrix
Among converting various digital formats from and to analog inputs and outputs the A32 Dante also offers a sophisticated routing matrix.
With the source-destination matrix, parallel format conversions (e.g. ADAT to MADI and Analog to Dante) can be realised next to other complex routings in the twinkling of an eye.
Also, creating a merged DANTE stream consisting of analog, ADAT and MADI signals is no problem at all.
The A32 Dante – a real problem solver!
Features
- Sample rate from 32 kHz up to 192 kHz
- 32 x 32 analog I/O channels
- 64 x 64 DANTE I/O channels (2x RJ-45 Port)
- 64 x 64 MADI I/O channels (optical or coaxial)
- 32 x 32 ADAT I/O channels (8 x TOSLINK optical)
- Stereo S/PDIF optical I/O with sample rate conversion
- Wordclock I/O (BNC)
- Headphones output with monitoring matrix for mono-, stereo- and submix signals
- MIDI I/O (5pin) and MIDI-over-MADI
- Thermally compensated oscillator with proprietary active jitter reduction circuit
- Preset Management
- Analog Devices SHARC® DSP processes all 386 audio channels
- Sophisticated routing/mixing of all channels
- 4 x TFT Screens give a detailed overview of all settings and levels at a glance
- Intuitive one-key-control operating system
- Multilingual self-explaining always-on help system lets you use the A32 even without the manual.
- Redundant power supply configuration
- 32 balanced inputs, 32kHz - 192kHz
- 32 balanced outputs, 32kHz -192kHz
- 64 Dante Inputs / 64 Dante Outputs
- MADI optical and coaxial
- 4x ADAT TOSLINK inputs
- 4x ADAT TOSLINK outputs
- S/MUX up to 192kHz
- MIDI I/O (with MIDI over MADI)
- BNC Wordclock
- Redundant Power Inlets*
- USB connection for firmware updates
- 4x TFT Screens allow control of all levels & settings
- All 64 analogue channels visible simultaneously (peak & level display)
- Extensive routing/mixing possibilities
- Comprehensive on-board multi-language manual, accessible at any time and visible via the TFT Screens
