DPA d:screet 4071 CORE+ Film Microphone Kit

DPA MicrophonesSKU: KIT-4071-OP-FMK

Price:
Sale price €689.00

We have collected our award-winning d:screet™ Miniature Microphones in specialised kits that contain the mics and accessories you need to capture fantastic sound no matter what you need. Used with the vast array of complimentary accessories, d:screet™ Miniature Microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theatre, television or other close-miking settings, these mics will not disappoint.

Now available with CORE+ & MicroLock®.

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

d:screet™ 4071 Film Microphone Kit

This microphone kit is made for film or TV productions where the microphone needs to be invisible.

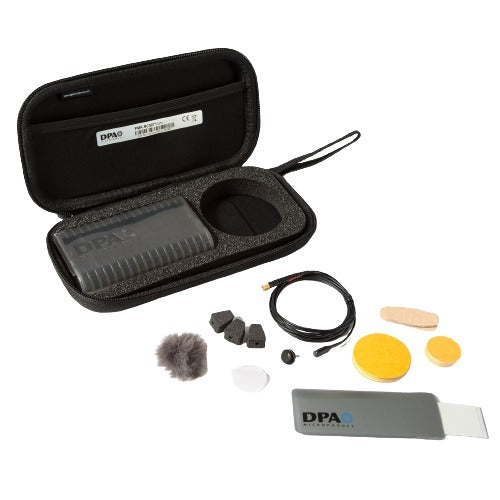

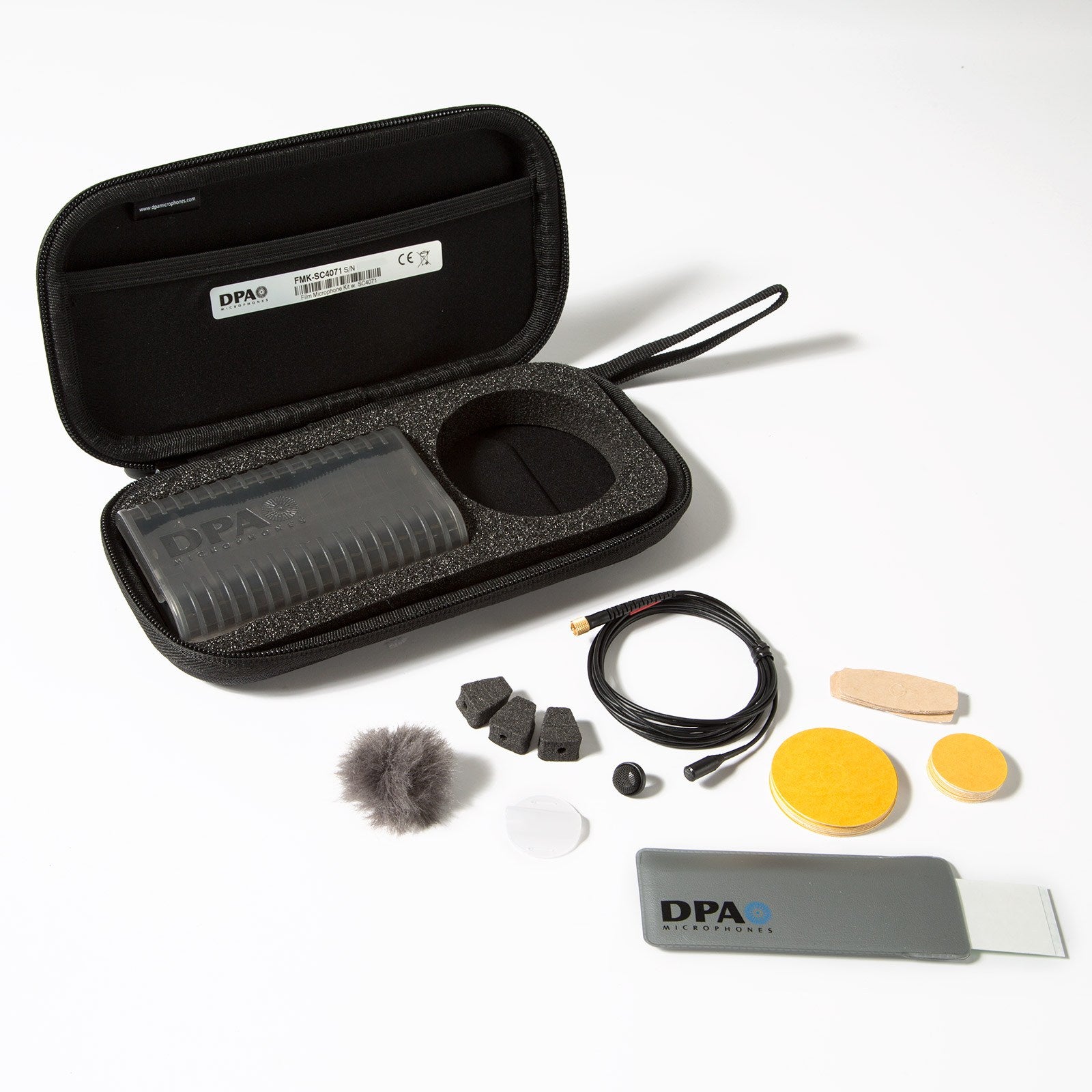

It contains a d:screet™ 4071 Omnidirectional Microphone, Presence Boost with our reinforced cable relief (pre-equalized for speech clarity). Also included are various microphone concealment fixtures, specially designed to solve both concealment and clothing noise problems.

The d:screet™ 4071 Omnidirectional Microphone, Presence Boost is an outstanding speech and vocal mic. It makes voice heard and intelligible. It is also resistant to moisture, extreme temperature change and humidity.

When recording voices from mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut has been incorporated in the mic capsule so the built-in preamplifier (and the wireless system) will have much larger headroom. Furthermore, it removes distant rumbling from cars, trains, airplanes, etc.

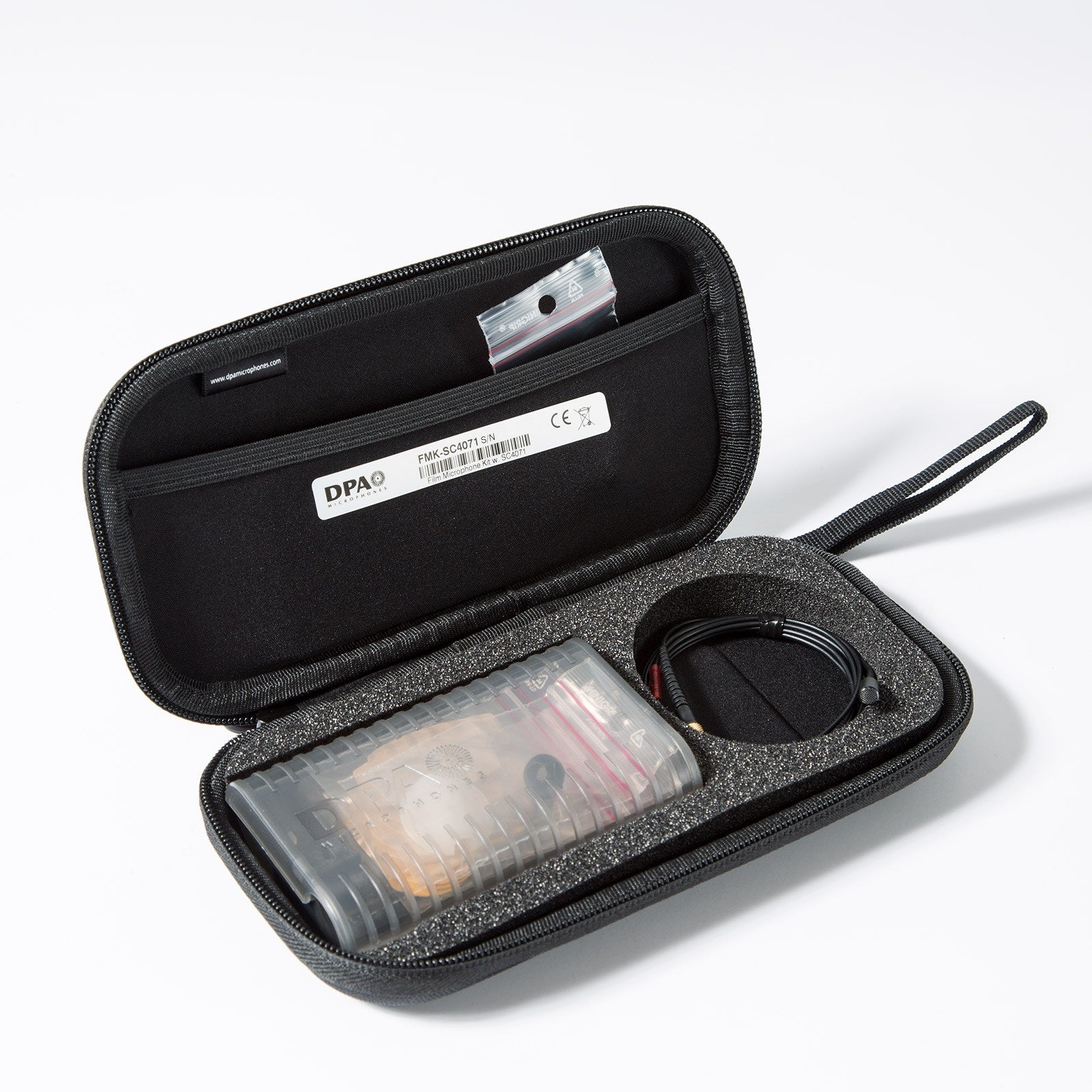

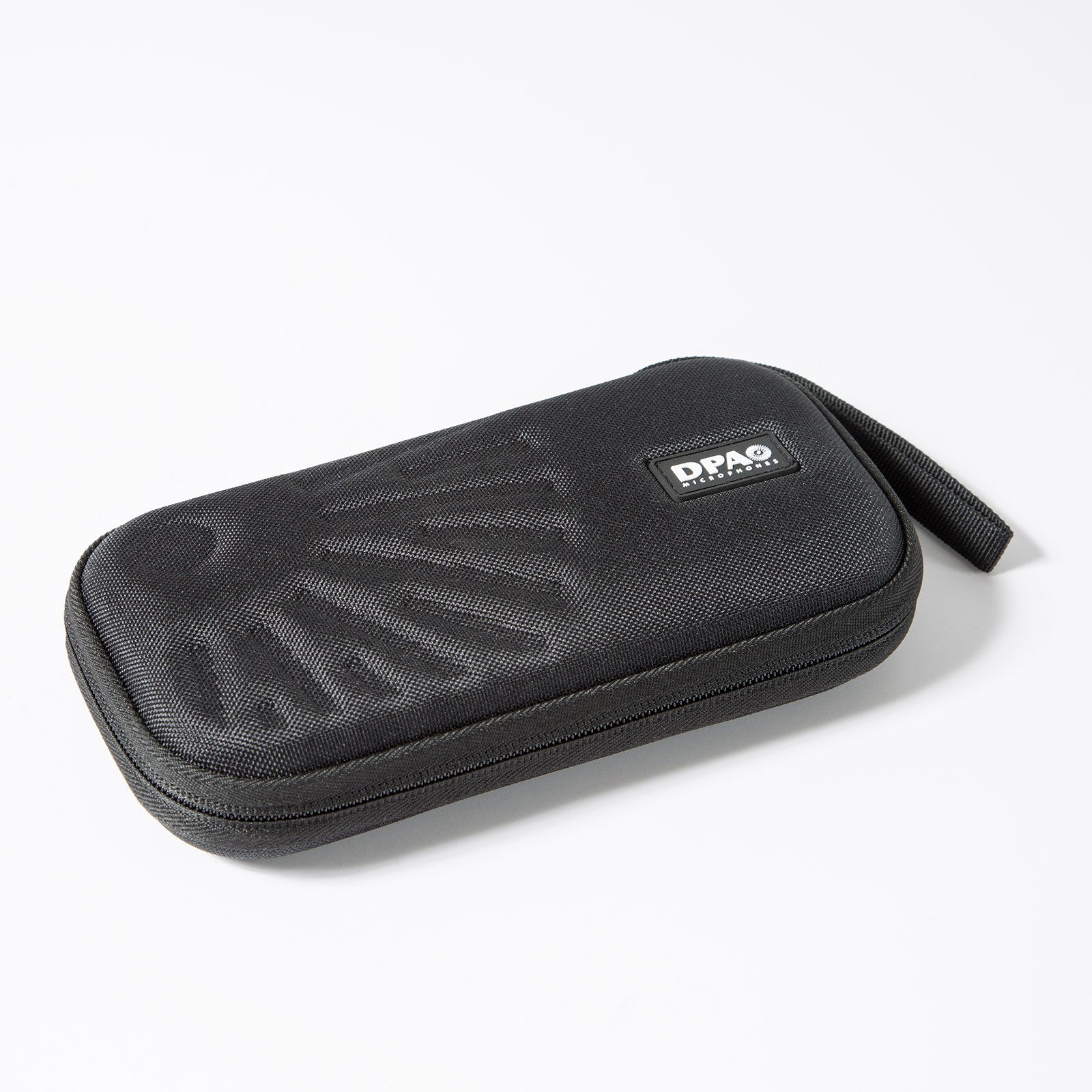

The d:screet™ Film Microphone Kit is delivered in a sturdy case with a transparent lid. Inside there is room for the microphone, one or more adapters and various microphone concealment fixtures.

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency range 20 Hz - 20 kHz
Frequency range ±2dB 100 Hz - 15 kHz with typ. 5 dB soft boost at 4 - 6 kHz
 Sensitivity, nominal, ±3 dB at 1 kHz  6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
 Equivalent noise level, ITU-R BS.468-4  Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 68 dB(A)
Total harmonic distortion (THD) < 1% up to 123 dB SPL peak
Dynamic range Typ. 97 dB
Max. SPL, peak before clipping 144 dB
Output impedance From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω
Cable drive capability  Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
 Output balance principle Signal balanced with DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power supply (for full performance) Min. 5 V to max. 50 V through DPA adapter for wireless systems
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector MicroLock
Colour Black
Weight 7.5 g (0.26 oz) incl. Cable and MicroLock connector
Microphone diameter 5.4 mm (0.21 in)
Microphone length 17 mm (0.67 in)
Cable length 1.8 m (5.9 ft)
Cable colour Black
Polarity Positively increasing sound pressure produces positive-going voltage at MicroDot pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
