DPA d:screet 4071 CORE+ ENG/EFP Microphone Kit

DPA MicrophonesSKU: KIT-4071-OP-EMK

Price:
Sale price €799.00

We have collected our award-winning d:screet™ Miniature Microphones in specialised kits that contain the mics and accessories you need to capture fantastic sound no matter what you need. Used with the vast array of complimentary accessories, d:screet™ Miniature Microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theatre, television or other close-miking settings, these mics will not disappoint.

Now available with CORE+ & MicroLock®.

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

d:screet™ 4071 ENG/EFP Microphone Kit

This microphone kit is configured to include the mic and accessories necessary for electronic news gathering and electronic field production.

It contains a d:screet™ 4071 Omnidirectional Microphone, Presence Boost with our reinforced cable relief (pre-equalized for speech clarity). Also included is an XLR Adapter with midrange attenuation (DAD6024). This provides the final tonal adjustment needed for going directly on air or to tape without editing. The combination of the mic and the XLR adapter makes voices more distinguishable and improves speech intelligibility and definition.

This mic is an outstanding speech and vocal mic. It makes voice heard and intelligible. It is also resistant to moisture, extreme temperature change and humidity.

When recording voices from mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut has been incorporated in the mic capsule so the built-in preamplifier (and the wireless system) will have much larger headroom. Furthermore, it removes distant rumbling from cars, trains, airplanes, etc.

Another equally important consideration is that when placing a microphone on the body, especially on the chest, the frequency range of the consonants is damped, resulting in poor intelligibility. The d:screet™ 4071 Omnidirectional Microphone, Presence Boost has a built-in boost to compensate for this loss. Especially for ENG work, this mic is perfect because almost no ENG mixer leaves any possibility for a compensation of this kind.

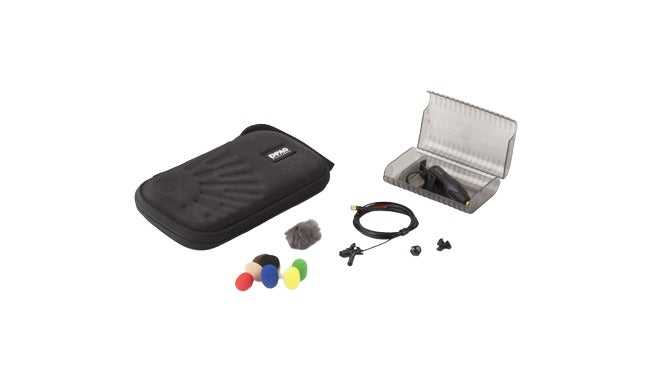

The d:screet™ ENG / EFP Microphone Kit is delivered in a sturdy case with a transparent lid. Inside there is room for the microphone, one or more adapters and various microphone concealment fixtures.

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency range 20 Hz - 20 kHz
Frequency range ±2dB 100 Hz - 15 kHz with typ. 5 dB soft boost at 4 - 6 kHz
 Sensitivity, nominal, ±3 dB at 1 kHz  6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
 Equivalent noise level, ITU-R BS.468-4  Typ. 38 dB (max. 40 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 68 dB(A)
Total harmonic distortion (THD) < 1% up to 123 dB SPL peak
Dynamic range Typ. 97 dB
Max. SPL, peak before clipping 144 dB
Output impedance From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω
Cable drive capability  Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
 Output balance principle Signal balanced with DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR) > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power supply (for full performance) Min. 5 V to max. 50 V through DPA adapter for wireless systems
Current consumption Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector MicroLock
Color Black
Weight 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter 5.4 mm (0.21 in)
Microphone length 17 mm (0.67 in)
Cable length 1.8 m (5.9 ft)
Cable color Black
Polarity Positively increasing sound pressure produces positive-going voltage at MicroDot pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
