Complete kit with mics and accessories
We have collected our award-winning miniature lavalier microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.
Used with the vast array of complimentary accessories, our miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theatre, television or other close-miking settings, these mics will not disappoint.

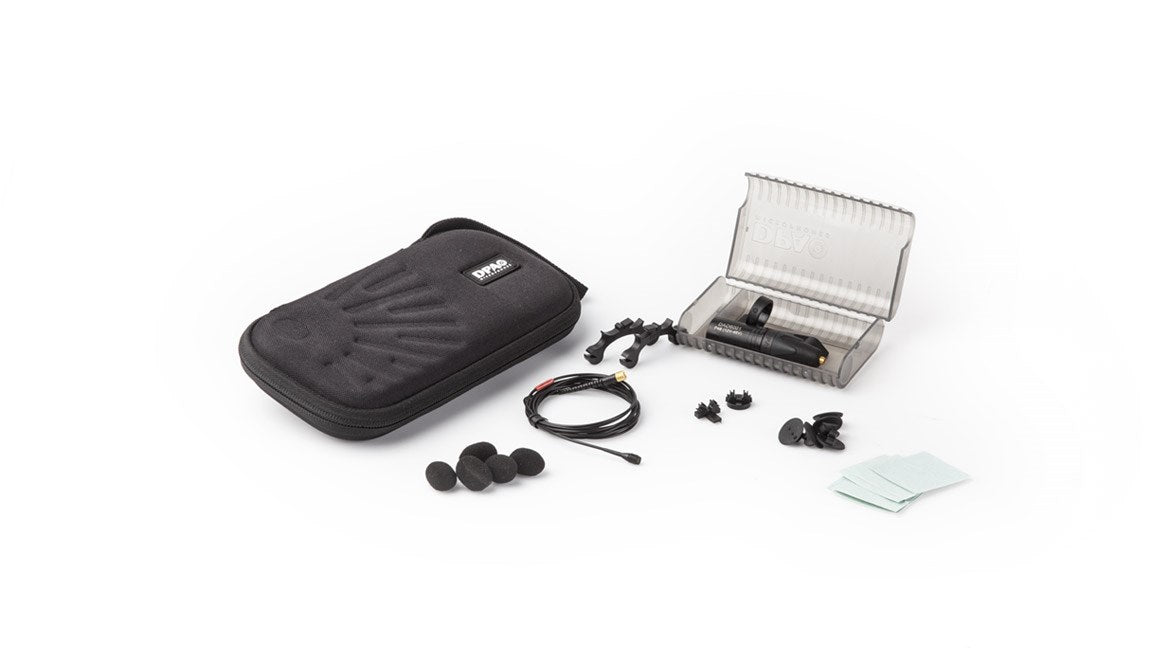

4061 Instrument Microphone Kit
Similar to the 4060 Instrument Microphone Kit, this kit is designed to use as a close-miking solution for a wide variety of musical instruments. The 4061 Miniature Omnidirectional Microphone, Loud SPL offers a very clean, detailed and natural sound quality. This leaves it up to the user to decide on the correct placement to achieve the desired timbre. The mic can handle 144 dB peak before clipping, allowing the microphone to be used even for snare drums, guitar/bass speaker cabinets or other high SPL sound sources.
This kit is also perfect for studio use or amplification for live use. There are many accessories included in the kit. It contains holders for strings, universal surface mounts with double-sided tape, a magnet mount and foam windscreens.
Features:
- Extremely rugged and reliable
- Exceptional audio quality
- Low noise and high sensitivity
- Large selection of accessories
- Modular adapter system fits most professional wireless systems
| Directional pattern | Omnidirectional |
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz |
| Frequency range ±2dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 68 dB(A) |
| Total harmonic distortion (THD) | < 1% up to 123 dB SPL peak |
| Dynamic range | Typ. 97 dB |
| Max. SPL, peak before clipping | 144 dB |
| Output impedance | From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroLock |
| Colour | Black |
| Weight | 7.5 g (0.26 oz) incl. Cable and MicroDot connector |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.7 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable color | Black |
| Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
