Complete kit with mics and accessories
We have collected our award-winning miniature lavalier microphones in specialised kits that contain the mics and accessories you need to capture fantastic sound no matter what you need. Used with the vast array of complimentary accessories, our miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theatre, television or other close-miking settings, these mics will not disappoint.
Now available with CORE+ & MicroLock®.
CORE+ takes your miniature mic to the next level, neutralising distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

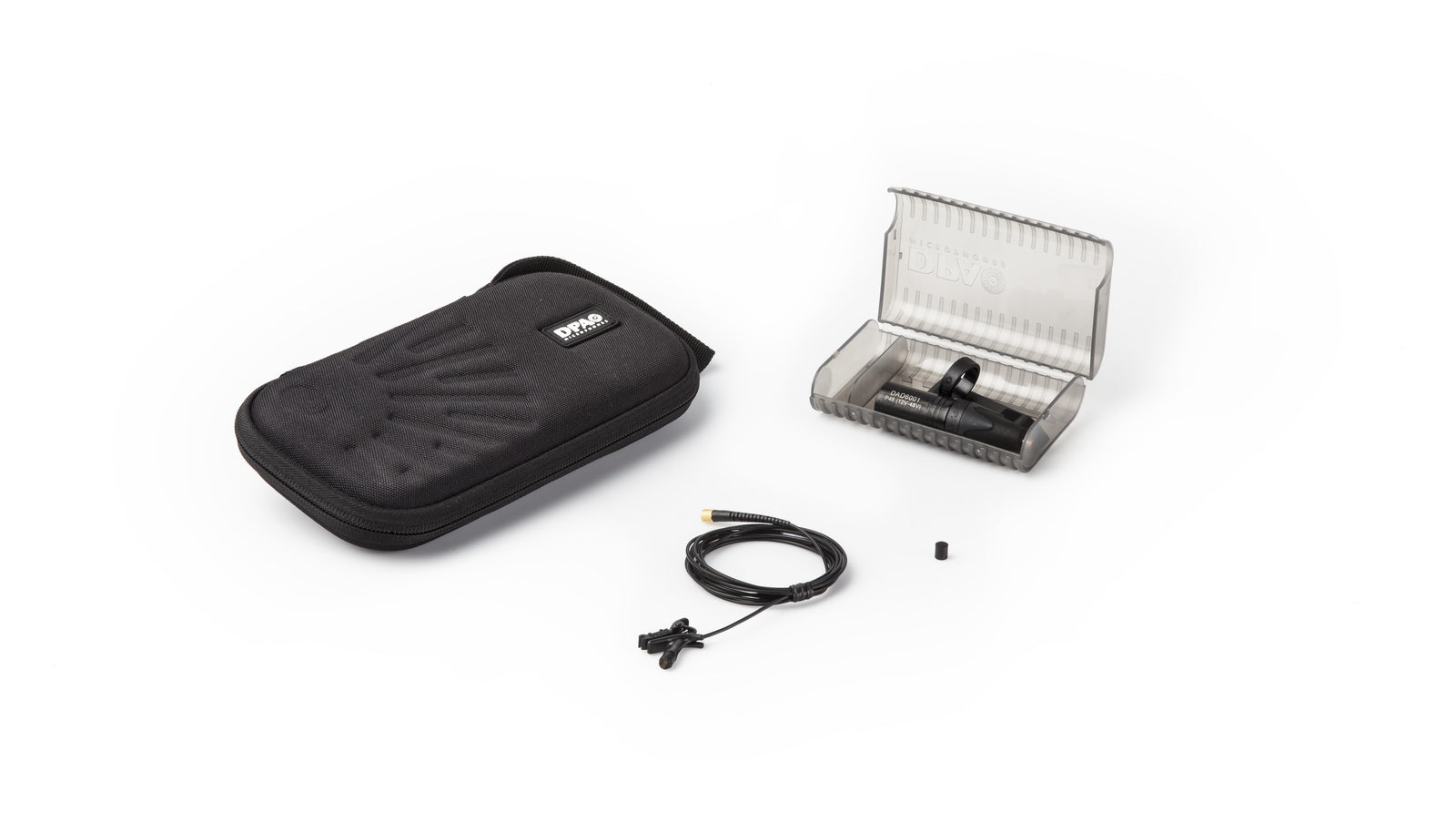

4060 Lavalier Microphone Kit
This kit is perfect for broadcasters, TV studios, news anchors and other public speakers.
It is a robust and unobtrusive solution; the tiny 4060 Miniature Omnidirectional Microphone, Normal SPL is placed in the smallest holder on the market where it is protected from rough handling.
This mic is very natural sounding, offering great detail and resolution. It has a very low noise floor, impressive sensitivity and can handle high SPL.
| Directional pattern | Omnidirectional |
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz |
| Frequency range ±2dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 20 mV/Pa; -34 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 35 dB (max. 38 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 71 dB(A) |
| Total harmonic distortion (THD) | < 1% up to 123 dB SPL peak |
| Dynamic range | Typ. 100 dB |
| Max. SPL, peak before clipping | 134 dB |
| Output impedance | From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω |
| Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
| Output balance principle | Signal balanced with DAD6001-BC XLR Adapter |
| Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
| Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
| Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
| Connector | MicroLock |
| Color | Black |
| Weight | 7.5 g (0.26 oz) incl. Cable and MicroDot connector |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.7 in) |
| Cable length | 1.8 m (5.9 ft) |
| Cable color | Black |
| Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
