DPA ST4015A Stereo Pair of Wide Cardioid Microphones

Save 5%
DPA MicrophonesSKU: ST4015A

Price:
Sale price€3,499.00 Regular price€3,695.00

4015 Wide Cardioid Stereo Pair

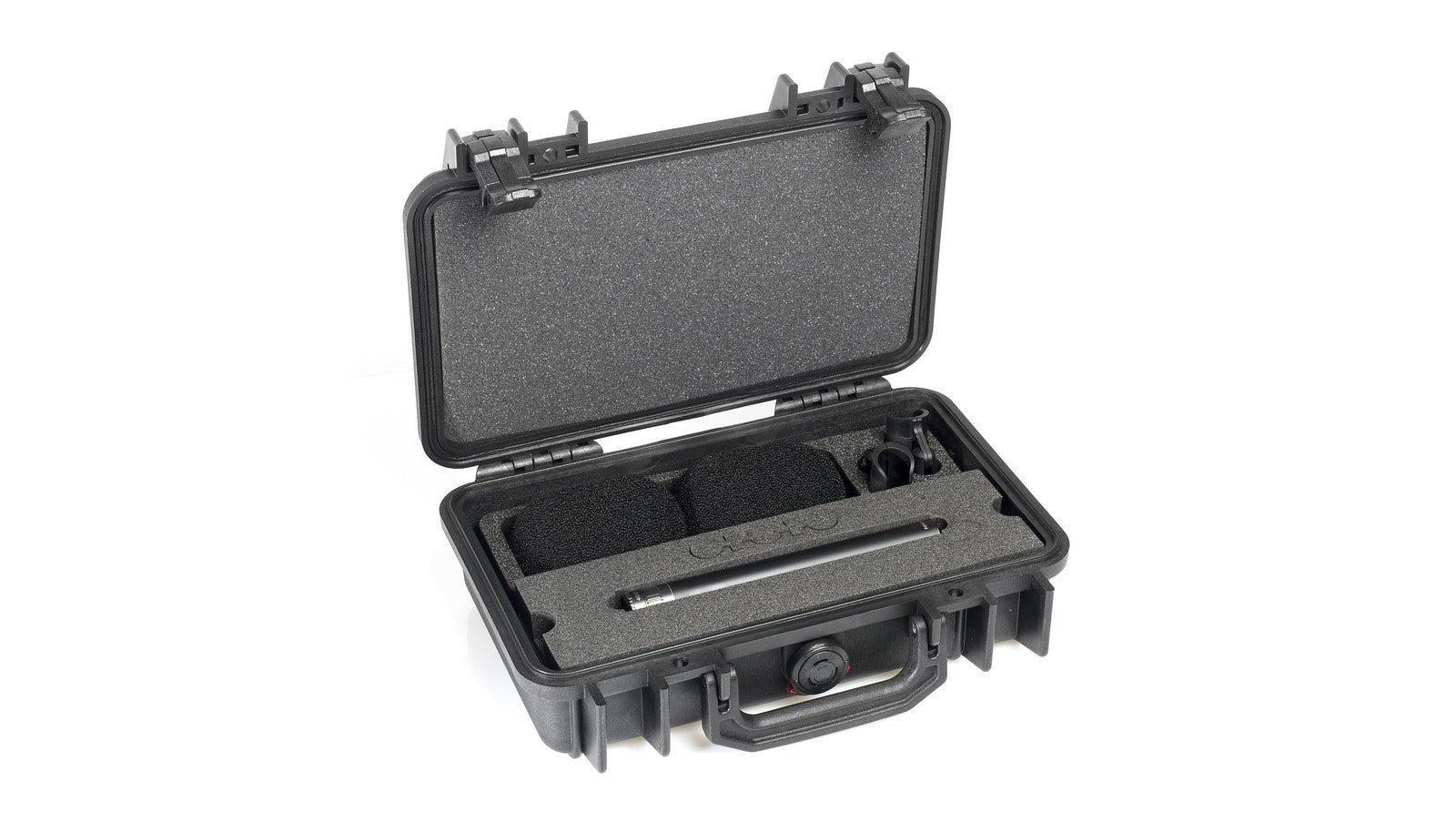

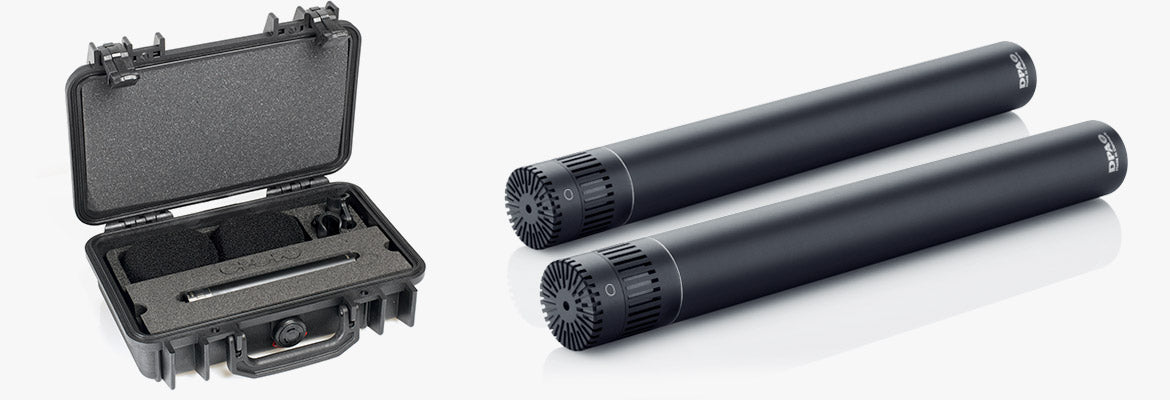

A complete Stereo Pair with two carefully factory-matched d:dicate™ 4015 Wide Cardioid Microphones. Even though the standard tolerances on d:dicate™ series are extremely low, a stereo match is even closer. These mics are matched within ±1 dB on both frequency response and sensitivity. The pair comes with two 4015 mics, clips and windscreens in a Peli™ Case.

The d:dicate™ 4015 Wide Cardioid Microphone

The off-axis characteristics of the MMC4015 Wide Cardioid Microphone Capsule are totally linear, a unique quality when it comes to authentic sound reproduction. Any leakage that occurs from off-axis sound sources is still a faithful reproduction of these sounds, just softly attenuated.

Sometimes a conventional cardioid pattern just isn’t quite open enough. Recording orchestras or other ensembles sometimes requires a compromise between blending in the room reverberation and a more precise localization. When recording instruments with complex radiation patterns, the wide cardioid (also known as hemispheric) design covers a greater sound angle and is an excellent choice. This is the often ideal mic for recording grand piano, guitar, marimba, and percussion, or as a spot mic for groups in a symphony orchestra. Likewise, it is an excellent speech, dubbing, or vocal mic as its enhanced richness on the bass end nicely compliments many voices.

ST4015A Stereo Pair

Our wide cardioid microphones are capable of handling extremely high sound pressure levels before clipping occurs. The d:dicate™ 4015A Wide Cardioid Microphone even includes a 20 dB pad switch in the center of the XLR connector to prevent overloading of the mic amplifier.

The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.

4015A Specs

Directional pattern Wide Cardioid
Principle of operation Pressure Gradient
Cartridge type Pre-polarized condenser,
Frequency range 20 Hz - 20 kHz
Frequency range ±2dB 40 Hz - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))
Equivalent noise level, ITU-R BS.468-4  Typ. 25 dB (correct with the attenuator in 0 dB or -20 dB setting)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 76 dB(A)
Total harmonic distortion (THD) < 1% up to 139 dB SPL peak
Dynamic range Typ. 121 dB
Max. SPL, peak before clipping 159 dB
Switchable attenuator, filters etc. 0 dB / -20 dB
Output impedance 200 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Colour Matte Black
Weight 158 g (5.6 oz)
Microphone diameter 19 mm (0.75 in)
Microphone length 170 mm (6.7 in)
Maximum output voltage, RMS > 5 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
