4011 Cardioid Stereo Pair

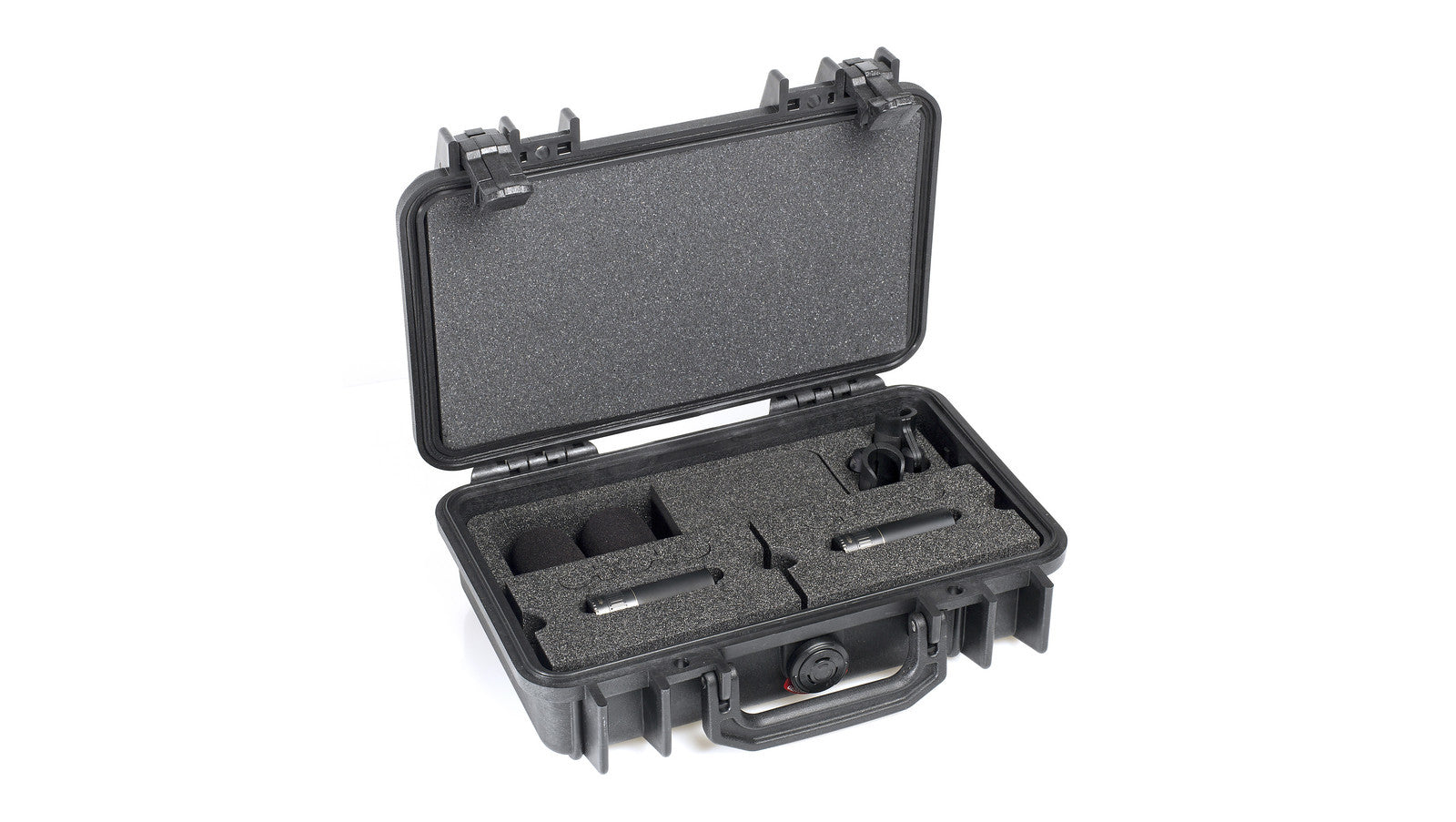

Even though the standard tolerances on our d:dicate™ microphones are extremely low, a stereo match is even closer. These specially selected d:dicate™ 4011A Cardioid Microphones are matched within ±1 dB on both frequency response and sensitivity. The pair comes in a heavy-duty Peli™ Case for safe transportation and easy access to the microphones and accessories.
The d:dicate™ 4011 Cardioid Microphone
The principal appeal of the 4011 Cardioid Microphone is its directional quality and attention to detail. This mic makes everything sounds like the original. The first-order cardioid pickup pattern provides superb separation between sound sources.
It is equally suitable for close-up work on acoustic guitar, grand piano, overheads, percussion, wind instruments and vocals as it is for spot-miking symphonies. It can handle incredibly high sound levels and even includes a 20 dB pad switch in the centre of the XLR connector to attenuate the output of the microphone.
A flat on-axis frequency response and excellent phase response deliver a totally faithful reproduction of the original sound. The off-axis response is similarly smooth so that any leakage is an accurate reflection of the original, though attenuated according to the true first-order cardioid pickup pattern.

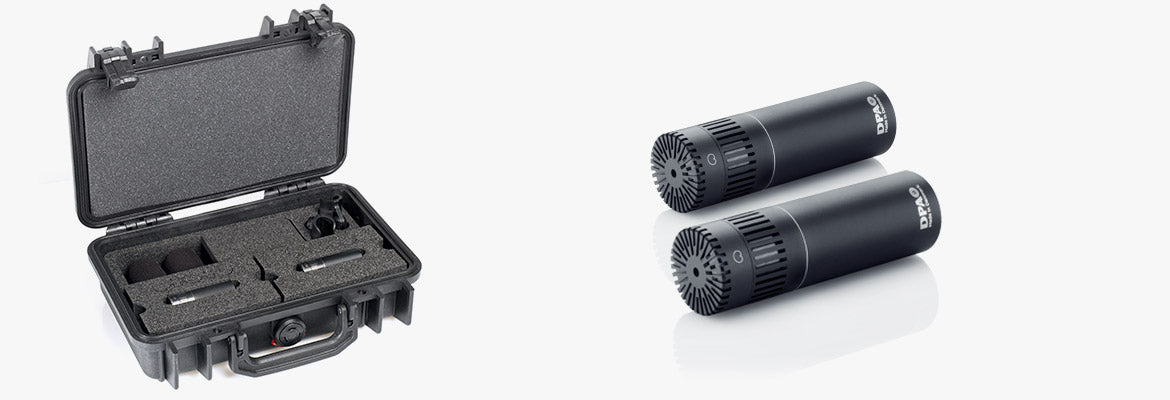

ST4011C Stereo Pair
This pair is similar to the ST4011A Stereo Pair, using the same MMC4011 Cardioid Microphone Capsule to gain its amazing sound. Designed to be hidden from view, the diminutive design and high performance of the d:dicate™ 4011C Cardioid Microphone, Compact makes it the outstanding choice for unobtrusively miking all types of television, film, theatre, concert and studio performances.
When used to spot-mike larger orchestras, these mics are hard to beat. Capable of handling high SPLs without distortion, the d:dicate™ 4011C Cardioid Microphone, Compact is perfectly tailored for close-miking applications; minimizing bleed from other instruments. In film and TV studios, they are excellent for off-camera voice recording or Foley work. For live on-camera recordings, their matte black finish gives them a classic yet inconspicuous appearance, while for sound reinforcement in concert halls, theatres and houses of worship, they provide clean, natural sound while reducing the noticeable effect of lighting reflection.
4011C Specs
| Directional pattern | Cardioid |
| Principle of operation | Pressure Gradient, |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz |
| Frequency range ±2dB | 40 Hz - 20 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 10 mV/Pa; -40 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 25 dB |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 76 dB(A) |
| Total harmonic distortion (THD) | < 1% up to 139 dB SPL peak |
| Dynamic range | Typ. 121 dB |
| Max. SPL, peak before clipping | 152 dB |
| Output impedance | 100 Ω |
| Minimum load impedance | 2 kΩ |
| Cable drive capability | 100 m (328 ft) |
| Output balance principle | Impedance balancing with Active Drive |
| Common mode rejection ratio (CMRR) | > 50 dB |
| Power supply (for full performance) | 48 V Phantom power (± 4 V) |
| Current consumption | 2.8mA |
| Connector | XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase |
| Colour | Matte Black |
| Weight | 58 g (2 oz) |
| Microphone diameter | 19 mm (0.75 in) |
| Microphone length | 64 mm (2.5 in) |
| Maximum output voltage, RMS | > 4 V |
| Polarity | +V at pin 2 for positive sound pressure |
| Temperature range | -40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
