DPA d:dicate ST2011C Pair of Compact Twin Diaphragm Mics

Save 8%
DPA MicrophonesSKU: ST2011C

Price:
Sale price€1,599.00 Regular price€1,729.00

2011 Cardioid Stereo Pair

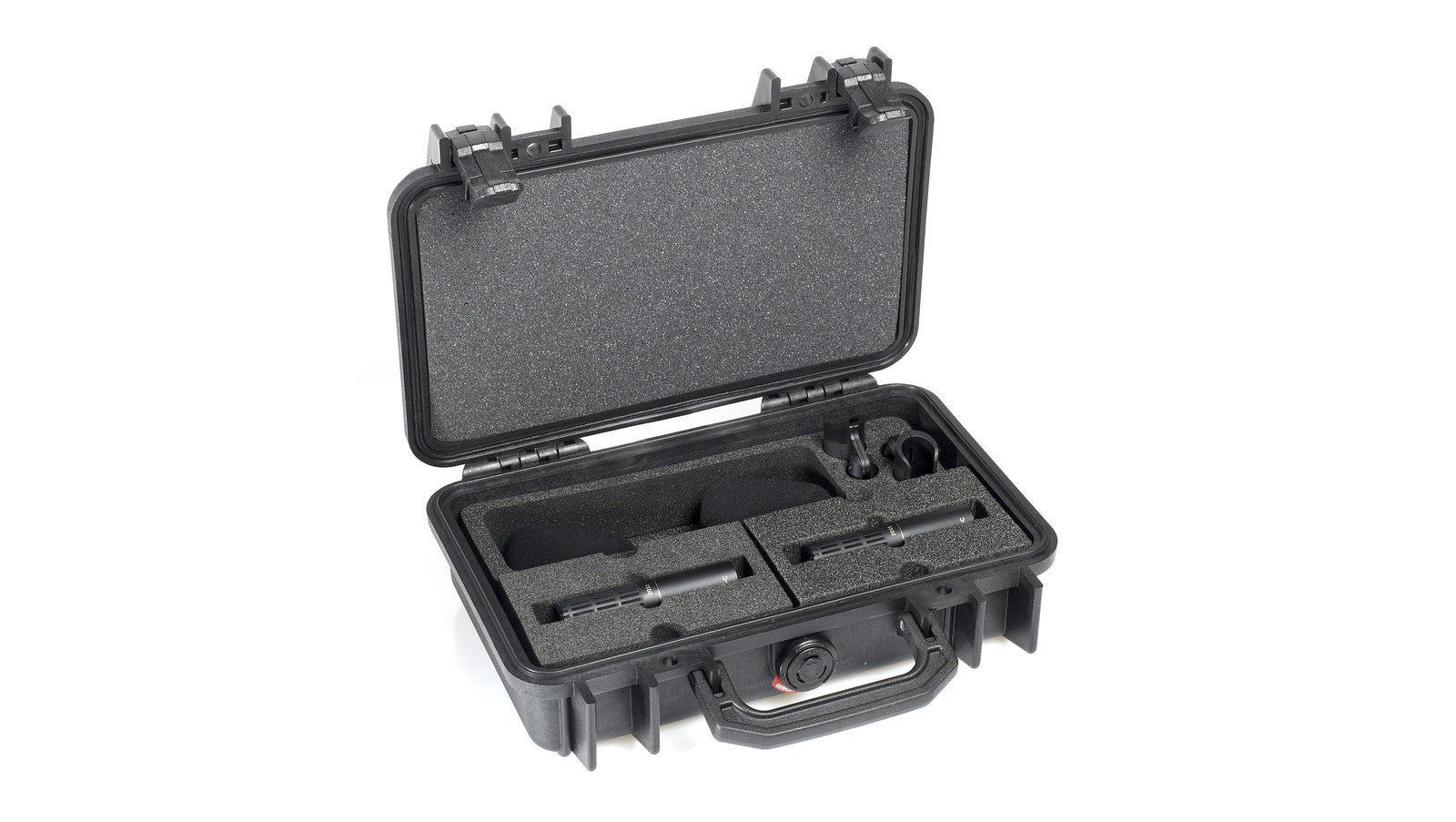

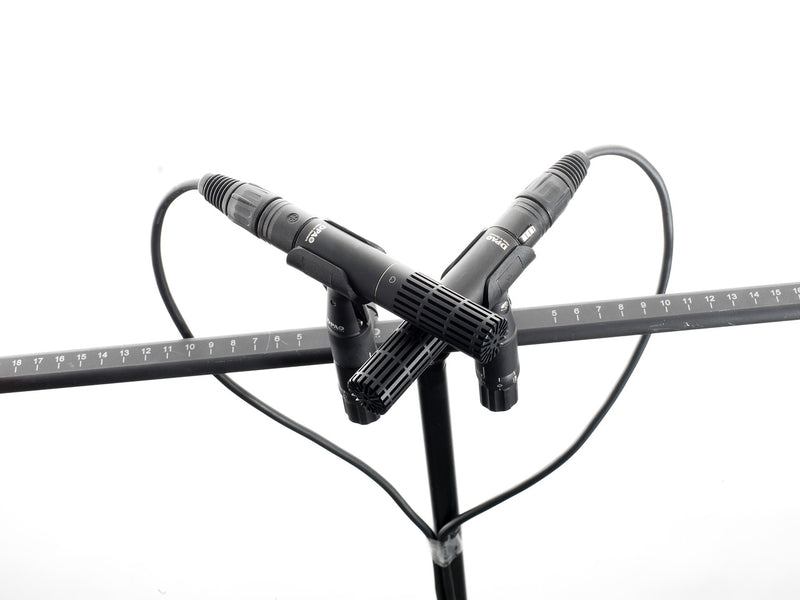

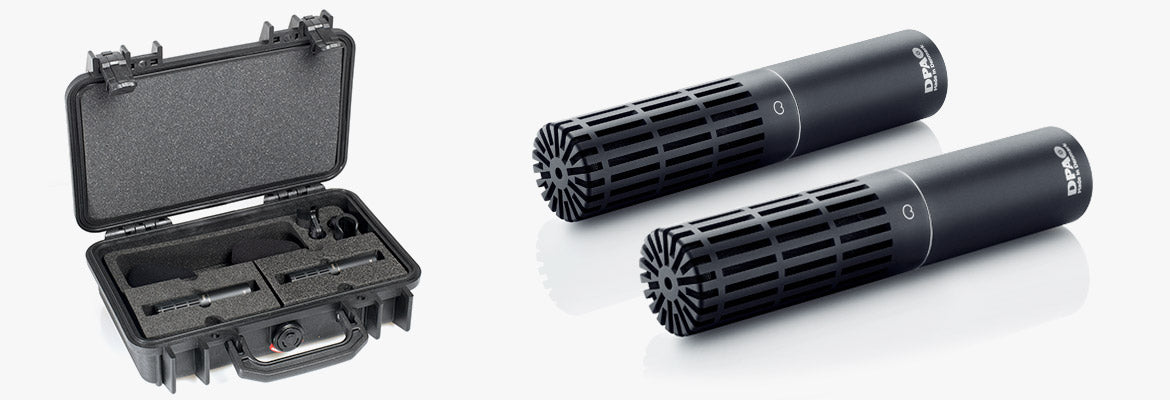

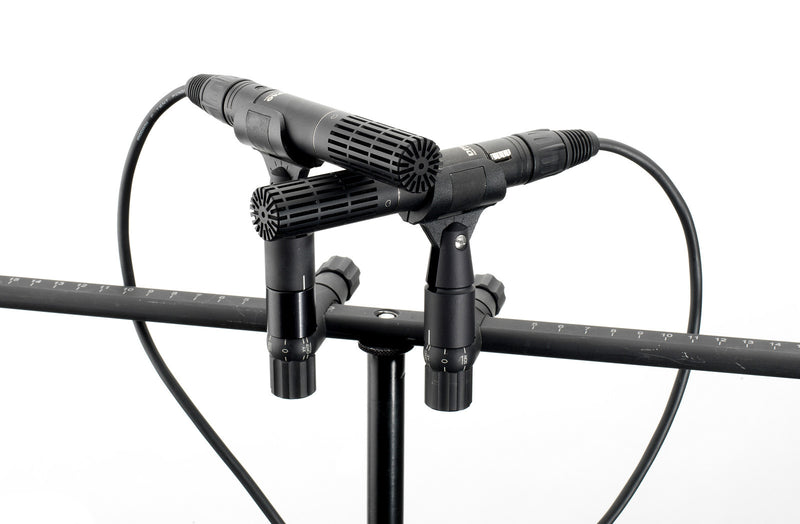

This complete stereo pair contains two handpicked d:dicate™ 2011 Twin Diaphragm Cardioid Microphones, selected on sensitivity within ±1.5 dB. These mics make several stereo principles like XY and ORTF easy to obtain. The pair contains mics, windscreens and clips all packaged in a Peli™ Case.

The 2011 Twin Diaphragm Cardioid Microphone

Inside the 2011 Twin Diaphragm Cardioid Microphone, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

Inside the MMC2011 Twin Diaphragm Cardioid Capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to the supreme d:dicate™ Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.

ST2011C Stereo Pair
Together with the MMP-C preamp, this makes a small, lightweight and inconspicuous stereo pair.

The compact design and controlled directionality of these mics make them an excellent choice for spot mics for classical recording and on-stage close mics for live sound.

2011C Specs

Directional pattern Cardioid
Principle of operation Pressure Gradient, with interference tube
Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range 20 Hz - 20 kHz
Frequency range ±2dB 50 Hz - 17 kHz with typ. 3 dB soft boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 10 mV/Pa; -40 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 20 dB(A) re. 20 µPa (max. 23 dB(A))
Equivalent noise level, ITU-R BS.468-4  Typ. 33 dB (max. 36 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 74 dB(A)
Total harmonic distortion (THD) < 1% up to 137 dB SPL peak
Dynamic range Typ. 117 dB
Max. SPL, peak before clipping 146 dB
Output impedance 100 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 50 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Colour Matte Black
Weight 64 g (2.3 oz)
Microphone diameter 19 mm (0.75 in)
Microphone length 92 mm (3.6 in)
Maximum output voltage, RMS > 4 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
