DPA ST2006A Stereo Pair of Twin Diaphragm Omni Mics

Save 8%
DPA MicrophonesSKU: ST2006A

Price:
Sale price€1,895.00 Regular price€2,049.00

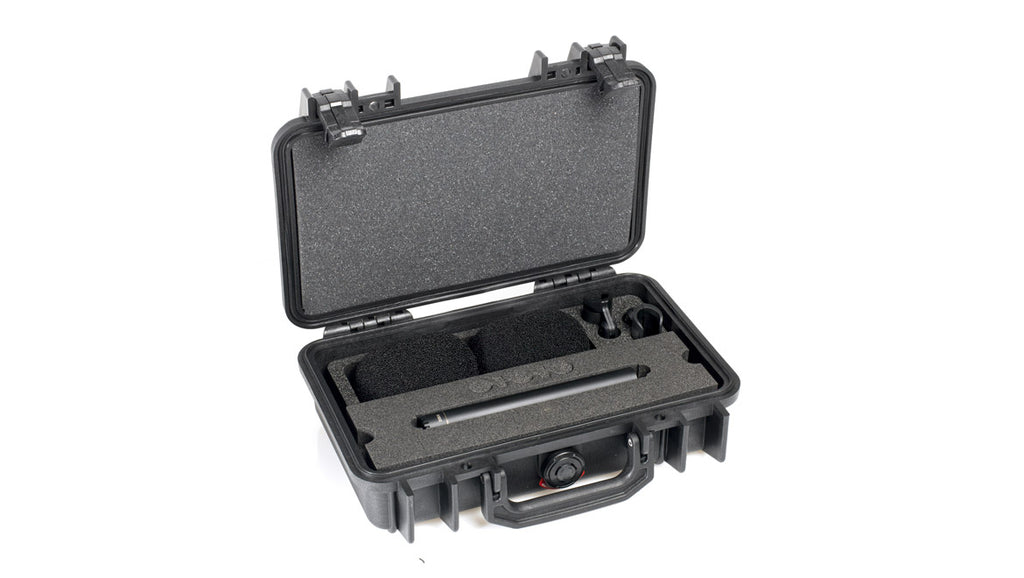

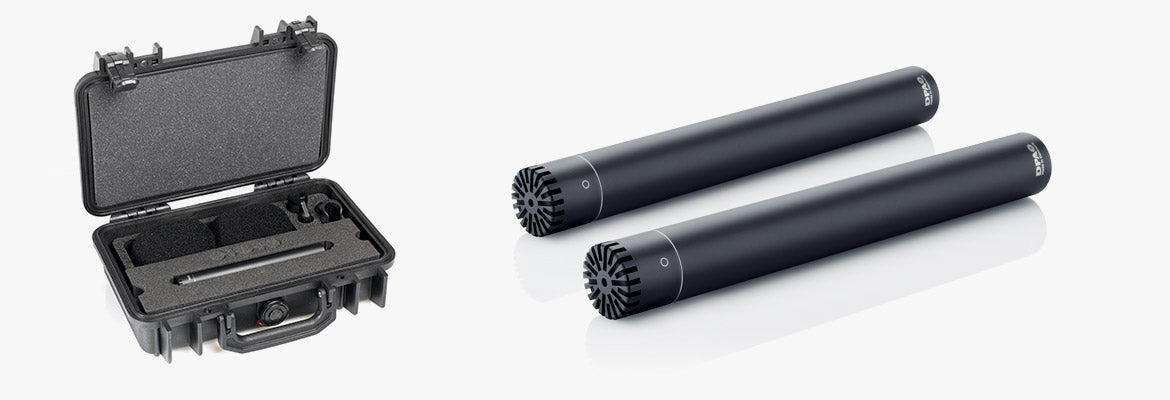

This kit contains a complete stereo pair; two handpicked d:dicate™ 2006 Twin Diaphragm Omnidirectional Microphones, selected on sensitivity within ±1.5 dB. The mics deliver precise sound and true tone. These mics are ideal for use with orchestra, acoustic piano, guitar, wind instruments and choirs. The two 2006s comes with Clips and Windscreens all packed in a Peli™ Case.

The d:dicate™ 2006 Twin Diaphragm Omnidirectional Microphone

Inside the MMC2006 Twin Diaphragm Omnidirectional Capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth.

The capsules are loaded to the supreme d:dicate™ Microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision.

Comparisons with its big brother, the iconic 4006 Omnidirectional Microphone, are inevitable. The relationship between the two can be clearly heard. The 2000 series performs as well as more exclusive microphones. It is a premium-class microphone and redefines the term value for money.

ST2006A Stereo Pair

Together with the MMP-A preamp this condenser mic bridges the gap between the extreme sound quality of the d:dicate™ Microphones series and our well-known Miniature Microphones in the d:screet™ series.

2006A Specs

Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser, Twin Diaphragm Capsule
Frequency range 20 Hz - 20 kHz
Frequency range ±2dB 50 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
 Sensitivity, nominal, ±3 dB at 1 kHz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
 Equivalent noise level, ITU-R BS.468-4  Typ. 28 dB (max. 30 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 78 dB(A)
Total harmonic distortion (THD) < 1% up to 130 dB SPL peak
Dynamic range Typ. 114 dB
Max. SPL, peak before clipping 146 dB
Switchable attenuator, filters etc. 0 dB / -20 dB
Output impedance 200 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
 Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Colour Matte Black
Weight 160 g (5.6 oz)
Microphone diameter 19 mm (0.75 in)
Microphone length 164 mm (6.5 in)
Maximum output voltage, RMS 8V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
