Now available with CORE+ & MicroLock®.

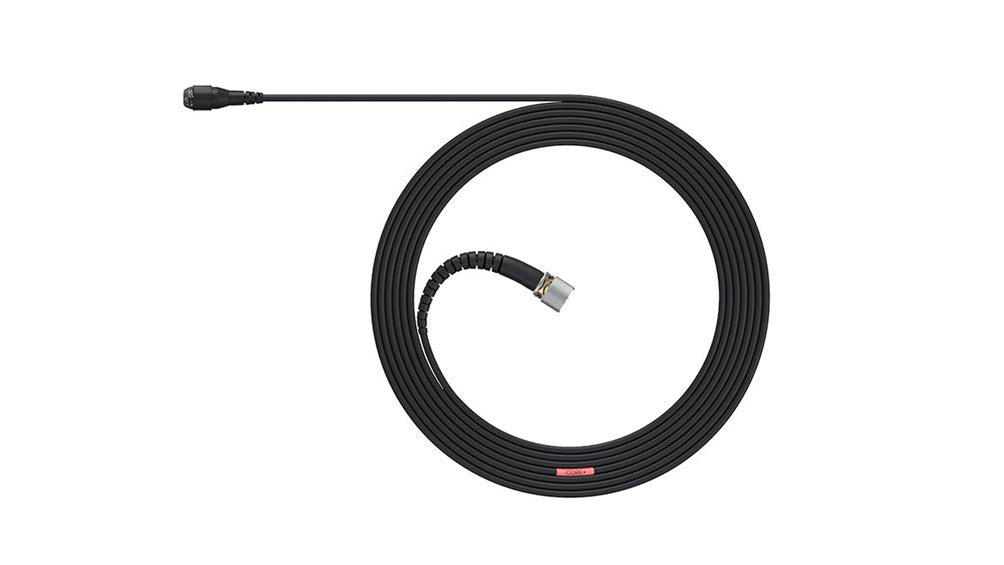

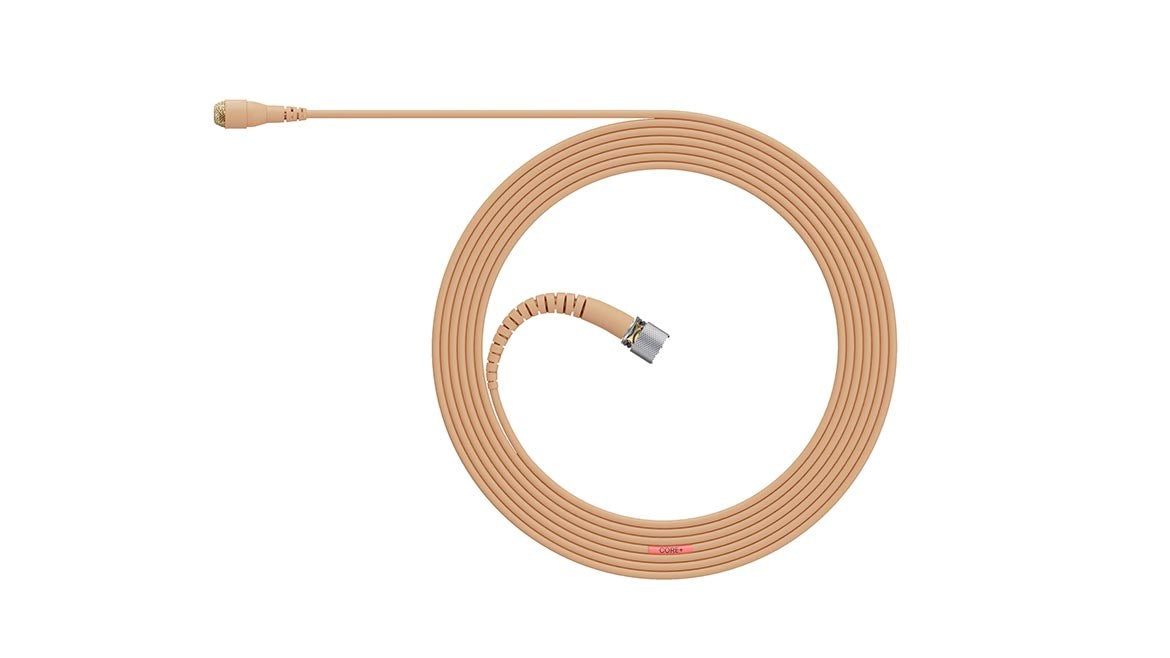

CORE+ takes your miniature mic to the next level, neutralising distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.
4060 Series
This series contains the 4060, 4061, 4062, 4063 and 4071 Omni Miniature Mics. Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original d:screet™ 4060; the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimised for particular applications.
The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
This microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.
We originally designed this microphone for use with wireless systems in theatres but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.
d:screet™ 4062 Miniature Omnidirectional Microphone, Extreme SPL
This mic is similar to the others in this series, but is sensitivity adjusted to match extremely loud sound pressure levels. With the correct power source, the microphone will be able to handle sound pressure levels up to 154 dB before clipping occurs, making it ideal for close-miking drums and brass. The microphone is also the perfect choice for miking in the engine compartment of cars or directly in the exhaust pipes.

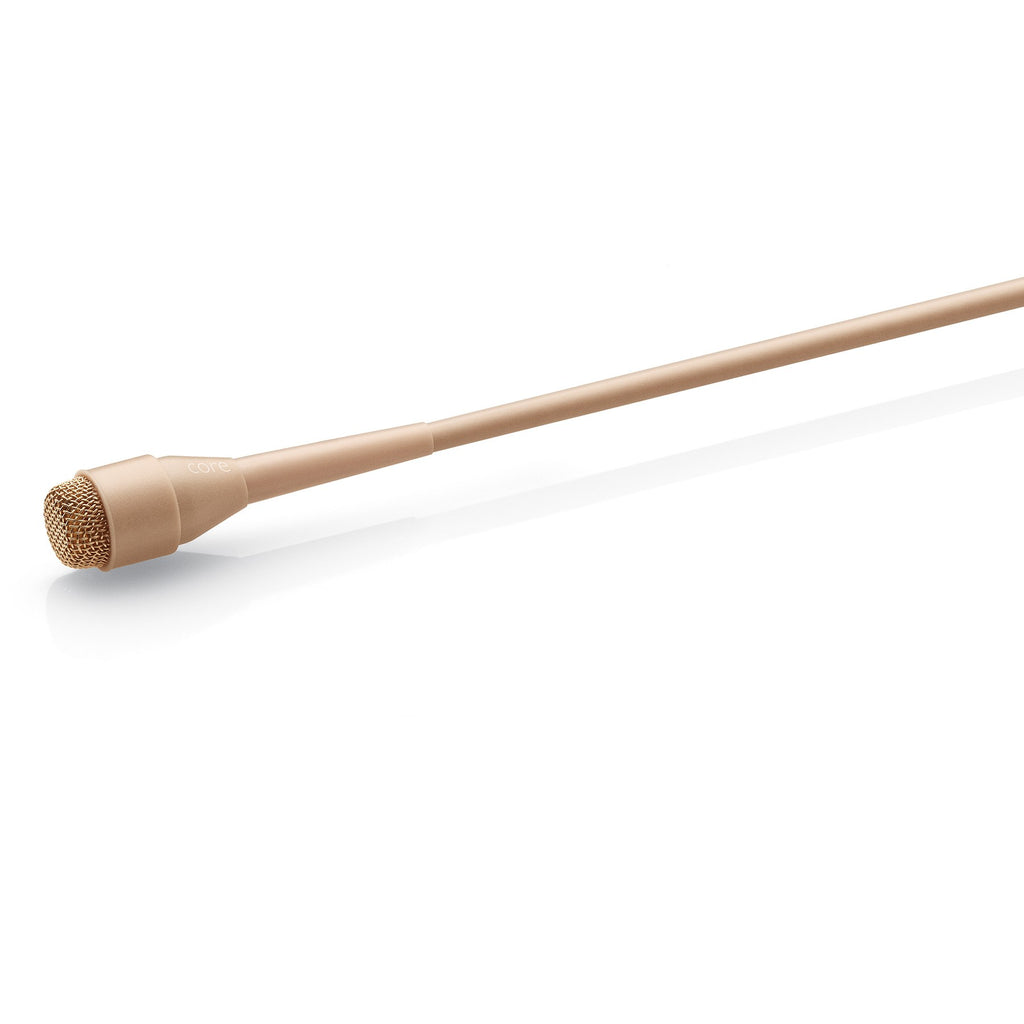

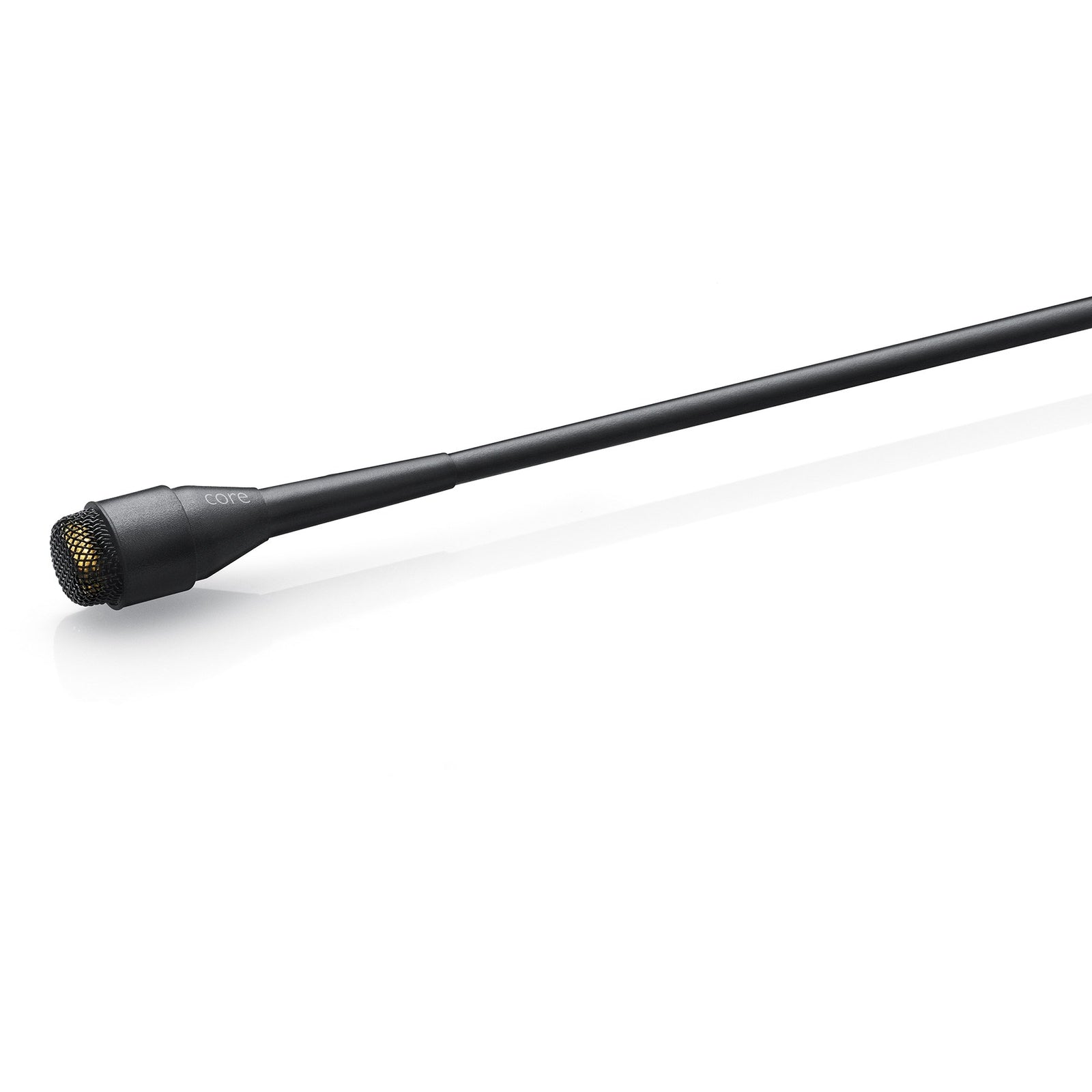

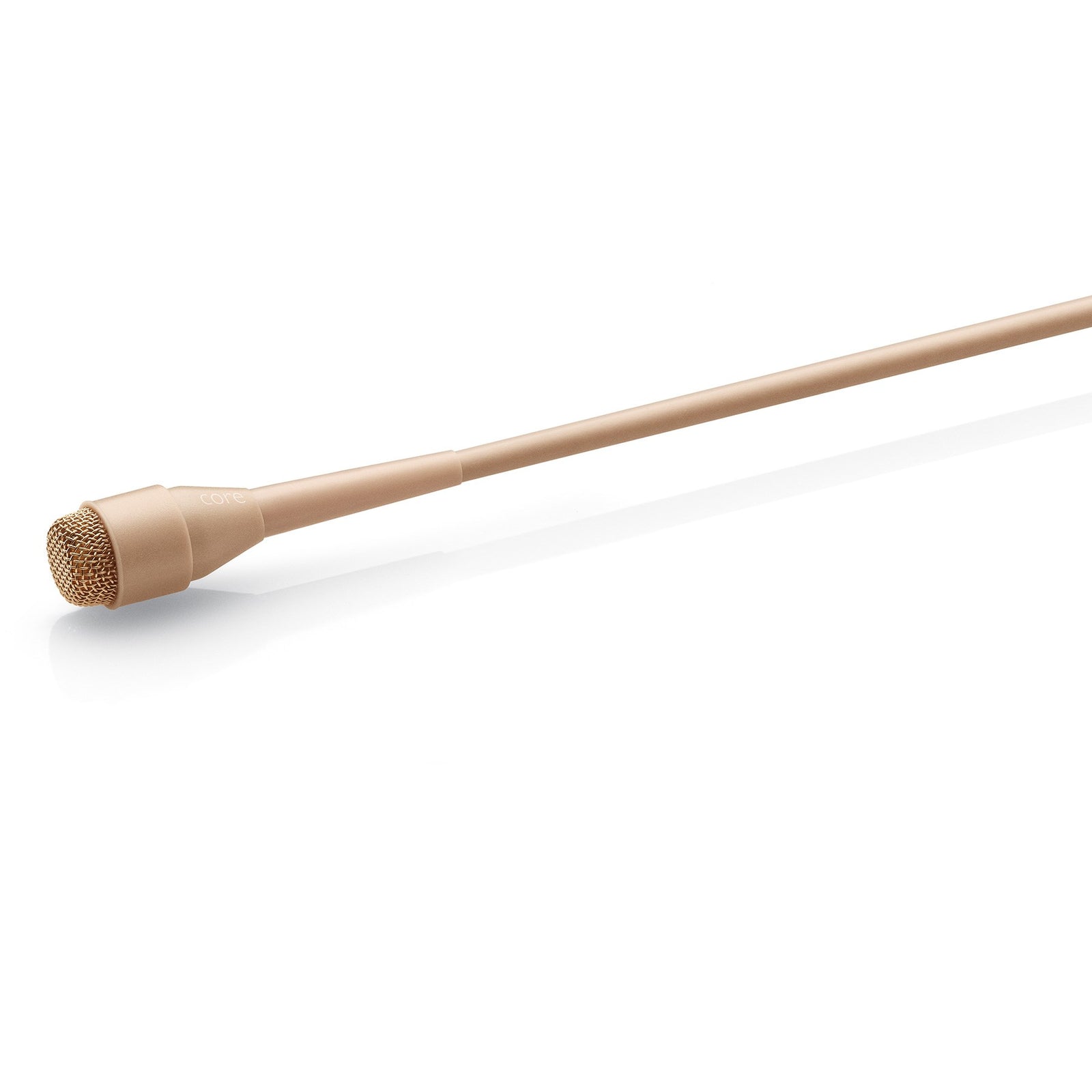

The d:screet™ 4062 Miniature Omnidirectional Microphone, Extreme SPL; is available in two colours: black and beige.
Features:
- Exceptional audio quality
- Uniform, consistent sound between DPA mics
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories
- Modular adapter system fits most professional wireless systems
Specifications
| Directional pattern | Omnidirectional |
| Principle of operation | Pressure |
| Cartridge type | Pre-polarized condenser |
| Frequency range | 20 Hz - 20 kHz |
| Frequency range, ±2 dB |
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
| Sensitivity, nominal, ±3 dB at 1 kHz | 1 mV/Pa; -60 dB re. 1 V/Pa |
| Equivalent noise level, A-weighted | Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A)) |
| Equivalent noise level, ITU-R BS.468-4 | Typ. 45 dB (max. 49 dB) |
| S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 61 dB(A) |
| Total harmonic distortion (THD) - Legacy | < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine |
| Total harmonic distortion (THD) - CORE | < 1% THD up to 129 dB SPL peak |
| Dynamic range - Legacy | Typ. 90 dB |
| Dynamic range - CORE | Typ. 106 dB |
| Max. SPL, peak before clipping | 154 dB |
| Output impedance | 30 - 40 Ω |
| Cable drive capability | Up to 300 m (984 ft) |
| Power supply (for full performance) | For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance |
| Connector | MicroDot or MicroLock |
| Colour |
Black or beige |
|
Weight |
7.5 g (0.26 oz) incl. Cable and MicroDot connector |
| Microphone diameter | 5.4 mm (0.21 in) |
| Microphone length | 12.7 mm (0.5 in) |
| Cable length | 1.8 m (5.9 ft) |
| Polarity | Positively increasing sound pressure produces positive going voltage on MicroDot pin |
| Temperature range | 40°C to 45°C (-40°F to 113°F) |
| Relative humidity (RH) | Up to 90% |
