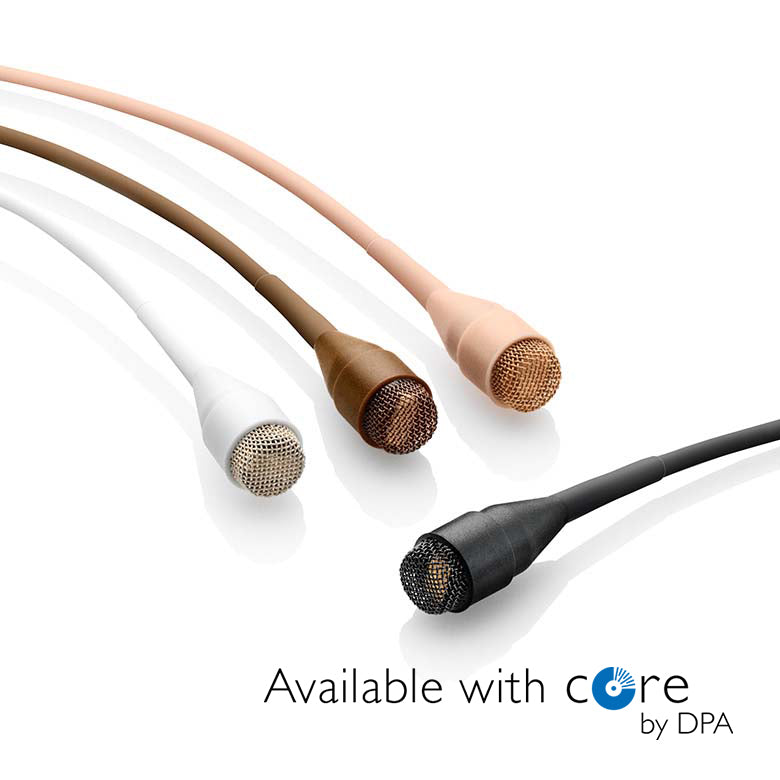

Now available with CORE+ & MicroLock®.
CORE+ takes your miniature mic to the next level, neutralising distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.
4060 Series
This series contains the 4060, 4061, 4062, 4063 and 4071 Omni Miniature Mics. Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original d:screet™ 4060; the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimised for particular applications.
The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.
The acoustic response of the d:screet™ 4060 Series can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the d:screet™ 4071, which includes a fixed grid). The pre-fitted Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz. It should be used when the microphone is mounted on the performer’s head as well as in most other applications where you need a natural-sounding microphone. When fitted, the High Boost Grid introduces a 10 dB soft boost around 12 kHz for applications where the microphones chest-placement is preferred. Both of these grids are made of anodised stainless steel, giving a tough and scratch resistant surface. They can be detached from the microphone and cleaned of sweat, makeup, etc.
This microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

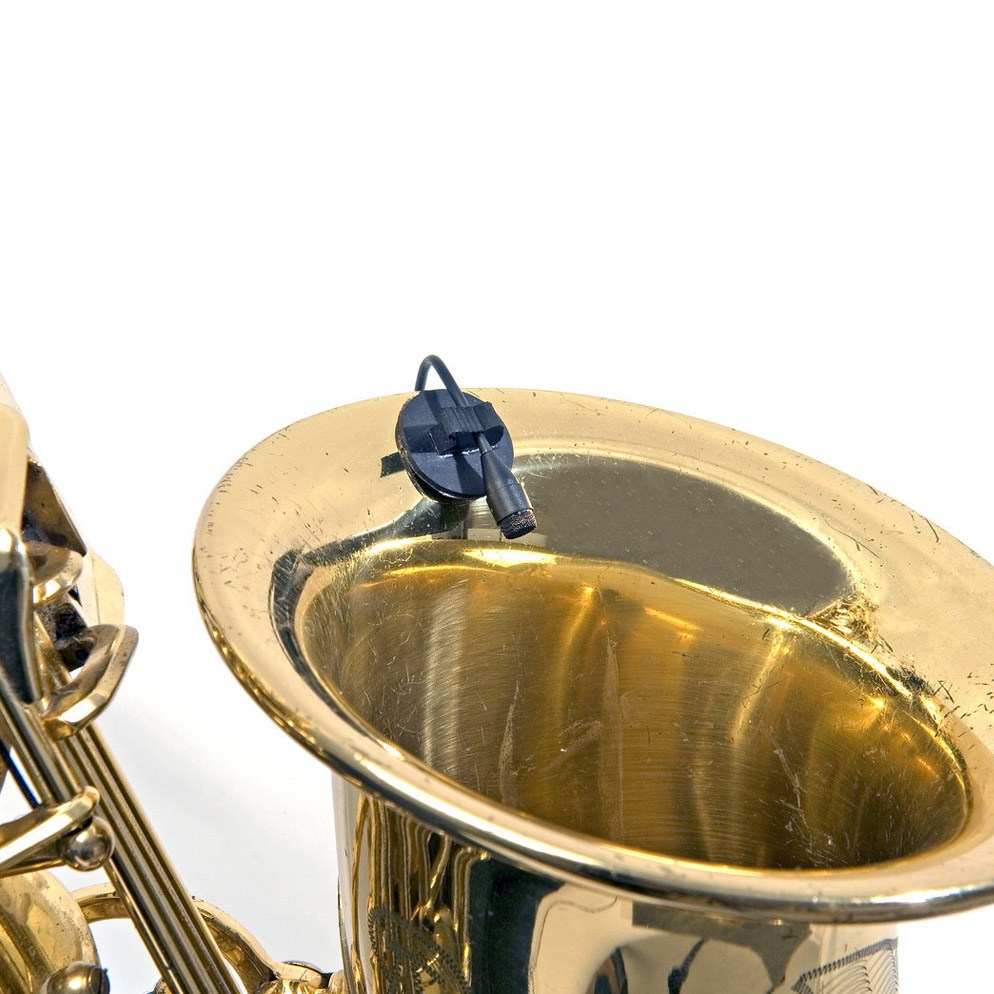

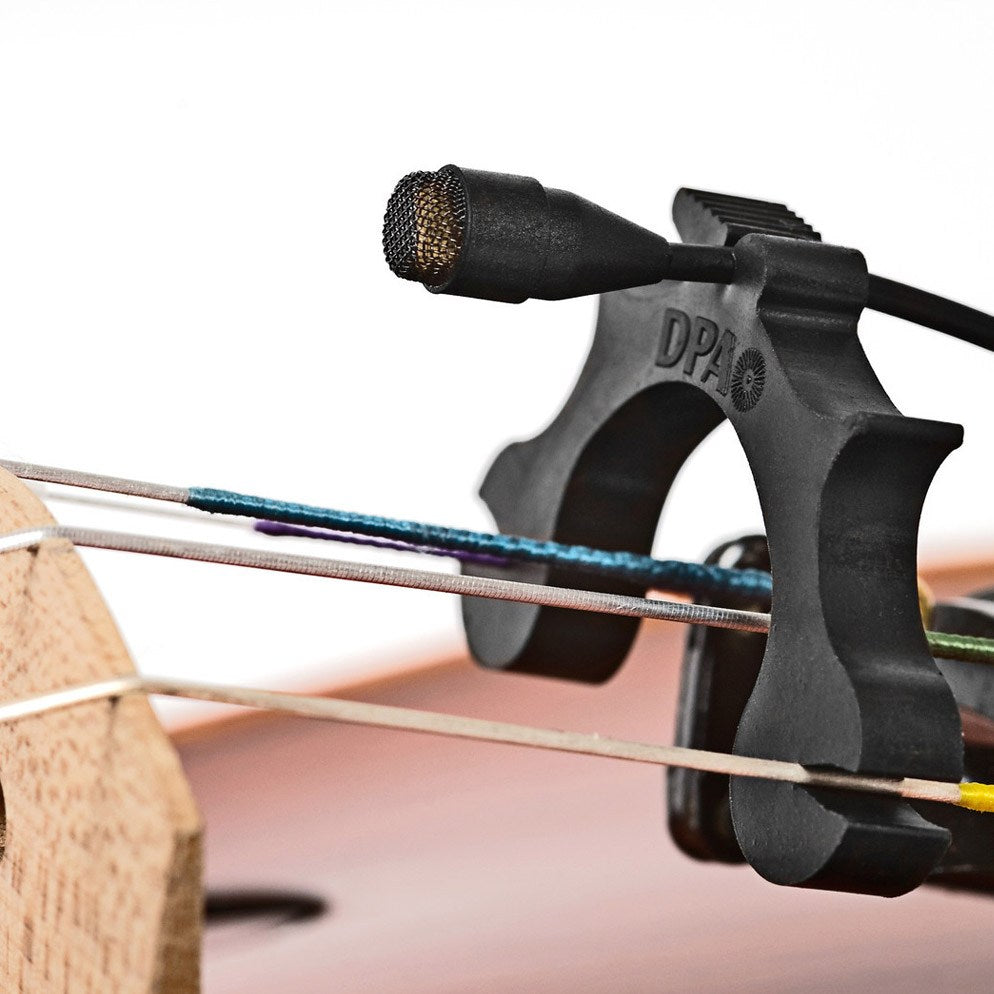

We originally designed this microphone for use with wireless systems in theatres but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.

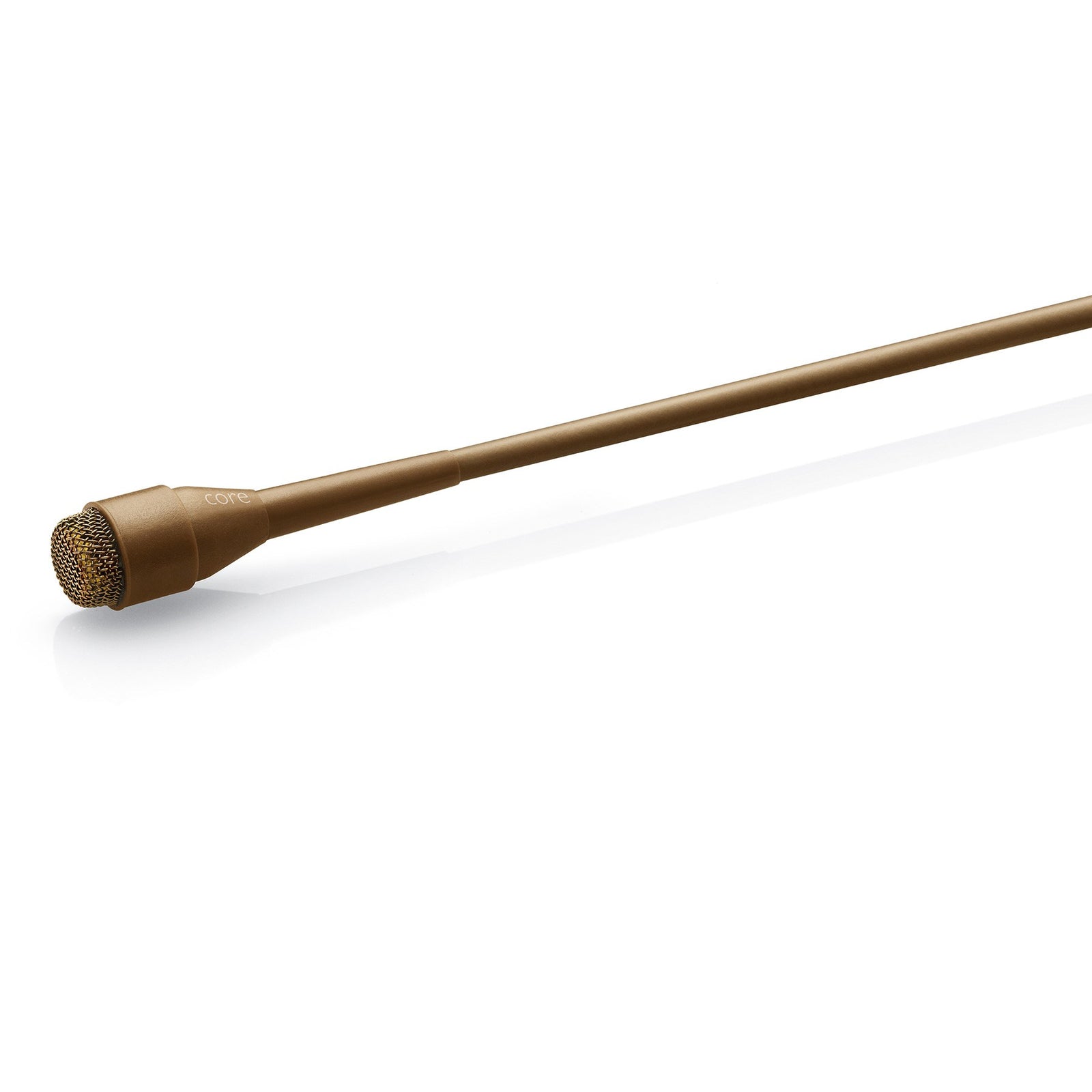

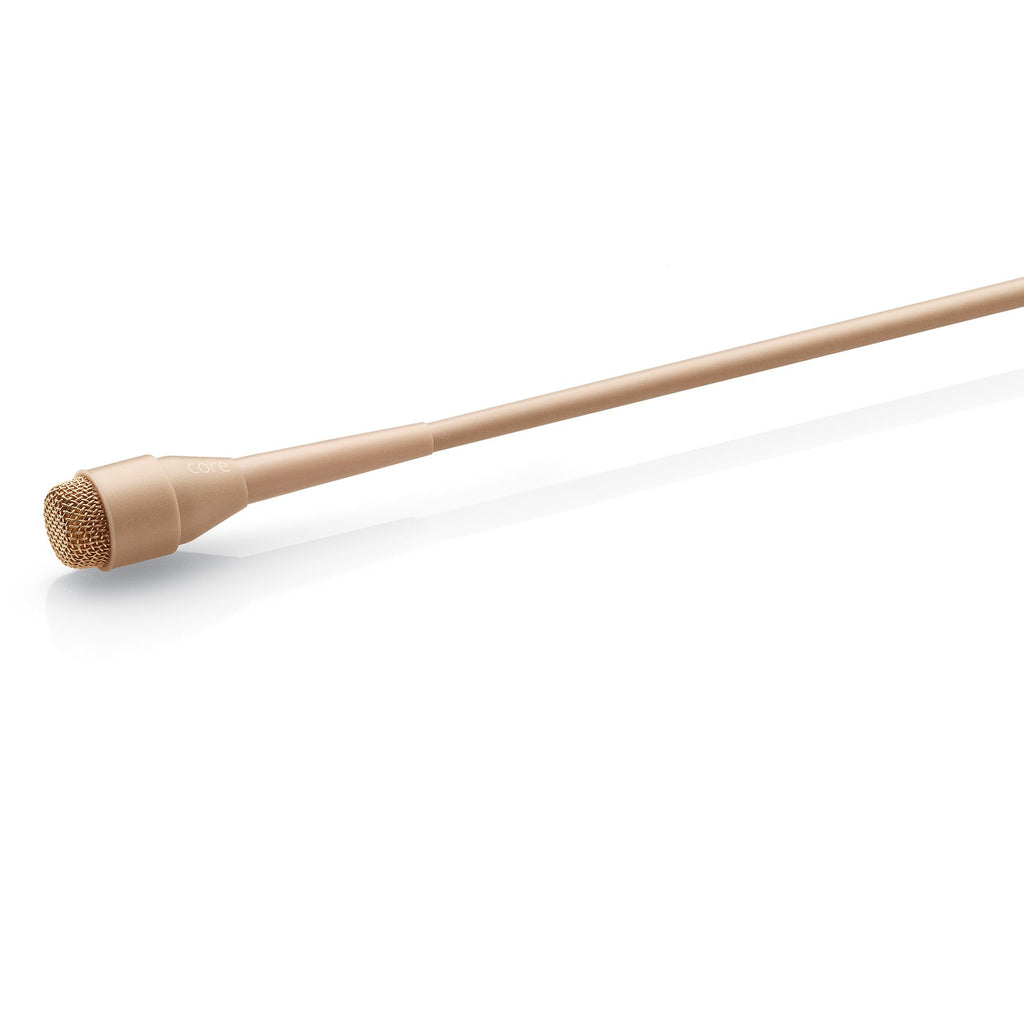

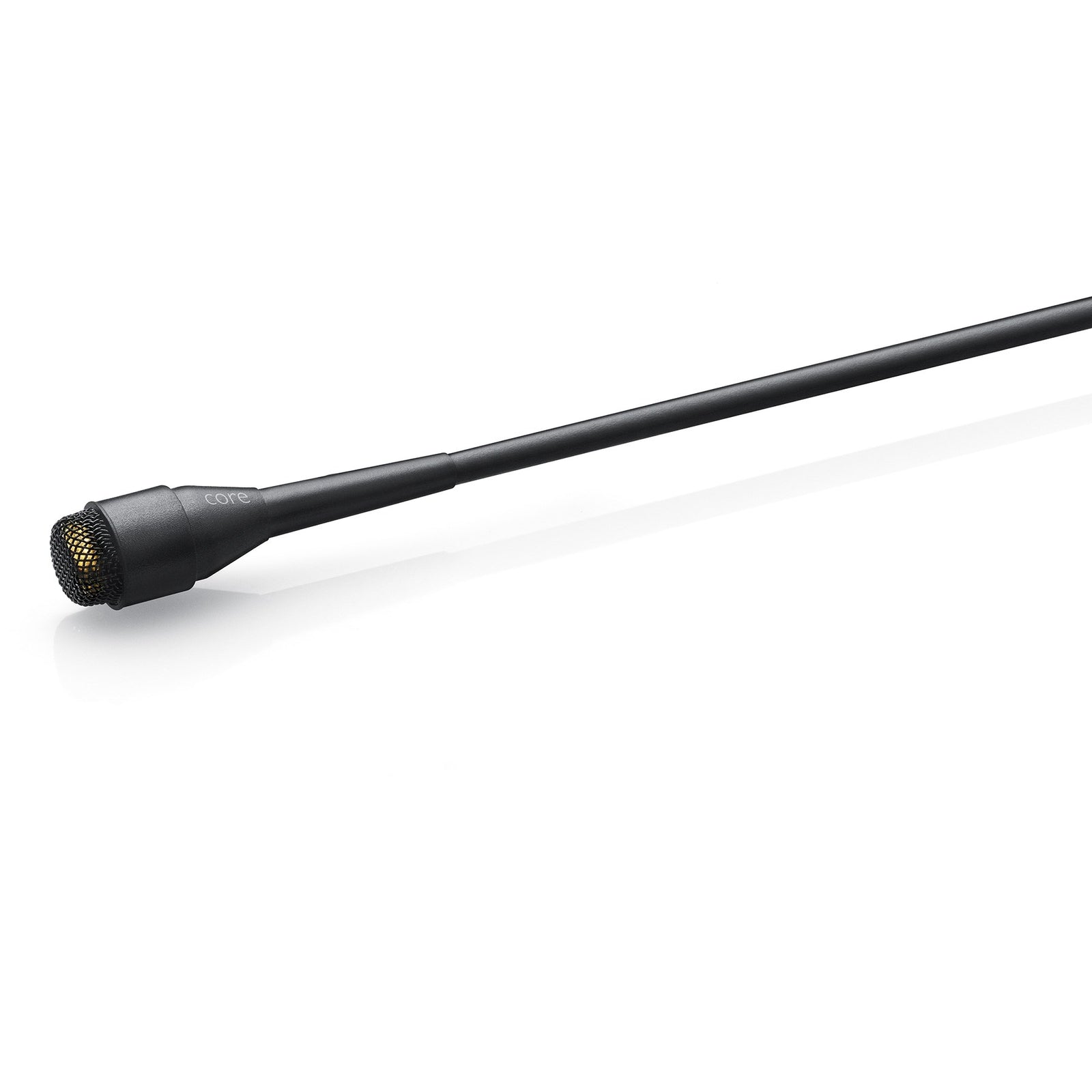

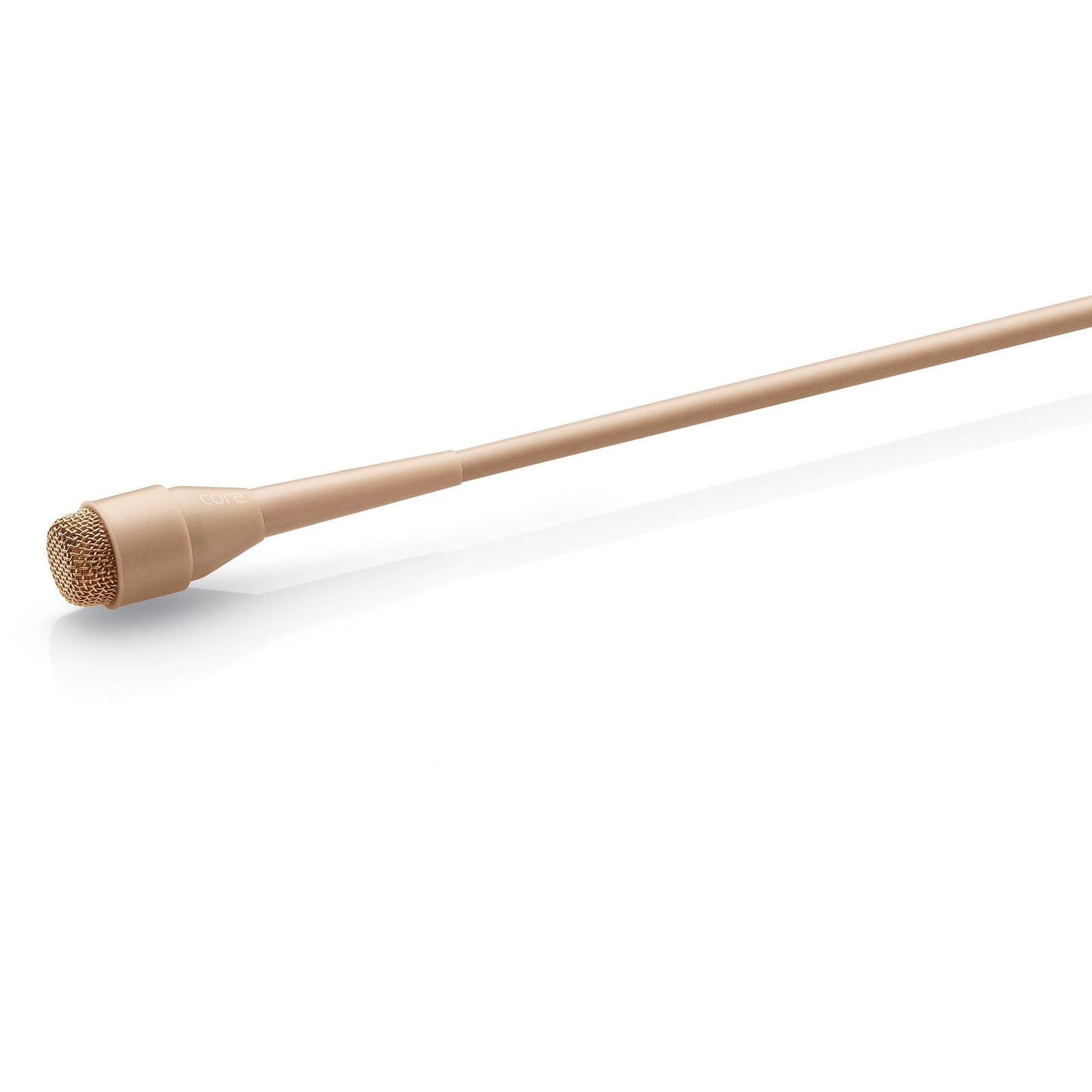

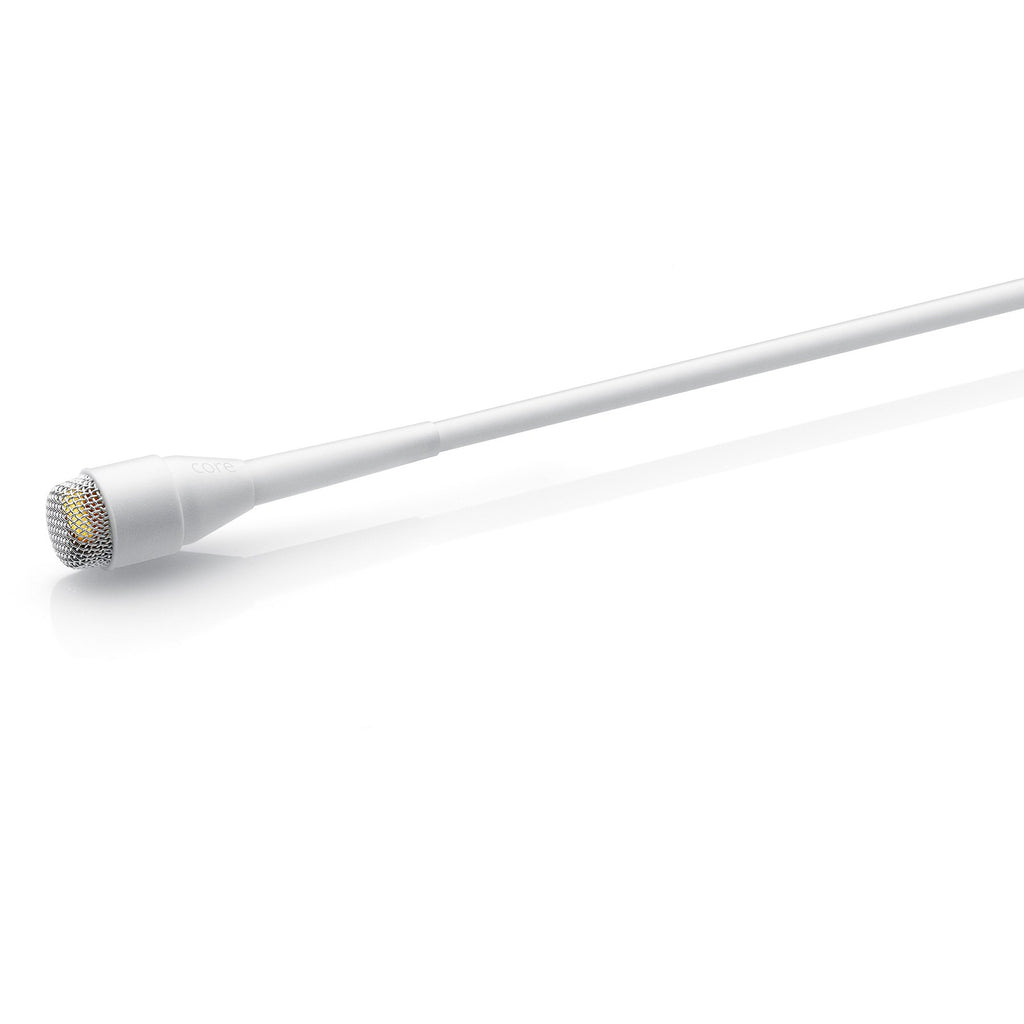

The d:screet™ 4061 Miniature Omnidirectional Microphone, Loud SPL is available in four colours: black, brown, beige and white. An even more robust, heavy-duty version is also available.
Features:
- Exceptional audio quality
- Uniform, consistent sound between DPA mics
- Extremely rugged and reliable
- Diminutive size made for flexible and easy concealment
- Large selection of clips, windscreens, grids and other accessories

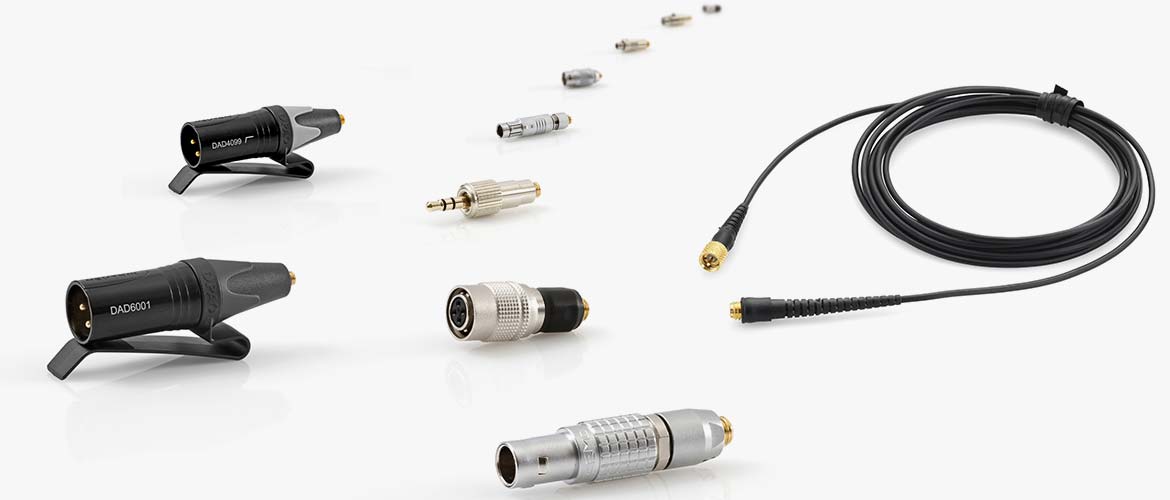

- Modular adapter system fits most professional wireless systems
The d:screet™ 4061 Omnidirectional Microphone, Lo-Sens offers a very clean, detailed and natural sound quality. Originally designed for use with wireless systems in theatre, television and close-miked instrument applications, the d:screet™ 4061 Miniature Omnidirectional Microphone, Lo-Sens is highly unobtrusive. Because of its small size, it exhibits an exceedingly accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.
This microphone is acoustically identical to the d:screet™ 4060 Miniature Omnidirectional Microphone, Hi-Sens, but the sensitivity is adjusted to match some of the more sensitive transmitters on the market.

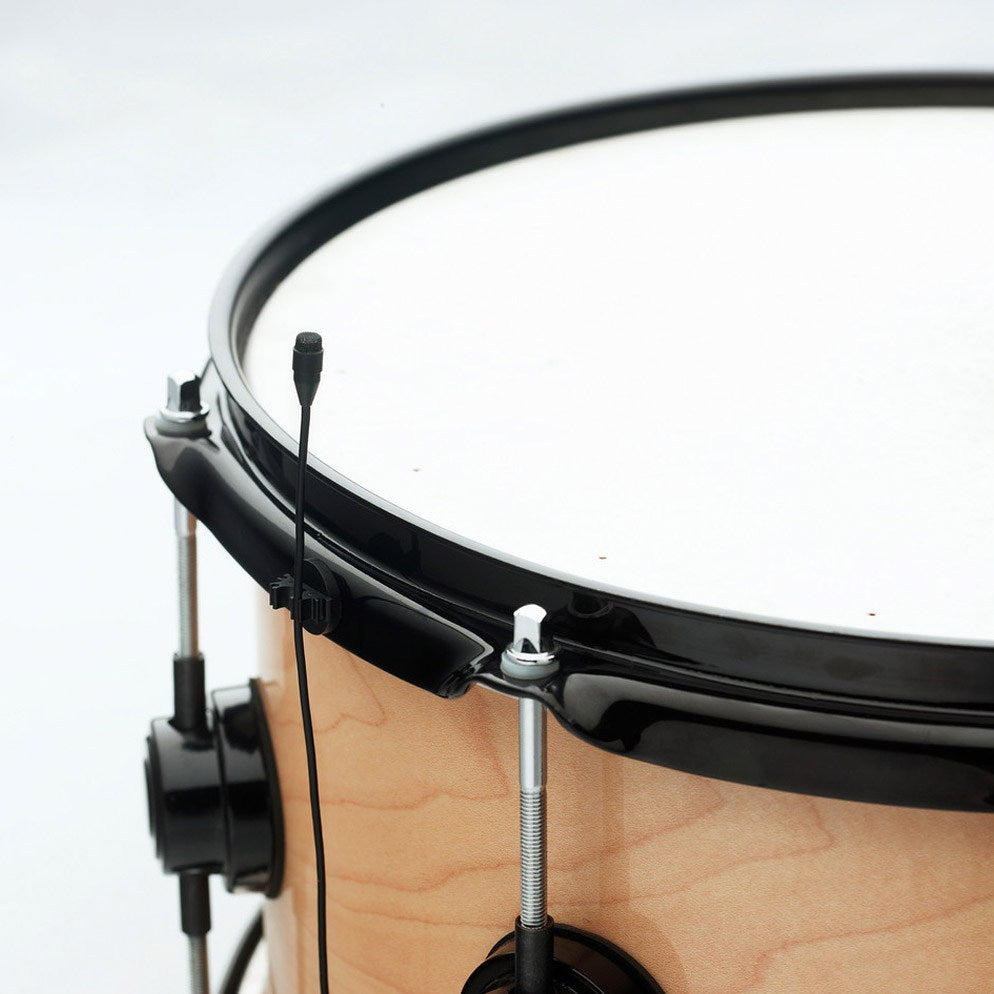

It is up to the user to decide on the correct placement to achieve the desired timbre. The mic can handle 144 dB peak before clipping, allowing the microphone to be used even for snare drums, guitar/bass speaker cabinets or other high SPL sound sources.
Directional pattern | Omnidirectional |
Principle of operation | Pressure |
Cartridge type | Pre-polarized condenser |
Frequency range | 20 Hz - 20 kHz |
Frequency range ±2dB | Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz |
Sensitivity, nominal, ±3 dB at 1 kHz | 6 mV/Pa; -44 dB re. 1 V/Pa |
Equivalent noise level, A-weighted | Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A)) |
Equivalent noise level, ITU-R BS.468-4 | Typ. 38 dB (max. 40 dB) |
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) | Typ. 68 dB(A) |
Total harmonic distortion (THD) | < 1% up to 123 dB SPL peak |
Dynamic range | Typ. 97 dB |
Max. SPL, peak before clipping | 144 dB |
Output impedance | From MicroDot: 30 - 40 Ω. From DAD6001: 100 Ω |
Cable drive capability | Up to 300 m (984 ft) with DAD6001-BC XLR Adapter |
Output balance principle | Signal balanced with DAD6001-BC XLR Adapter |
Common mode rejection ratio (CMRR) | > 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter |
Power supply (for full performance) | Min. 5 V to max. 50 V through DPA adapter for wireless systems |
Current consumption | Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter |
Connector | MicroDot or MicroLock |
Color | Black or beige |
Weight | 13 g (0.46 oz) incl. Cable and MicroDot connector |
Microphone diameter | 5.4 mm (0.21 in) |
Microphone length | 17.6 mm (0.7 in) |
Cable length | 1.8 m (5.9 ft) |
Cable color | Black or beige |
Cable diameter | 2.2 mm (0.09 in) |
Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Temperature range | -40°C to 45°C (-40°F to 113°F) |
Relative humidity (RH) | Up to 90% |
