DPA 4060 CORE+ Miniature Omnidirectional Lavalier Mic - Normal SPL

DPA MicrophonesSKU: 4060-OC-C-B00

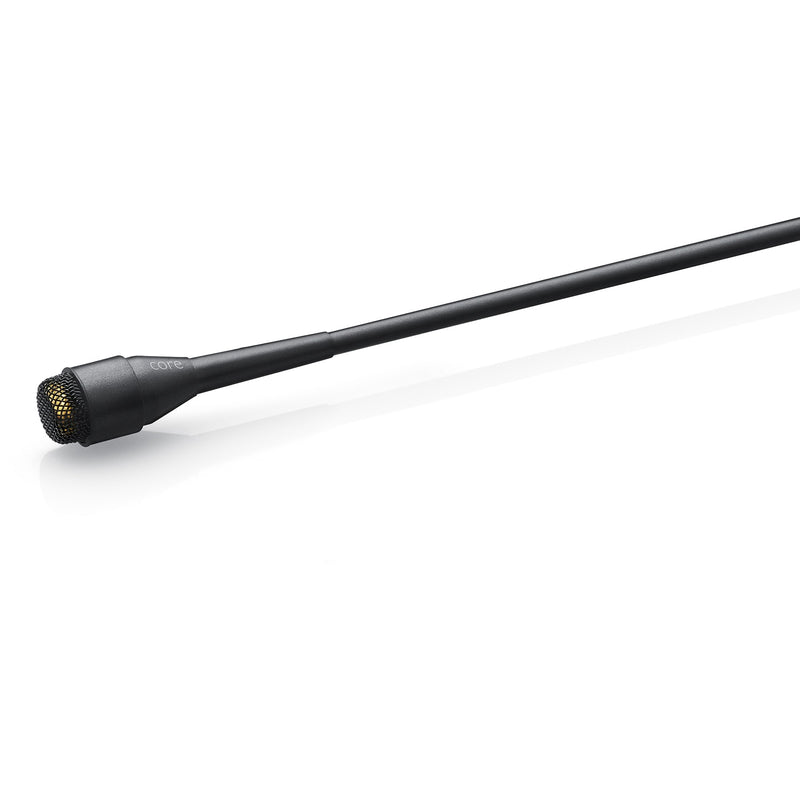

Colour: Black
Connection: MicroDot
Price:
Sale price €445.00

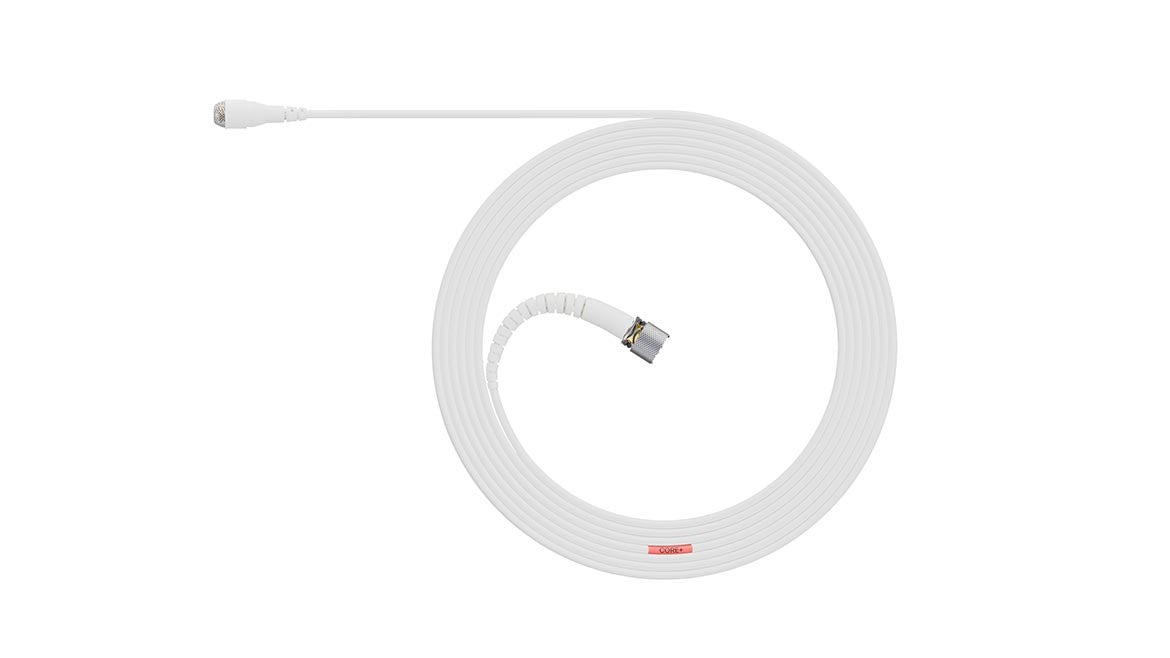

Now available with CORE+ & MicroLock®.

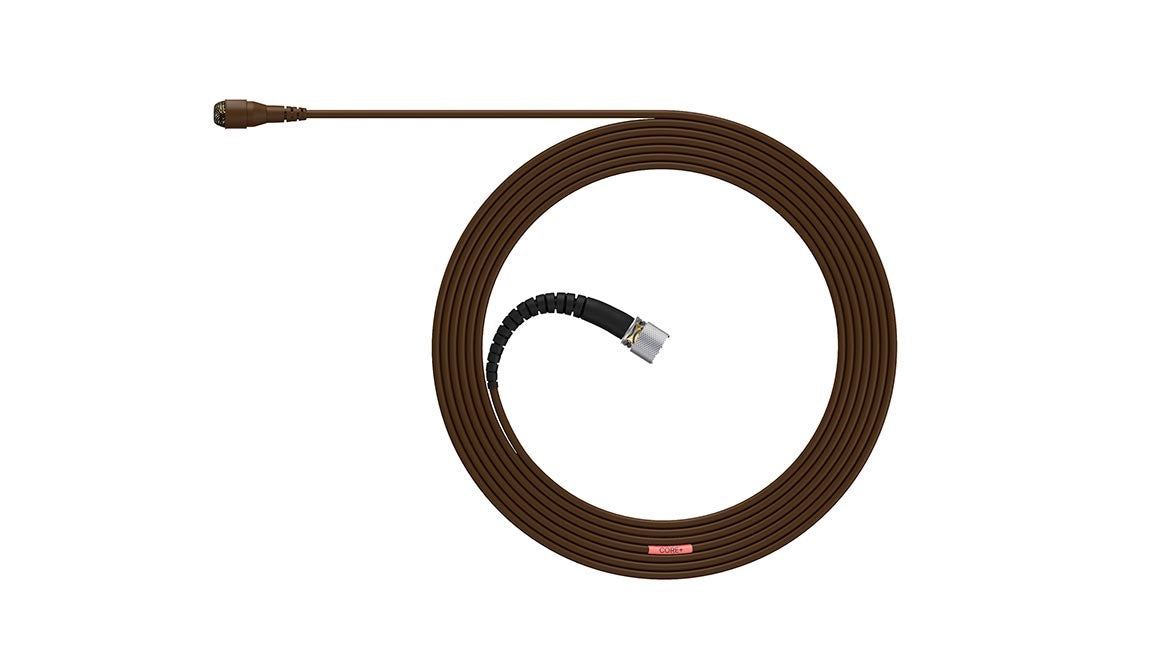

CORE+ takes your miniature mic to the next level, neutralising distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

4060 Series

This series contains the 4060, 4061, 4062, 4063 and 4071 Omni Miniature Mics. Each version is tailored towards a specific application based on sensitivity, voltage and placement needs. They are all based on the original d:screet™ 4060; the very first miniature microphone developed by DPA from the best technology previously only used in hearing aids and measurement microphones. All of the mics in the series share important basic features, but each is optimised for particular applications.

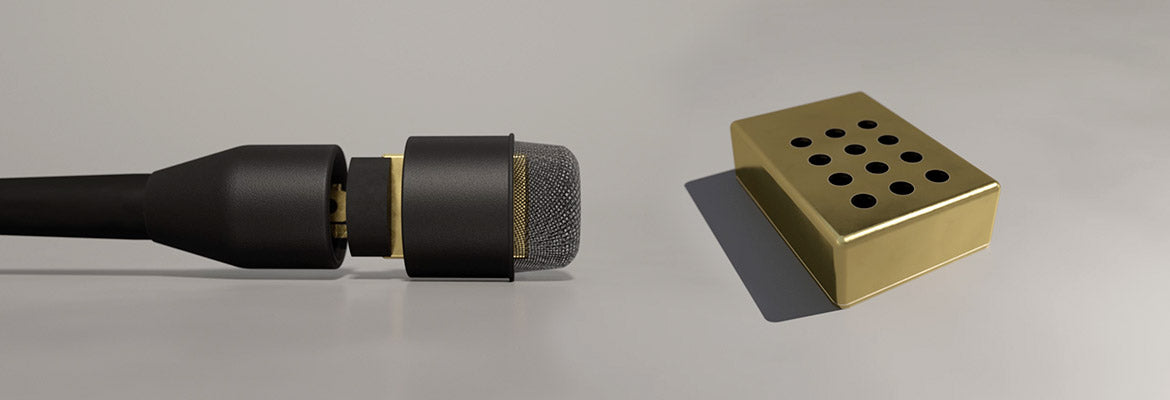

The series was developed to withstand the toughest of conditions. They contain a 5.4 mm diameter pre-polarized condenser element with a vertical diaphragm. This unique, Double Vent Protection System makes the mics greatly resistant to humidity and sweat. These mics are also designed with a Kevlar-reinforced cable relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments.

The acoustic response of the d:screet™ 4060 Series can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the d:screet™ 4071, which includes a fixed grid). The pre-fitted Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz. It should be used when the microphone is mounted on the performer’s head as well as in most other applications where you need a natural-sounding microphone. When fitted, the High Boost Grid introduces a 10 dB soft boost around 12 kHz for applications where the microphones chest-placement is preferred. Both of these grids are made of anodised stainless steel, giving a tough and scratch resistant surface. They can be detached from the microphone and cleaned of sweat, makeup, etc.

This microphone is small in size, but mighty in flexibility. Due to its miniature size, it exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. The omnidirectional pattern also makes it less sensitive to handling noise as well as pop and wind noise.

We originally designed this microphone for use with wireless systems in theatres but today it is one of the most loved mics for television and film applications as well. It is especially suited for capturing speech in all of its nuances and can be used to close-mike a wide range of instruments. This microphone handles sound pressure levels up to 134 dB before clipping occurs. This mic is well suited for applications where the sound source is more remote or damped and you need to have a good balance signal versus noise.

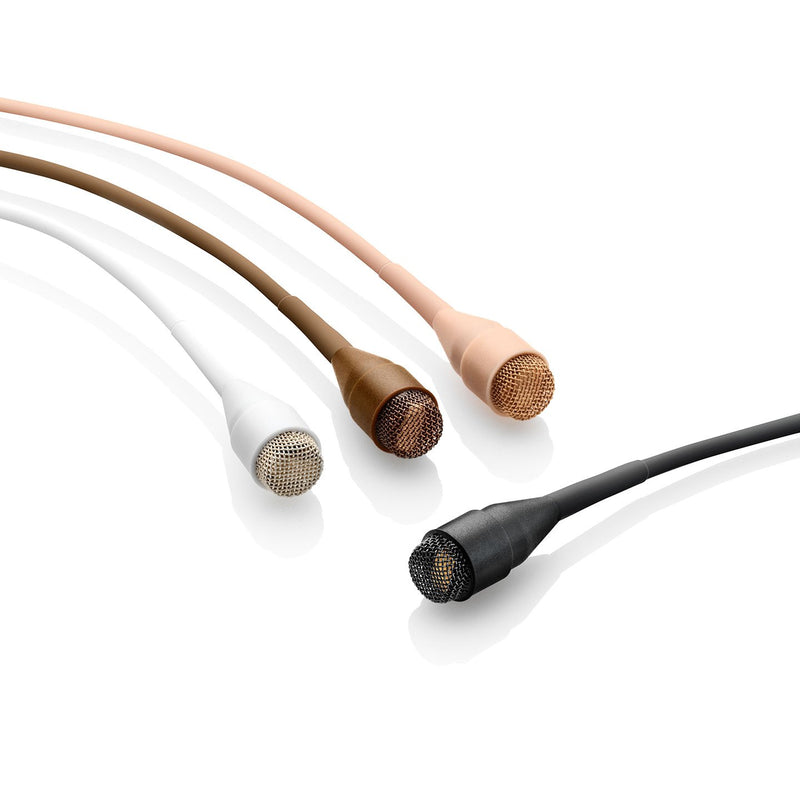

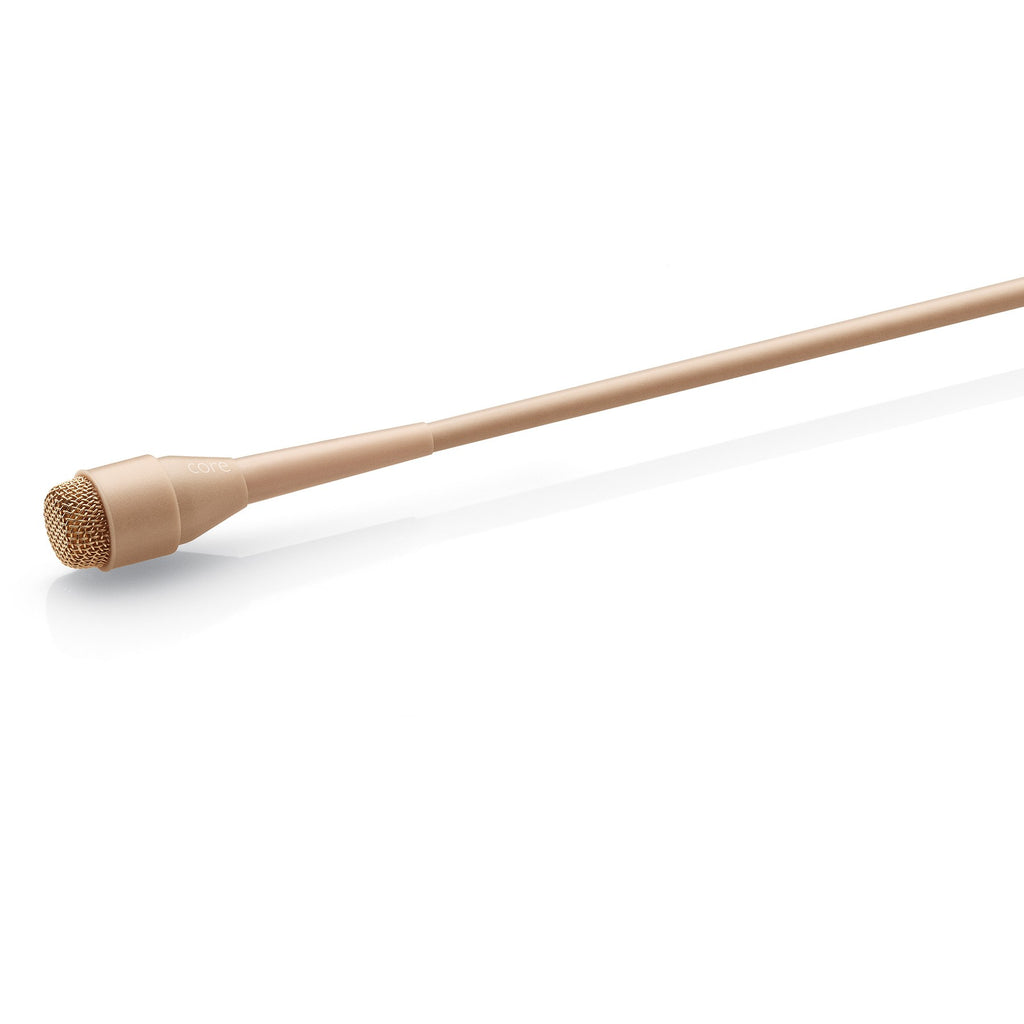

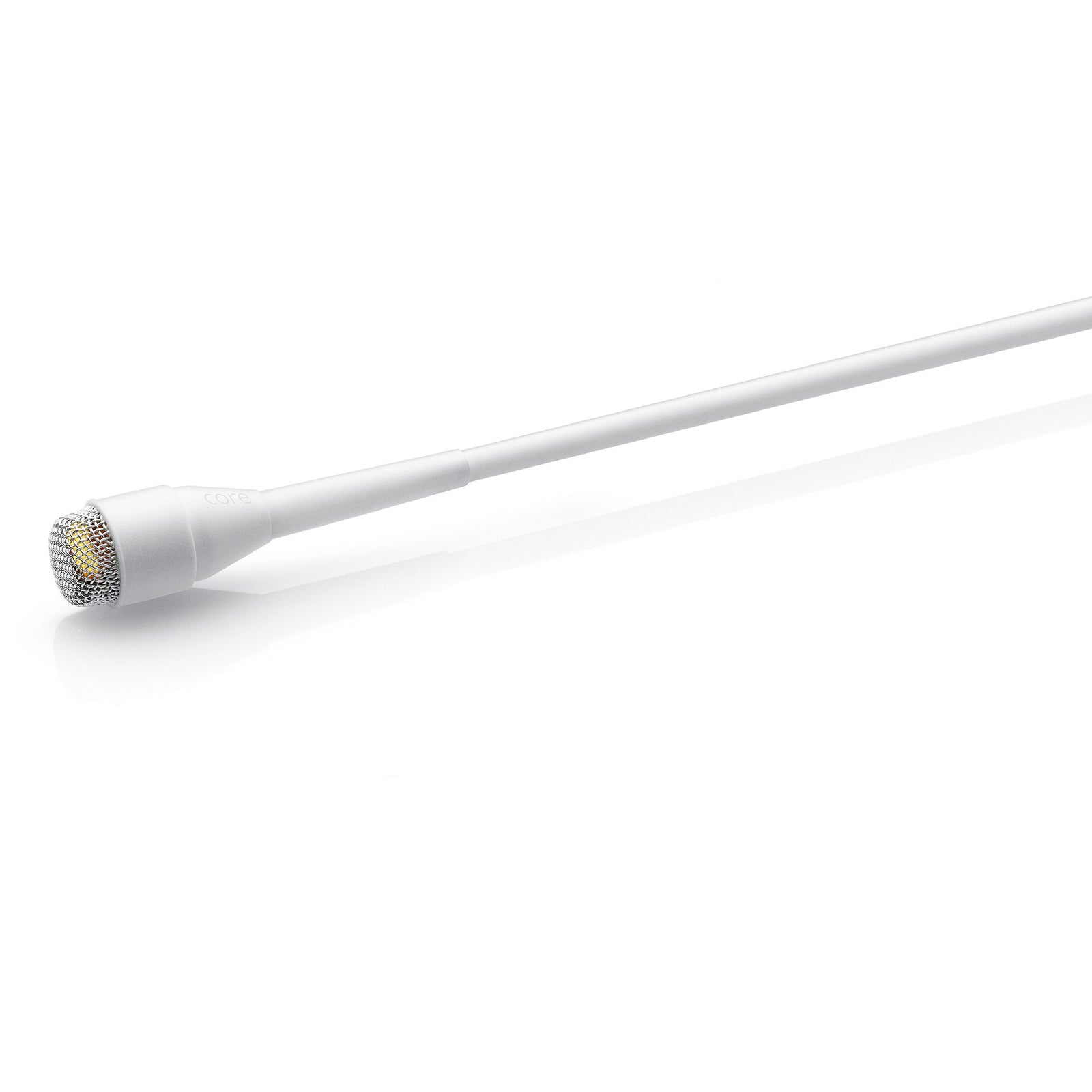

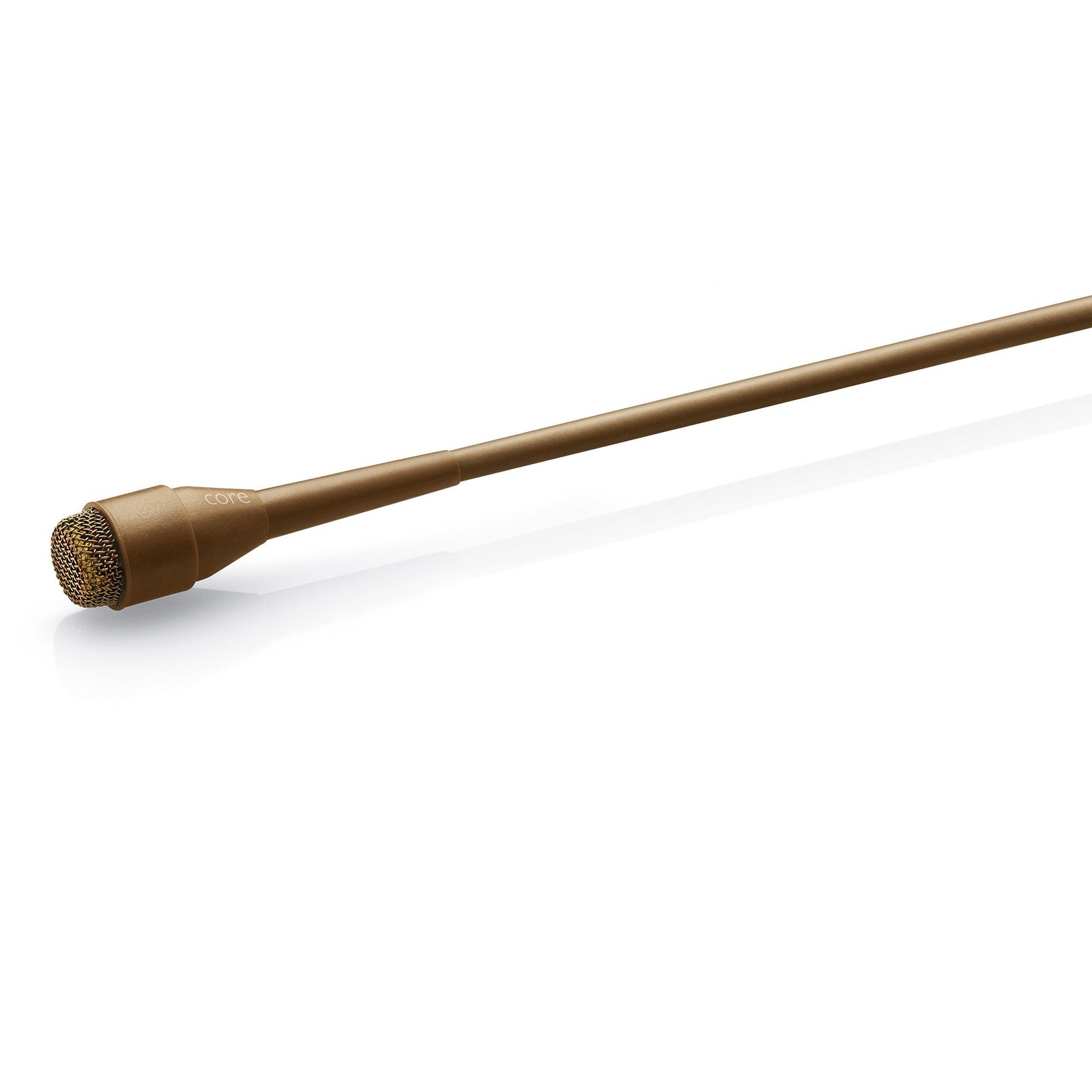

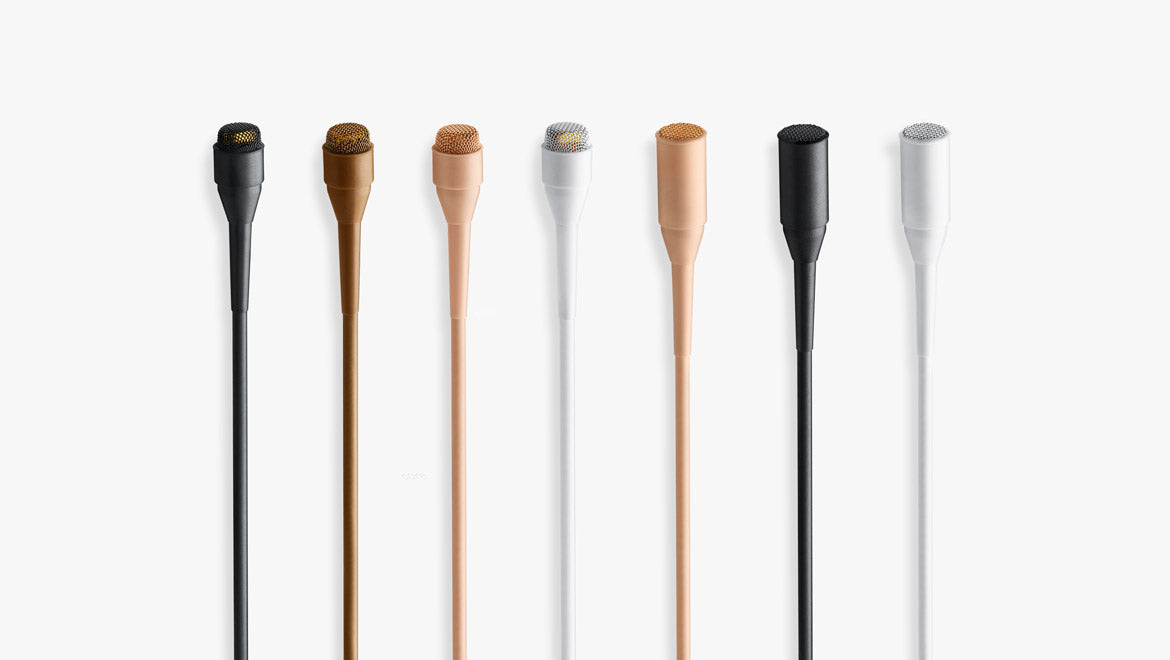

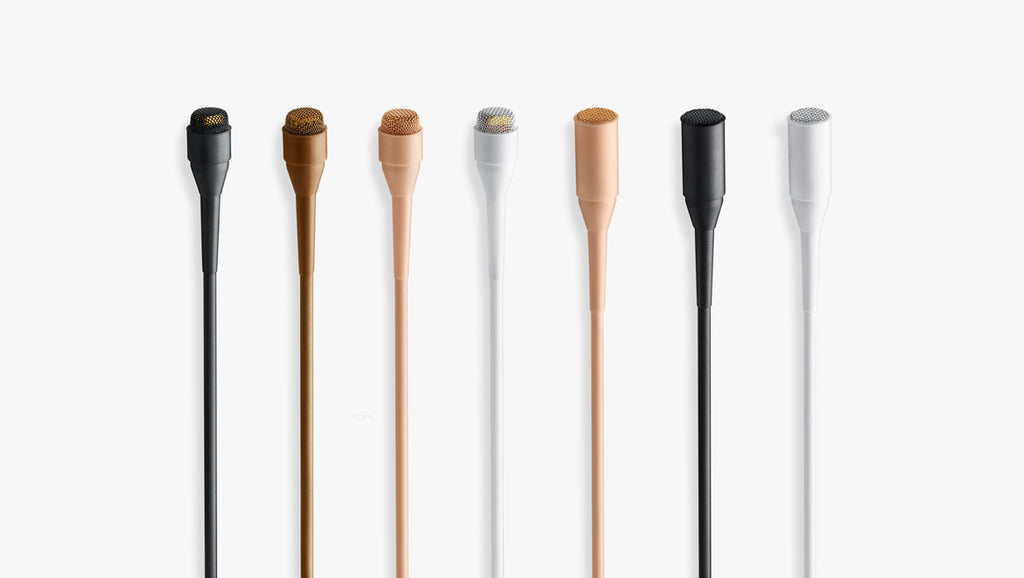

The d:screet™ 4060 Miniature Omnidirectional Microphone, Normal SPL is available in four colours: black, brown, beige and white. An even more robust, heavy-duty version is also available.

Features:

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems
Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency range 20 Hz - 20 kHz
Frequency range ±2dB Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 35 dB (max. 38 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 71 dB(A)
Total harmonic distortion (THD) < 1% THD up to 123 dB SPL peak; < 1% THD up to 120 dB SPL RMS sine
Dynamic range Typ. 100 dB
Max. SPL, peak before clipping 134 dB
Output impedance 30 - 40 Ω
Cable drive capability Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Connector MicroDot or MicroLock
Colour Black
Weight 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter 5.4 mm (0.21 in)
Microphone length 12.7 mm (0.5 in)
Cable length 1.8 m (5.9 ft)
Polarity Positively increasing sound pressure produces positive-going voltage at MicroDot pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
