DPA 3506A d:dicate™ Stereo Kit with 4006A Omnis

Save 9%
DPA MicrophonesSKU: 3506A

Price:
Sale price€5,995.00 Regular price€6,599.00

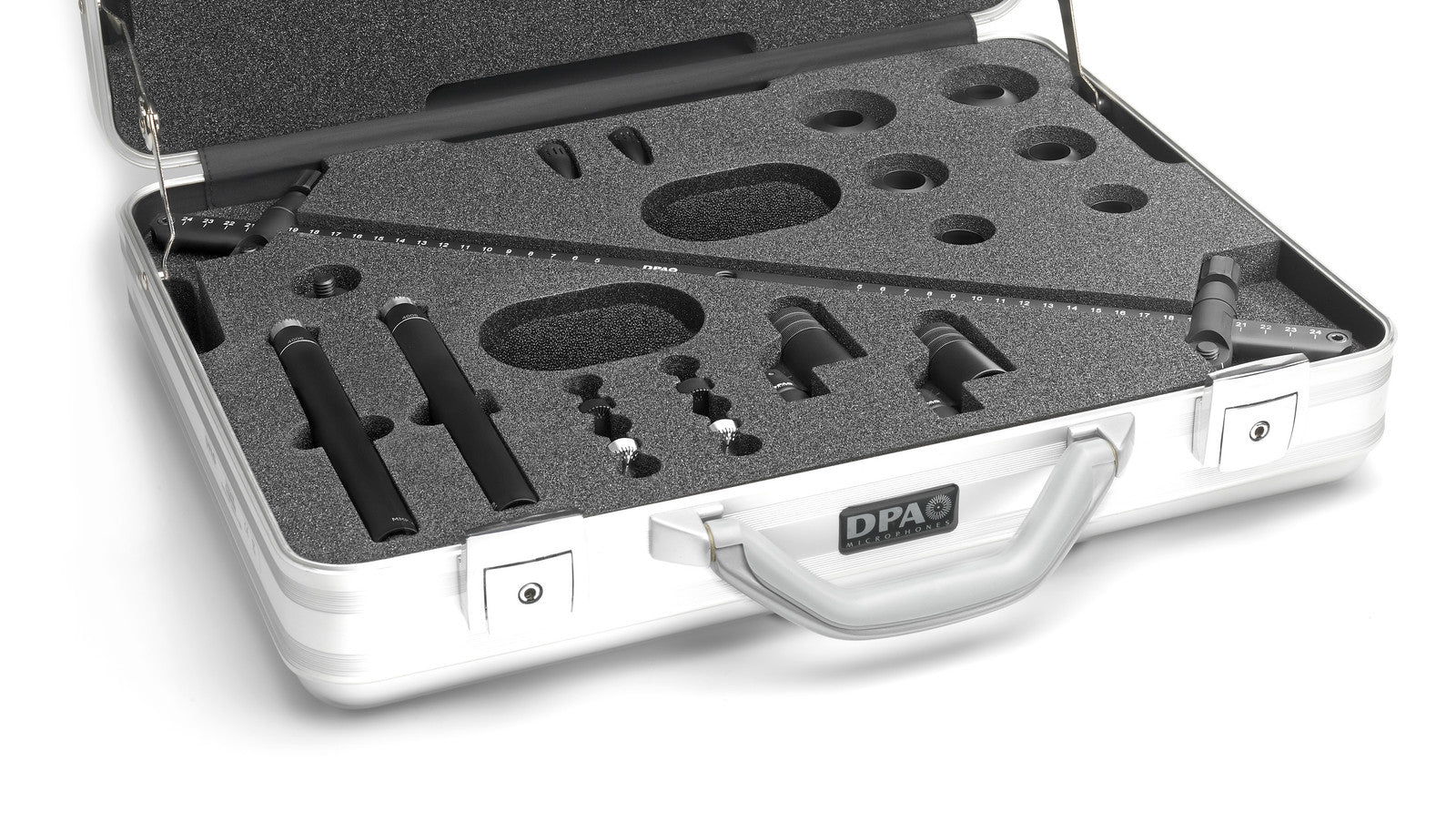

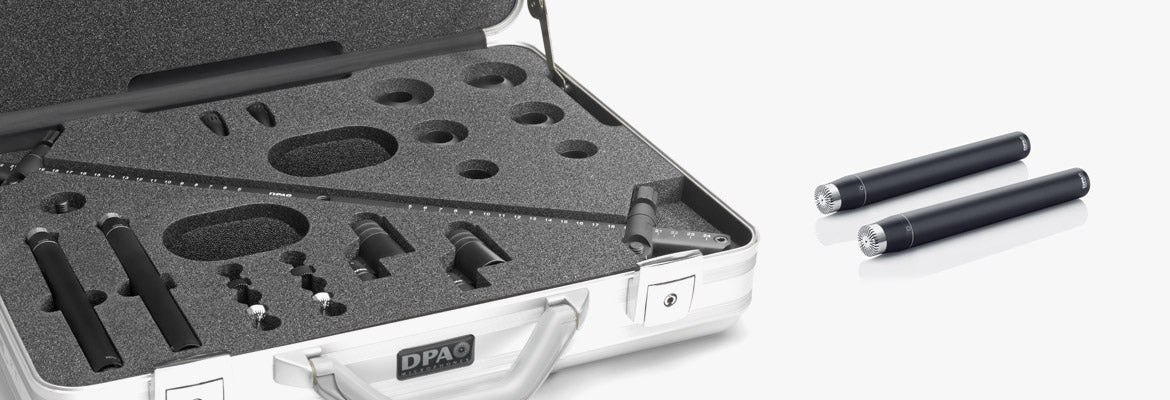

This is a complete stereo kit with two carefully factory-matched phantom powered d:dicate™ 4006A Omnidirectional Condenser Microphones. The kit includes mics, windscreens, boom, holders, clips, and much more.

Even though the standard tolerances on our d:dicate™ series are extremely low, a stereo match is even closer. These specially selected d:dicate™ 4006A Omnidirectional Microphones are matched within ±0.5 dB on both frequency response and sensitivity.

For reference stereo recording, there is no better choice than a d:dicate™ 4006A Omnidirectional Microphone. These omnidirectional condenser microphones are linear and true in character. They come as a hand-matched pair that offers the truest capture of stereo sound available.

The d:dicate™ 4006 Omnidirectional Microphone

The 4006 Omnidirectional Microphone Capsule offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and linear frequency response from 10 to 20 kHz (±2 dB).

The d:dicate™ 4006A Omnidirectional Microphone is a flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close-miking all types of instruments and as an outdoor interview microphone.

A selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic.

Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.

  • Modularity – interchangable capsules and preamplifiers
  • Up to 120 dB dynamic range
  • RF rejection between >60 and >40 dB
  • Linear frequency response
  • High SPL
  • Superior gain before feedback
Directional pattern Omnidirectional
Principle of operation Pressure
Cartridge type Pre-polarized condenser
Frequency range 10 Hz - 20 kHz
Frequency range ±2dB 10 Hz - 20 kHz
Sensitivity, nominal, ±3 dB at 1 kHz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4 Typ. 27 dB (max. 29 dB)
S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL) Typ. 79 dB(A)
Total harmonic distortion (THD) < 1% up to 139 dB SPL peak
Dynamic range Typ. 124 dB
Max. SPL, peak before clipping 146 dB
Switchable attenuator, filters etc. 0 dB / -20 dB
Output impedance 200 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
 Output balance principle Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) 48 V Phantom power (± 4 V)
Current consumption 2.8mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Colour Matte Black
Weight 163 g (5.7 oz)
Microphone diameter 16 - 19 mm (0.6 - 0.75 in)
Microphone length 170 mm (6.7 in)
Maximum output voltage, RMS 8V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
