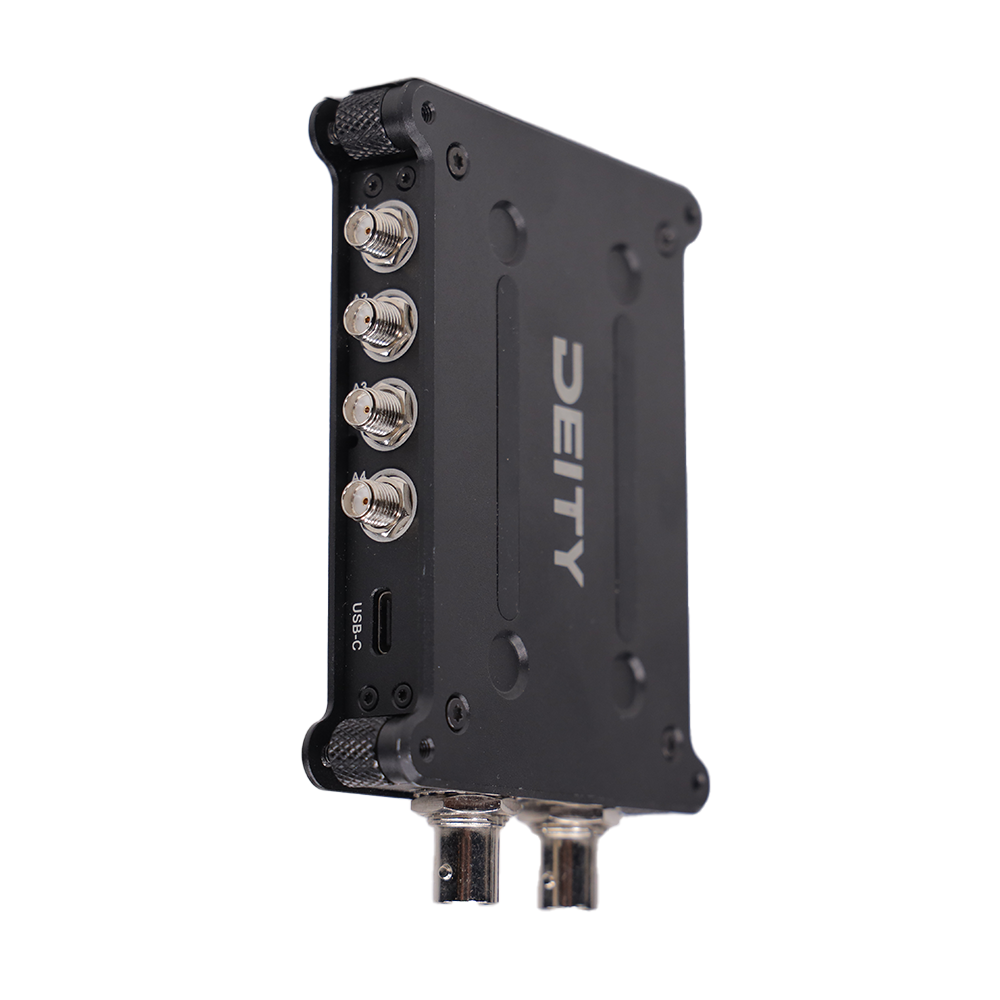

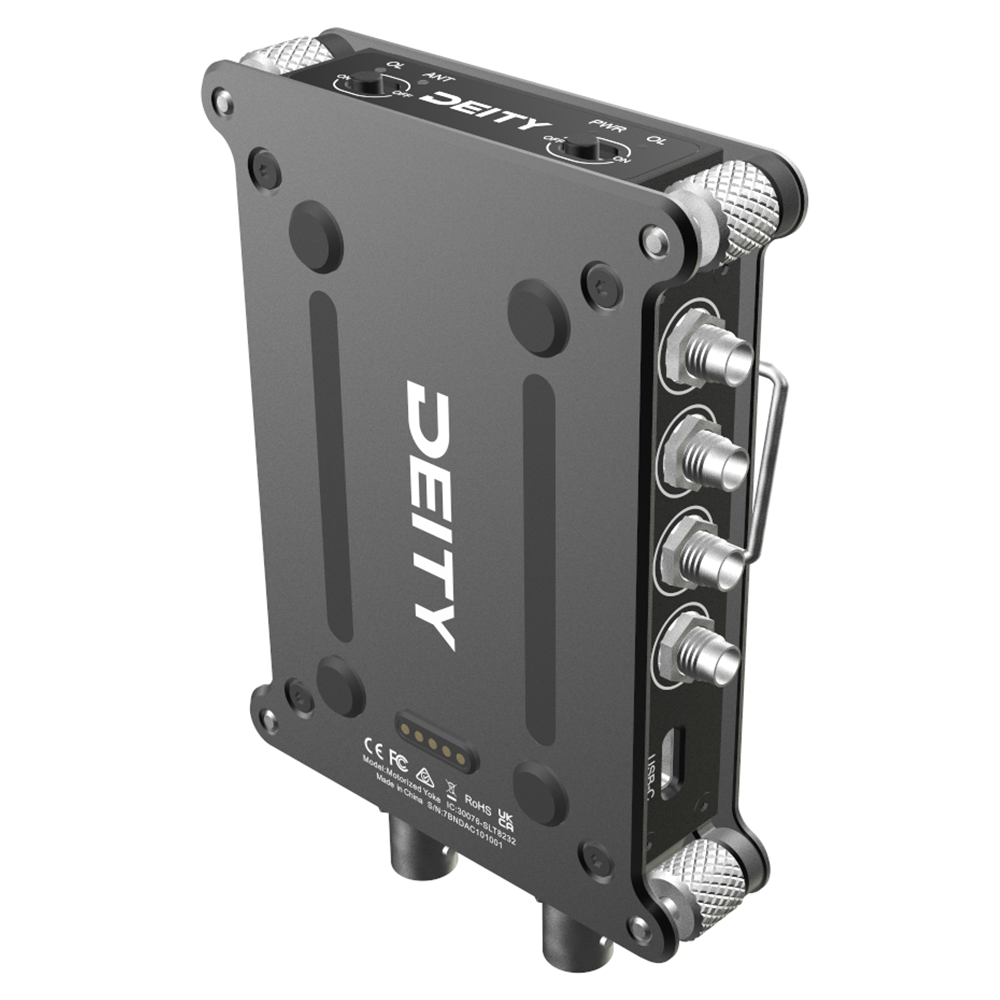

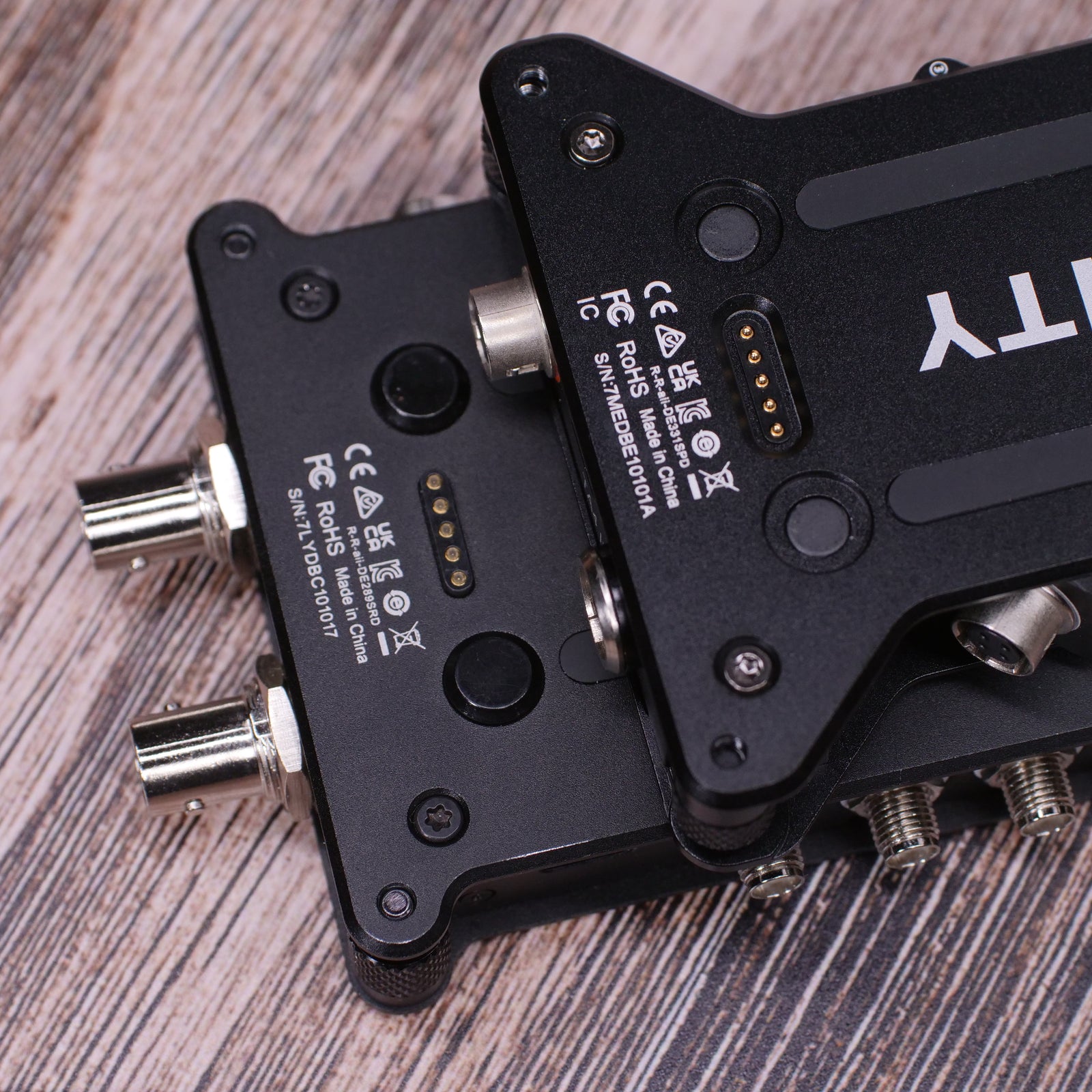

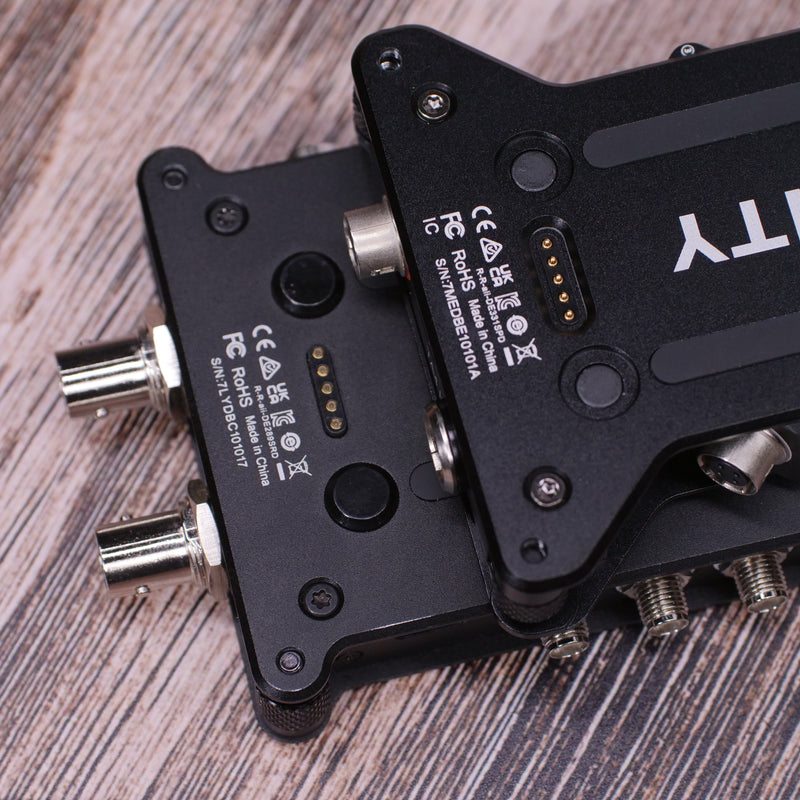

Deity SRD-Mini Portable 4-Channel Antenna Distribution System (470 to 960 MHz)

DeitySKU: DTR0289D51

Price:
Sale price €669.00

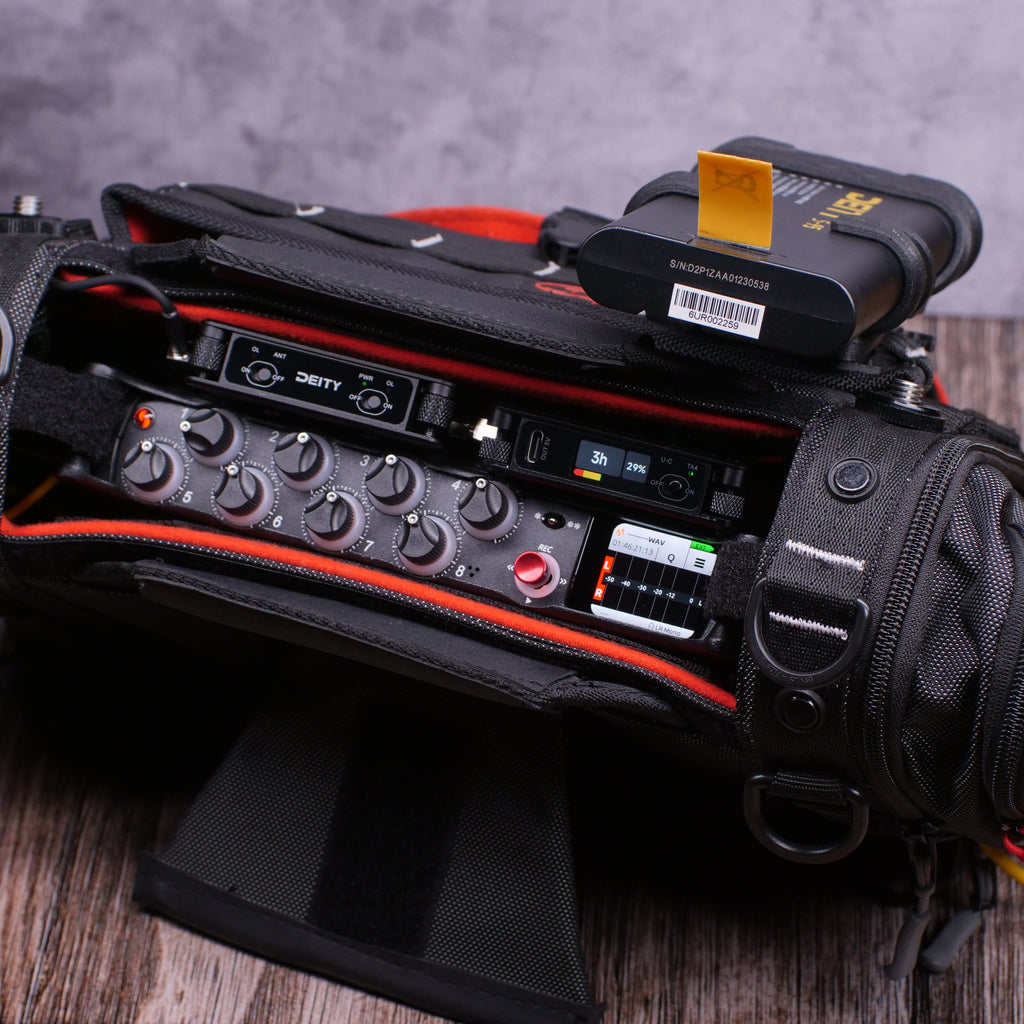

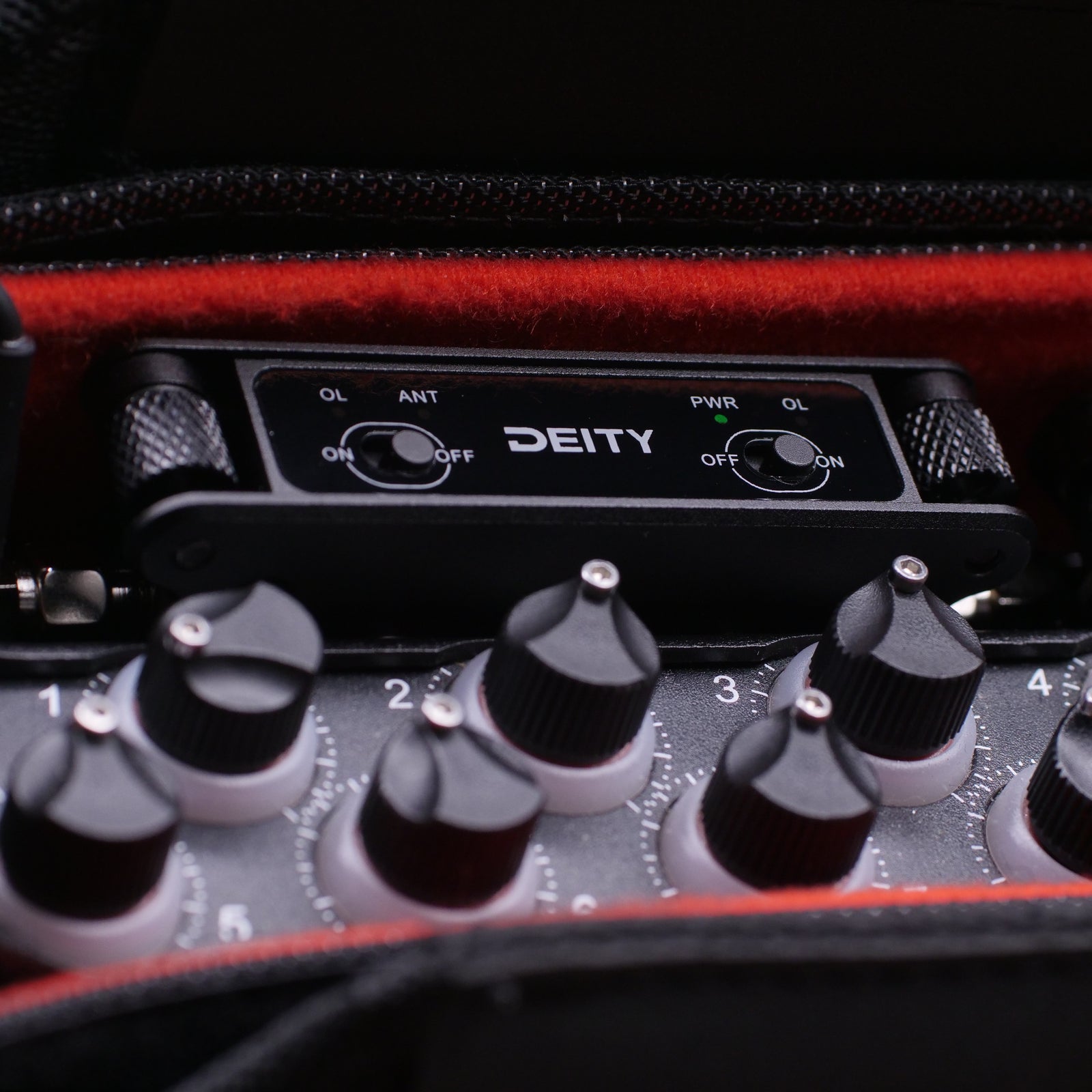

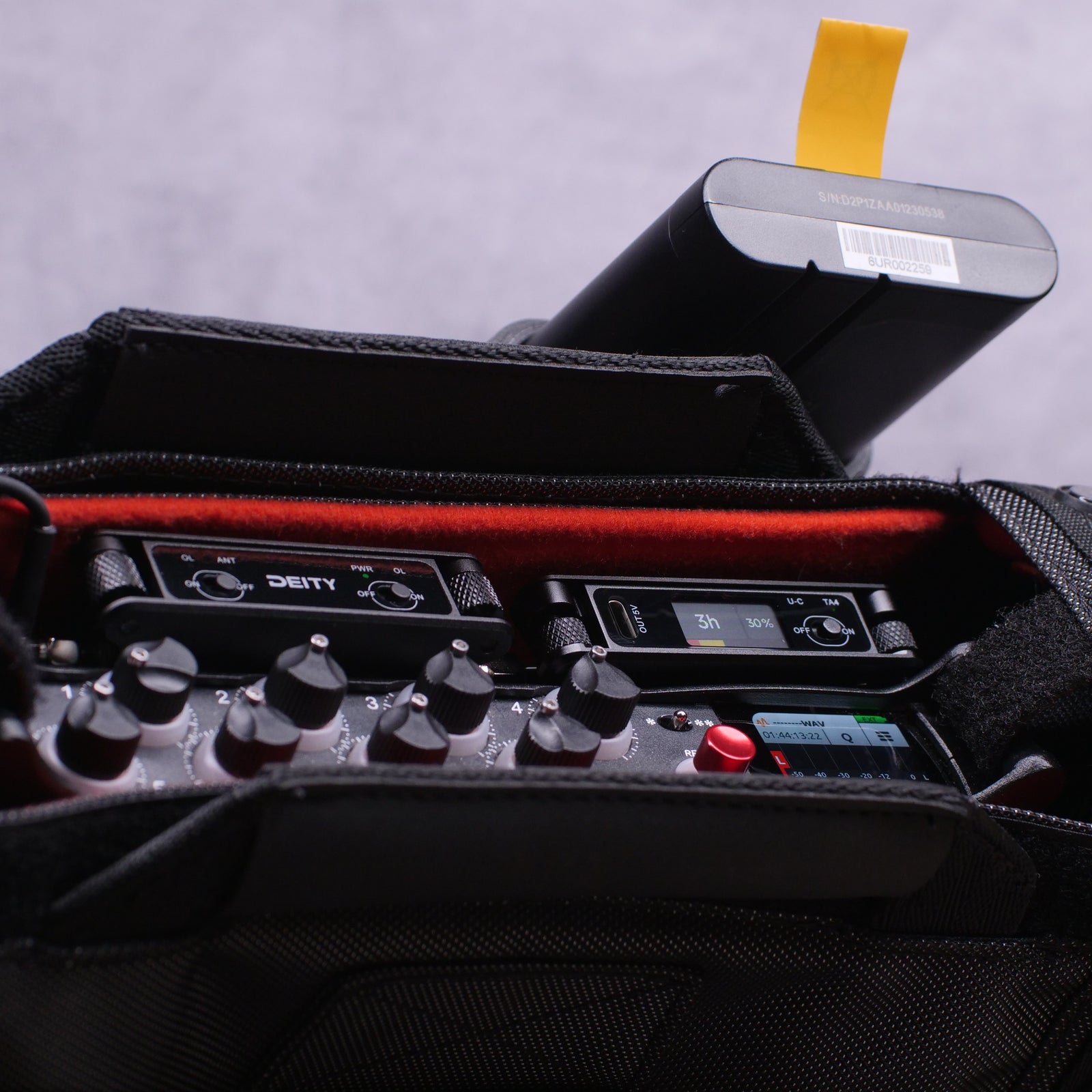

Introducing the SRD-Mini, the ultimate portable RF distributor tailored for location sound mixers operating out of a sound bag setup. This cutting-edge device ensures seamless connectivity and superior performance in demanding field conditions.

Active Splitter

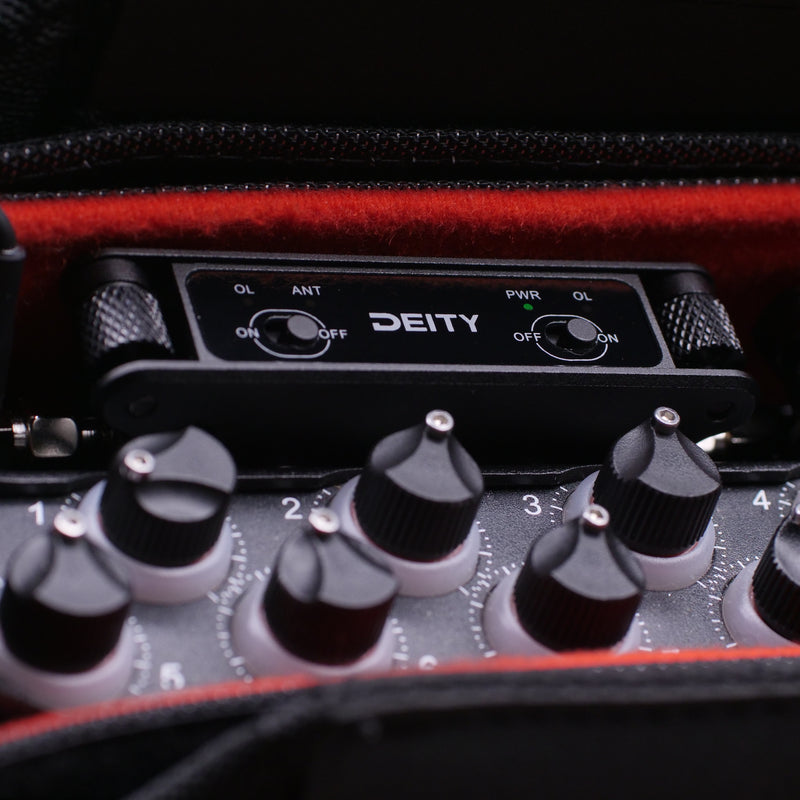

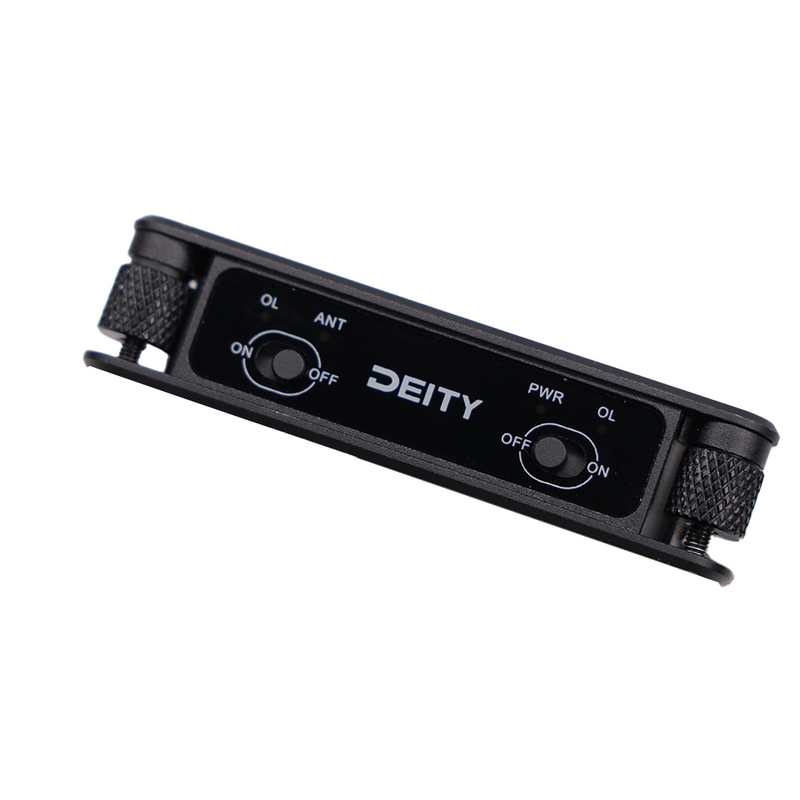

The SRD-Mini features an active splitter that corrects for line loss, ensuring your RF signals remain strong. With built-in RF overload protection and warning LED lights, you’ll always be alerted to any potential signal issues, keeping your setup safe and efficient.

The SRD-Mini's 2x8 splitter design supports up to +16 wireless channels and provides exceptional flexibility for complex sound setups. Its ultra-wide spectrum covers a frequency range of 470 to 960 MHz, guaranteeing compatibility with a wide array of wireless brands. Whether you’re on a film set, a live event, or any location requiring pristine wireless signal quality, the SRD-Mini delivers.

Multiple Powering Options

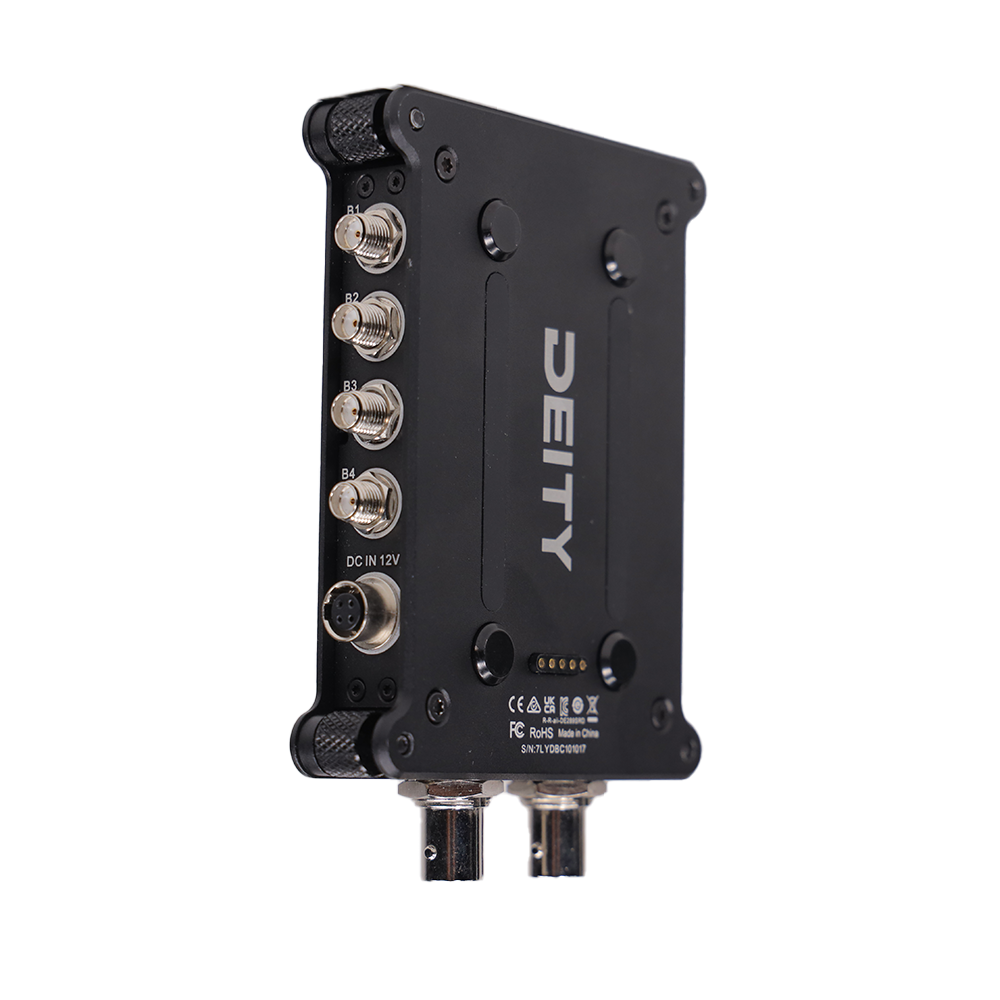

Furthermore, the SRD-Mini offers multiple power input options, including a Hirose-style 4-pin power input and USB-C. This ensures you can stay powered up no matter the circumstances, making it a versatile addition to your wireless equipment.

Compact, reliable, and packed with features to enhance your wireless ecosystem experience, the SRD-Mini is your go-to solution in the field.

What’s In The Box

  • SRD-Mini
  • Warranty QR Code
  • Manual QR Code
  • Deity Stickers

Specifications

Frequency Range

470 MHz ~ 1 GHz

Gain

+3 dB ~ +9 dB

Port Isolation

>20 dB

Input Impedance

50Ω

Output Impedance

50Ω

Front-End Max Input Signal

+13 dBm

Overload Indication

0 dBm

Noise Figure

< 1.5 dB

Working Voltage

USB-C: 5V DC

HRS4: 12-16.8V

Operating Current Consumption

< 160 mA (HRS4 Input)

Material

Aluminum Alloy

RF Input Port

BNC

RF Output Port

SMA

Size

115.5 * 78 * 20.8 mm

Weight

185.5 g
