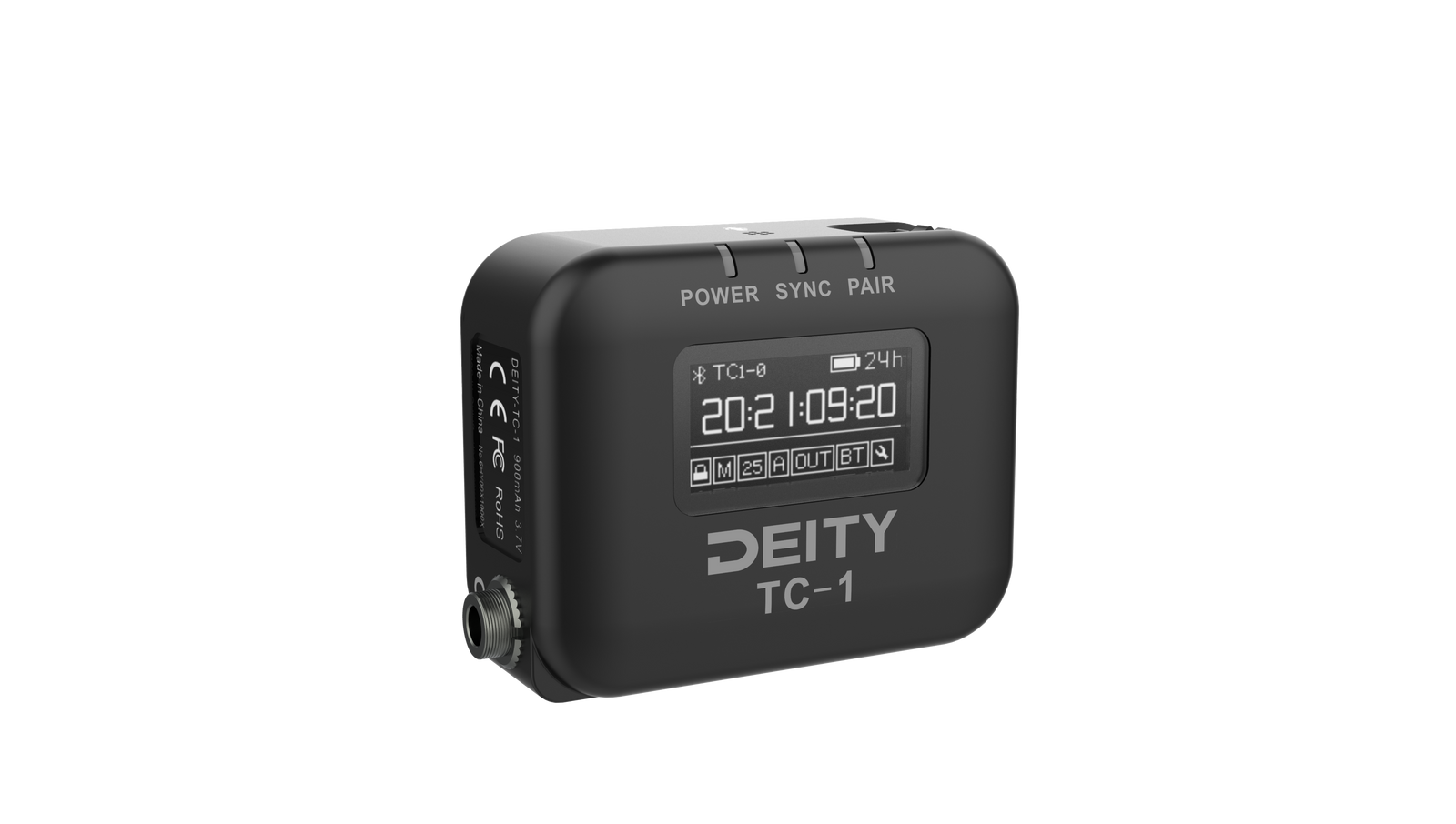

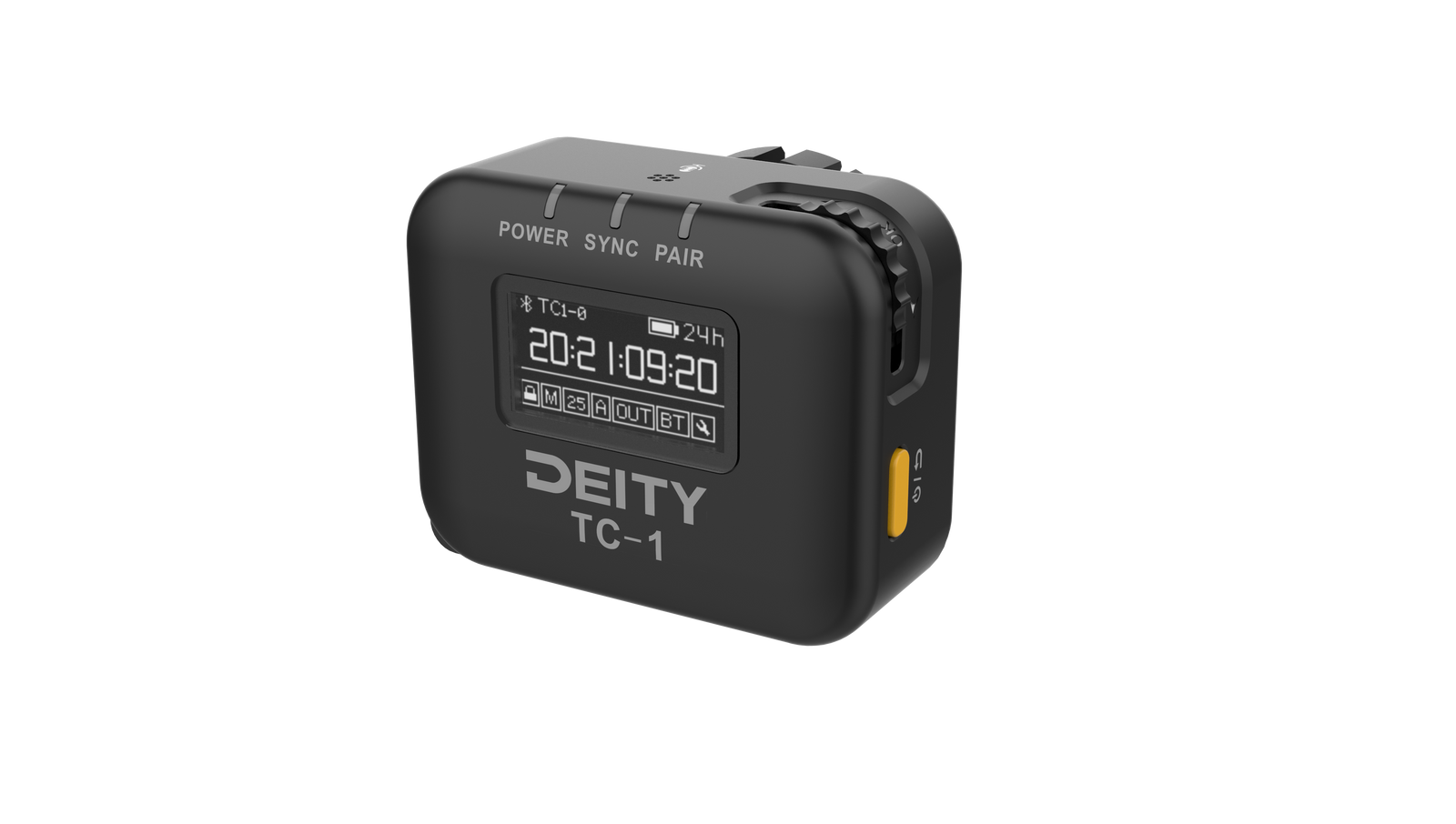

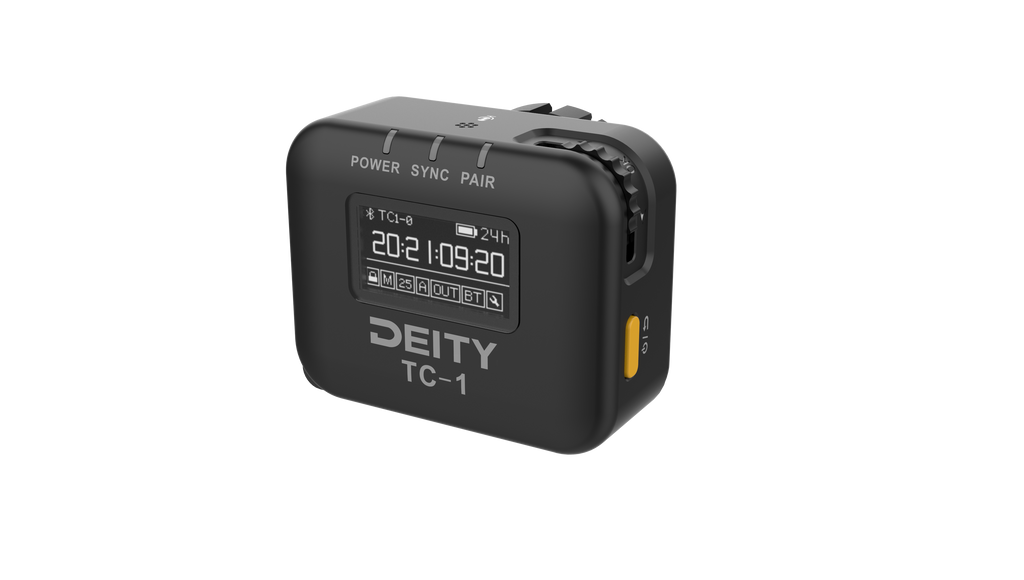

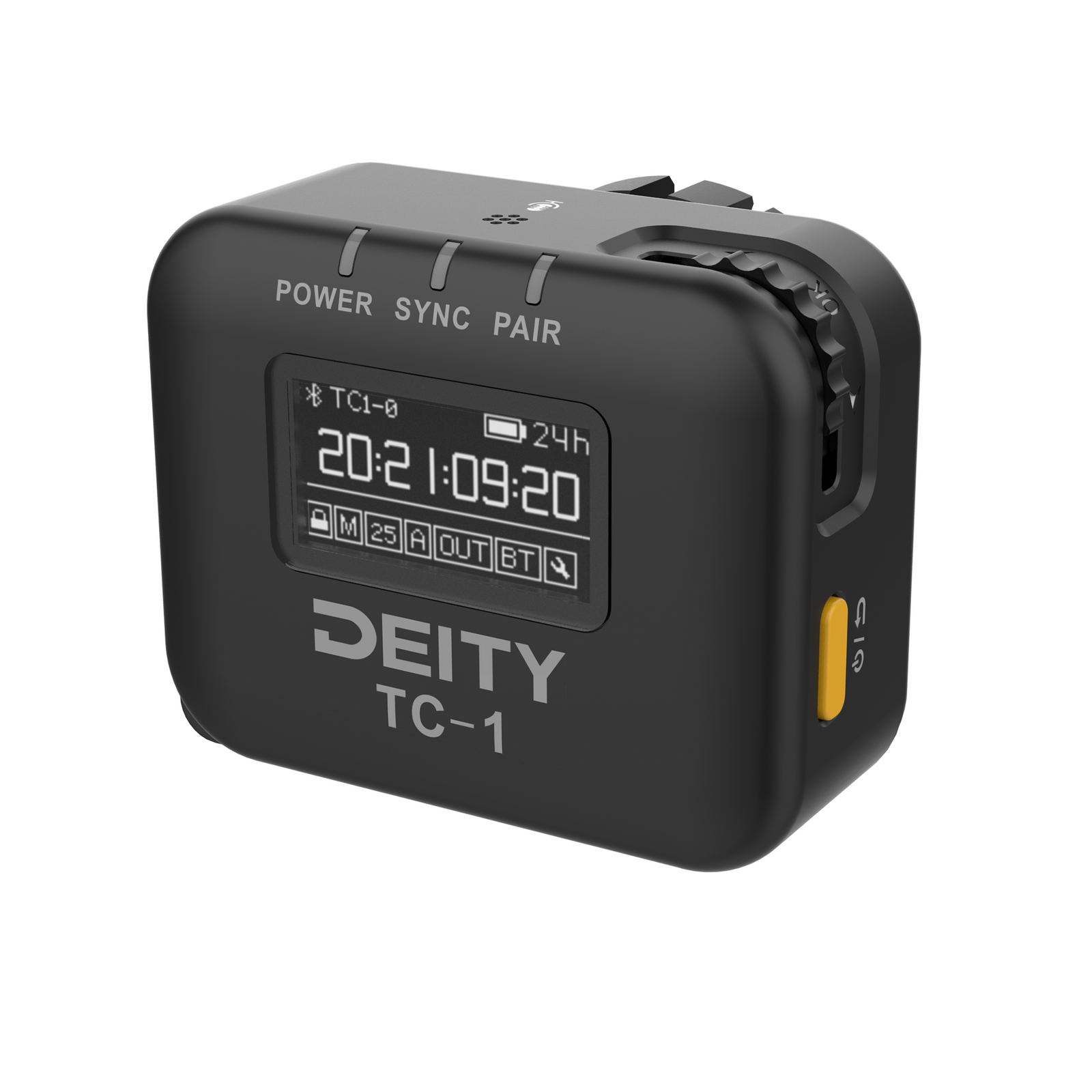

Deity Microphones TC-1 Wireless Timecode Box

DeitySKU: TC-1

Quantity: 1 pc.
Price:
Sale price €189.00

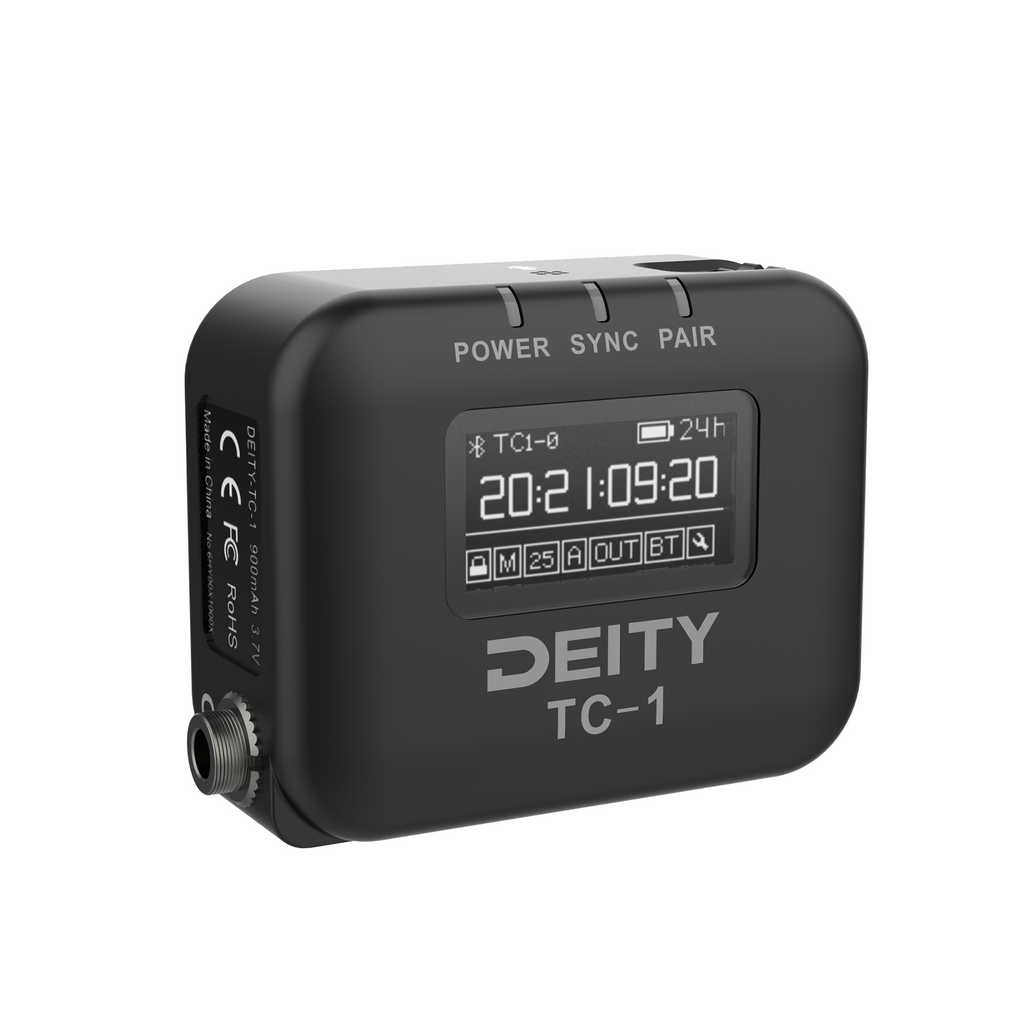

The Deity TC-1 is a wireless timecode box designed to feel familiar. The on-board menu and display allow you to operate the unit and wireless sync multiple TC-1 units at the same time. With the free Bluetooth® app, users are able to control every aspect of the TC-1 as well as other products from Deity from the Sidus Audio family of products. The locking 3.5mm timecode port means you don’t have to worry about your cables becoming unplugged after a unit has been mounted on a camera. The TC-1 takes the best features people love about other timecode boxes and combines all of it into a unified piece of gear. The TC-1 was designed to adapt to different workflows.

Simplifying Post-Production with Timecode

When recording sound separately or working with multiple cameras on a production—whether it's a feature film, TV show, music video, documentary, or especially reality television—jam-syncing timecode is essential. With increasing devices supporting SMPTE timecode, post-production workflows are more efficient than ever. Instead of manually aligning waveforms, timecode streamlines the process, saving valuable time and resources while ensuring faster project turnaround.

Long-Range Wireless SMPTE Timecode with Minimal Drift

Designed for precision, this advanced timecode generator is compatible with all SMPTE formats and features a TXCO oscillator with ±0.5 ppm accuracy—resulting in an impressively low drift rate of just one frame every 72 hours.

For even greater accuracy, wireless syncing keeps all units perfectly aligned throughout the day. You have two convenient options for control: Bluetooth 5.0 allows seamless operation through the Sidus Audio app, enabling jam sync and adjustments for up to 48 TC-1 units at distances up to 75 meters. For those who prefer a direct approach, the built-in OLED screen and control panel offer hands-on syncing for up to eight units via proprietary 2.4 GHz wireless technology, with a range of up to ~10 meters.

Versatile Timecode Support for Cameras and Audio Recorders

The TC-1 features a secure, locking 3.5mm TRS timecode port, ensuring your connections remain intact throughout a shoot. When working with DSLR or mirrorless cameras, the included 3.5mm TRS cable records timecode on the left channel while preserving the right channel for reference audio—captured through the built-in omnidirectional microphone, which aligns with the camera lens for accurate audio backup.

For professional setups, additional cables are included to support cameras and recorders equipped with 5-pin LEMO or BNC timecode ports, ensuring seamless integration with a wide range of industry-standard equipment.

Optional Timecode Cables:

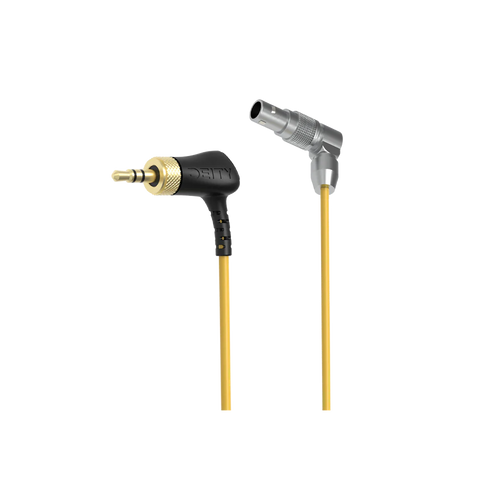

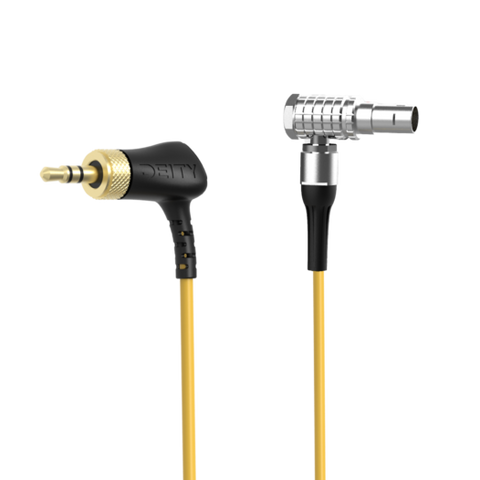

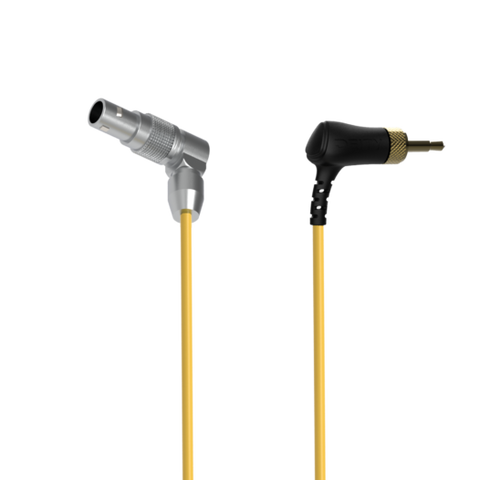

  • Deity C13: Locking 3.5mm to right-angle 5-pin LEMO timecode cable for ARRI ALEXA Mini camera

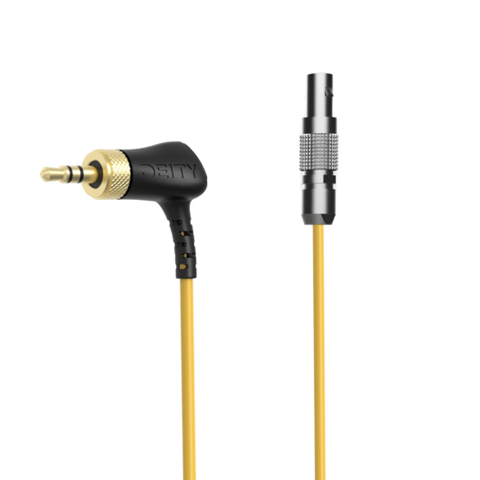

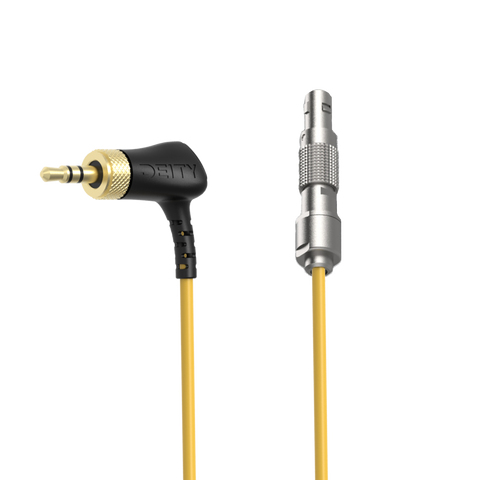

  • Deity C14: Locking 3.5mm to 5-pin LEMO timecode cable for various devices

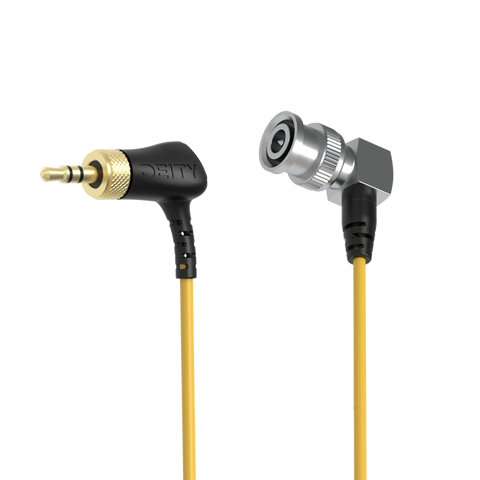

  • Deity C15: Locking 3.5mm to BNC timecode cable

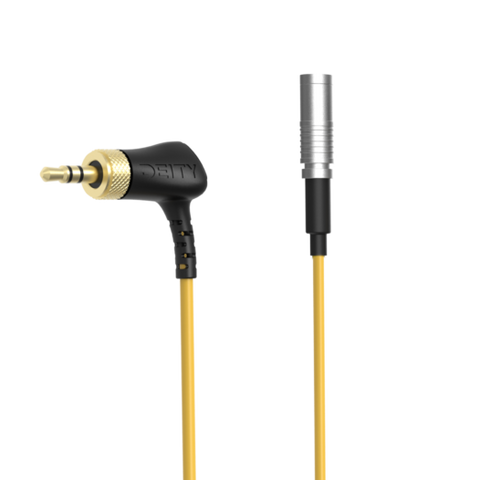

  • Deity C19: Locking 3.5mm to “Mini BNC” for Canon R5 C or Canon C400

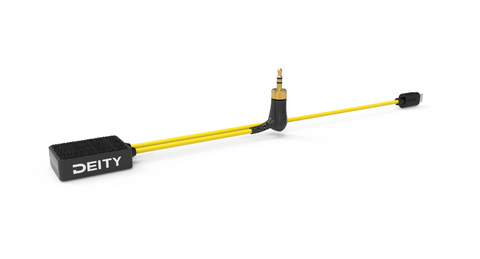

  • Deity C23: Locking 3.5mm to Sony Multi-Connector for Sony FX30 & FX3

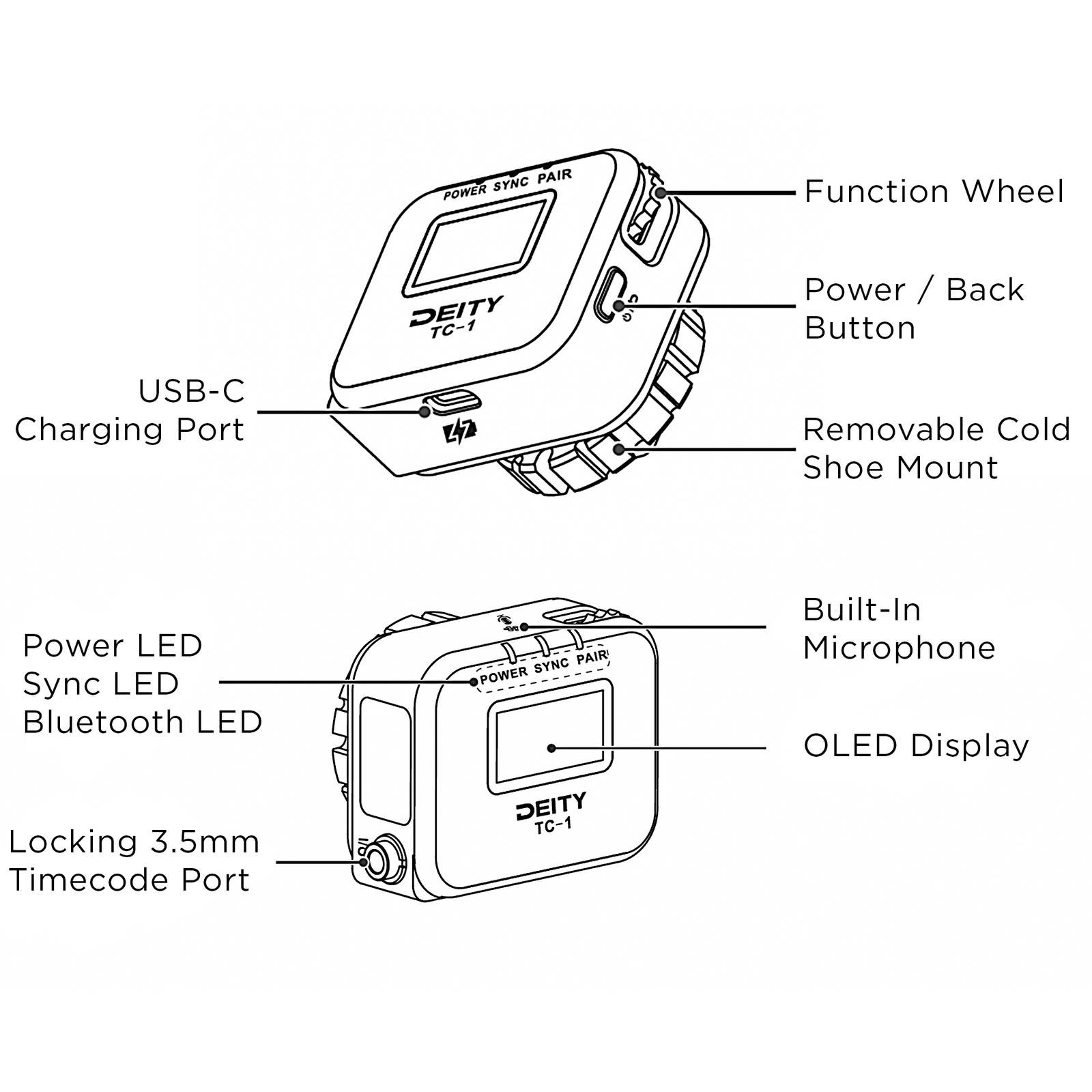

Features

  • Up to 28hrs of Battery Life
  • Wireless Bluetooth® Phone App Syncing; 250ft Range
  • 150 DPI OLED Display
  • Locking 3.5mm TC I/O Port
  • On-Board Microphone For Reference Audio
  • Built-In Menu; On-board Navigation

Single Piece Kit Includes:

  • Deity TC-1 Wireless Timecode Box

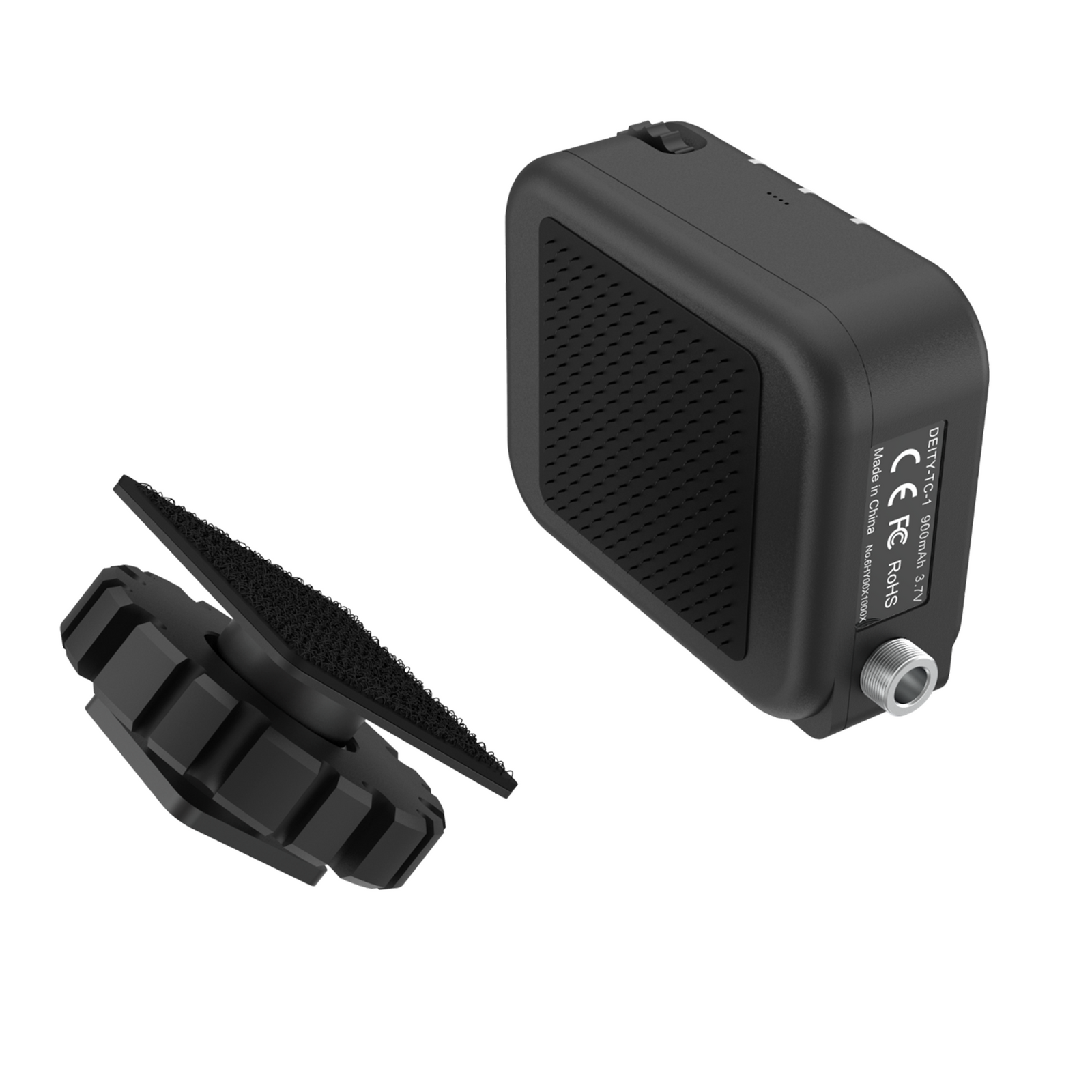

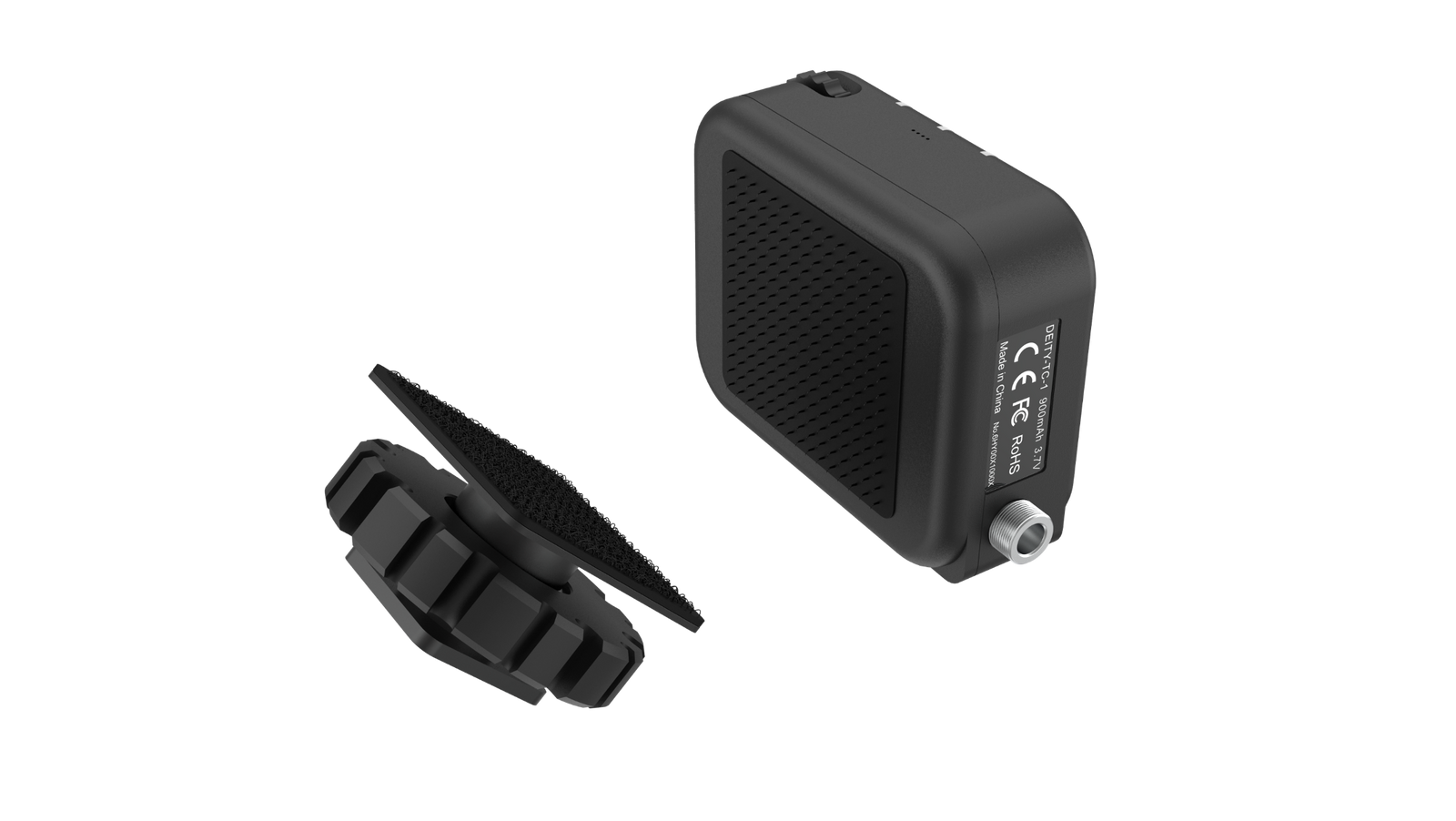

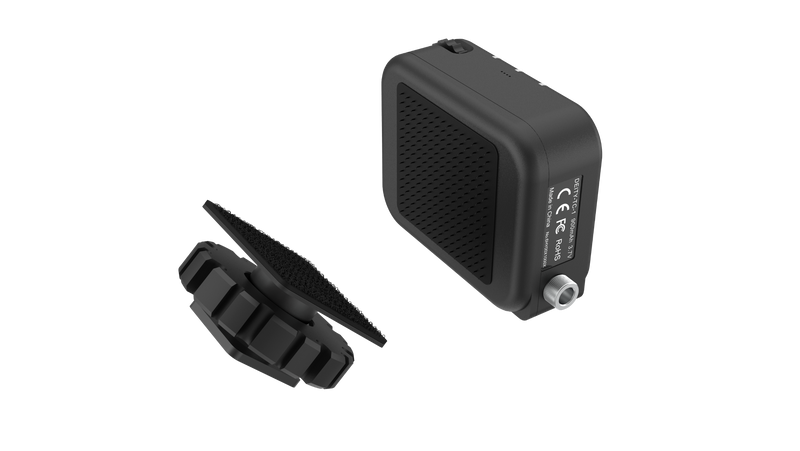

  • Deity Timecode Cold Shoe Mount

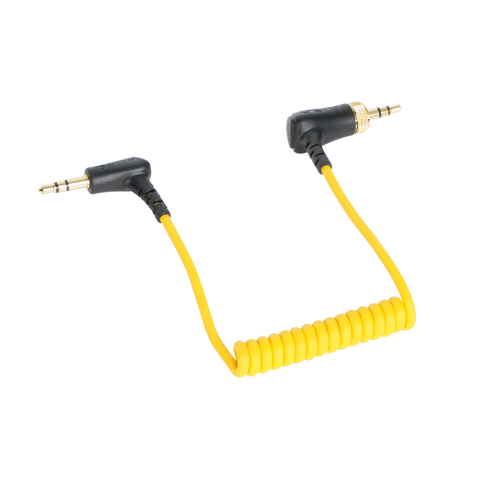

  • Locking 3.5mm TRS to TRS Cable

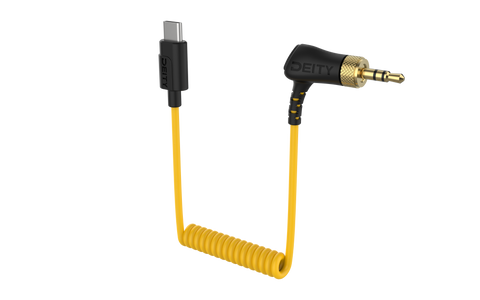

  • USB-C to TRRS Cable
  • USB-C to Type A Firmware Adapter
  • 1/4” to 3/8” Thread Adapter
  • Warranty Card and Manual

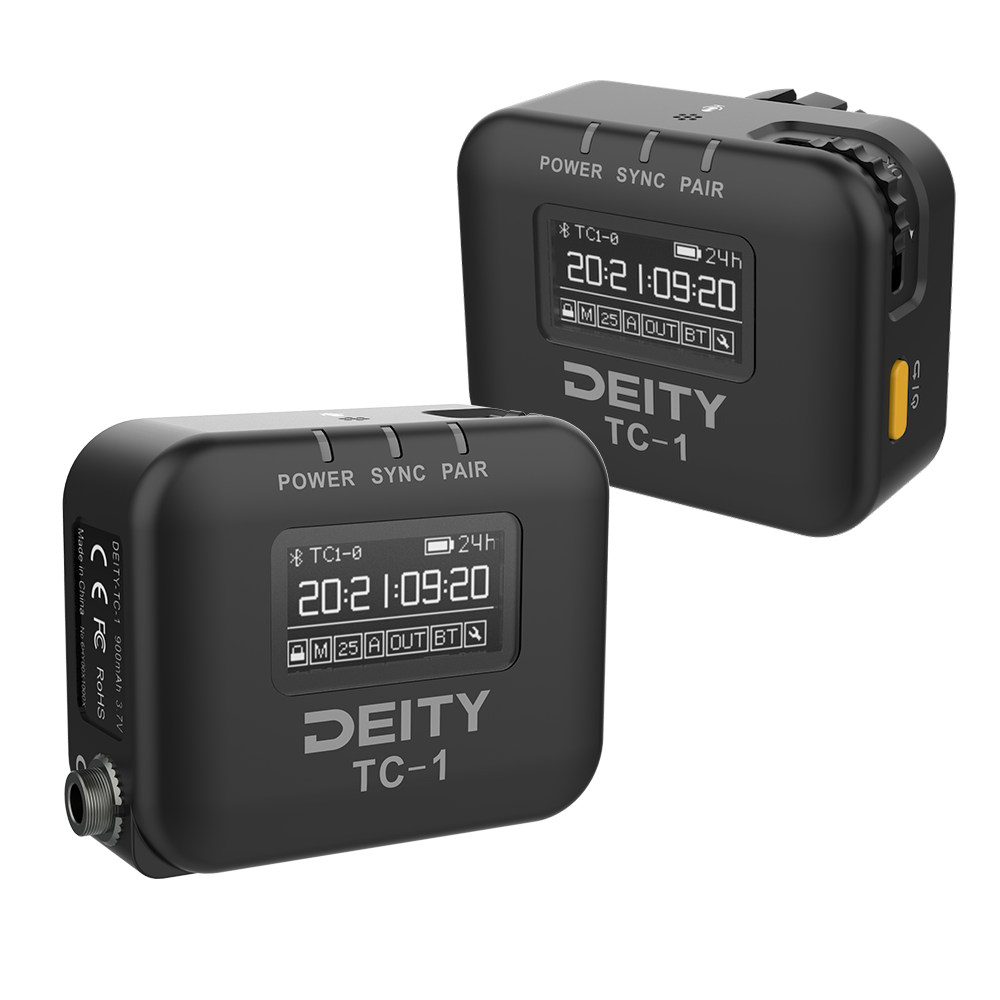

Double Kit Includes:

  • 2x TC-1 Timecode Boxes
  • 2x C12 - Locking 3.5mm TRS to TRS Cable
  • 2x Cold Shoe Mounts
  • 4x Hook & Loop Adhesive Pads
  • 1x Assorted Paperwork & Stickers

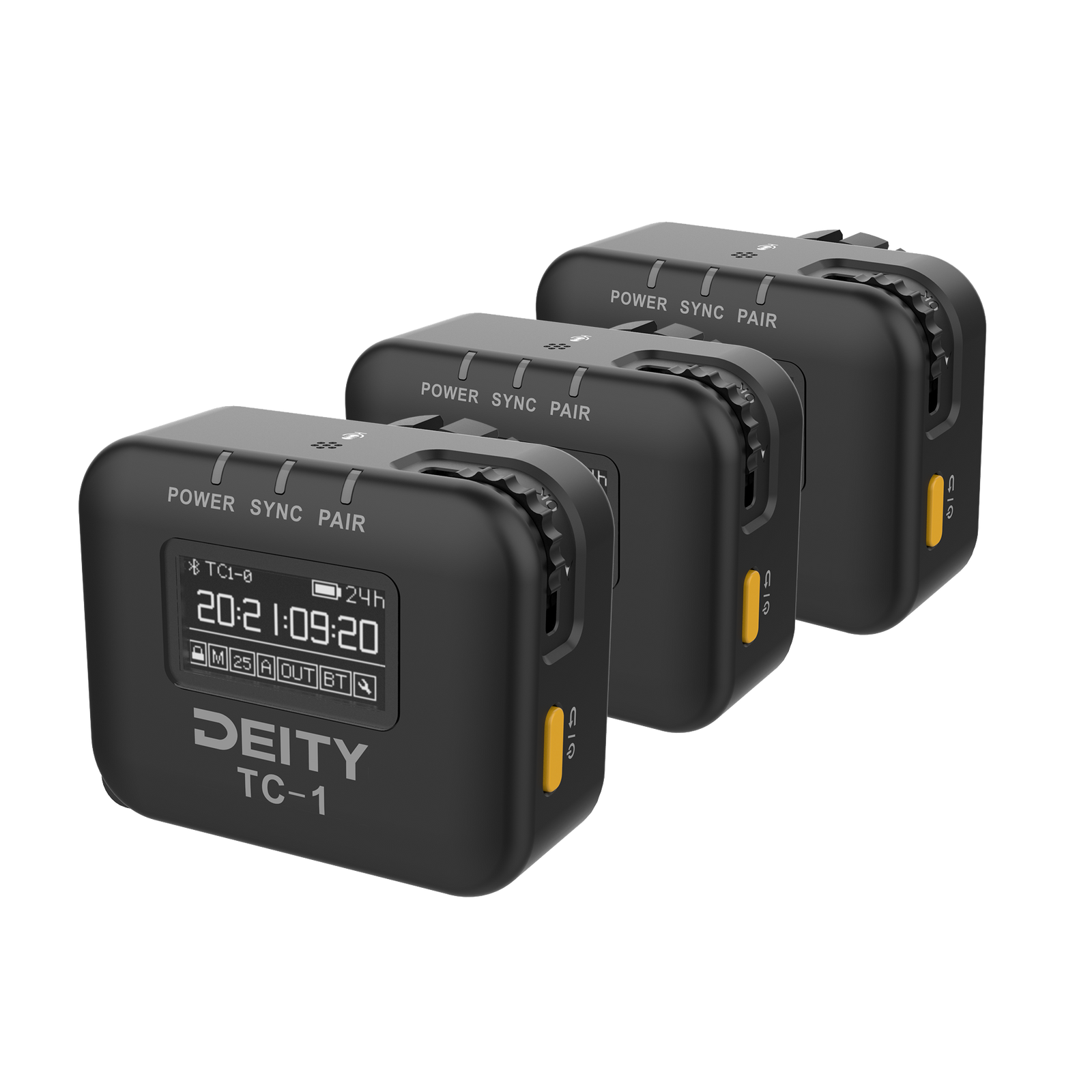

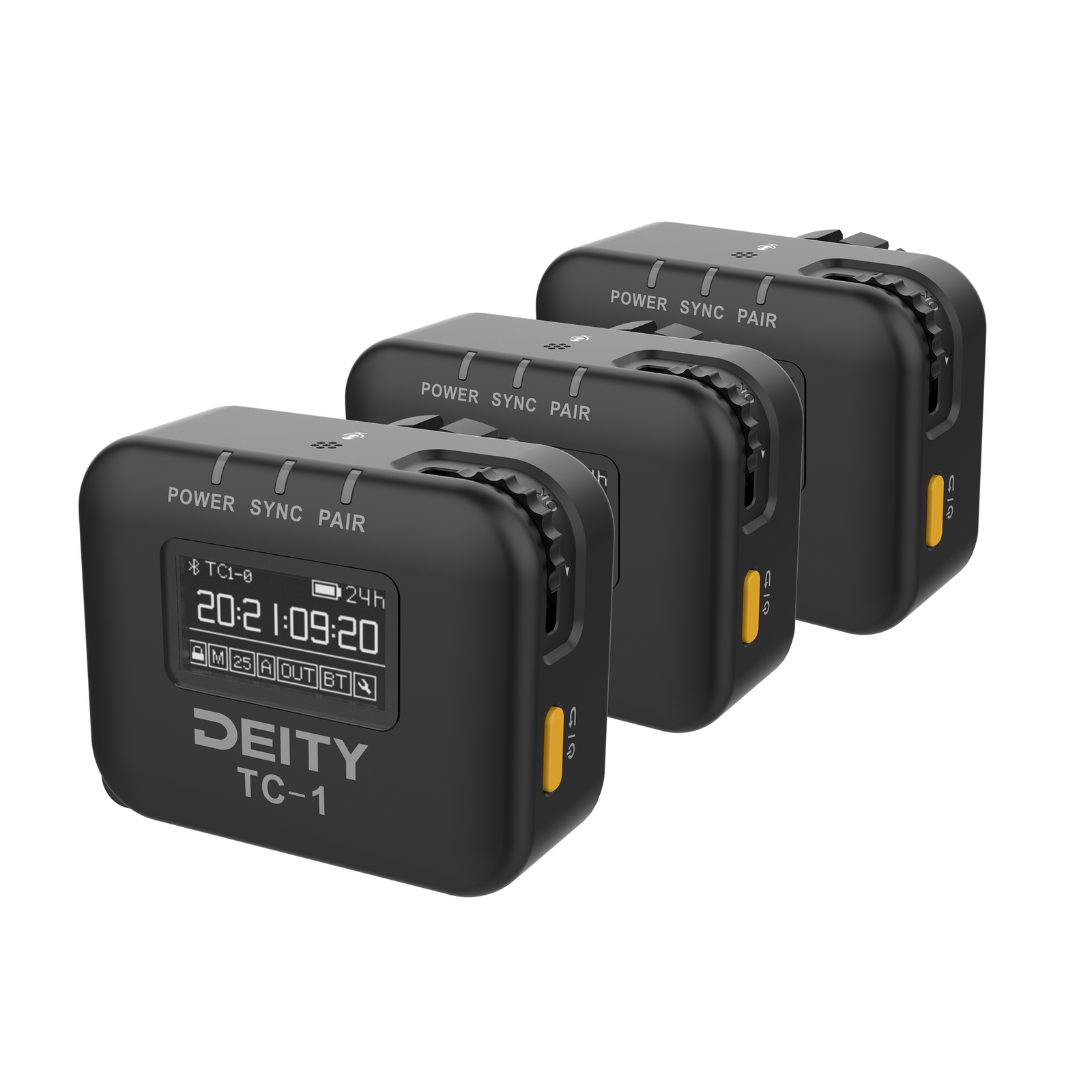

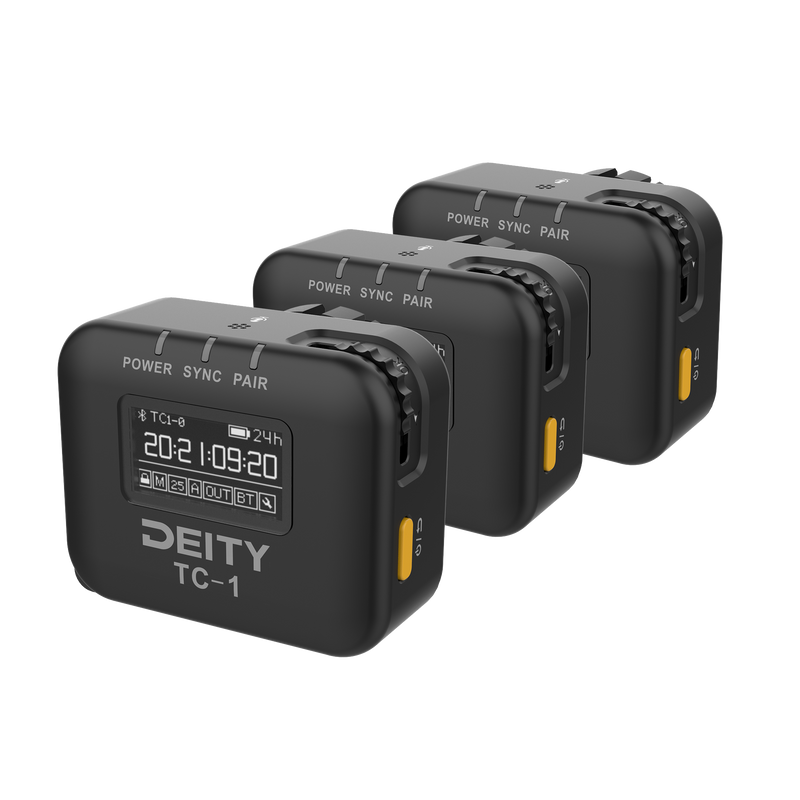

3-Piece Kit Includes:

  • 3x Deity TC-1 Wireless Timecode Box
  • 3x Deity Timecode Cold Shoe Mount
  • Locking 3.5mm TRS to TRS Cable
  • Locking 3.5mm TRS to BNC Cable
  • USB Type A to Triple USB-C Charging Cable
  • USB-C to Type A Firmware Adapter
  • Warranty Card and Manual

Specs

Timecode

SMPTE

Wireless Type

2.4G RF /
 Bluetooth® 5.0

Wireless Range

≤ 30ft - 2.4G RF

≤ 250ft - BT 5.1LE

Wireless RF Channels

8

Drift

< 1 Frame/24Hrs

Frame Rates

23.98, 24, 25, 29,97, 29.97DF, 30

Timecode Input / Output

Locking 3.5mm TRS

Audio Track

Built-In Omni Microphone

Battery Life

Up to 24Hrs

Battery Type

LiPo

Battery Capacity

950mAh

Charging Port

USB-C

Charging Time

3 Hours

Mounting

Hook-n-Loop

Dimensions

53.4 x 40 x 21.8 mm

Weight

41g

Temperature Range

-20C to +45C
