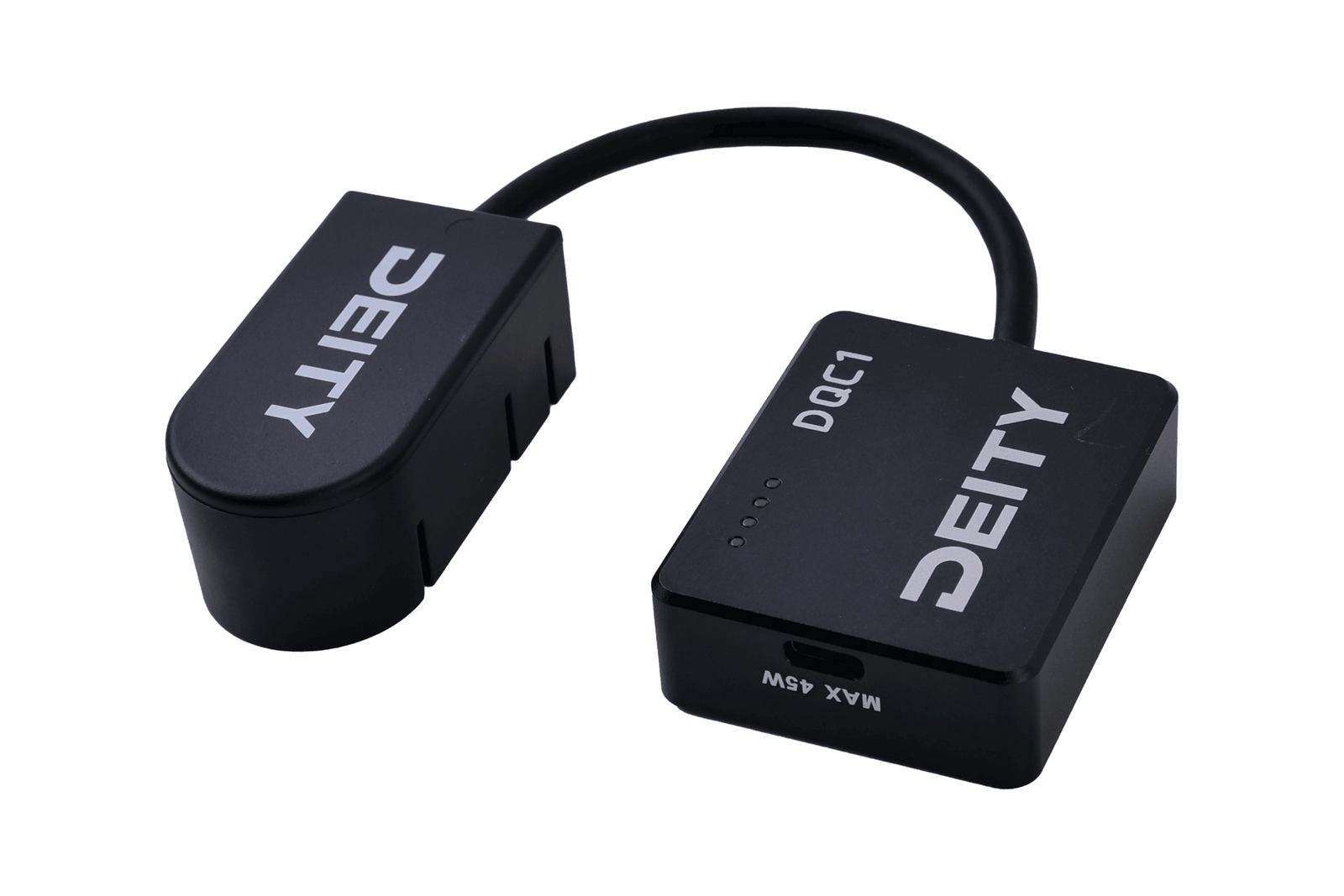

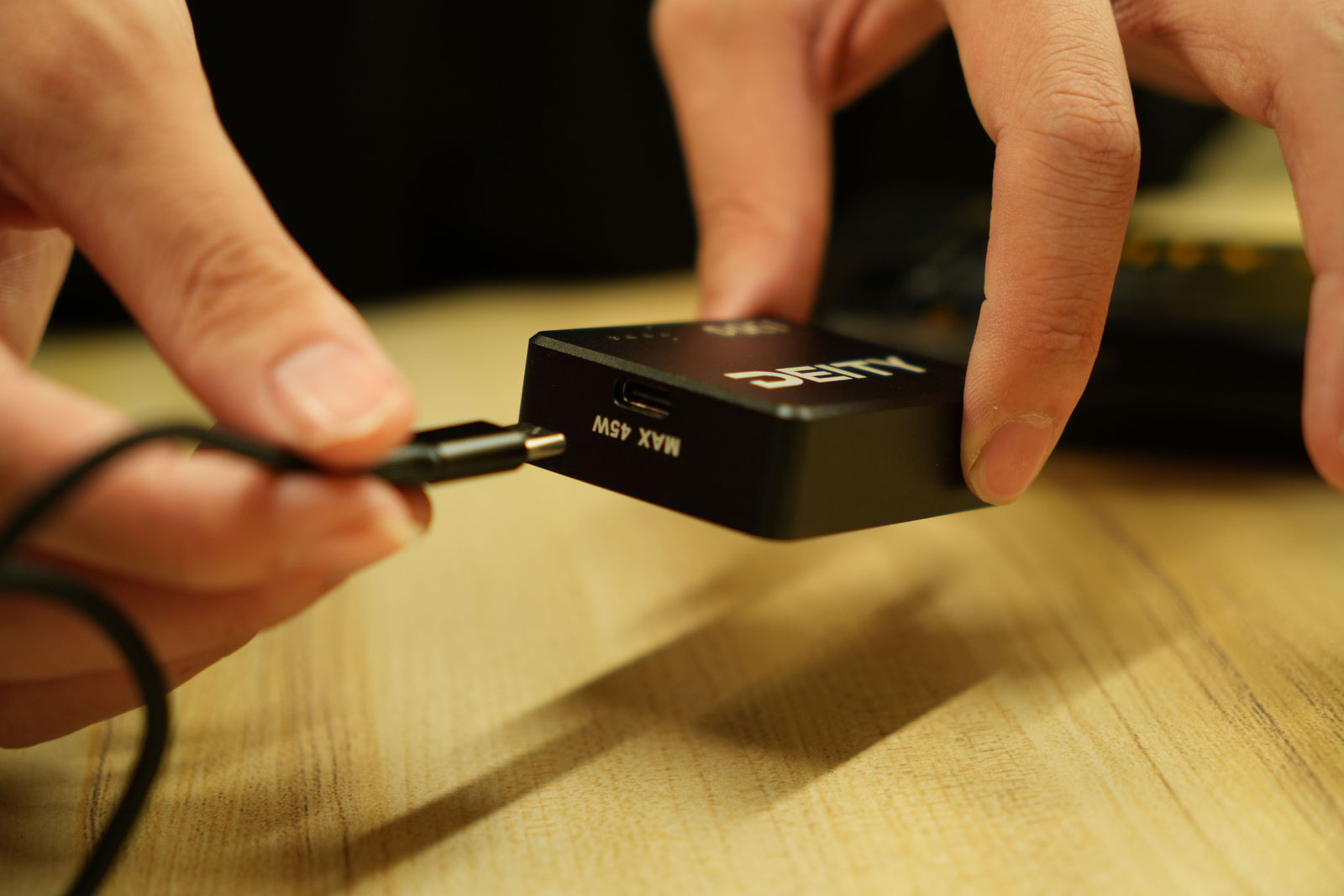

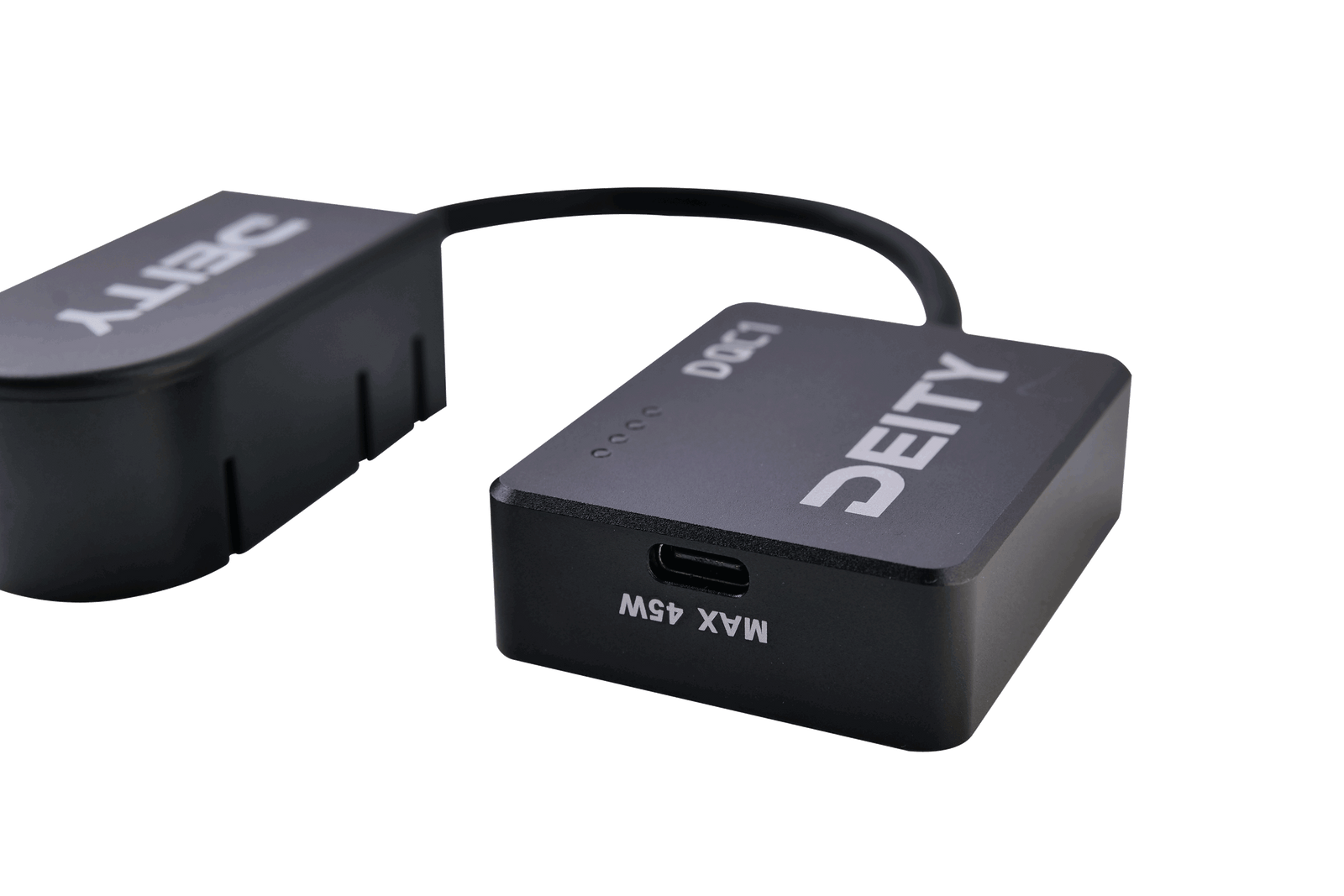

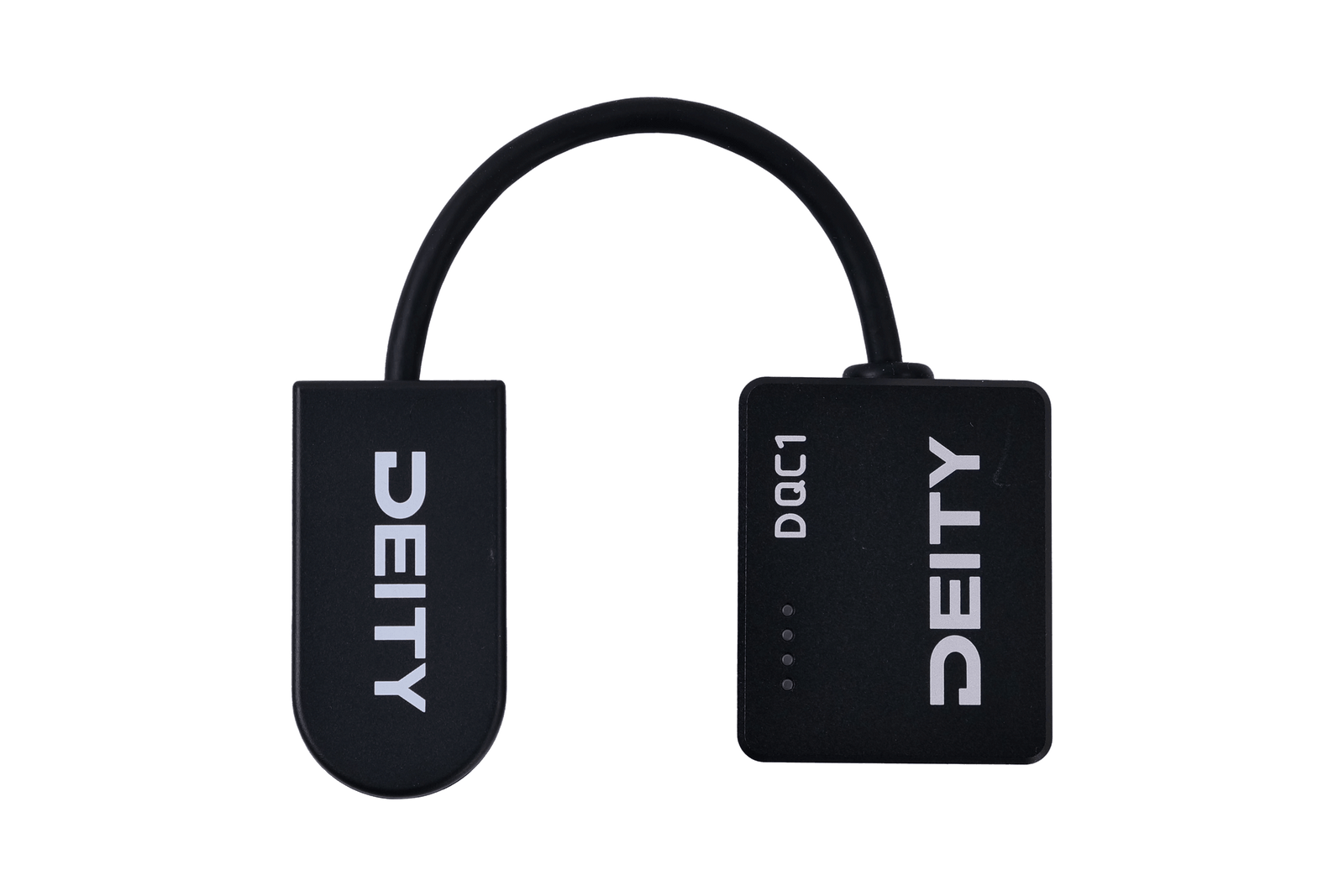

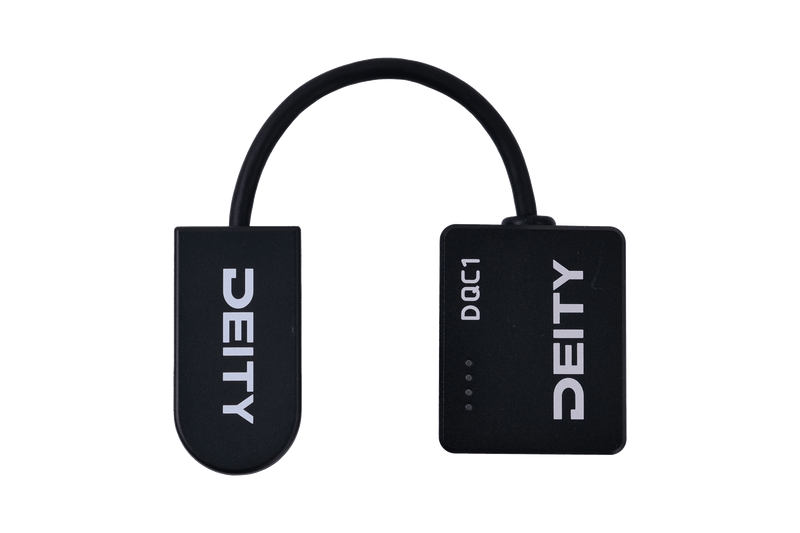

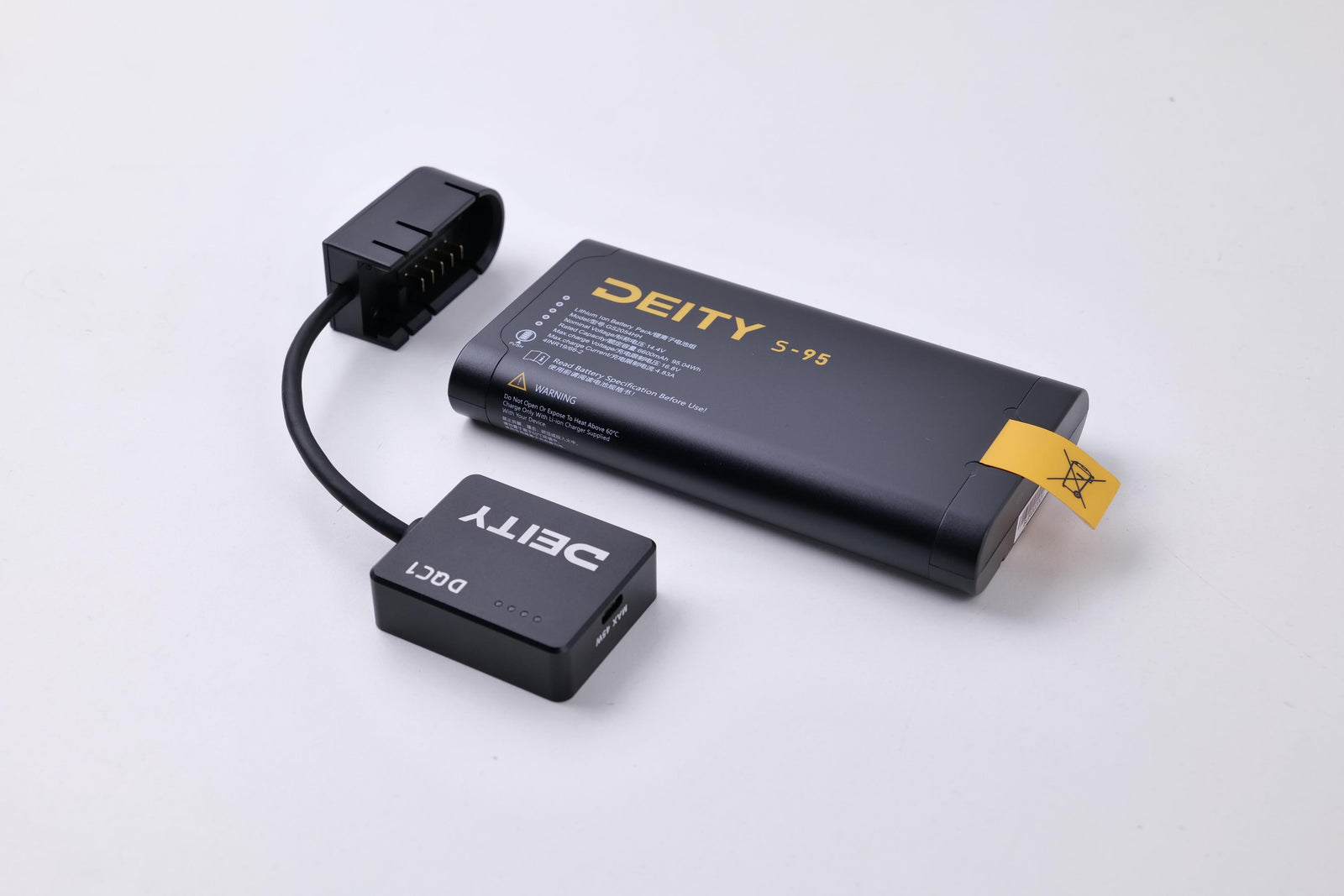

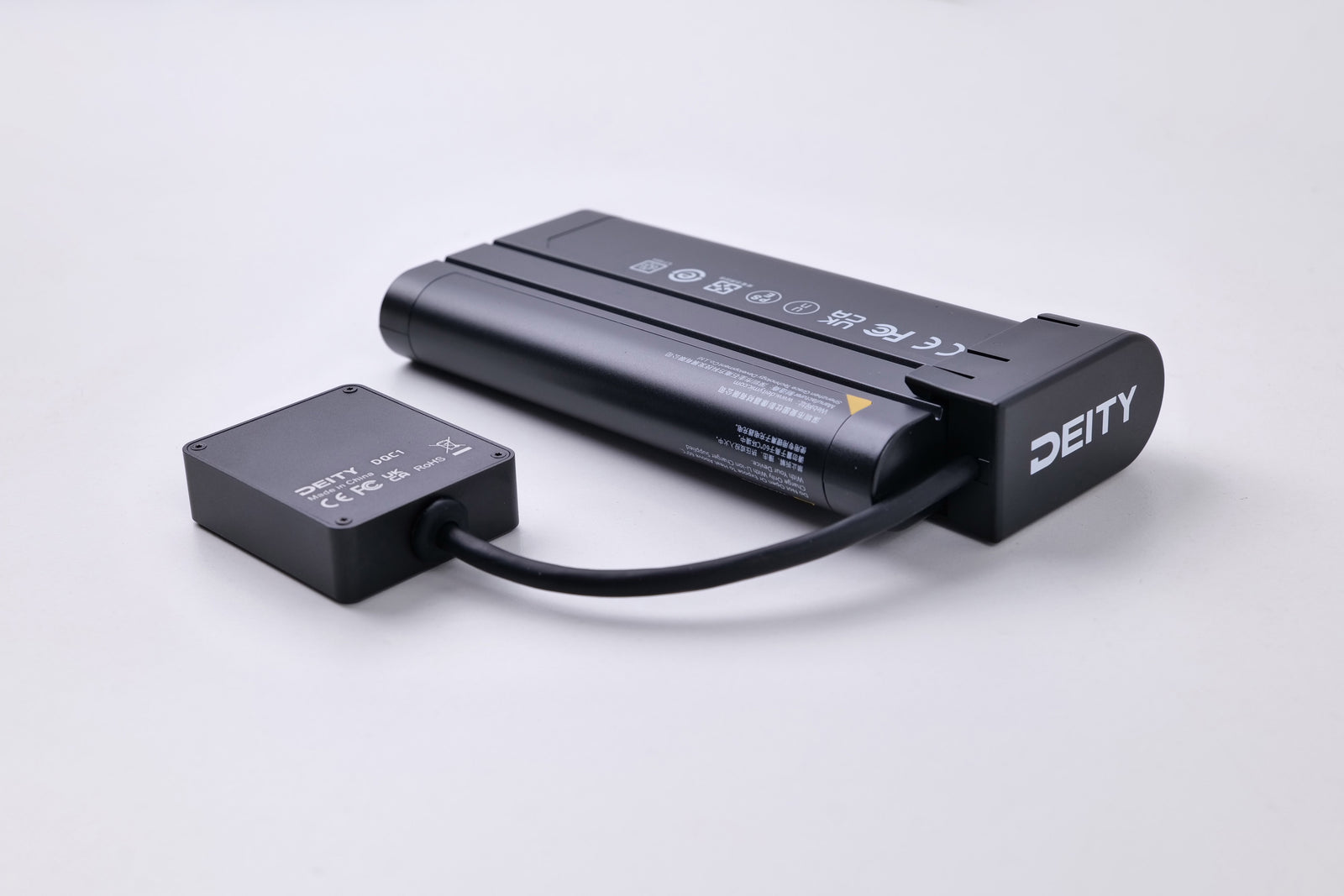

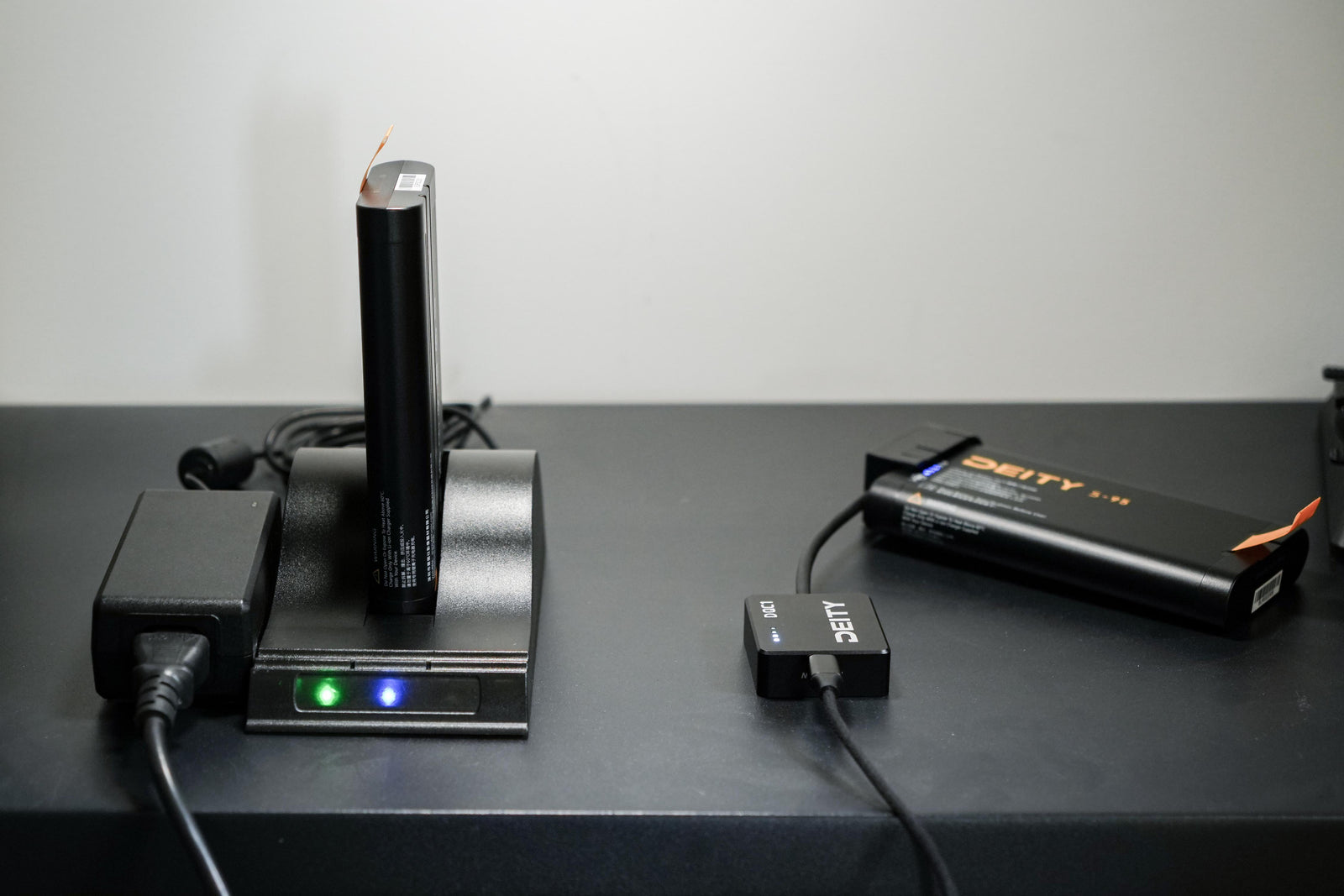

Designed to recharge smart batteries (SMBUS) via any off the shelf USB charger and boasts several impressive features. Notably, the charger is nearly the smallest, easiest-to-use smart battery charger yet, with a metal box that is strong and durable. It also has a USB-C port 45W fast charging capability and supports mainstream protocols, making it highly convenient and compatible with various devices. Additionally, the charger features chip and circuit multiple protection, ensuring safe and reliable usage. The 4 LED lights accurately display the charging status, making it easy to monitor and use.
Specifications
|
Dimensions |
53.5 x 45 x 16.5mm |
|
Cable Length |
120mm |
|
Fast charging protocols |
Input: DRP Try.SRC, PD3.0, FCP, AFC, SCP Output: QC2.0/QC3.0/ QC3.0+ |
|

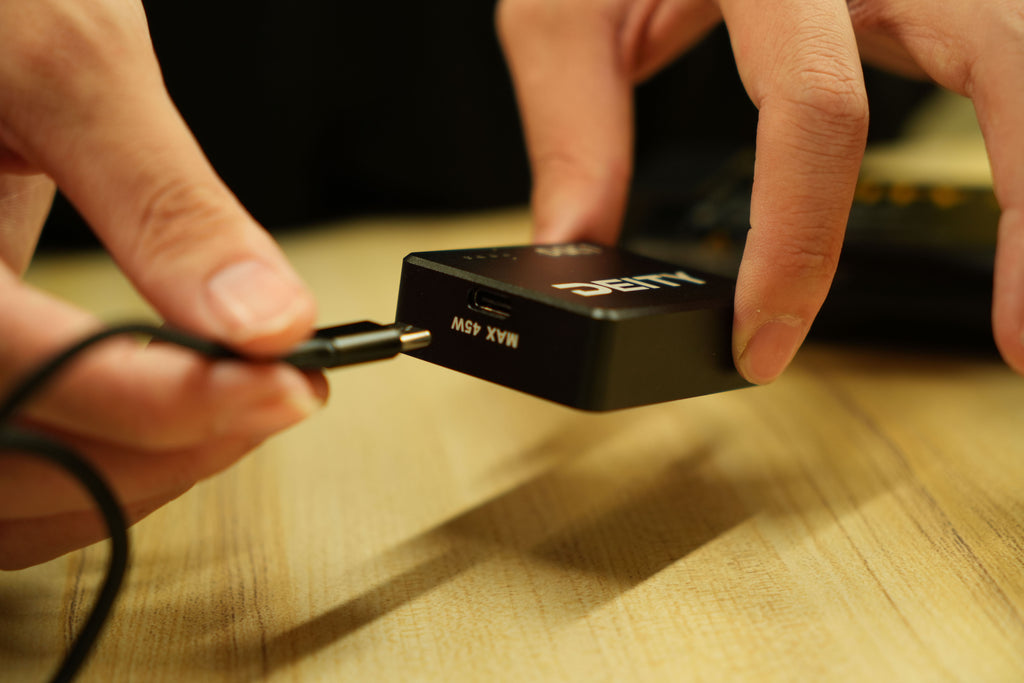

USB-C Input |
5V⎓3A 9V⎓3A 12V⎓3A 15V⎓3A 20V⎓2.25A |
|
USB-C Output |
5V⎓2.5A 9V⎓2.5A 12V⎓2.5A 15V⎓2.5A 20V⎓2.5A |
|
Hi-Q Max output |
16.8V⎓45W |
*It is recommended to use a 45W fast charge charger
