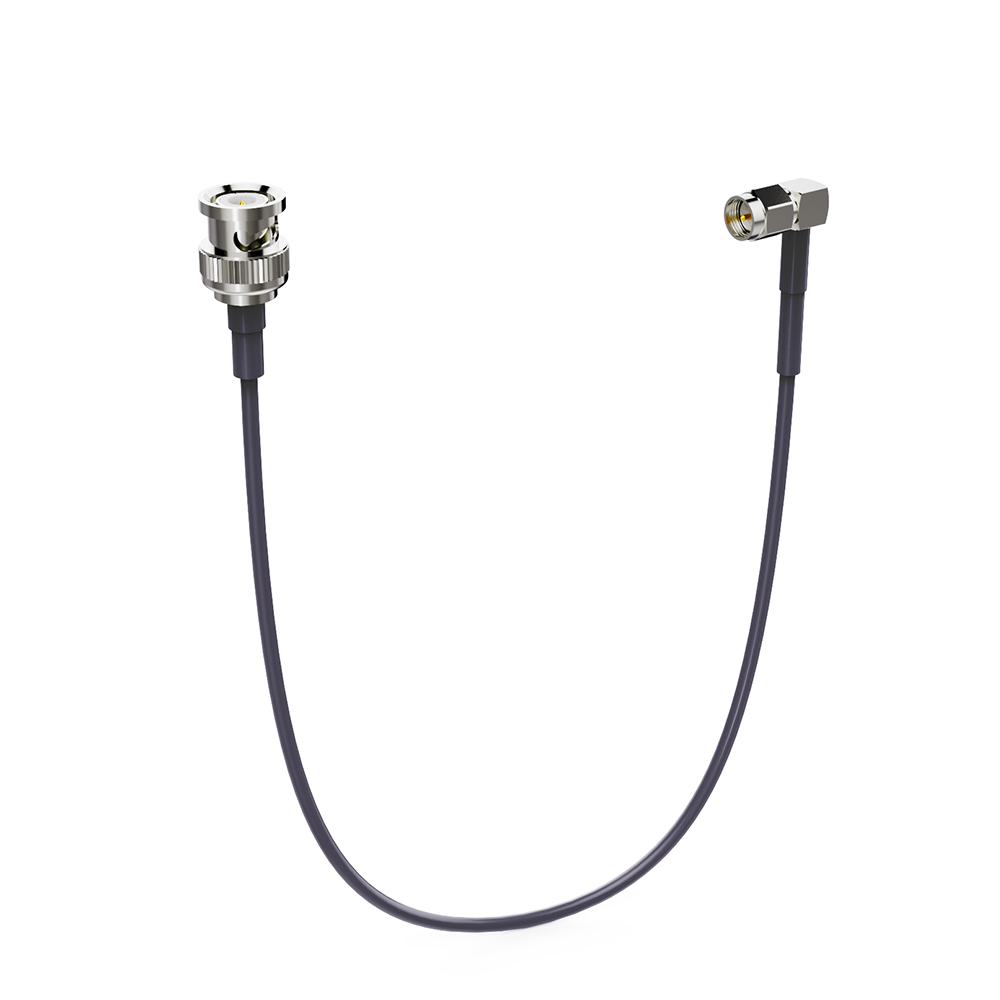

A 50 OHM jumper cable to connect wireless microphone receivers to an RF distro.
- Colour: Black
- Connector: Right Angle SMA male to Straight BNC
- Length: 45cm
Specs:
|
Connector |
BNC - SMA male right angle |
|
Length |
45 cm |
|
Frequency Range |
0 - 3G |
|
Impedance |
50 Ω |
|
Voltage Standing Wave Ratio (VSWR) |
≤ 1.2 (Max) |
|
Conduction Impedance |
0.5 Ω |
|
Insulation Resistance |
≥ 5000 MΩ |
|
Maximum Power |
10 W |
|
Operating Voltage |
335 V (Max, RMS) |
|
Mechanical Durability |
500 cycles |
|
Withstand Voltage |
1000 Vrms (at sea level) |
|
Operating Temperature |
-35°C to +8°C |
|
Radio Guide |
RG174 |
