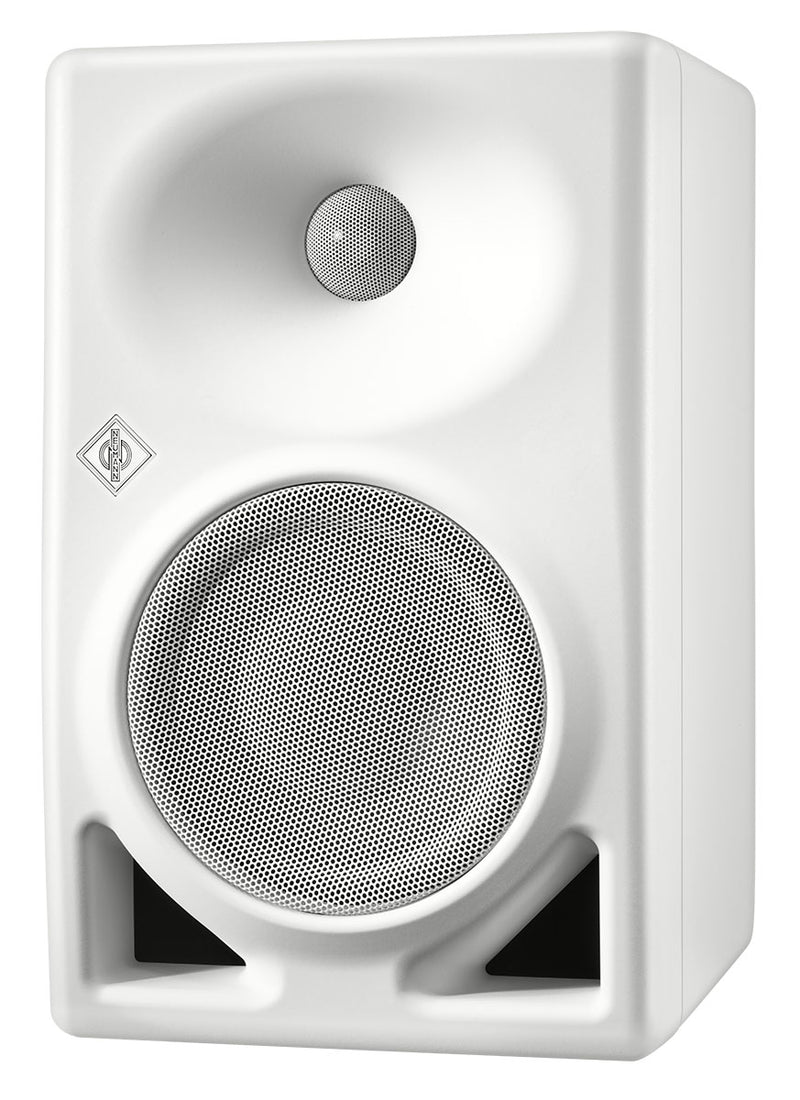

Neumann KH 120 II Active DSP Studio Monitor (AES67)

Neumann’s acclaimed studio monitor taken to a new level with deeper bass, higher resolution, and DSP power.

 The KH 120 II is based on the same concept as its acclaimed predecessor but completely re-engineered for improved performance in all parameters: deeper bass, higher SPL capability and even higher linearity. Internal DSP power allows for phase linear crossovers and room adaptive alignment via Neumann’s revolutionary MA 1 Automatic Alignment.

• Linear frequency and phase response
• Deep low end down to 44 Hz and high SPL capability
• DSP engine for improved performance and automatic room alignment
• Razor sharp imaging due to extremely low tolerances
• Analog (XLR) and S/PDIF (RCA) connectivity, optionally with AES67
• May be combined with other KH line speakers in immersive/surround setups.

Even Better

When Neumann released the KH 120 A in 2010, it was the beginning of an ongoing success story. Neumann monitoring has since become the reference of choice in countless studios around the world. The KH 120 II follows the same philosophy as its predecessor and, in fact, all Neumann studio monitors: highest linearity, lowest distortion, no coloration, and perfect adaptability to any acoustic environment. Thanks to improved performance in all parameters and a powerful DSP engine, the KH 120 II enables you to hear your tracks with even greater clarity and work more efficiently. Create mixes that translate optimally to all playback systems. With ease.

Perfect Sound with a Small Footprint

What You Hear Is What You Get

The KH 120 II features an exceptionally flat frequency response (44 Hz … 21 kHz, ±3 dB) and a linear phase response (120 Hz … 16 kHz, ± 45°). Powerful amplifiers ensure low THD and perfect clarity even at elevated listening levels

Ready for Your Room

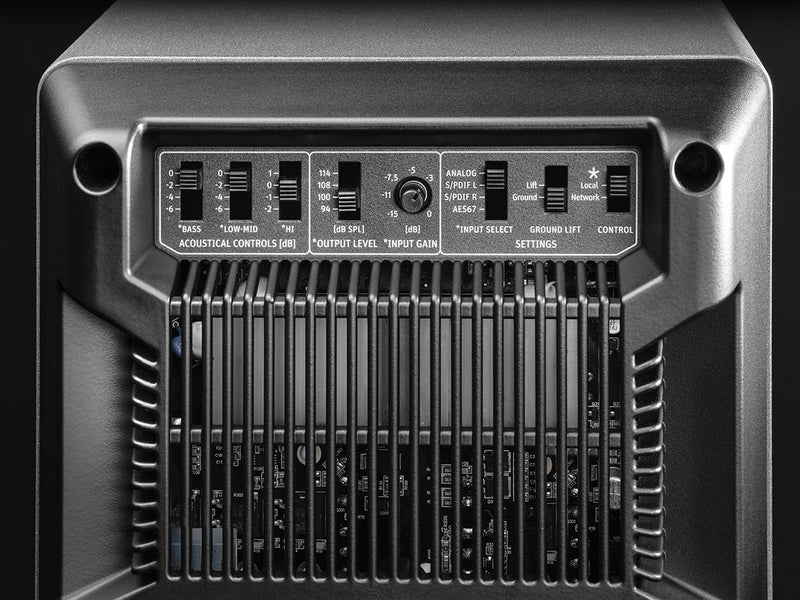

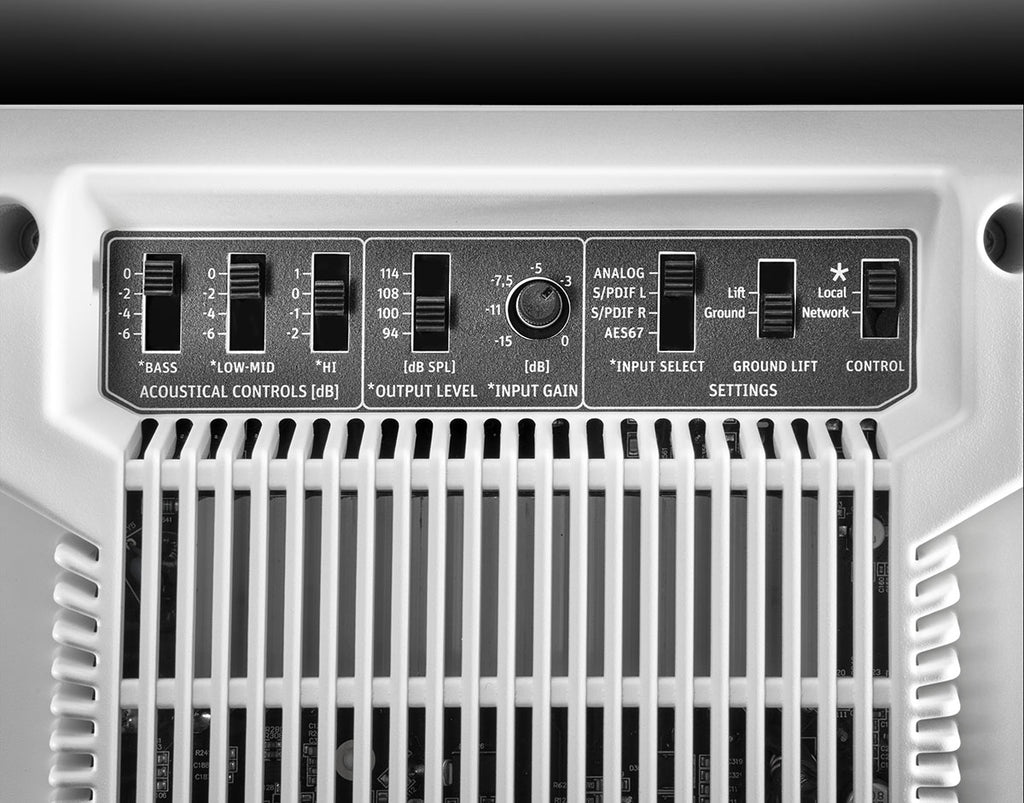

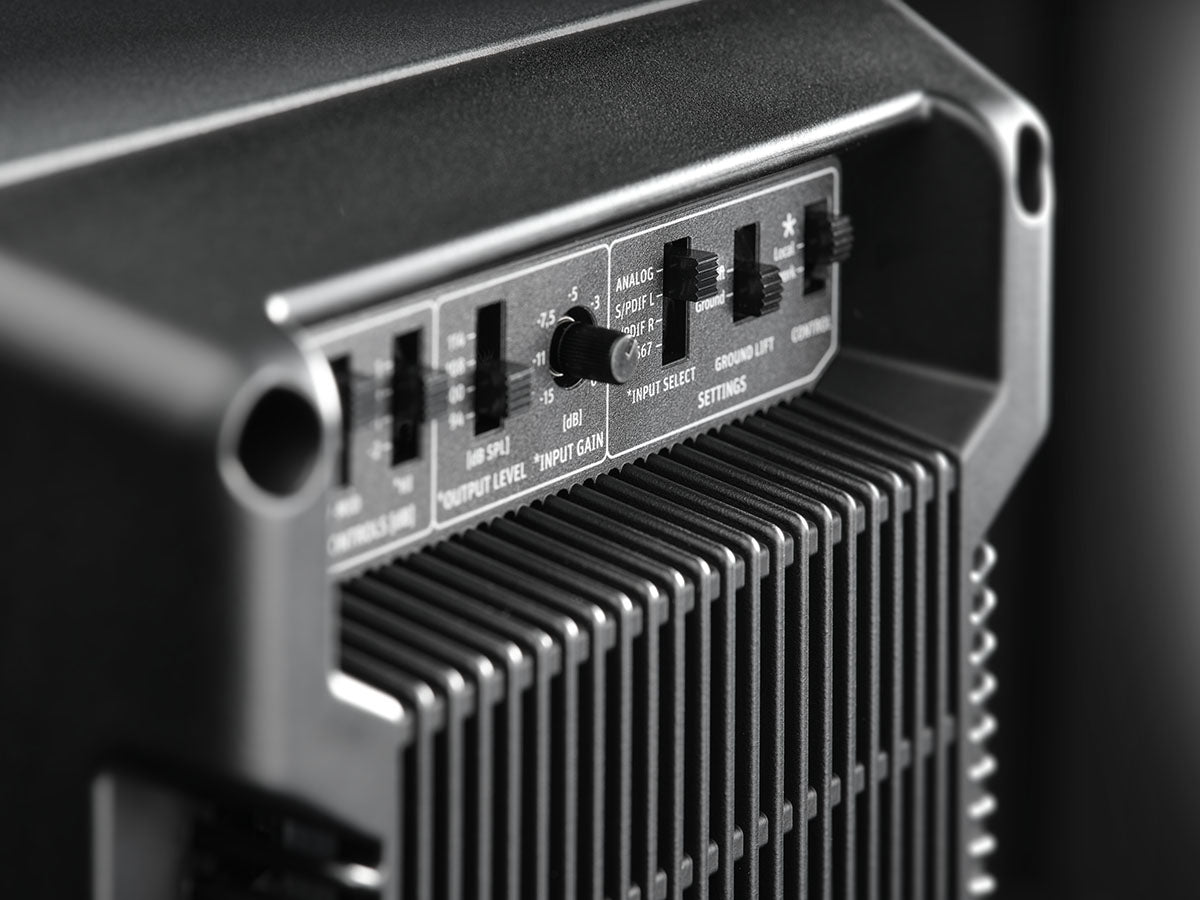

The internal DSP allows for room calibration via Neumann’s revolutionary Automatic Monitor Alignment MA 1 (sold separately) makes sure your DSP powered monitors are optimally adapted to the character of your room and perfectly calibrated for your listening position.

Extended Connectivity

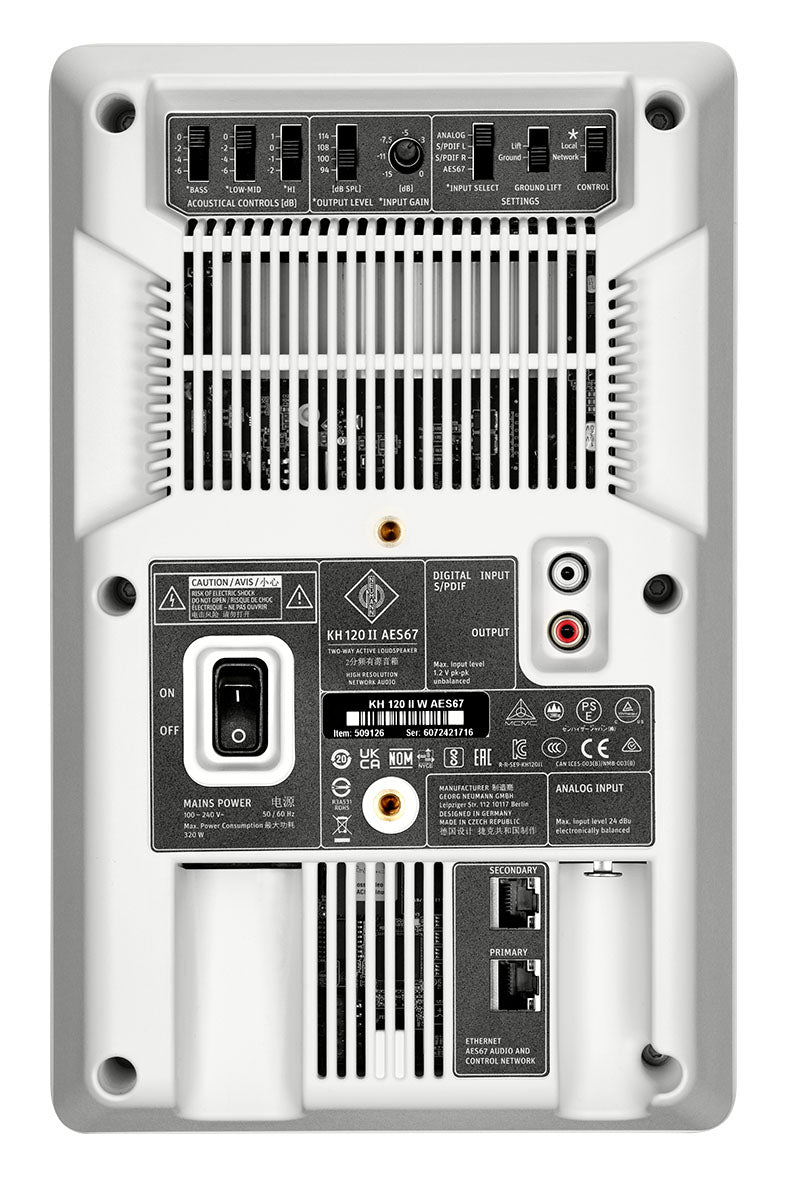

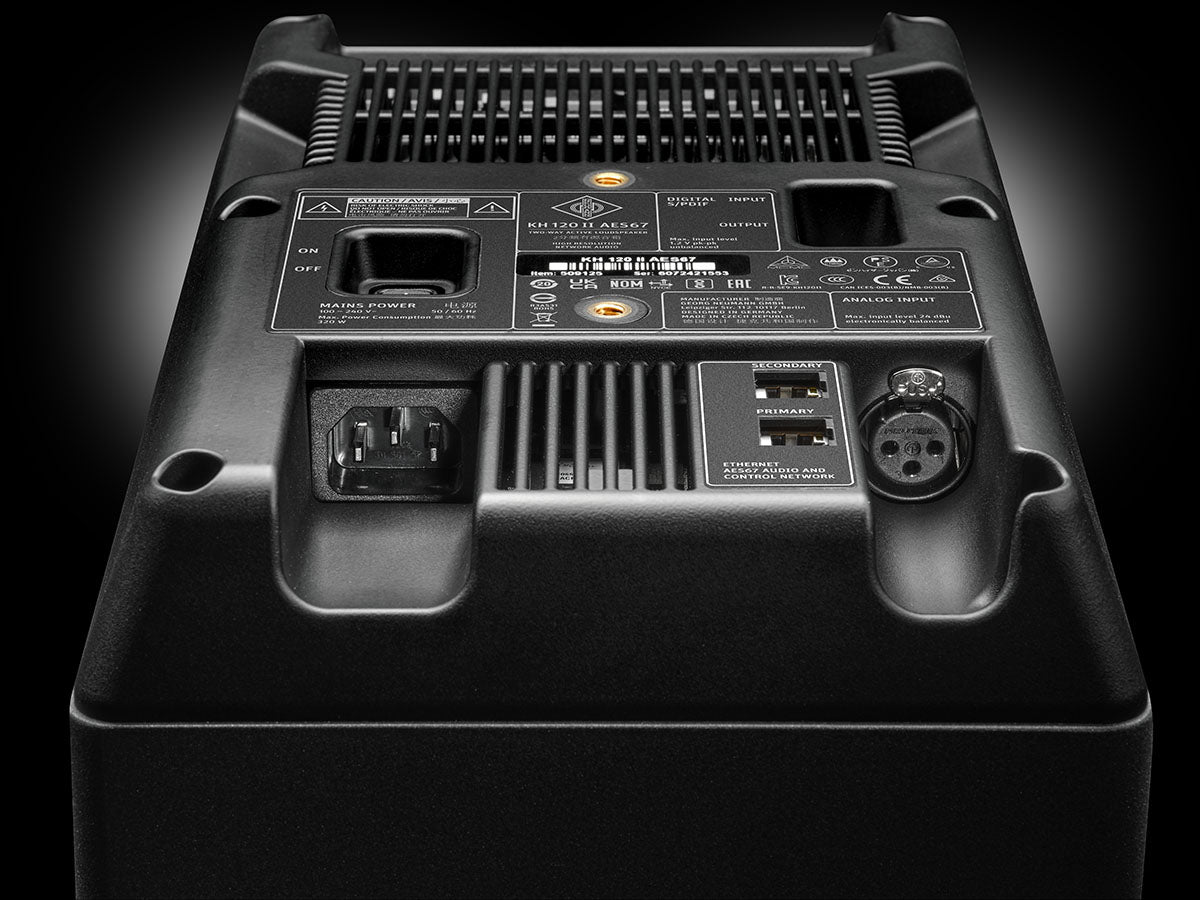

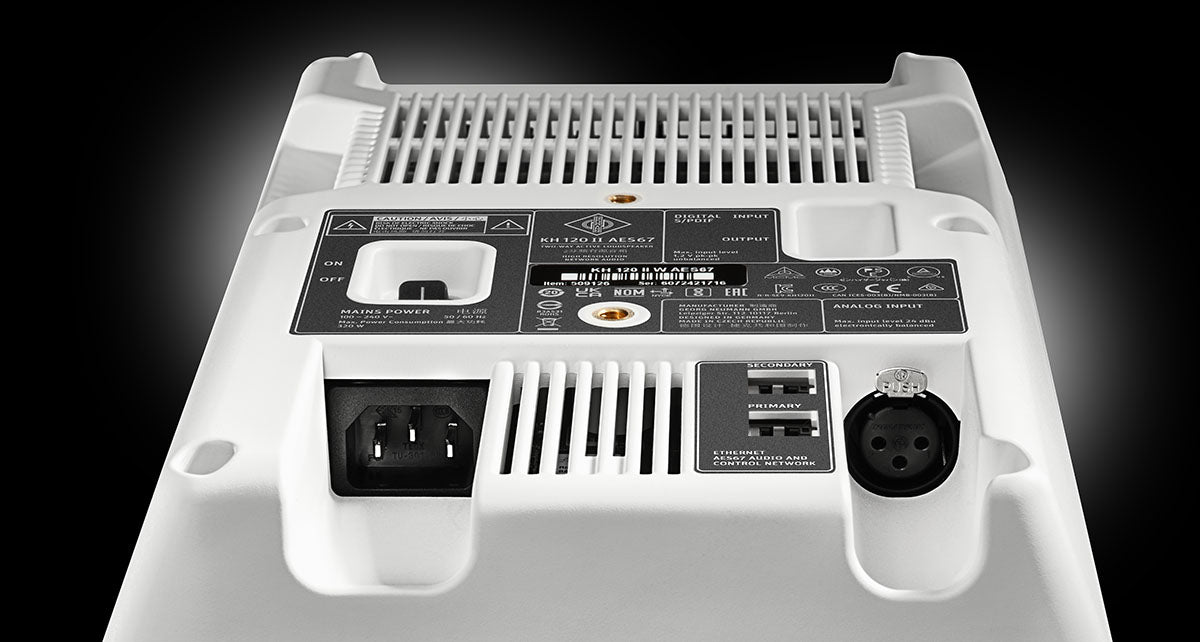

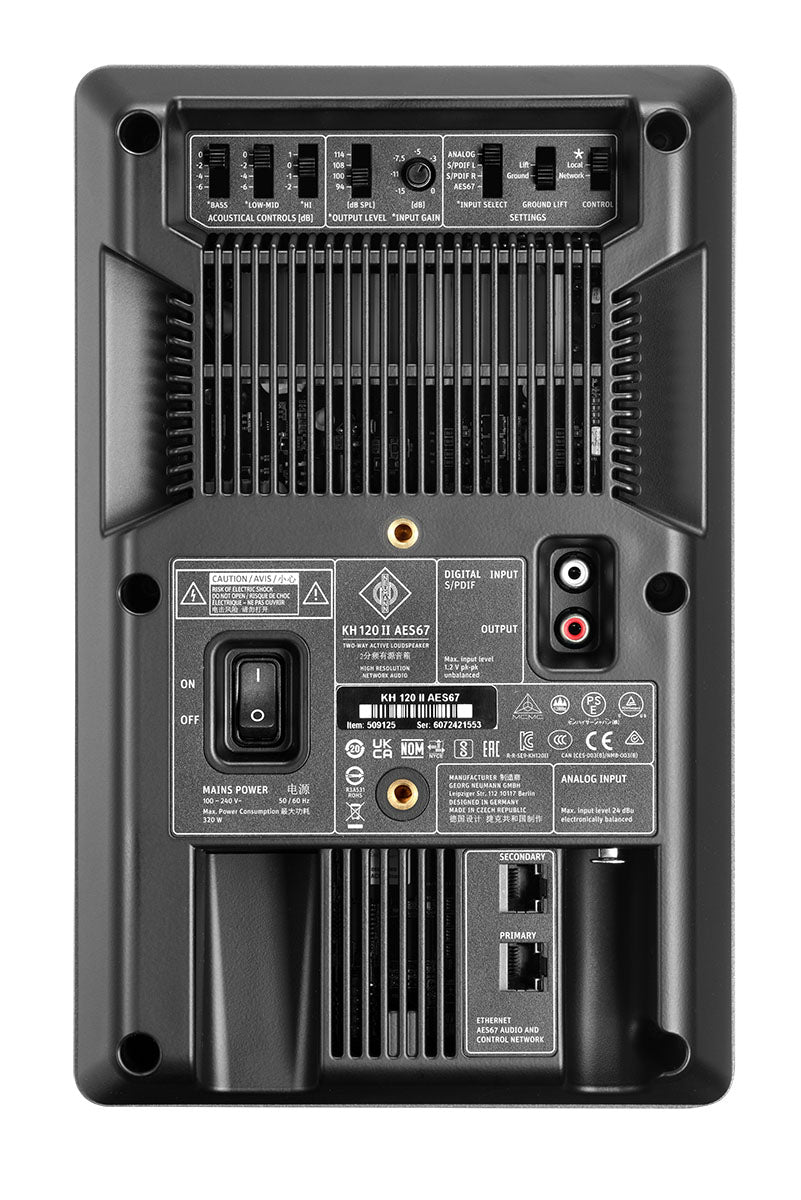

The KH 120 II comes with analog (XLR) and S/PDIF inputs (RCA). Additionally, the KH 120 II AES67 model variant offers redundant AES67 audio network ports that are fully compliant with broadcast standards such as ST 2110 and ST 2022-7. The KH 120 II AES67 is compatible with DANTE®-generated AES67 network streams.

Energy Efficient

The KH 120 II uses a patent pending amplifier technology which combines superior audio performance with energy efficiency. Although the power amplifiers of the KH 120 II deliver up to 145 W to the 5.25” woofer and 100 W to the 1” tweeter, they only consume 17 W at idle. Auto-standby reduces power consumption to 0.3 W when the KH 120 II has not been used for a while, but can be deactivated.
