AEA NUVO N22 Stereo Kit

AEASKU: NUVON22KIT

Price:
Sale price €3,149.00

YOUR NUVOS ARE BETTER IN STEREO

Designed at the request of legendary engineer John Kurlander (Beatles, Lord of the Rings, Skyrim), AEA’s NUVO Stereo Kit enables serious musicians and engineers to rapidly set up and accurately record in stereo on a single stand.

The NUVO Stereo Kit conveniently houses two N22s or two N8s and comes with all of the accessories necessary to easily configure the figure-eight microphones in Blumlein and near-coincident.

MAKING YOUR MICS MORE FLEXIBLE

The NUVO Coupler allows you to easily connect two NUVO microphones top-to-top in Blumlein and Mid-Side configuration so that the two microphones will stay locked in place.

The kit also includes two NUVO Windscreens which allow you to bring your NUVOs outdoors, on the road, and even avoid using a pop-screen with your microphones.

WHAT'S IN THE KIT

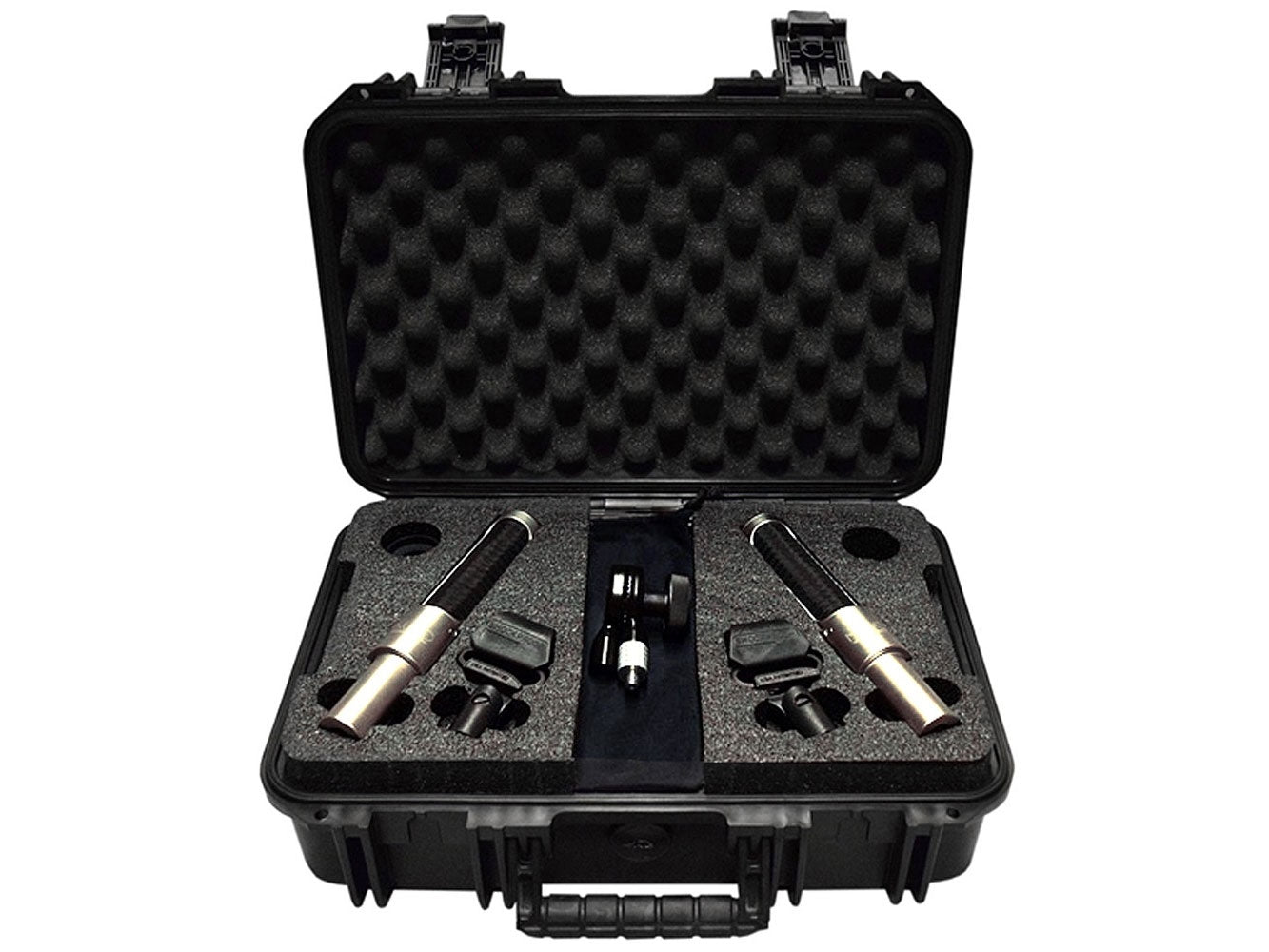

  • Heavy-duty SKB travel case
  • SMS stereo bar
  • Two NUVO Windscreens
  • Posi-Lok Mic Hanger
  • NUVO Blumlein coupler
  • Mounting hardware
  • Weight with Cable: 1 lb 13 oz (810 g)
  • Weight with case: 12 oz (335 g)
  • Height: 8.83” (32.4 cm)
  • Width: 1.62” (4.1 cm)
  • Depth: 1.62” (4.1 cm)
  • Ribbon Thickness: 1.8 μ (0.0000018 m) of pure aluminium
  • Ribbon Width: 0.185” (4.7 mm)
  • Ribbon Length: 2.35” (59.7 mm)
  • Operating Principle: Pressure gradient microphone
  • Directional Pattern: Bidirectional or Figure-of-8
  • Frequency Range: 20 Hz to 20 kHz
  • Maximum SPL: 141 dBSPL (1% third harmonic > 1 kHz)
  • Output Sensitivity: 6.2 mV/Pa (-33.5 dBV) into unloaded circuit
  • Output Impedance: 92 Ω broadband
  • Recommended Load Impedance: 1.0 kΩ or greater
  • Powering: P48 phantom power, 7 mA
  • Polarity: Pin 2 high for positive pressure at the front of the microphone.
  • Connector: XLR-3M
  • Included in box: 2 N22 Microphones, SKB Carry Case, SMS Stereo Bar, 2 NUVO Windscreens and Blumlein Coupler
