- Three cage lengths: L (21cm), M (18cm) and S (15cm)
- Respectively for microphone max length: 15cm (L), 12cm (M) and 9cm (S)
- Five microphone holders: for diameters: 19, 20, 21, 22a &22b mm
- Two cable lengths: Long with two cable pins (for cages L) and Short with a single pin (for cage S & M)
MAIN REFERENCES
COSI-L-21: (MiniCMIT, Long cage, 21mm mike diameter, Long cable)
COSI-L-20: (Schoeps CMC, Long cage, 20mm mike diameter, Long cable)
COSI-L-19: (DPA4017C, Long cage, 19mm mike diameter, Long cable)
COSI-M-19: (Sanken CS-M1, Medium cage, 19mm mike diameter, Short cable)
COSI-S-19: (MKH8000, DPA4018C, Short cage, 19mm mike diameter, Short cable)

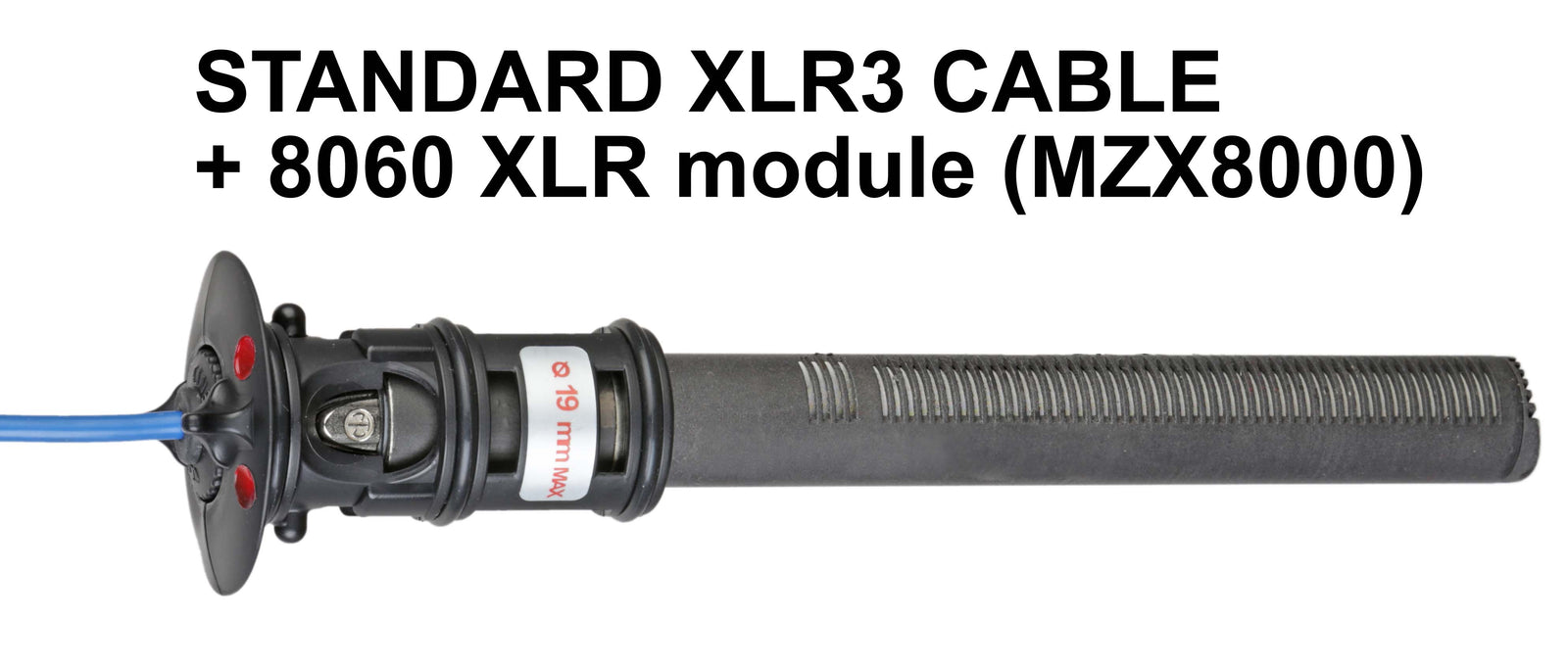

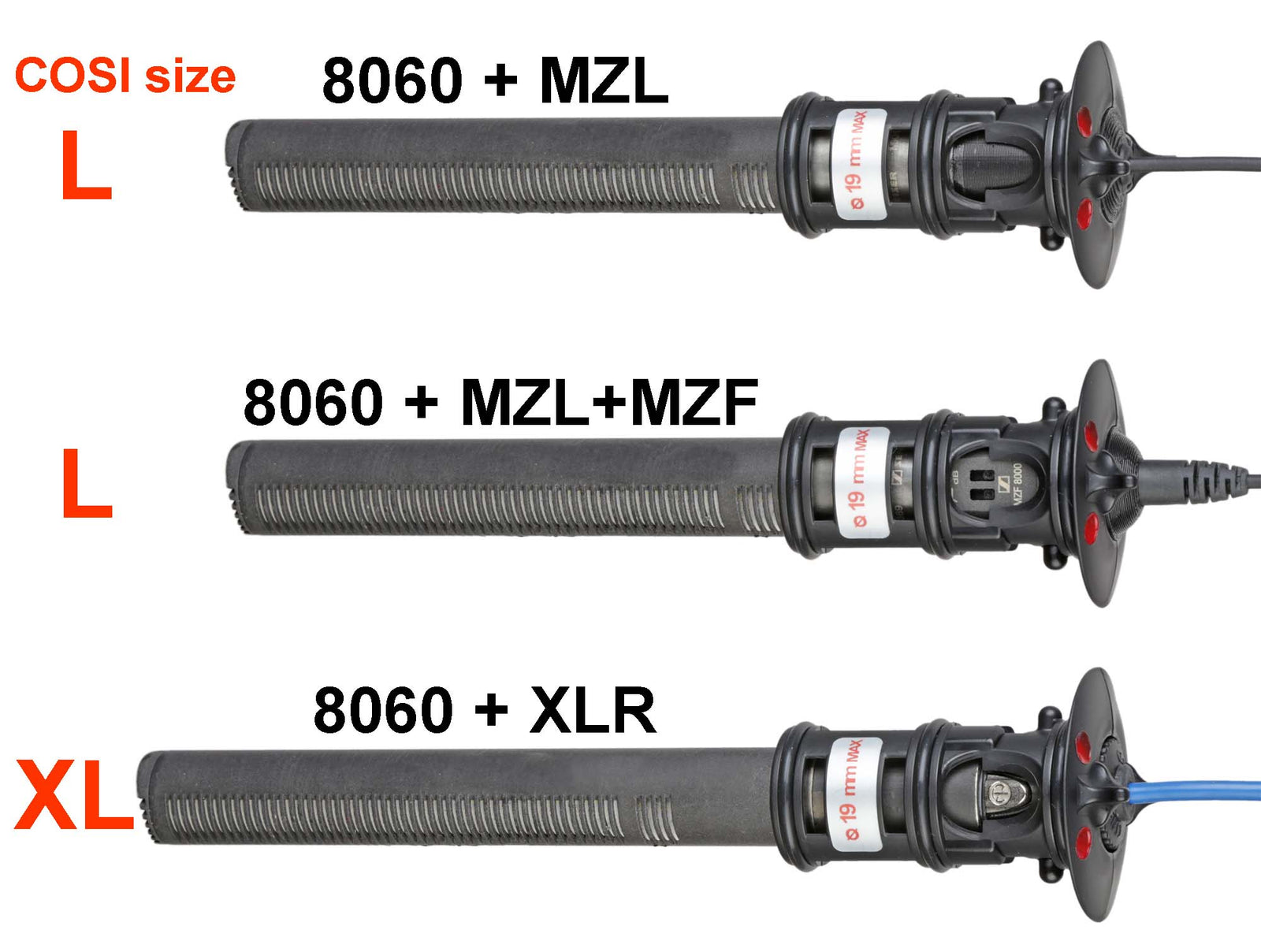

COSI-L-8060: (MKH8060, Long Cage, 19mm, Specific Sennheiser connector & cable for MKH8000
RUMBLE FILTERING
As with any other suspension/windshield, COSI needs the use of a good rumble filter (Very low end handling noise). Typically 50/70 Hz with a +18dB/oct slope (3rd order filter). Many mixers/recorders only offer +12dB/oct filters (2nd order). Then it may be a little compromise. +6dB/oct filters are to be AVOIDED (1st order). Many microphones are very rich in the Low End (MKH8000 or DPA with C preamp). These ones need a high slope filter. Schoeps MiniCMIT offers a very convenient in-built +24dB/oct filter (4th order) ! Definitely the best against handling.
Specs to follow
