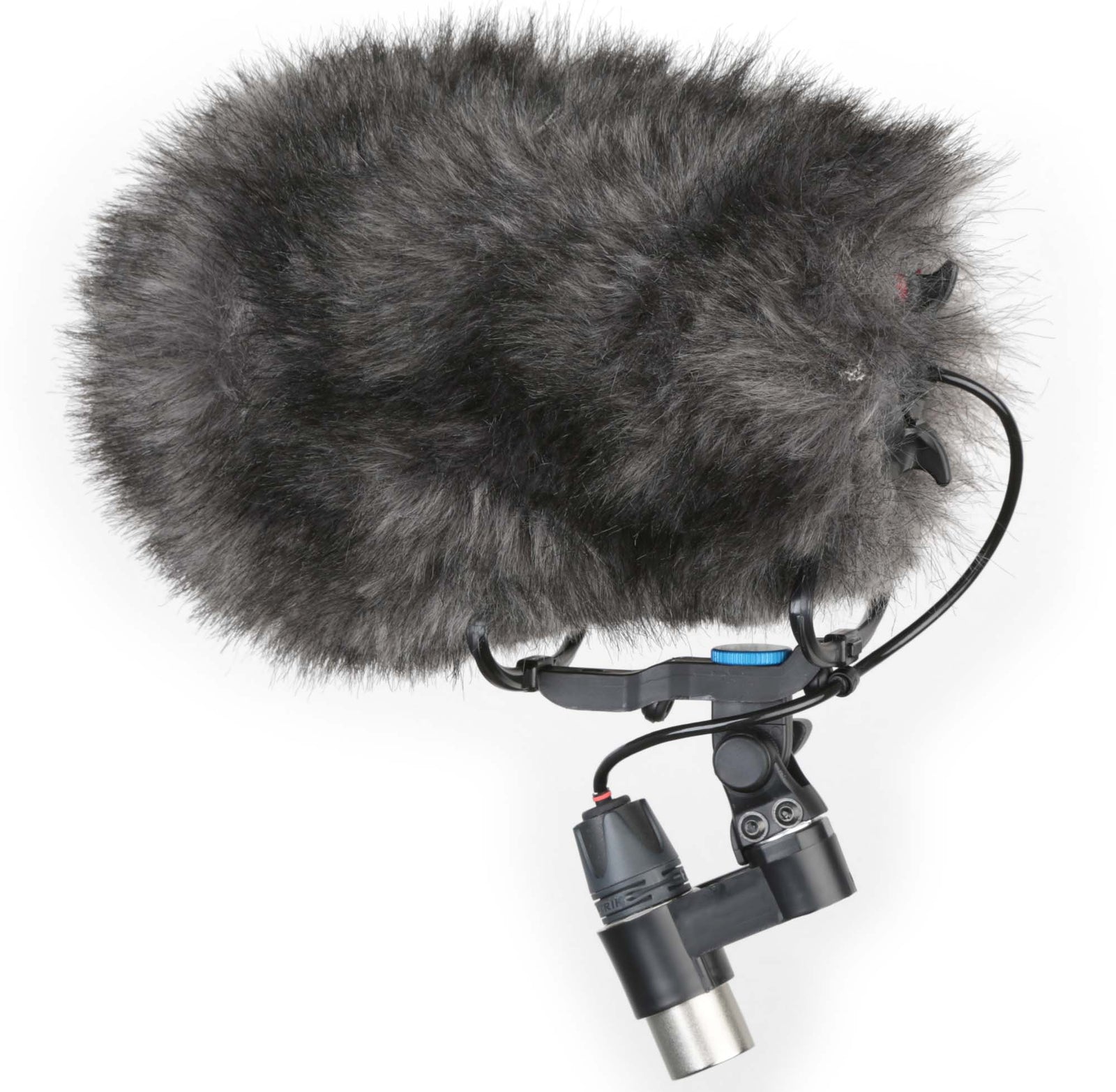

Cinela COSI Windshield (Short Cage - S) for Schoeps CCM or CMC1L + MK4/41 without CUT60
With a CCM connected to a digital transmitter, it’s hardly advised to order the COSI-S-CCM with the RF option (“RF -OPT” has to be added on the PO). No need at all with the CMC1L.

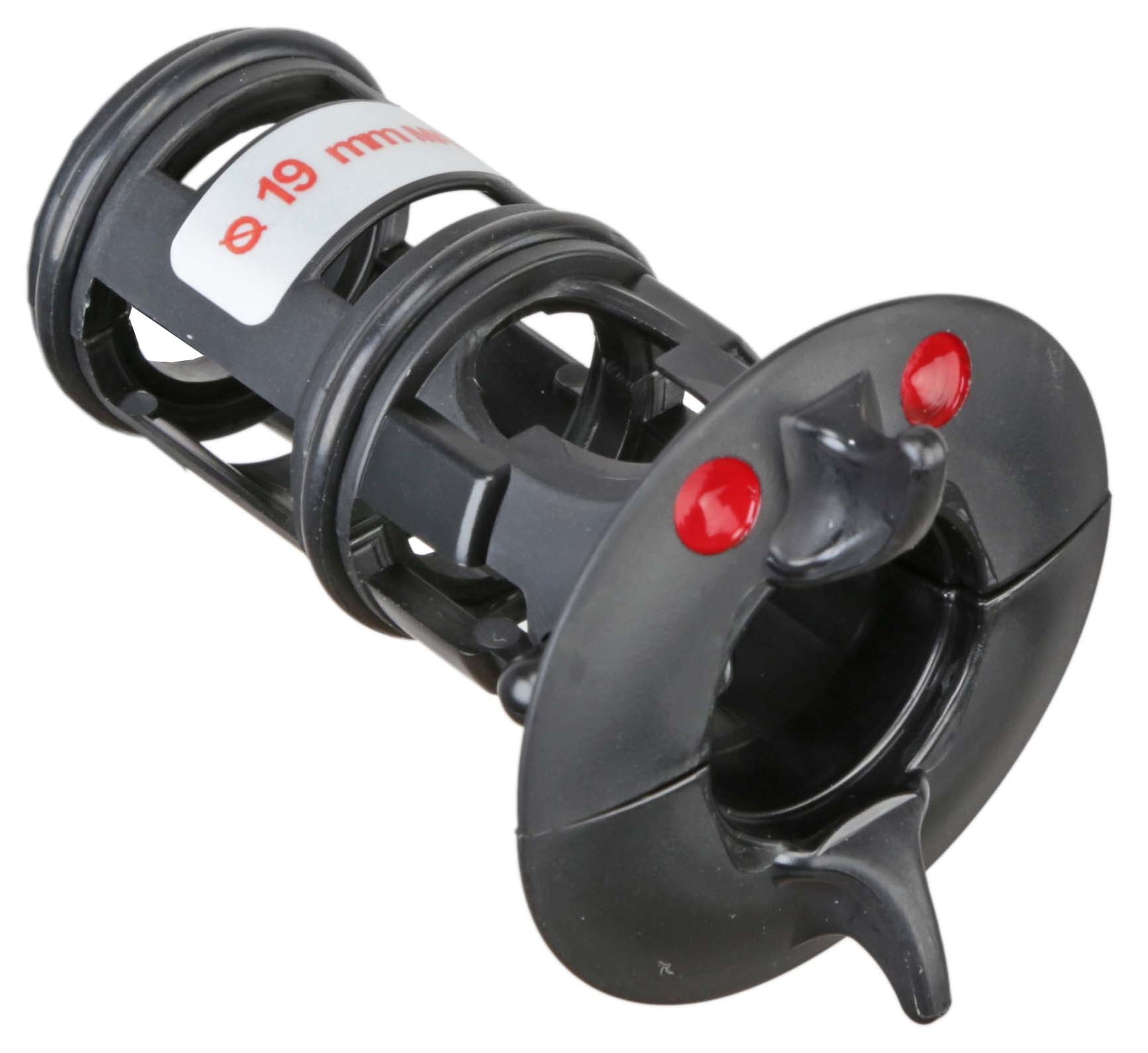

Holder HLD-19 (19mm Front, 19mm Rear)

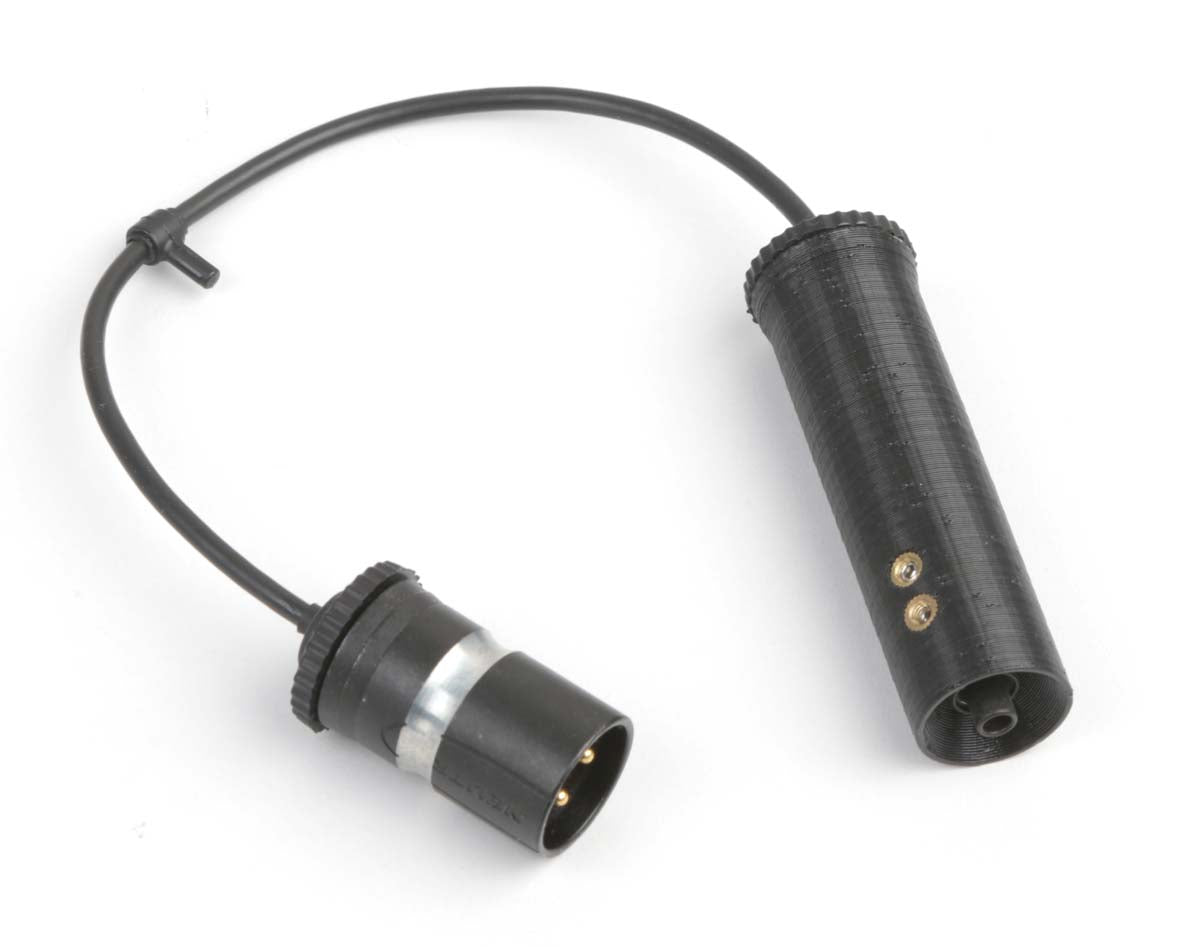

Specific cable with “long” adapter (3D printed)
COSI MAIN REFERENCES
- COSI-L-21: (MiniCMIT, Long cage, 21mm mike diameter, Long cable)
- COSI-L-20: (Schoeps CMC, Long cage, 20mm mike diameter, Long cable)
- COSI-L-19: (DPA4017C, Long cage, 19mm mike diameter, Long cable)
- COSI-M-19: (Sanken CS-M1, Medium cage, 19mm mike diameter, Short cable)
- COSI-S-19: (MKH8000, DPA4018C, Short cage, 19mm mike diameter, Short cable)
- COSI-L-8060: (MKH8060, Long Cage, 19mm, Specific Sennheiser connector & cable for MKH8000
RUMBLE FILTERING
As with any other suspension/windshield, COSI needs the use of a good rumble filter (Very low end handling noise). Typically 50/70 Hz with a +18dB/oct slope (3rd order filter). Many mixers/recorders only offer +12dB/oct filters (2nd order). Then it may be a little compromise. +6dB/oct filters are to be AVOIDED (1st order). Many microphones are very rich in the Low End (MKH8000 or DPA with C preamp). These ones need a high slope filter. Schoeps MiniCMIT offers a very convenient in-built +24dB/oct filter (4th order) ! Definitely the best against handling.
Specs to follow
No Downloads Available
