Brio's comprehensive broadcast feature set supports a wider breadth of broadcasters while retaining the same market-leading levels of quality and customer support which Calrec is renowned for.

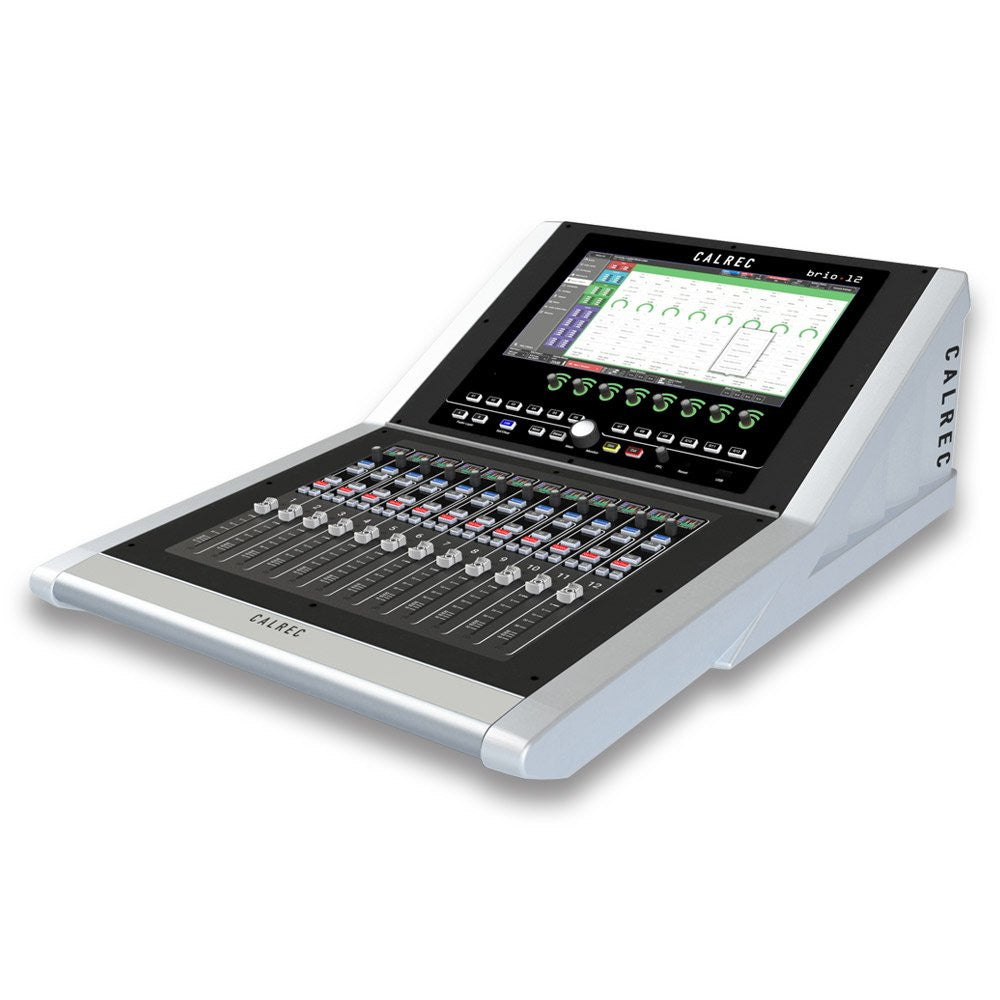

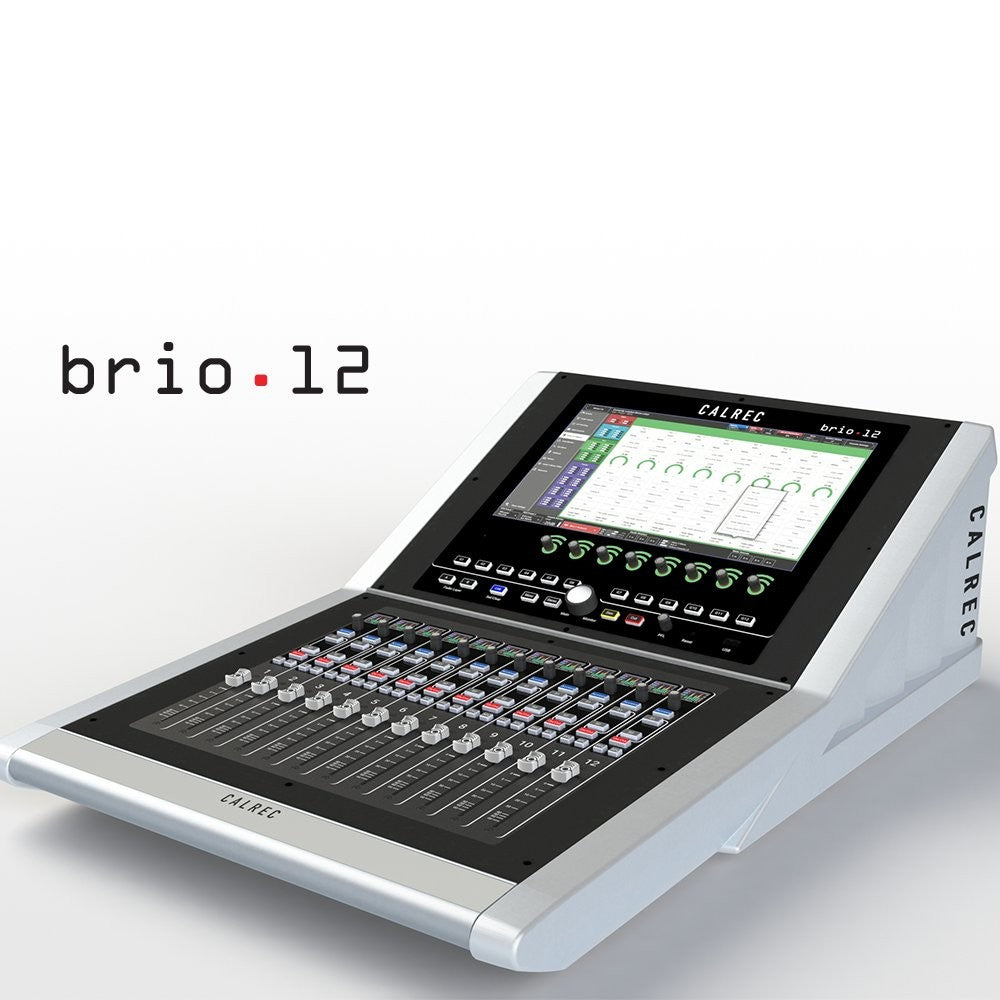

The smallest in Calrec's Bluefin2 family, Brio's control surface is unlike any other console. Available in two sizes; Brio 36 with a 36 fader dual-layer surface and the Brio 12 with a 12 fader dual-layer surface at only 498mm wide, both provide more faders in a given footprint than any other comparable audio console.
Based on Calrec's 20 years of digital development, Brio's uncluttered, compact and configurable surface gives instant access to a large number of audio paths, whilst an intuitive 15.6" HD touchscreen UI provides quick access to more in-depth control. A bank of illuminating hardware rotary controls give fast and precise control over parameters displayed in the touchscreen UI.
Brio is a mixing console completely focused on the needs of broadcasters. This level of scalable and managed I/O, comprehensive monitoring, surround sound and high bus quantities provides a level of dedicated broadcast functionality that has never been available at this level.
As the market calls for more and more audio mixes to support online content, smaller consoles that possess pure live broadcast features are increasingly desirable. Products in this sector have traditionally had basic capabilities and are not ideally suited to broadcast environments. Brio is the first application-specific alternative.
As the market calls for more and more audio mixes to support online content, smaller consoles that possess pure live broadcast features are increasingly desirable. Products in this sector have traditionally had basic capabilities and are not ideally suited to broadcast environments. Brio is the first application-specific alternative.
Brio's compact size means it is extremely portable and quick to install, making it ideal as a general purpose workhorse that can be used as and when needed, and its connectivity with other Hydra2-compatible equipment makes it even more versatile.
Brio is entirely self-contained with I/O available for comprehensive and versatile expansion via Calrec's Hydra2 network.
HIGHLIGHTS:
- 12 x dual layer faders - 100mm, motorised, with PFL overpress
- DSP - Freely configurable on the fly, operates at 44.1, 48, 88.2 and 96kHz
- Full dynamics on every input channel and group path
- 6 band EQ available on every Input Channel, Group, Aux and Main path
- Features a pre-installed Calrec Hydra 2 Expansion Card, for connection to any Calrec Hydra 2 audio network
PRICE ON APPLICATION
Surface
- 12 x dual layer faders - 100mm, motorised, with PFL overpress
- Compact footprint only 498mm wide x 892mm deep x 270mm high,
with slim trim option (available on request) reducing it to 430mm wide. - 1 x user assignable rotary control per strip
- 2 x user assignable buttons per strip
DSP
- Freely configurable on the fly, operates at 44.1, 48, 88.2 and 96kHz:
- 48 legs assignable as mono, stereo, or 5.1 Input Channels
- 36 legs assignable as mono, stereo or 5.1 mains or groups (maximum of 4 mains and 8 groups)
- 24 legs assignable as mono or stereo Auxes
- 48 legs assignable as Insert sends and returns
- 48 legs assignable as Direct, or Mix-Minus Outputs
- Automatic Mix-Minus
- Off-Air Conference for Mix-Minus
Dynamics
- Every Input Channel and Group path:
- Expander/Gate/Ducker, with key input and sidechain EQ
- Compressor with key input and sidechain EQ
- Multiband Compressor - Every Aux:
- Expander/Gate
- Compressor - Every Main:
- Single Band Compressor
- Multiband Compressor - 2 x Automixers available to all mono Input Channels and Groups
EQ
- 6 band EQ available on every Input Channel, Group, Aux and Main path:
- 4 band full PEQ
- 2 band LF/HF filters, 12 or 24dB/octave
- Delay available on every path
- Additional 48 legs assignable as output delay
- 48 legs assignable as input delay of up to 5s
Monitoring/Metering
- 3 x Monitor outputs
- Surround capable metering within each strip
- Configurable meter screen output (DVI)
- Loudness meter
Multiple Sample Rates
- Freely configurable on the fly, operates at 44.1, 48, 88.2 and 96kHz
- All DSP facilities are available at all sample rates
Remote/Automated Control
- Remote/Automated Control
- Advanced AutoFader (AFV) functionality
- CSCP mixer control protocol interfaces with a variety of video switchers and production automation systems
- SW-P-08 'Pro-Bel' router control protocol
- EMBER
I/O
- 3 x Expansion slots to provide integrated I/O, or to provide interface to other formats, including SDI, MADI, Dante etc.
- Hydra2 Module allows for further I/O to be connected, and to network audio with other consoles
