Blackmagic Design URSA Studio Viewfinder

Blackmagic DesignSKU: BMD-CINECAMURSANSVF

Price:
Sale price €2,280.00

BLACKMAGIC URSA STUDIO VIEWFINDER
TURN YOUR URSA MINI INTO THE ULTIMATE LIVE PRODUCTION CAMERA.

Now you can turn URSA Mini into a professional live production camera by adding the all new URSA Studio Viewfinder. Unlike traditional studio cameras which are based on simple video imaging technology, URSA Mini is a true digital film camera combined with full professional studio camera features. You get talkback, tally and remote camera control, plus you can add the amazing Blackmagic URSA Studio Viewfinder to get a professional studio camera user interface. The studio viewfinder features a bright 7” screen that features a large easily viewable tally light, control knobs, large grab handles, sun shade, variable tension articulated mount and more.

IN THE STUDIO OR ON LOCATION
COMFORTABLY WORK FOR HOURS ON LONG EVENTS.

Operating a camera at live concerts, sports, and other long events is hard if you have to look through a traditional eyepiece for hours on end. The URSA Studio Viewfinder has a large bright display with grab handles and external controls that make it easy to stand behind the camera and comfortably follow the action for extended periods of time. The URSA Studio Viewfinder features integrated dials and buttons that let you adjust settings without having to take your eyes off of the action, plus it includes tally lights and drop in acetate numbers so it’s always easy to identify which camera is live.

DESIGNED FOR LIVE PRODUCTION
EASY TO POSITION, ADJUST AND CONTROL WHILE LIVE ON AIR.

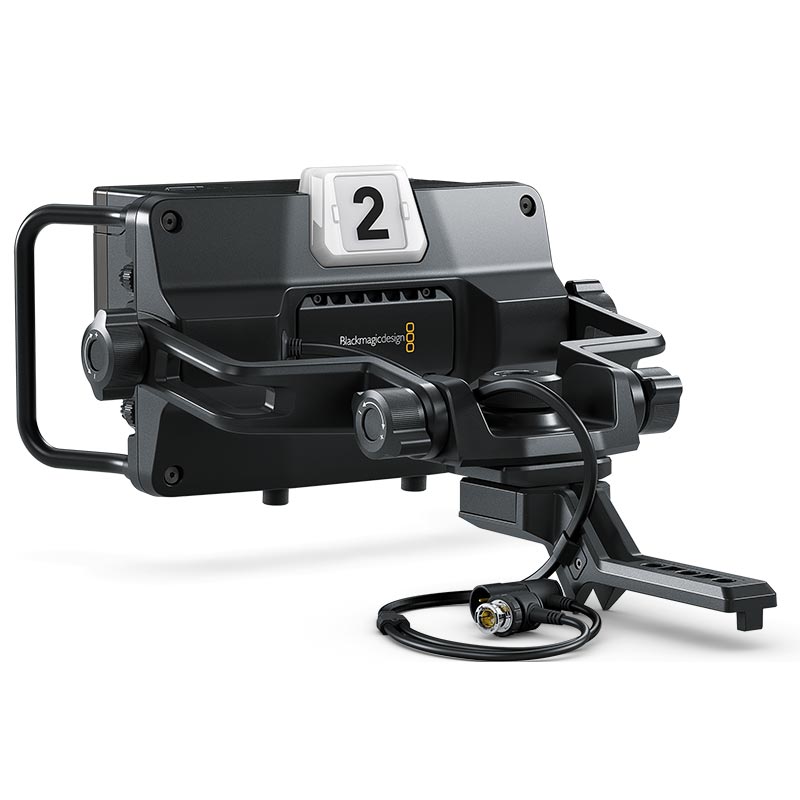

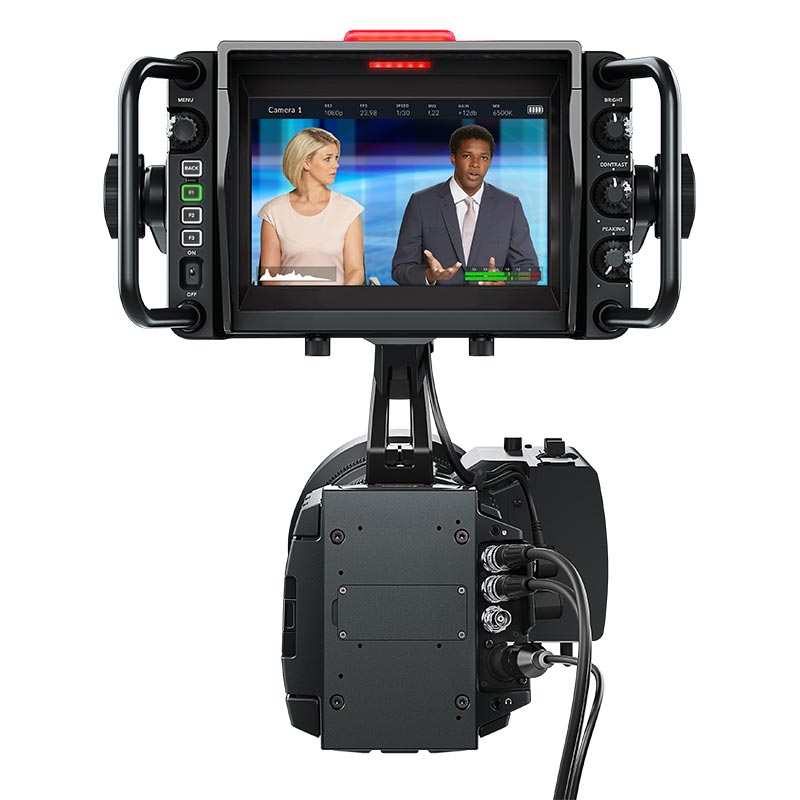

Designed for professional live production, the URSA Studio Viewfinder features large handles and variable tension articulated mounting that allow you to adjust the position and angle of the viewfinder without moving the camera. It connects directly to the SDI and power outputs on your URSA Mini, making installation simple. The large 7" screen includes a detachable sunshade so you can use it day or night, and the tactile control dials and customizable function buttons let you make adjustments on the fly so you don’t have to touch the screen or look away.

CONTROL AT YOUR FINGERTIPS
NEVER TAKE YOUR EYES OFF OF THE ACTION.

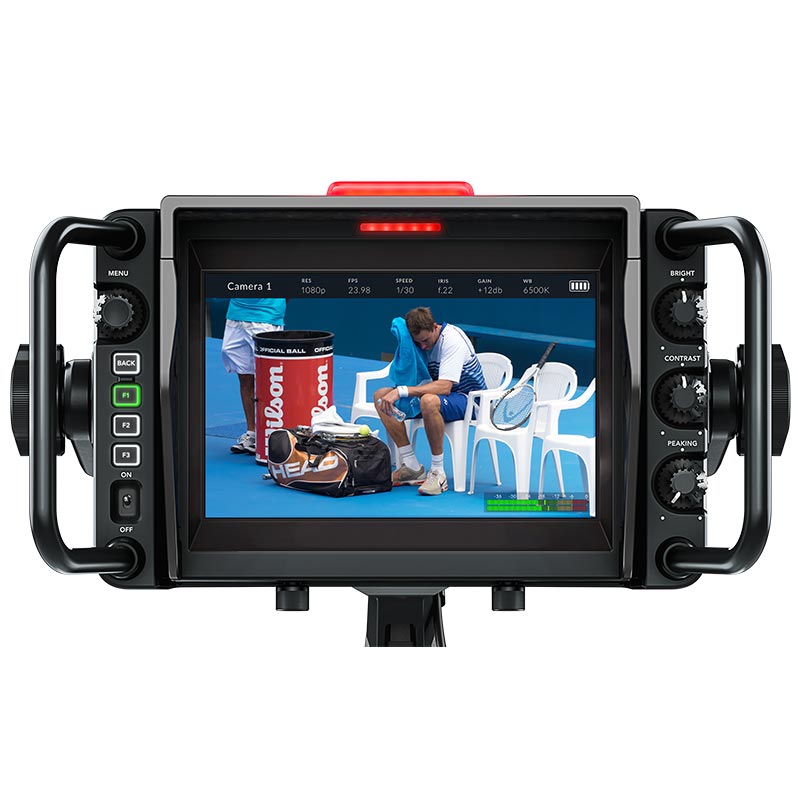

The URSA Studio Viewfinder features tactile controls that allow you to quickly display critical framing and focus overlays, change settings and more. A menu dial allows you to fly through options and also dial in which part of the picture is magnified so you can check detail and focus. You can also adjust the viewfinder’s brightness, contrast and focus peaking using the dedicated knobs on the right side of the screen. Plus, there are three customizable buttons that can be used to display zebra, false color, edge focus detection, luminance waveform, custom LUTs and more right at your fingertips.

FRAMING GUIDES
COMPLETELY CUSTOMIZABLE GUIDES AND CURSORS.

Frame guides are an essential function for every viewfinder, especially during live production where graphics and other elements are going to be keyed downstream. The Blackmagic URSA Studio Viewfinder framing guides can show you where a lower third, graphic, logo or ticker will appear so you can accurately compose and frame shots. You can create up to three black or white custom cursors that can have variable height, width and position, making it easy to match the location for all the graphics that will be added live or during later broadcast.

ADVANCED SDI CONTROL PROTOCOL
GET TALKBACK, TALLY, CAMERA CONTROL AND MORE OVER SDI

The Blackmagic Video Device Embedded Control Protocol is an advanced open communication protocol that takes advantage of blanking space in the SDI data stream to add talkback, tally and other camera control information direct to the camera via the program return feed. ATEM Switchers support and broadcast this protocol to all the cameras from all outputs on the switcher so you can remote control all your cameras and change settings, balance color, adjust focus and more. That means you don't need expensive, external and complicated systems from other companies. The Blackmagic control protocol is an open standard and is supported by multiple manufacturers, plus its also documented in the ATEM switcher manual. That means anyone can create custom solutions that are compatible with switchers, cameras and more from Blackmagic Design.

BUILT IN TALLY
ALWAYS KNOW WHICH CAMERA IS ON AIR.

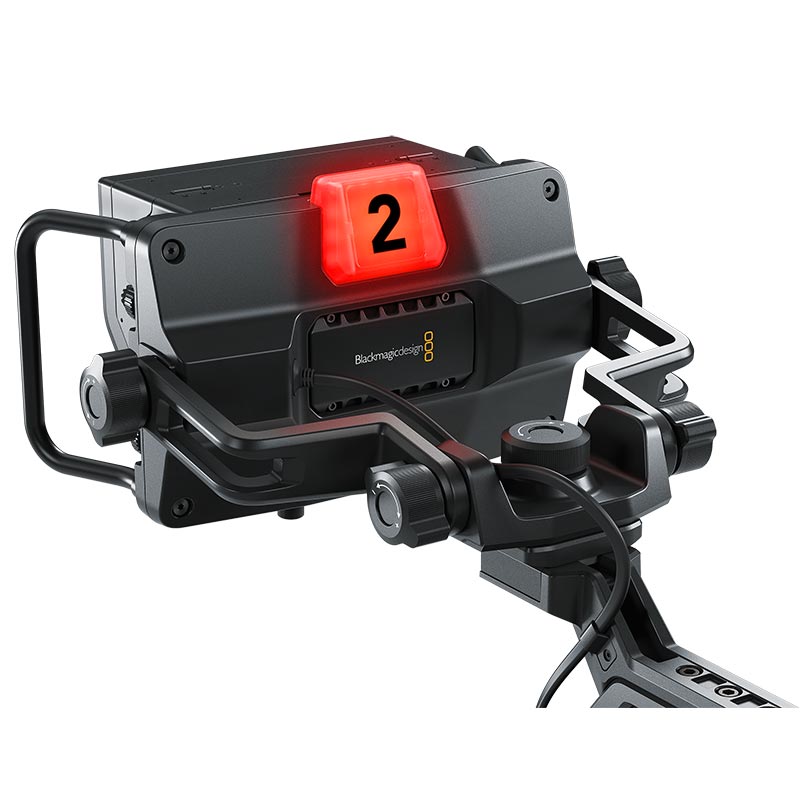

The back of the Blackmagic URSA Studio Viewfinder features a large tally light that illuminates red for on-air, green for preview, and orange for ISO recording. As the director cuts between cameras on the ATEM switcher, tally information is sent back to the camera over SDI so the light is lit when the camera is on the air. In addition, the URSA Studio Viewfinder also includes clip-on transparent camera numbers that attach to the tally light, making it easy to see camera numbers from up to 20 feet away.

FEATURES

  • Turn URSA Mini into the ultimate live camera with a professional 7 inch studio viewfinder
  • In the Studio or On Location: Comfortably work for hours on long events
  • Designed for Live Production: Easy to position, adjust and control while live on air
  • Framing Guides: Completely customizable guides and cursors
  • SDI Video Input: 1 x HD/Ultra HD 3G-SDI via BNC
  • Power Input: 1 x 4 pin XLR 12V
  • Screen Dimensions: 7" 1920 x 1200 resolution
  • Screen Type: 7" IPS LCD
  • Computer Interface: 1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software

Connections

SDI Video Input

1 x HD/Ultra HD 3G-SDI via BNC.

Power Input

1 x 4 pin XLR 12V.

Screen Dimensions

7" 1920 x 1200 resolution.

Screen Type

7" IPS LCD.

Computer Interface

1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.

Blackmagic URSA Studio Viewfinder

SDI Video Standards

HD Format Support

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084.

Video Sampling

4:2:2 YUV.

Color Precision

10-bit.

Color Space

REC 601, REC 709.

Multiple Rate support

SDI switches between 1.5 Gb/s HD and 3.0 Gb/s 60P HD.

Monitor Features

Controls

Dial, knobs and customizable function buttons for settings, short cut features and navigating menus.

Handles

Built in grab handles for positioning the monitor independently from the camera.

Position Adjustment Options

Variable tension pivot points for articulated arm and grab handles with forward, backward, up, down, pan and tilt adjustments.

Mounting Options

Quick release V-lock mounting bracket for attaching viewfinder to URSA Mini handle.

Tally

Large LED tally light with customizable perspex camera numbers.

Metadata Support

Detects camera information embedded in the SDI signal including status information, frame guides, focus peaking, tally, and more.

Screen Interface

On screen meters and status information including Camera ID, resolution, frames per second, shutter speed, gain, white balance, camera battery level, and more.

3D Lookup Table Support

LUT support for loading custom LUTs.

Operating Systems

Mac Icon

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows Icon

Windows 8.1 or Windows 10.

Power Requirements

12V power input via 4 pin XLR connected via URSA Mini 12v power output.

Physical Specifications

Blackmagic URSA Studio Viewfinder

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Blackmagic URSA Studio Viewfinder

Warranty

12 Month Limited Manufacturer’s Warranty.
