Optics Resolution
2048 x 1152

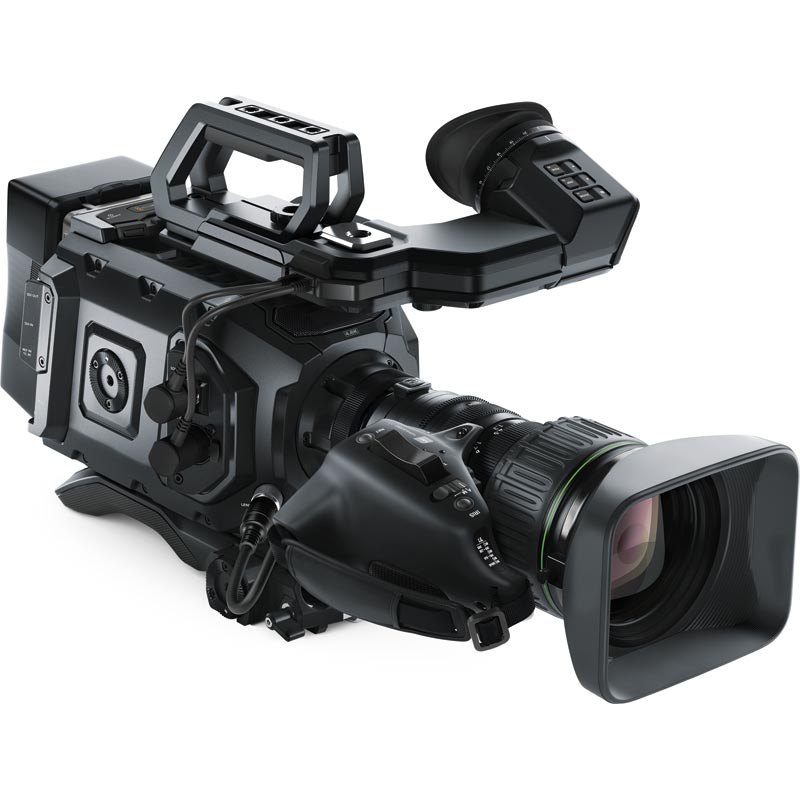

Change an URSA Mini PL lens mount to the broadcast industry’s B4 lens mount so you can use existing high quality broadcast lenses for shooting in high definition.

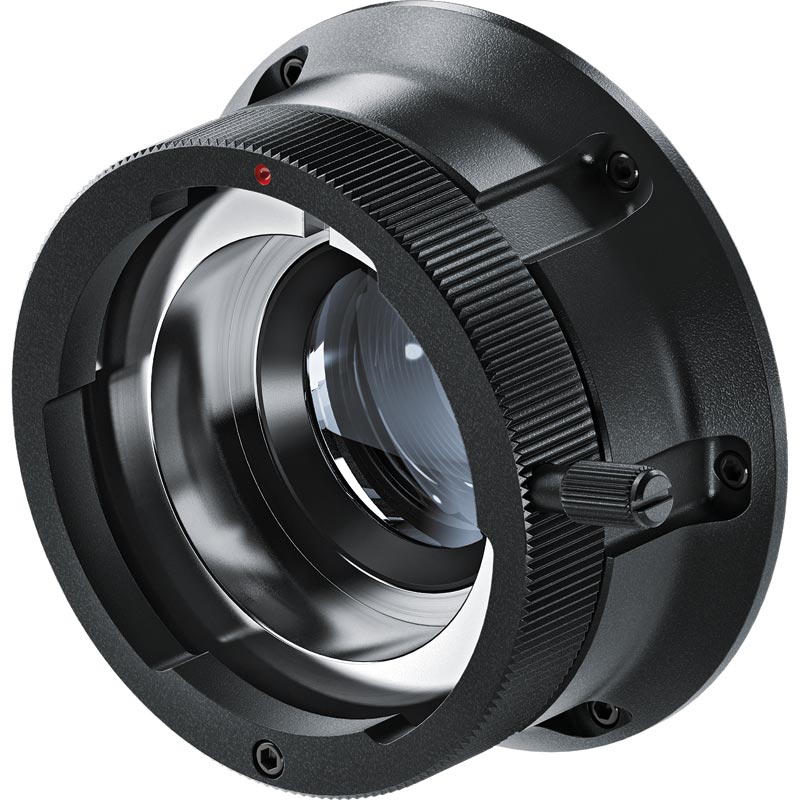

The Blackmagic URSA Mini B4 Mount is an accessory for URSA Mini PL models that lets you swap the built in PL lens mount on your URSA Mini with a B4 lens mount. Featuring precision glass optics, the B4 mount is specifically designed to match URSA Mini’s sensor with high definition B4 lenses. The mount also has spherical aberration correction so lenses can be used wide open with no blooming effect. B4 lenses can be fully electronically controlled from the URSA Mini PL lens control connection.
FEATURES:
- URSA Mini PL lens mount to the broadcast industry’s B4 lens mount
- Optics Resolution: 1920 x 1080
- Image Circle: 10.56mm x 5.94mm
- Magnification: 1.1x
- Lens Mount: B4 Bayonet style with locking ring
- B4 Spherical Aberration Correction: Yes
IN THE BOX:
- Blackmagic URSA Mini B4 Mount
- Turret Dust Cap
- Lens rear protective cover
- Spare Mounting Screws
- Printed Instructions
Lens Mount Features
Image Circle
10.56mm x 5.94mm
Magnification
1.1x
Lens Mount
B4 Bayonet style with locking ring
B4 Spherical Aberration Correction
Yes
Physical Specifications
What's Included
Blackmagic URSA Mini Pro B4 Mount
Moulded Mount Case
Turret Dust Cap
Lens Rear Protective Cover
Shim Set
Spare Mounting Screws
Printed Instructions
Warranty
12 Month Limited Manufacturer's Warranty.
