Software Updates
2 x USB 2.0 and 1 x USB 3.0 for firmware updates.

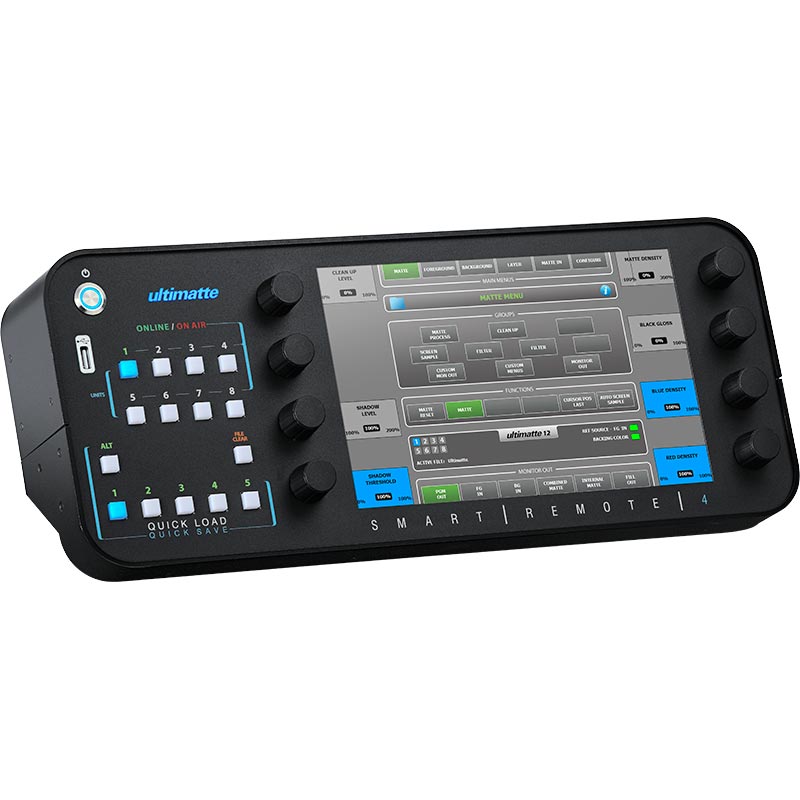

Ultimatte Smart Remote 4 is a touchscreen remote that connects via Ethernet to control Ultimatte 12. It can be used on the desktop or rack mounted with other equipment. Up to eight Ultimatte 12 units can be daisy chained together and connected to the same Smart Remote, so you don’t have to worry about adding a video router or hub! Smart Remote 4 features physical buttons so you can switch and control any attached Ultimatte 12. There are also buttons for quickly loading and saving presets, along with a touchscreen that gives you total control over every parameter. It’s easy to design your own custom control solutions for Ultimatte 12 because it uses a simple, open text based protocol. You can even Telnet into Ultimatte 12 over your network, so you can develop and test custom control solutions.
FEATURES:
- Remote Control for Ultimatte
- User-friendly operation
- Fast and easy navigation
- Control up to 8 unit id numbers of Ultimatte-11/Ultimatte-500 via RS485
- Control up to 8 unit id numbers of Ultimatte-12 via Ethernet

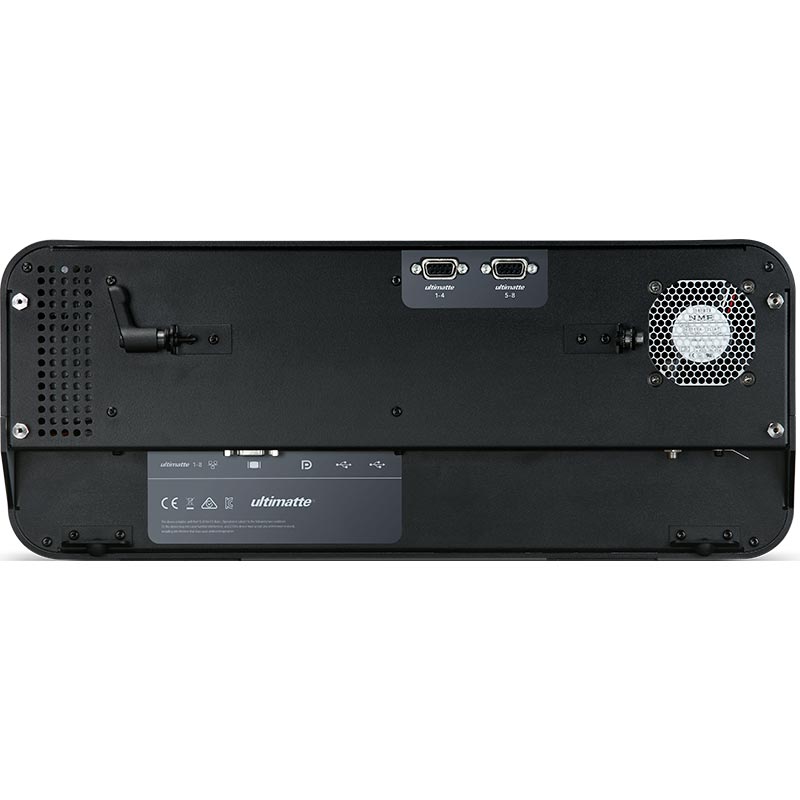

Connections
SVGA Output
SVGA output allows for graphics to be viewed on an external VGA monitor.
Ethernet
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422
2 x for controlling Ultimatte 11.
Product Specifics
Rotary Knobs
8 x rotary knobs for adjusting parameters.
Unit ID Buttons
8 x buttons. Illuminated blue for active.
Unit ID LED Indicators
Illuminated green for on line and red for on air.
Alt + Quick Load/Save Buttons
Alt button plus 5 buttons for saving files into volatile RAM.
Quick Load/Save Buttons
5 x buttons for loading files stored in volatile RAM.
File Clear Button
1 x button for One Touch Keying.
Alt + File Clear
Alt button plus file clear button for One Touch Keying using some user defined presets.
Customizable Menus
4 x menus for building your own menu with your most used controls.
LED Control
User adjustable brightness control for LEDs.
Fan Speed Control
User adjustable.
Software
Software Updates
Software updates via USB to load Smart Remote utility.
Control
Touchscreen
10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Operating Systems
Windows 10, 64-bit.
Power Requirements
Power Supply
100 - 240V AC.
Power Usage
24W
Physical Installation
Adjustable desk mounting option.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 35°C (32° to 95°F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing.
What's Included
Ultimatte Smart Remote 4
SD card contains software and manual
Rack mount ears
Warranty
12 Month Limited Manufacturer's Warranty.
