Ethernet
RJ45 Ethernet In and Out. Power over ethernet supported on Ethernet In. No power over ethernet on Ethernet Out.

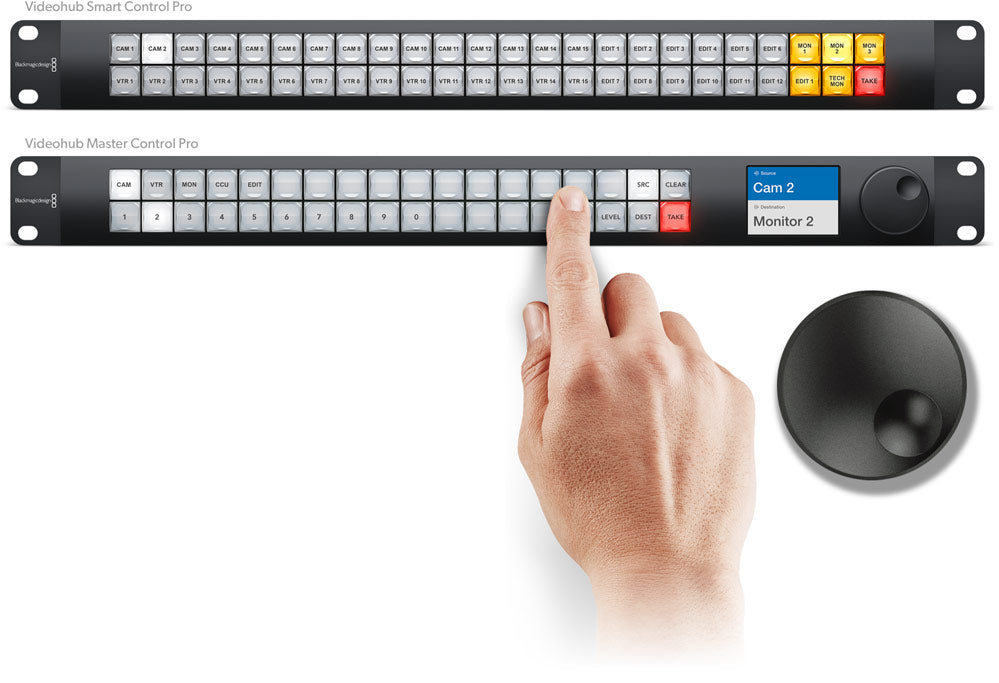

For dedicated remote router panels, you can choose between Videohub Smart Control Pro and Videohub Master Control Pro. Both optional panels connect to your network via Ethernet and can control any Videohub model. Videohub Smart Control Pro is ideal for direct cut bus style routing to monitors or decks, while Videohub Master Control Pro gives you full spin knob control and direct label entry with an LCD display to see your router crosspoint labels. You get perfect integration and 24/7 broadcast reliability with Blackmagic Videohub remote panels!

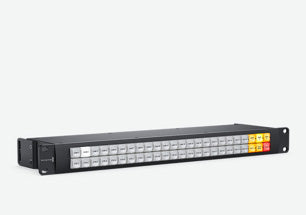

Videohub Smart Control Pro lets you route with a single button press. Program each button for a single router cross point and when pressed the route is made. You can program to have multiple destinations and even a take button. Powers via DC or the Ethernet connection.
Connections
RS-422
In and Out (for future implementation)
Computer Interface
USB-C for configuration and software updates.
Power
100 - 240 AC
Macro Capability
Up to 10 macro buttons can be assigned to activate multiple simultaneous switching commands.
Hardware Control
48 programmable buttons and RJ45 Ethernet used for remote control of routers over an IP network.
Software
Internal Software upgrade via included firmware updater application via USB.
Operating Systems
Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 10.
Physical Installation
1 rack unit size. Less than 3 inches deep.
Button Configuration
Included free for Windows™ and Mac™ via USB 2.0high speed (480Mb/s) interface.
Power Requirements
Power Fail Protection
Button configurations and router communication preserved and restored instantly at power on. Button configuration can also be saved for later recall.
Power Supply
Internal 100 - 240 V AC
Physical Specifications
Environmental Specifications
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Videohub Smart Control Pro
Warranty
12 Months Limited Warranty.
