Analog Video Outputs
6 x common Blackburst or Tri Level reference outputs.
Includes 6 crystal stabilized video reference outputs for referencing all the video equipment in your studio in either high definition Tri-Sync or standard definition Blackburst television standards. Perfect for small studios and outside broadcasts!
FEATURES
- 6 crystal stabilized video reference outputs
- Updates / configure Via USB 2.0
Connections
SDI Rates
270Mb, 1.5G.
Multi Rate Support
Via mini switches
Updates and Configuration
USB
Standards
Analog Format Support
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080PsF23.98, 1080PsF24
1080i50, 1080i59.94, 1080i60
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB.
Internal Software Upgrade
Via included updater application.
Operating Systems
macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.
Windows 8.1 or Windows 10.

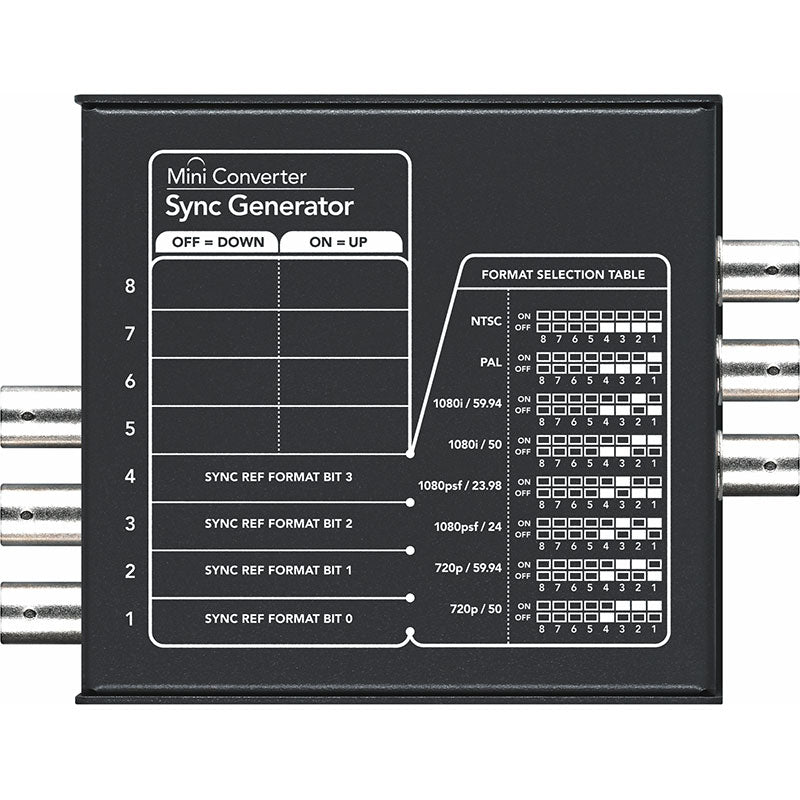

Settings Control
Mini Switches or USB software.
Power Requirements
Power Supply
+12V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption
3.00 Watts
Operational Voltage Range
12V DC
Physical Specifications
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included

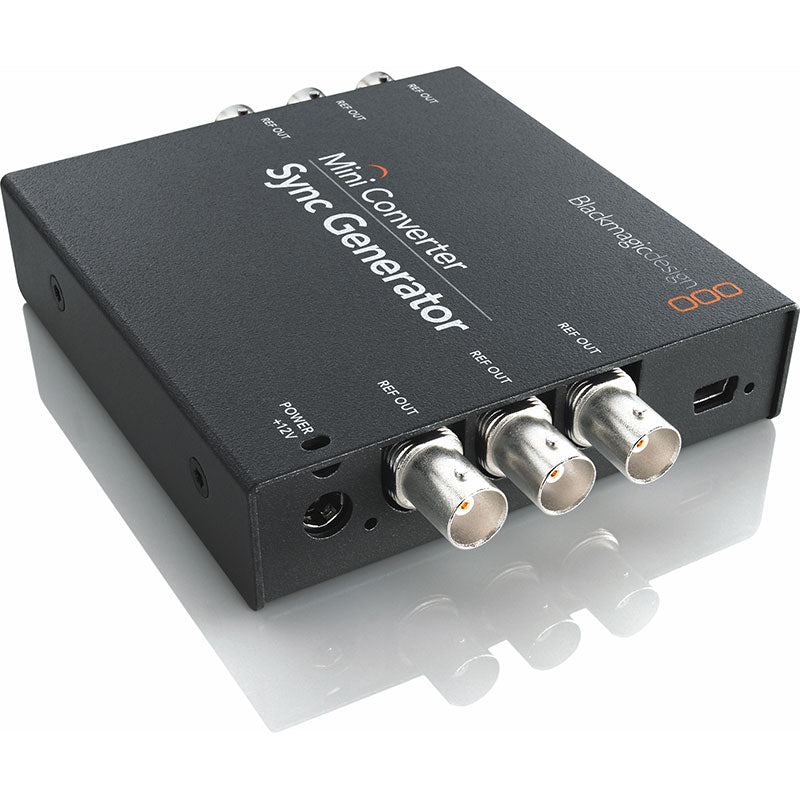

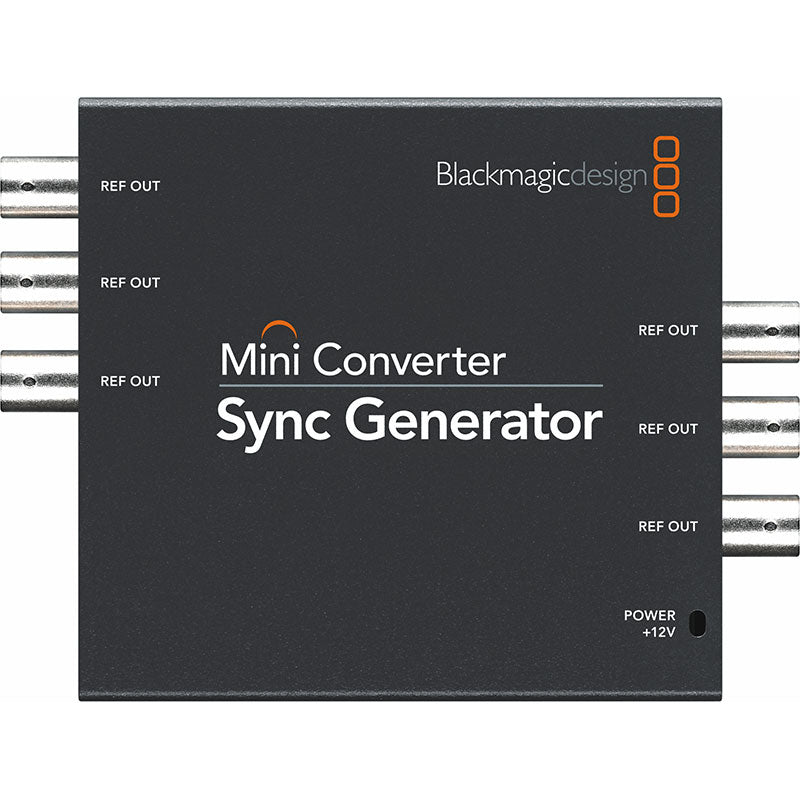

Mini Converter Sync Generator
12V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
