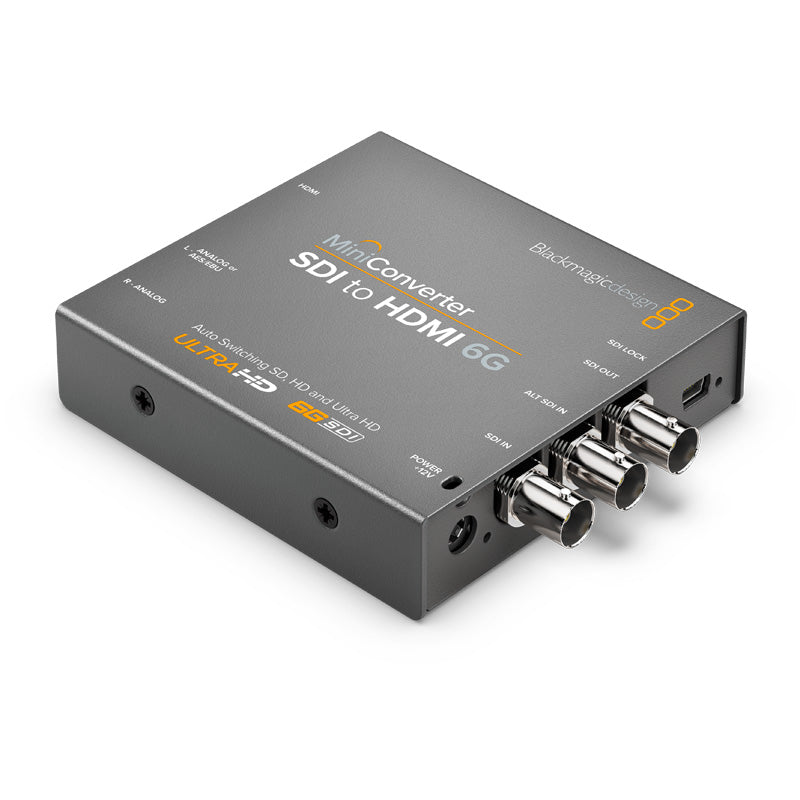

Blackmagic Design Mini Converter - SDI to HDMI 6G

Blackmagic DesignSKU: BMD-CONVMBSH4K6G

Price:
Sale price €229.00

Mini Converter SDI to HDMI 6G lets you convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embedding audio to HDMI, AES/EBU or balanced analog audio. You also get advanced features such as down conversion for monitoring Ultra HD on HD HDMI monitors as well as built in 3D LUTs plus HDMI instant lock for instant video display when an SDI input is connected!

FEATURES

  • Convert from SDI to HDMI in SD, HD, and Ultra HD formats while de-embeding audio to HDMI, AES/EBU or balanced analogue audio
  • Down conversion for monitoring Ultra HD on HD HDMI monitors
  • Built in 3D LUTs
  • HDMI instant lock for instant video display when an SDI input is connected

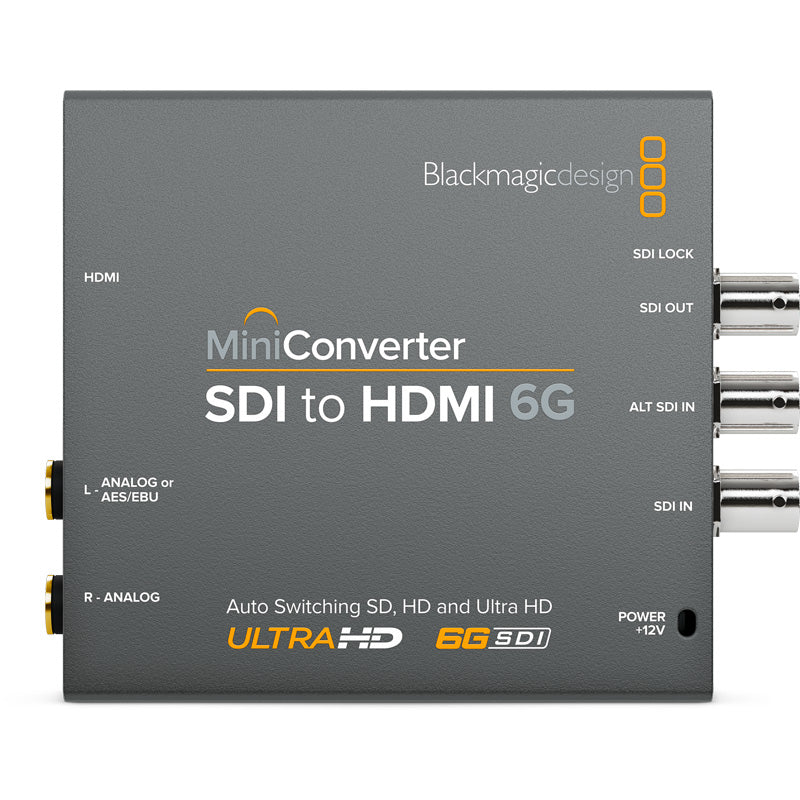

    Connections

    SDI Video Inputs

    1 x SD, HD or 6G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails.

    SDI Video Outputs

    1 x SDI Video Loop Output.

    HDMI Video Outputs

    HDMI type A out.

    Analog Audio Outputs

    2 channels of balanced analog audio.

    Digital Audio Outputs

    4 channels of AES/EBU digital audio

    SDI Redundant Input

    Automatically switches over if main SDI input is lost.

    Multi Rate Support

    Auto detection of SD, HD or 6G-SDI.

    Updates and Configuration

    USB

    Reclocking

    Yes

    Mini Converter SDI to HDMI 6G

    Standards

    SD Video Standards

    625i50 PAL, 525i59.94 NTSC

    HD Video Standards

    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    2K Video Standards

    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
    2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

    Ultra HD Video Standards

    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

    4K Video Standards

    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p

    SDI Compliance

    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081

    SDI Video Rates

    SDI video connections are switchable between standard definition, high definition, Level A or Level B 3G-SDI and 6G-SDI.

    SDI Video Sampling

    4:2:2 and 4:4:4

    SDI Audio Sampling

    Television standard sample rate of 48 kHz and 24 bit.

    SDI Color Precision

    4:2:2 and 4:4:4

    SDI Color Space

    YUV and RGB

    SDI Auto Switching

    Automatically detects SD, HD or 6G-SDI.

    HDMI Video Standards

    625i50 PAL, 525i59.94 NTSC,
    720p50, 720p59.94, 720p60,
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60,
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

    HDMI Color Space

    YUV and RGB

    HDMI Color Precision

    4:2:2 and 4:4:4

    Software

    Software Control

    Mac OS and Windows software upgrade via USB.

    Internal Software Upgrade

    Via included updater application.

    Operating Systems

    Mac Icon

    macOS 10.12 Sierra,
    macOS High Sierra 10.13 or later.

    Windows Icon

    Windows 8.1 or Windows 10.


    Settings Control

    Mini Switches or USB software.

    Power Requirements

    +12V universal power supply included with international socket adapters for all countries. Cable tie point.

    Power Consumption

    5.2 Watts

    Operational Voltage Range

    12 - 18V DC

    Physical Specifications

    Mini Converter SDI to HDMI 6G

    Environmental Specifications

    Operating Temperature

    0° to 40° C (32° to 104° F)

    Storage Temperature

    -20° to 45° C (-4° to 113° F)

    Relative Humidity

    0% to 90% non-condensing

    What's Included

    Mini Converter SDI to HDMI 6G

    12V universal power supply with international socket adapters

    Warranty

    3 Year Limited Manufacturer's Warranty.
