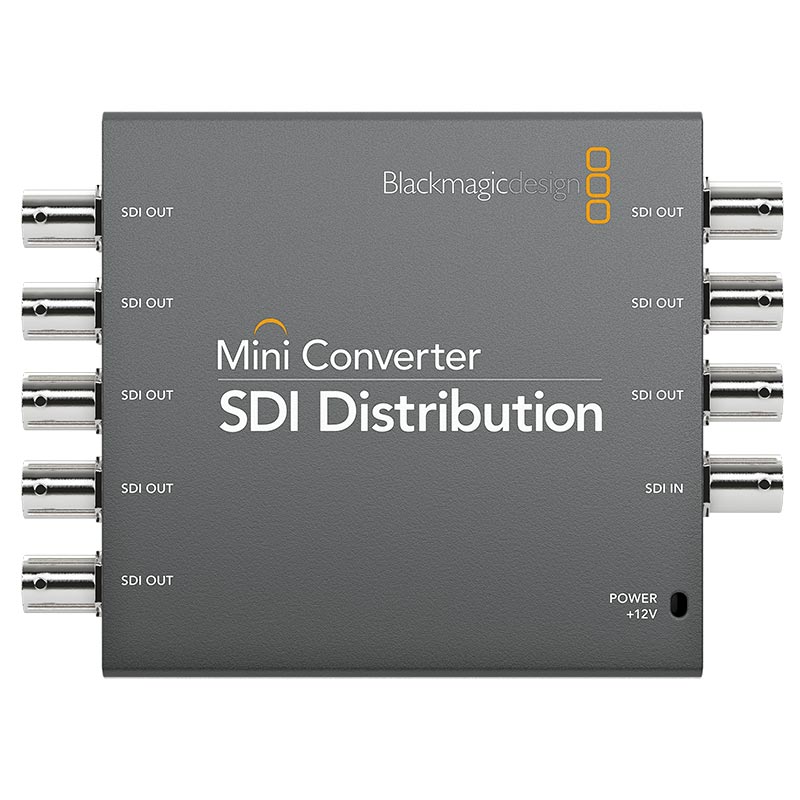

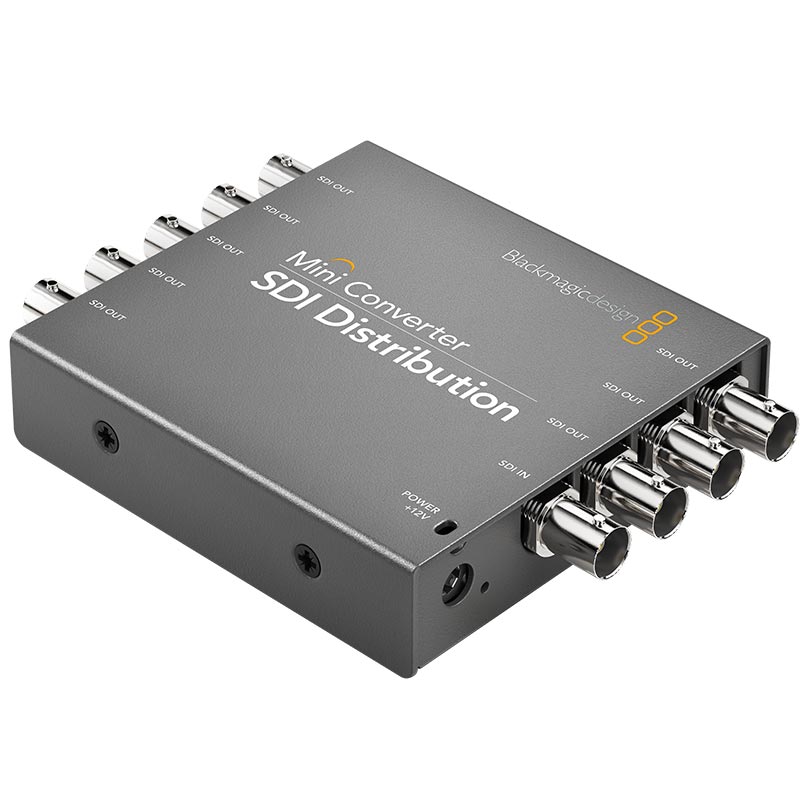

Blackmagic Design Mini Converter - SDI Distribution

Blackmagic DesignSKU: BMD-CONVMSDIDA

Price:
Sale price €199.00

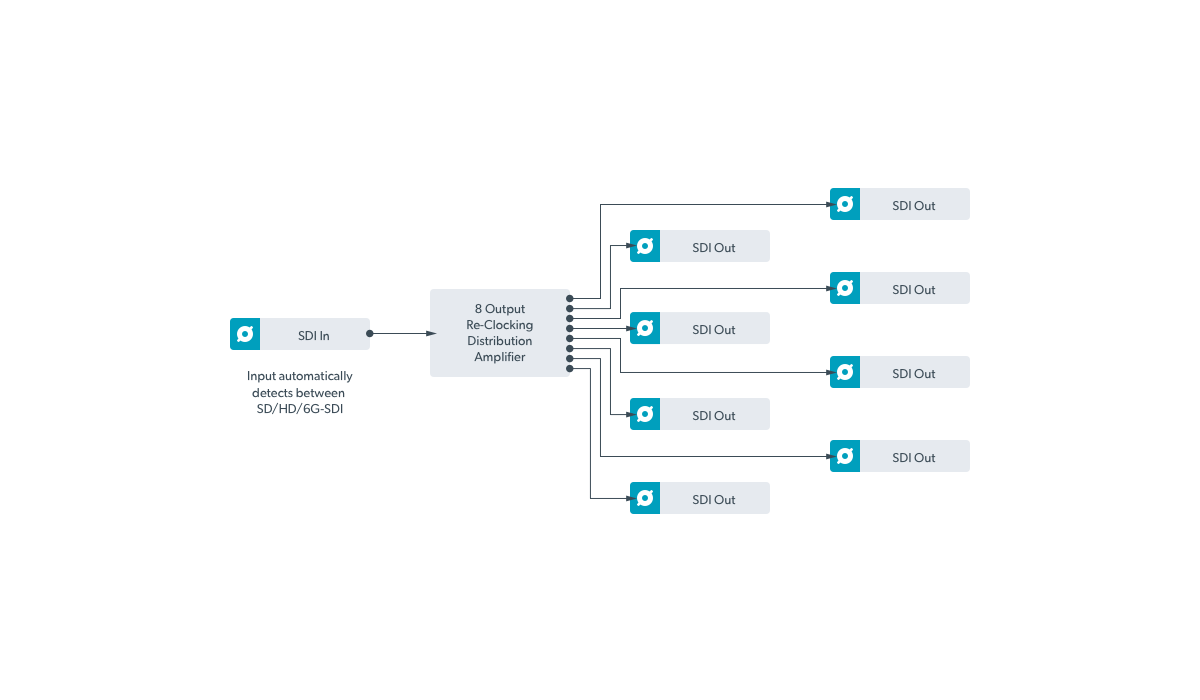

Ideal for connecting the same signal to several devices at once. SDI distribution has an SD, HD and 3Gb/s auto switching input and provides 8 re-clocked outputs. It even handles ASI. It also supports ancillary data and embedded audio.

HIGH QUALITY SDI

Mini Converters are built to the highest quality standards with low SDI jitter. You get the longest SDI cable lengths combined with ultra low noise analogue video and audio for a true broadcast quality solution. You also get the latest broadcast technology such as re-clocking and 3 Gb/s SDI.

NEW 3 GB/S SDI TECHNOLOGY

With the latest 3 Gb/s SDI technology built into Mini Converters you get modern broadcast technology that's future proof.

INTERNATIONAL POWER SUPPLY

Unlike other converters, a high quality low noise universal power supply is included with international socket adapters for all countries. To stop power accidentally being disconnected, a cable tie point is included to lock down the power connection tight and secure.

FEATURES

  • Switchable between SD, HD and 3 Gb/s SDI
  • 8 outputs automatically match the SDI video input
  • Auto detection of HD or standard definition inputs
  • SDI Re-Clocking
  • ASI Support
  • 12V universal power supply included with international socket adapters for all countries

Connections

SDI Video Inputs

1 x SDI Video Input. Switchable between SD, HD and 3G-SDI.

SDI Video Outputs

8 outputs automatically match the SDI video input.

Multi Rate Support

Auto detection of SD, HD or 3G-SDI.

Reclocking

Yes

Mini Converter SDI Distribution

Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080p50, 1080p59.94, 1080p60.

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

SDI Compliance

SMPTE 259MSMPTE 292MSMPTE 296MSMPTE 372MSMPTE 424M-B and SMPTE 425M

SDI Video Rates

SDI video connections are switchable between SD, HD, and DCI 2K.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4

SDI Color Space

YUV and RGB

SDI Auto Switching

Automatically detects SD, HD or 3G-SDI.

ASI Support

Yes

Operating Systems

Mac Icon

macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.

Windows Icon

Windows 8.1 or Windows 10.


Power Requirements

Power Supply

+12V universal power supply included with international socket adapters for all countries. Cable tie point.

Power Consumption

4.80 Watts

Operational Voltage Range

12 - 31V DC

Physical Specifications

Mini Converter SDI Distribution

Environmental Specifications

Operating temperature

0° to 40° C (32° to 104° F)

Storage temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Mini Converter SDI Distribution

12V universal power supply with international socket adapters

Warranty

3 Year Limited Manufacturer's Warranty.
