SDI Video Inputs
1 x SD, HD or 3G-SDI.

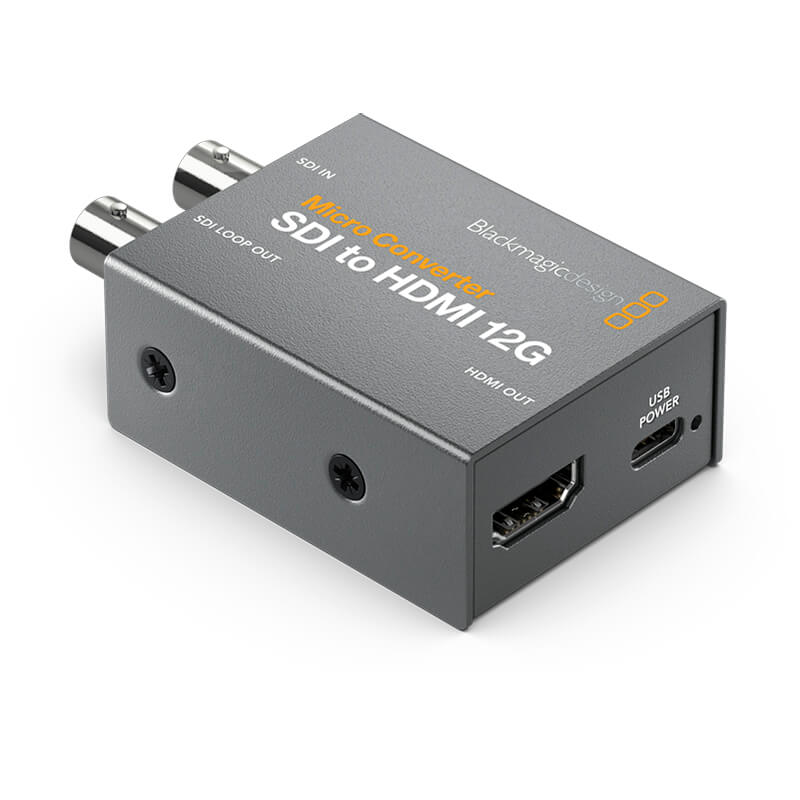

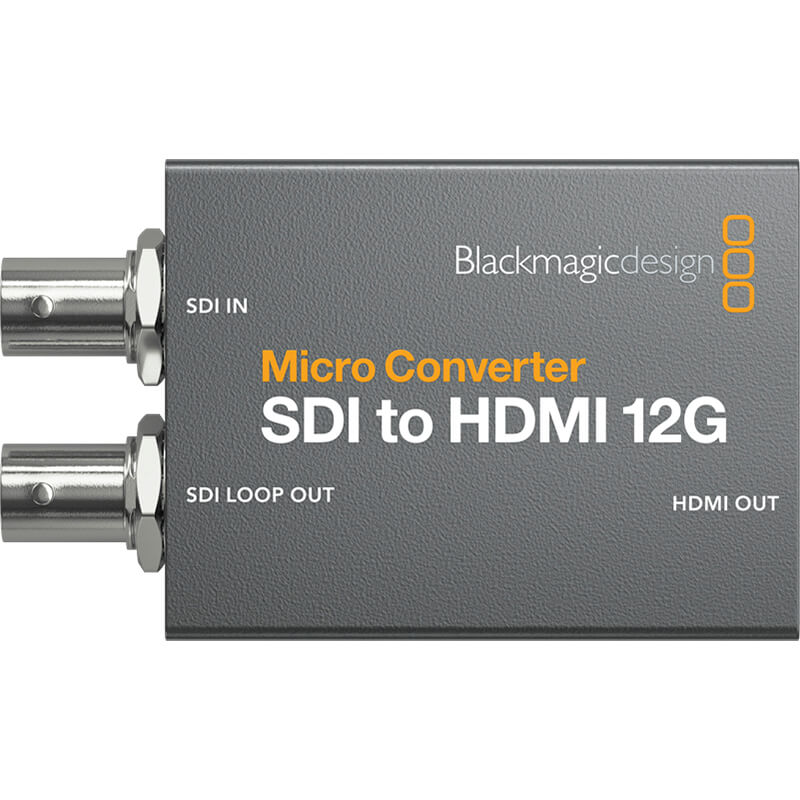

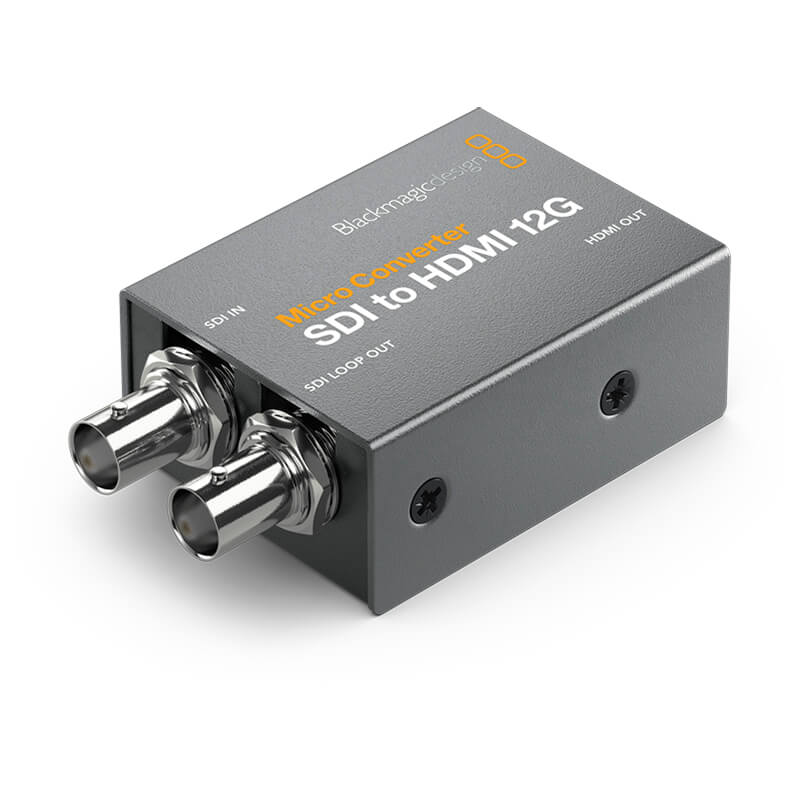

- 12G-SDI to HDMI broadcast quality converter
- Miniaturized broadcast quality video converter that’s been specifically designed for professional monitoring
- Includes a 33 point 3D LUT for colour calibrating any monitor, projector or television
- Features full size HDMI and professional 12G-SDI connections for working with all NTSC, PAL, 720p, 1080p, 1080PsF, 1080i and 2160p rates, including 4K DCI at 24/47.95/48
- Power it over USB from a television or a mobile phone charger
Connections
SDI Video Outputs
1 x SDI loop out.
HDMI Outputs
HDMI Type A out.
Multi Rate Support
Auto detection of SD or HD.
Updates, Configurations and Power
Micro USB.
Standards
SDI Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94,1080p60
1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI.
SDI Color Precision
4:2:2
SDI Color Space
YUV
SDI Auto Switching
Automatically detects SD, HD and 3G-SDI.
HDMI Video Standards
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
HDMI Color Precision
4:2:2
HDMI Color Space
YUV
Software
Software Control
Mac OS X™ and Windows™ software upgrade via micro USB.
Internal Software Upgrade
Via micro USB.
Operating Systems
macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.
Windows 8.1 or Windows 10.
Settings Control
Via software utility.
Power Requirements
+5V universal power supply included with international socket adapters for all countries.
Power Consumption
1.60 Watts
Operational Voltage Range
4.4V to 5.25V DC
Environmental Specifications
Operating temperature
0° to 40° C (32° to 104° F)
Storage temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
Physical Specifications
What's Included
Micro Converter SDI to HDMI wPSU
+5V universal power supply with international socket adapters
Warranty
3 Year Limited Manufacturer's Warranty.
