Miniaturized digital film camera for remote use with PWM and S.Bus for use with model airplane remote controls. Includes Super 16 size sensor with 13 stops of dynamic range and RAW and ProRes recorder.

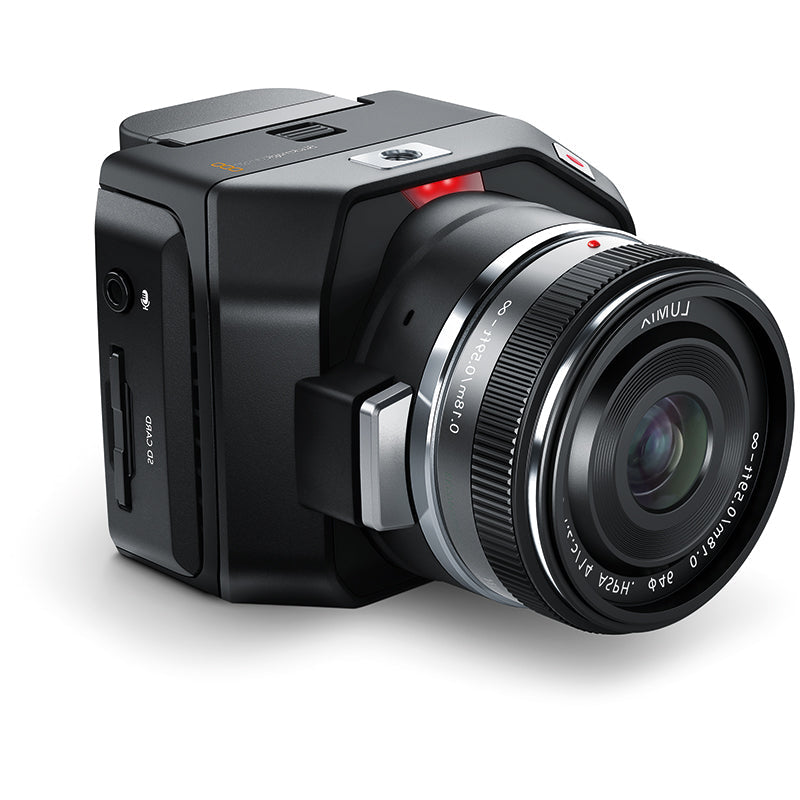

Introducing the Blackmagic Micro Cinema Camera, a miniaturized Super 16mm, professional digital film camera that is designed to be operated remotely and capture action anywhere! A revolutionary built in expansion port has PWM and S.Bus inputs so you can use a model airplane remote control to operate the camera wirelessly. Imagine adjusting focus, iris and zoom wirelessly! The Micro Cinema Camera is a true digital film camera that features built in RAW and ProRes recording, 13 stops of dynamic range, a global shutter and an MFT lens mount. You get a true digital film camera that can go where no other digital film camera can.

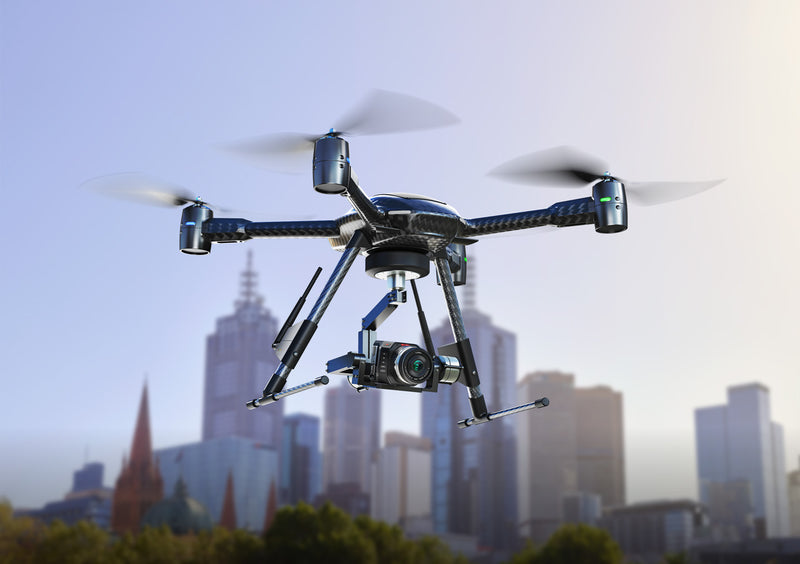

The Blackmagic Micro Cinema Camera is an impossibly small true, professional quality digital film camera that’s perfect for use on quadcopters, as a crash cam, or even hidden on set for reality TV. You can mount it anywhere such as on a skate board or hang glider for spectacular extreme sports shots, to a drone to record panoramic fly overs, or even wear it on a helmet for the most amazing point of view shots! The Blackmagic Micro Cinema Camera will make your audience say “Wow! How did they get that shot?”
When you’re mounting the camera on quadcopters, using it as a crash cam or placing it in dangerous locations, you can operate the camera remotely, view a live feed and monitor status, all from a safe distance. The expansion port can be connected to radio control airplane receivers and various camera functions can be mapped to radio channels so you can remotely start and stop recording, adjust focus, change the iris and more! The expansion port also has a composite video output that can be connected to low cost wireless video transmitters for remote monitoring of the camera’s recording status, battery life and audio levels.
The design of the Blackmagic Micro Cinema Camera combines advanced miniaturization and a unique expansion port in a digital film camera that lets you create personalized rigs for remote operation and monitoring. The camera body is not much larger than the Micro Four Thirds lens mount making it as small as a camera with a professional lens can be. Its core is made out of a lightweight and strong magnesium alloy that makes it durable enough to shoot anywhere, from the ocean floor to the stratosphere or beyond! You can control the Micro Cinema Camera directly from the front buttons when it’s mounted, or remotely when it’s out of reach.
The revolutionary expansion port lets you create custom remote control, external power and monitoring solutions. The included breakout cable gives you access to many of the camera’s unique functions, but you can also create your own custom cables that open the camera up to do even more. In addition to things like LANC, power, video out, and genlock, you also get 4 analog PWM radio remote control inputs so you can map camera functions to the dials, knobs, buttons and joysticks on model airplane remotes! For even more control with greater precision, you can use the 18 channel S.Bus control input with Futaba radio control equipment or custom embedded controllers.

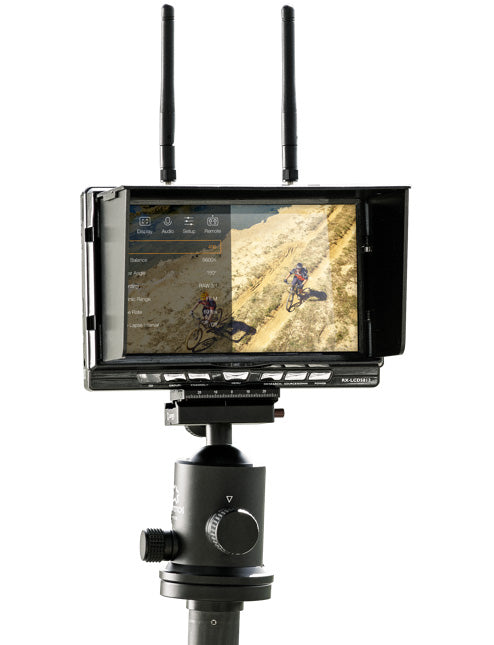

The expansion port includes NTSC and PAL composite video output that can be connected to low cost wireless video transmitters for remote monitoring. That means you can see exactly what the camera is recording whether the camera is in the air or hidden on set. For higher quality monitoring, the Micro Cinema Camera also has an HDMI output for wireless HD video transmitters. Both the composite and HDMI outputs can display overlays for camera status, lens settings, file formats, histogram, audio meters, battery life and more.

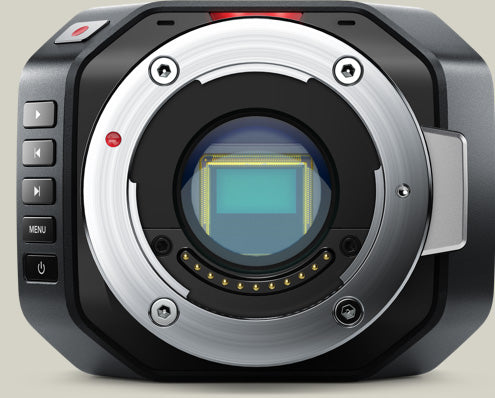

The Super 16 sensor is full 1080 HD resolution and has an incredible 13 stops of dynamic range and global shutter up to 30 frames per second. Most DSLR and action cameras use a rolling shutter that exposes different parts of the image in fractions of a second, causing video to appear skewed or wobbly when the camera moves or vibrates. The Blackmagic Micro Cinema Camera’s global shutter acts more like a still camera, exposing the entire image at the same time so you get distortion and ripple free video! With an ISO up to 1600, the Blackmagic Micro Cinema Camera also gives you great quality, even in locations with low lighting.
The built in recorder captures true 12-bit log digital film quality images without the artifacts you get on heavily compressed 8-bit H.264 files used on small consumer action and DSLR cameras. Files can be saved in either Cinema DNG RAW or ProRes. Cinema DNG RAW files are 12-bit log and give you all of the data from the camera’s sensor, so you have the latitude to change things like white balance and exposure long after the camera stops rolling. If you need smaller file sizes and longer recording times, you can use ProRes to get broadcast quality images. Both formats can be easily edited and color corrected with the included DaVinci Resolve Lite for Mac and Windows.

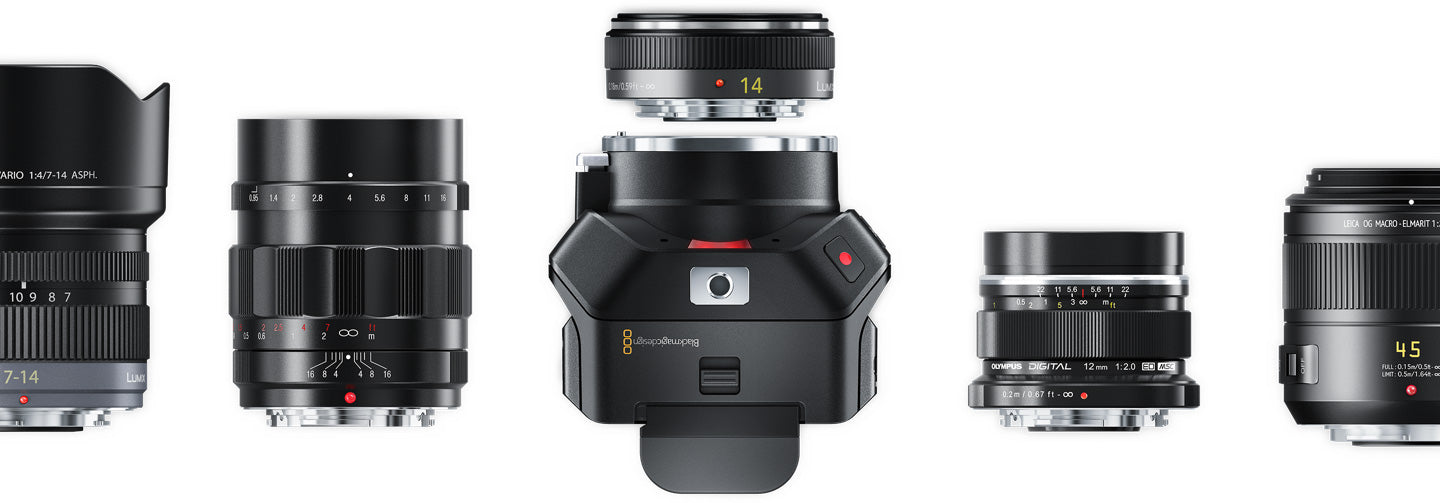

The Blackmagic Micro Cinema Camera features an active Micro Four Thirds lens mount so you can use high performance photographic lenses including wide angle, primes, standard zooms, telephotos and more. That means you’re not stuck with a built in lens and can choose the best lens for the job! The focus, iris and zoom on active MFT lenses can be controlled remotely from the camera’s expansion port. Many MFT lenses also have built in optical image stabilization, making them perfect for use in places where there might be a lot of movement, shocks or vibration.

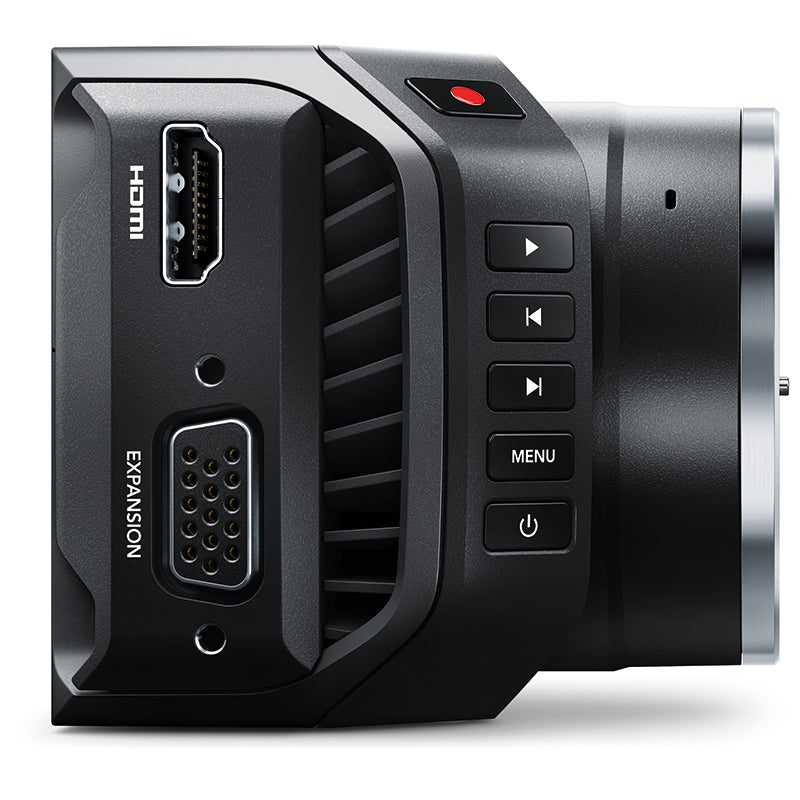

The right side of the Micro Cinema Camera includes a full size HDMI connector for monitoring video output with overlays and embedded audio, along with the expansion port which uses a standard DB-HD15 connector. The expansion port can be used with the included breakout cable or with a custom cable of your own design to give you additional monitoring, control and power options. The left side of the camera houses the SD card slot for recording and also has a high quality 3.5mm stereo input for
connecting mic or line level devices.

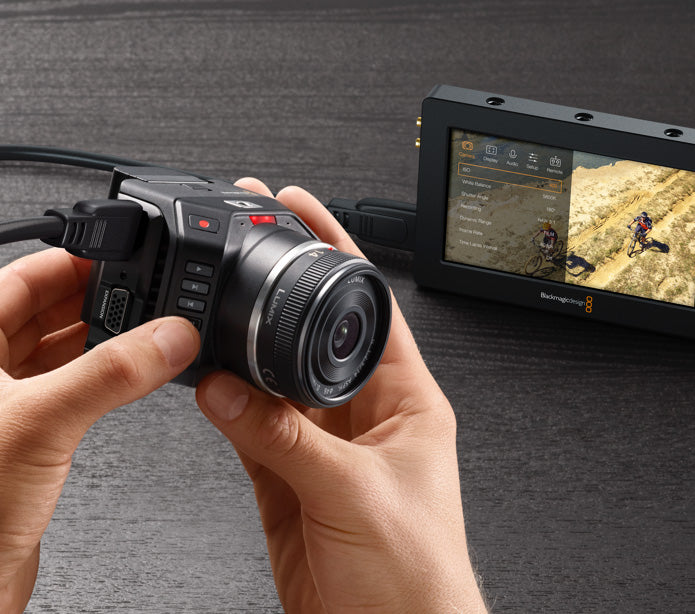

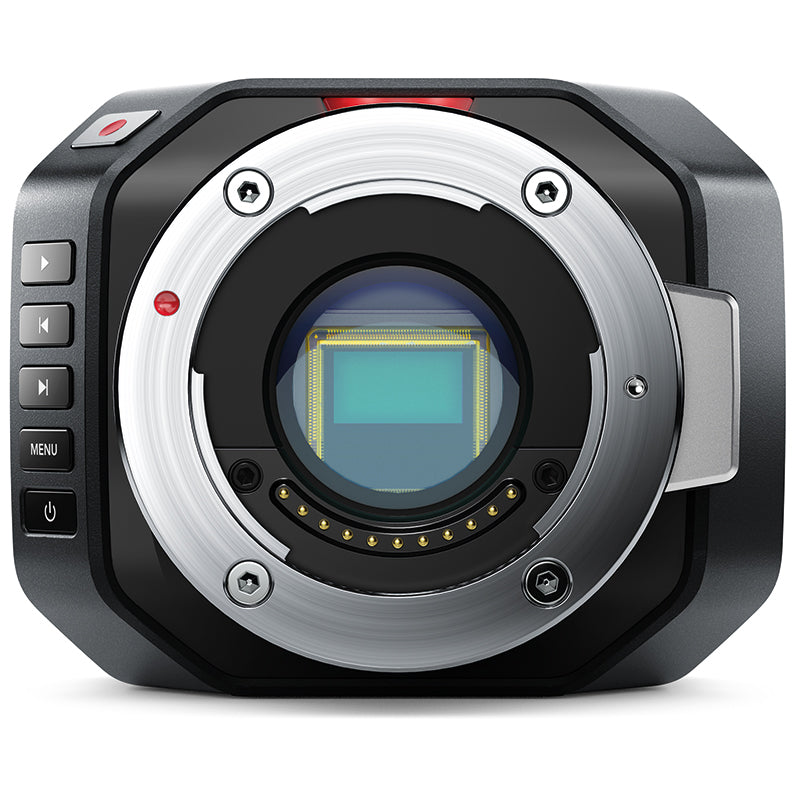

You can quickly adjust camera settings using the row of buttons located on the front of the camera. Because they’re on the front, the buttons are always accessible, whether the camera is strapped to your body or mounted in tight locations. Camera settings are displayed on screen using the HDMI or composite video output. You also get power, record, stop, fast forward and rewind buttons, along with an LED light on top that shows recording status and has memory card and low battery warning indicators.
Engineered for high quality audio recording, the built in high quality stereo microphone is omni-directional and features a mechanical design to help reduce unwanted wind noise so you get a clear recording. There’s also a built in 3.5mm input connector so you can plug in directional or wireless clip on microphones. The 3.5mm input jack supports both mic or line level devices and automatically disables the internal mic when an external one is connected. The Blackmagic Micro Cinema Camera gives you the flexibility to choose the right microphone or audio source for your production.

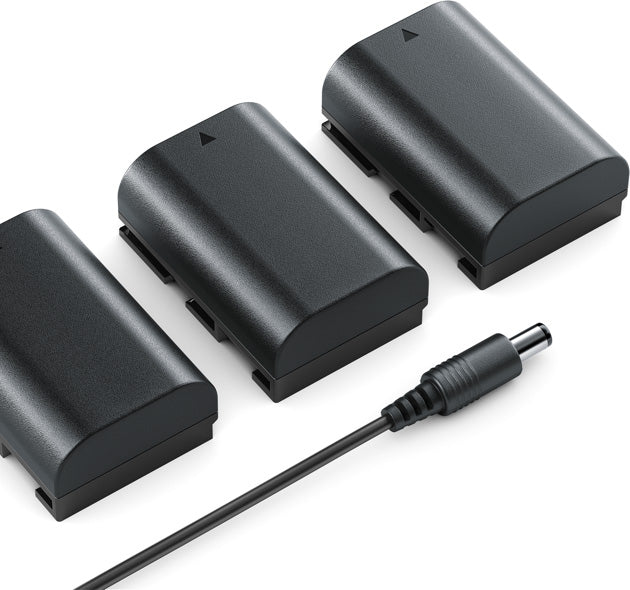

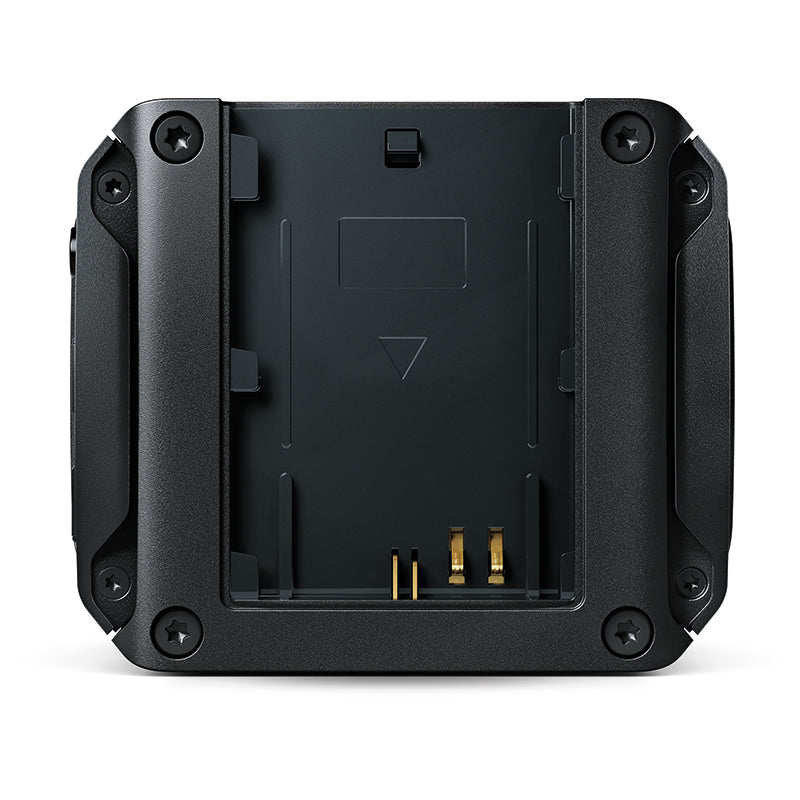

For remote recording, you can attach any readily available LP-E6 battery to the back of the camera and place it in all sorts of locations. The battery level is shown in an overlay when the camera is connected to an HDMI display or on the PAL/NTSC video output so you can monitor battery levels even when the camera is operated remotely. There is also an LED on the camera to indicate low battery condition as well as record status. The included breakout cable has a 12V DC input jack so you can use external power supplies or even rig up your own long lasting custom power sources.
FEATURES
Camera Features
Effective Sensor Size
12.48mm x 7.02mm (Super 16)
Lens Mount
Active MFT mount.
Lens Control
Iris, focus and zoom on supported lenses.
Dynamic Range
13 stops.
Shooting Resolutions
1920 x 1080
Frame Rates
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Focus
Remote focus control via expansion connector when using compatible lenses.
Iris Control
Iris control via Rewind and Forward buttons, plus remote control via expansion connector when using compatible lenses.
Controls
6 control buttons including Record, Play, Rewind, Forward, Menu, and Power. 4 channel PWM plus 1 x S.Bus remote via expansion connector.
Mounting Options
1 x 1/4 inch (top), 3 x 1/4 inch (bottom).
Connections
Total Video Inputs
None
Total Video Outputs
1 x HDMI Type A, 1 x Composite Video output.
Analog Audio Inputs
1 x 3.5mm stereo jack, mic or line level. Can also be used for timecode input.
Analog Audio Outputs
1 x 3.5mm stereo headphone jack
Reference Input
Tri-Sync or Black Burst on expansion connector.
Expansion Port
DB-HD15 serial connector provides support for:
Power input
LANC input
1 x S.Bus input
4 x PWM channel input
Reference input
Composite video output
Remote Control
Lens control, recording parameters and record trigger start/stop trigger via LANC and PWM or S.Bus remote channels
Computer Interface
USB 2.0 Mini-B port for software updates.
Audio
Microphone
Integrated stereo microphone.
Standards
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Codecs
CinemaDNG RAW, CinemaDNG RAW 3:1, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes Proxy QuickTime.
Media
Media
SDXC and SDHC cards.
Media Format
Media Format can format cards to HFS+ for Mac or exFAT for Windows.
Control
External Control
Expansion connector has LANC, S.Bus and PWM for lens and other settings control.
Storage Features
Storage Type
Removable SDXC and SDHC cards.
Storage Format
Mac OS Extended or exFAT format. SD cards can be formatted in camera, or on any Mac or Windows computer. Formatting in camera recommended.
Storage Rates
1920 x 1080
CinemaDNG RAW - 65 MB/s
CinemaDNG RAW 3:1 - 33 MB/s
Apple ProRes 422 HQ - 27.5 MB/s
Apple ProRes 422 - 18.4 MB/s
Apple ProRes 422 LT - 12.75 MB/s
Apple ProRes Proxy - 5.6 MB/s
Rates based on 30 frames per second.
Recording Formats
Lossless CinemaDNG RAW, RAW 3:1 at 1920 x 1080 with film dynamic range.
Apple ProRes 422 HQ, 422, 422 LT and 422 Proxy at 1920 x 1080 with either film or video dynamic range.
Software
Software Included
DaVinci Resolve grading software. SD card for Mac OS X and Windows.
macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.
Windows 8.1 or Windows 10.
Power Requirements
Battery Type
Canon LP-E6
Battery Life
Approximately 1 hour 30 minutes
Power
12V-20V
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non-condensing
What's Included
Blackmagic Micro Cinema Camera
Expansion cable
LP-E6 battery
Turret dust cap
12V AC Adapter
SD card with software and manual
Warranty
Product Warranty
12 Month Limited Manufacturer's Warranty
