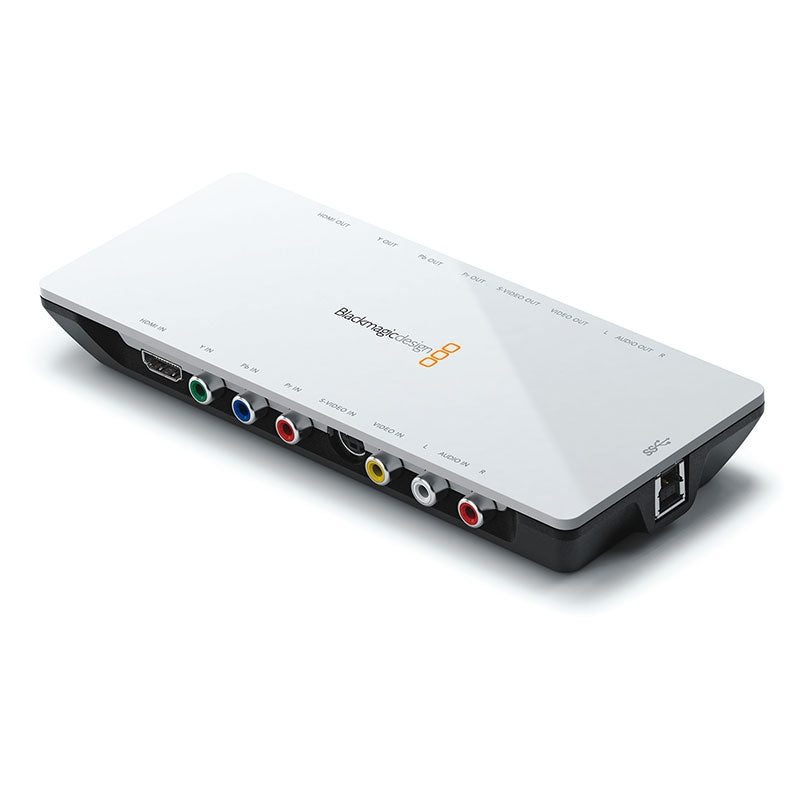

Intensity Shuttle is a USB 3.0 version of Intensity Pro, however it also includes separate connections for HDMI 1.3, component, composite and s-video, with full 10 bit quality. It powers from the USB 3.0 connection, and is very compact in an attractive white inline design.
The quality of Intensity Shuttle video is amazing, and I think one of the most exciting things BMD have done is to build in broadcast quality video at a consumer price.
Intensity Shuttle requires the same Intel x58 series computer with USB 3.0 connection as the UltraStudio Pro.
One exciting feature of Intensity Shuttle (and UltraStudio Pro) is it includes full support for HDMI and component up to 1080p60. However even though current USB 3.0 computers support full 10 bit uncompressed at normal 1080i HD frame rates, current USB 3.0 computers don't yet have enough speed to operate at progressive frame rates. But Intensity Shuttle is ready as computers get faster!
Intensity Shuttle supports working with Premiere Pro, After Effects, and Photoshop. Also included is Media Express software.
INCREDIBLE SPEED USB 3.0
SuperSpeed USB 3.0 is the new USB connection standard for computers that's 10 times faster than regular USB. That's a blistering 4.8 Gb/s, which easily handles the highest quality 10 bit uncompressed 1080HD video. Blackmagic Design products with USB 3.0 supports x58 series or better Windows computers, and all you need to do is simply plug in to install!
FEATURES
- Input/Output: HDMI, Component, S-Video
- Ultra fast USB 3.0 connection to the PC
- Includes Media Express Software

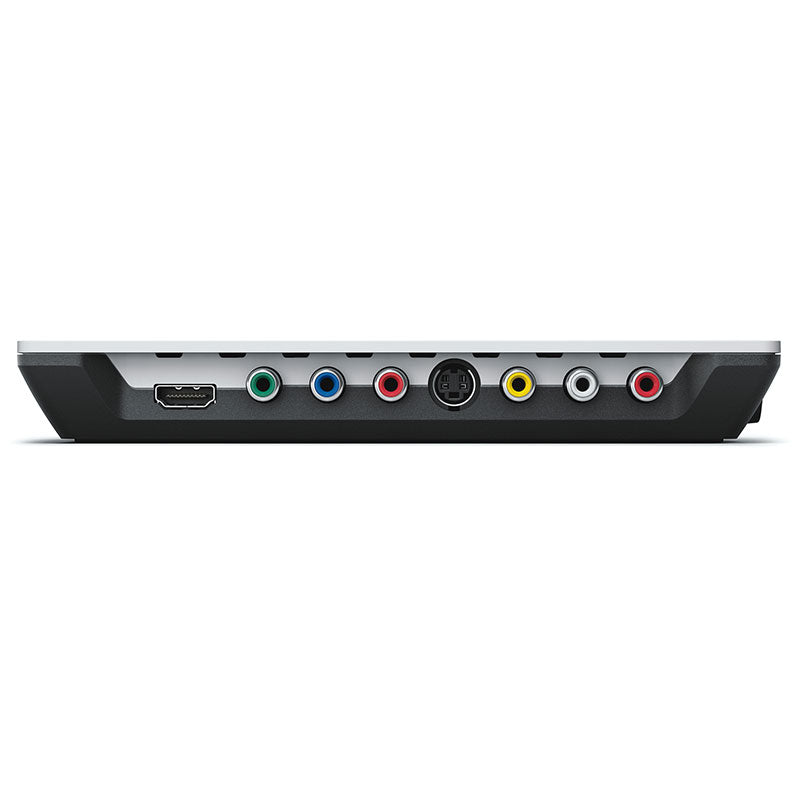

Connections
Analog Video Inputs
Independent connections for Component, Composite and S-video.
Analog Video Outputs
Independent connections for Component, Composite and S-video.
Analog Audio Inputs
2 Channel RCA HiFi audio in 24-bit.
Analog Audio Outputs
2 Channel RCA HiFi audio in 24-bit.
HDMI Video Inputs
1 x HDMI type A connector.
HDMI Video Outputs
1 x HDMI type A connector.
HDMI Audio Inputs
8 Channels.
HDMI Audio Outputs
8 Channels.

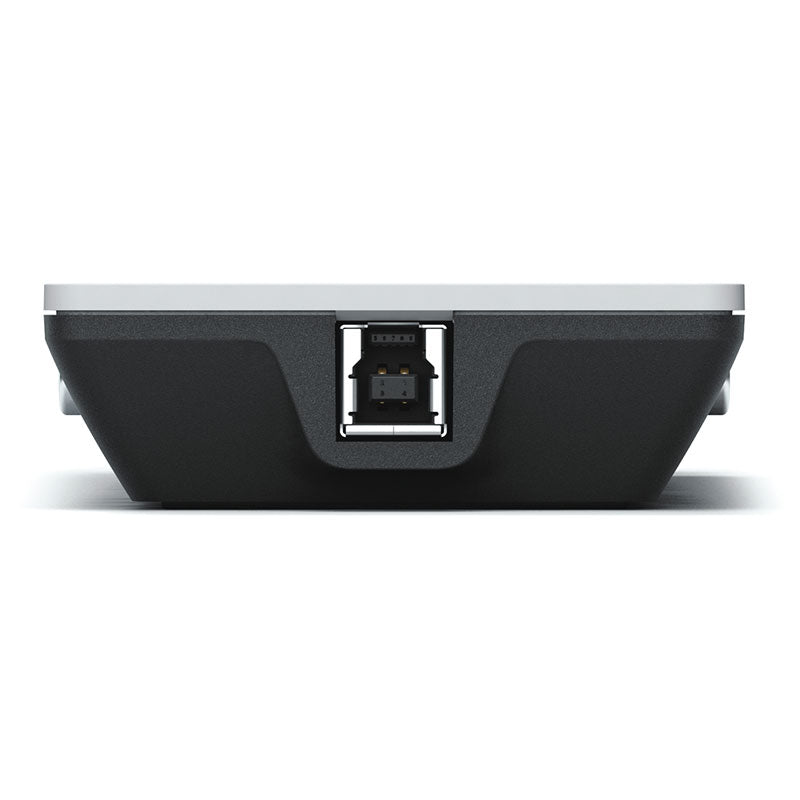

Computer Interface
USB 3.0.
Software
Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows.
Internal Software Upgrade
Firmware built into software driver. Loaded at system start, or via updater software.
Standards
SD Video Standards
625i50 PAL, 525i59.94 NTSC, 625p50 PAL, 525p59.94 NTSC
HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080i50, 1080i59.94, 1080i60
HDMI Video Sampling
4:2:2 YUV.
HDMI Audio Sampling
Television standard sample rate of 48kHz and 24-bit.
HDMI Color Space
REC 601, REC 709.
HDMI Color Precision
10-bit
Dual Rate Support
HDMI and Analog Component switches between high definition and standard definition.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Processing
HD Down Conversion
Software based down conversion during video playback.
HD Up Conversion
Real time standard definition to 1080HD and 720HD during video capture.
Real Time Effects
Adobe Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Colorspace Conversion
Hardware based real time.
Operating Systems
Mac OS X 10.11 El Capitan,
macOS 10.12 Sierra,
macOS 10.13 High Sierra or later.
Windows 7, 8.1 and 10, all 64-bit.
Power Requirements
Power Supply
Powered by USB Bus.
Physical Installation
USB 3.0. requires an x58 based motherboard with onboard USB 3.0, or a USB 3.0 PCI Express card and an x58 or P55 series motherboard. Please check the Support pages to see the full system requirements.
What's Included
Intensity Shuttle for USB 3.0
SD card with software and manual
Warranty
12 Months Limited Warranty.
