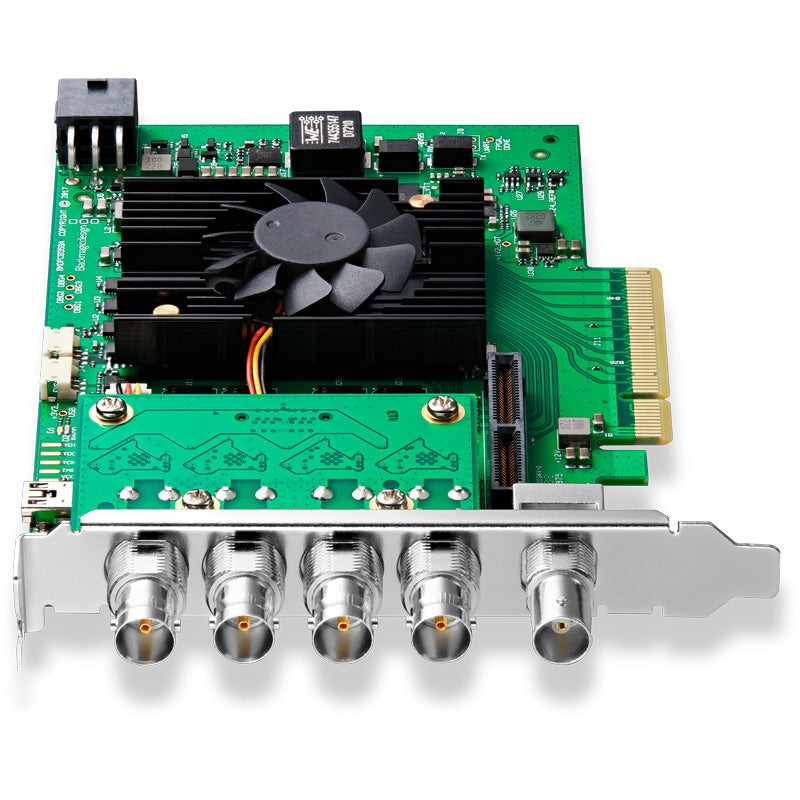

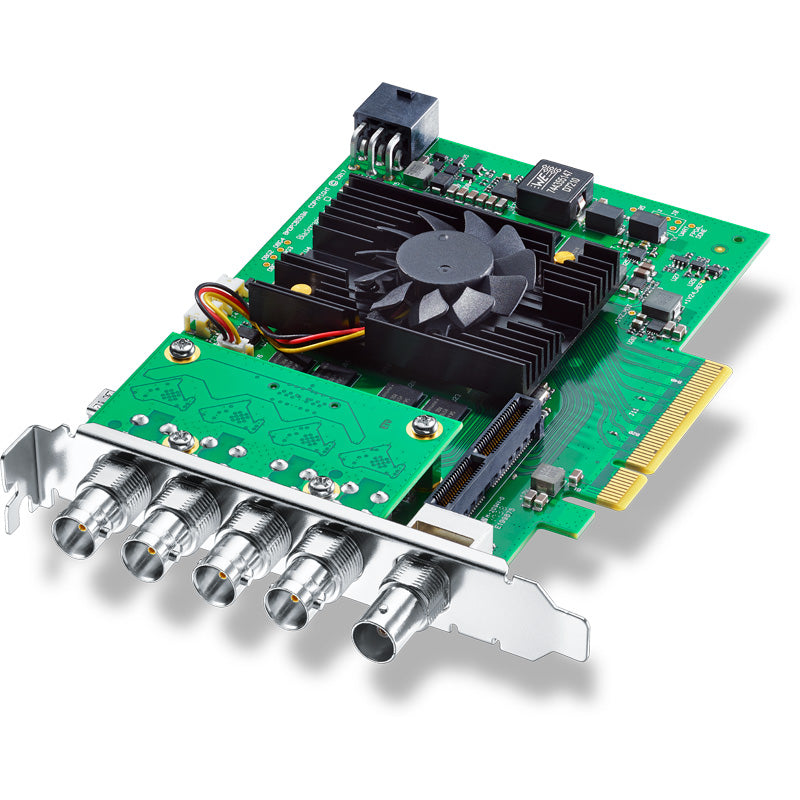

Blackmagic Design DeckLink 8K Pro

The ultimate digital cinema capture card.
DeckLink 8K Pro features four quad link 12G-SDI connections and works in all SD, HD, Ultra HD, 4K and 8K DCI frame sizes. You get support for 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 colour.

In addition, you can work at up to 60 frames per second in 8K and 120 frames per second in HD and 4K. The four 12G-SDI connections support 16 channels of embedded audio each, for a total of 64 channels. DeckLink 8K Pro is perfect for the next generation of high resolution, high frame rate and high dynamic range workflows.

DeckLink capture and playback cards are used every day on Hollywood feature films, episodic television programs, music videos, commercials and more! Featuring the latest cutting edge technologies such as 12G-SDI and 8K support, DeckLink cards give you the highest quality video and work with more applications and platforms than any other card. Every DeckLink PCI Express card can be installed in Mac, Windows and Linux based workstations and servers, giving you ultimate flexibility.

HIGHEST QUALITY CONNECTIONS

Every DeckLink card features high quality connections so you get pristine video and audio along with compatibility for working with the widest range of professional SDI equipment. DeckLink 8K Pro includes quad link 12G-SDI. All models include Black Burst/Tri-sync reference and serial deck control. The 6G and 12G-SDI cards feature multi rate connections that automatically detect and switch speed for working with all SD, HD and Ultra HD formats. The advanced DeckLink 8K Pro supports additional high resolution DCI formats and higher frame rates.

USE YOUR FAVORITE SOFTWARE

DeckLink cards work with the software you love to use!

MAC OS X

No other capture and playback cards are supported by more software applications for Mac OS X. Get drivers that work with fantastic editing software such as DaVinci Resolve, Avid Media Composer, Final Cut Pro X, Premiere Pro and News Cutter. For visual effects get full compatibility with Fusion, Nuke, After Effects and Photoshop. For audio, DeckLink cards work with Fairlight audio in DaVinci Resolve, ProTools, Nuendo and Cubase. For streaming, you can use Flash Media Encoder, Wirecast, Livestream Producer.

WINDOWS

Get access to a massive range of windows software! DeckLink supports WDM, DirectShow and QuickTime so you can use applications such as DaVinci Resolve, Avid Media Composer and News Cutter, Premiere Pro, Sony Vegas Pro and more. For visual effects use Fusion, After Effects and Photoshop. Audio software supported includes Nuendo, Cubase and more. When streaming you get compatibility with Flash Media Encoder, Xsplit Broadcaster, Wirecast and Livestream Procaster.

LINUX

DeckLink cards are open standard capture cards and are perfect for the development of Linux based video applications. They’re designed to work perfectly with DaVinci Resolve for editing, colour correction and professional audio. There’s also a free, well documented SDK that makes it easy for you to develop specific solutions to meet your needs. Blackmagic’s Design Media Express is also available for capture and playback when using DeckLink with Linux operating systems.

FEATURES

• Four quad link 12G-SDI connections and works in all SD, HD, Ultra HD, 4K and 8K DCI frame sizes
• Support for 8 and 10-bit YUV 4:2:2, as well as 10 and 12-bit RGB 4:4:4 with full Rec. 2020 colour
• Work at up to 60 frames per second in 8K and 120 frames per second in HD and 4K

CONNECTIONS

• SDI Video Inputs / Outputs: 4 x bi-directional 12Gb/s SD/HD/2K/4K/8K. Supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D switchable.
• SDI Audio Inputs / Outputs: 16 Channels embedded in SD/HD/2K. 64 Channels embedded in 4K/8K.
• Sync Input: Tri-Sync or Black Burst.
• Computer Interface: PCI Express 8 lane generation 3, compatible with 8 and 16 lane PCI Express slots.

Download Tech Specs
