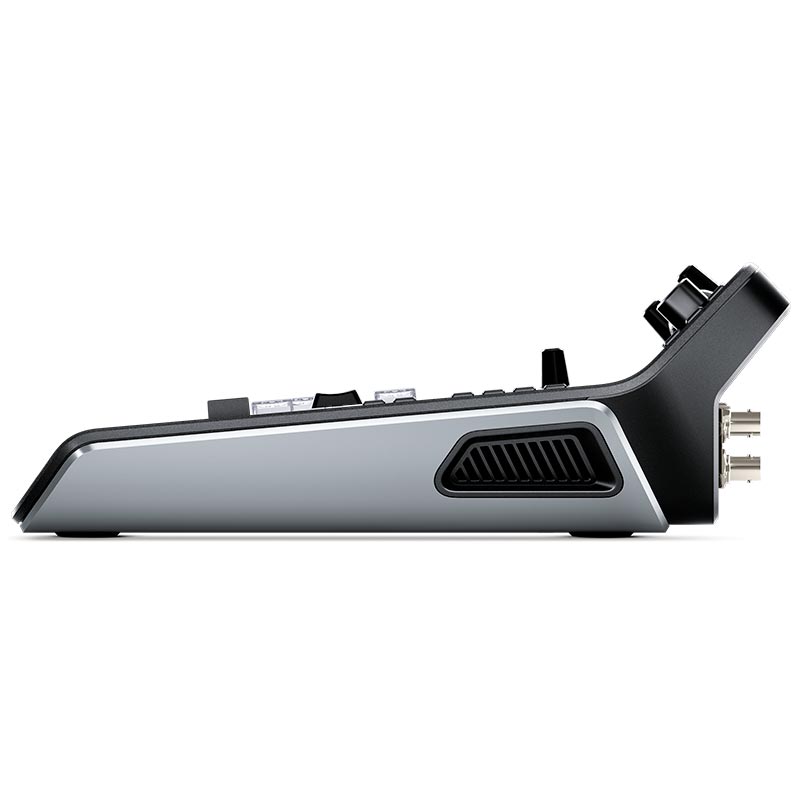

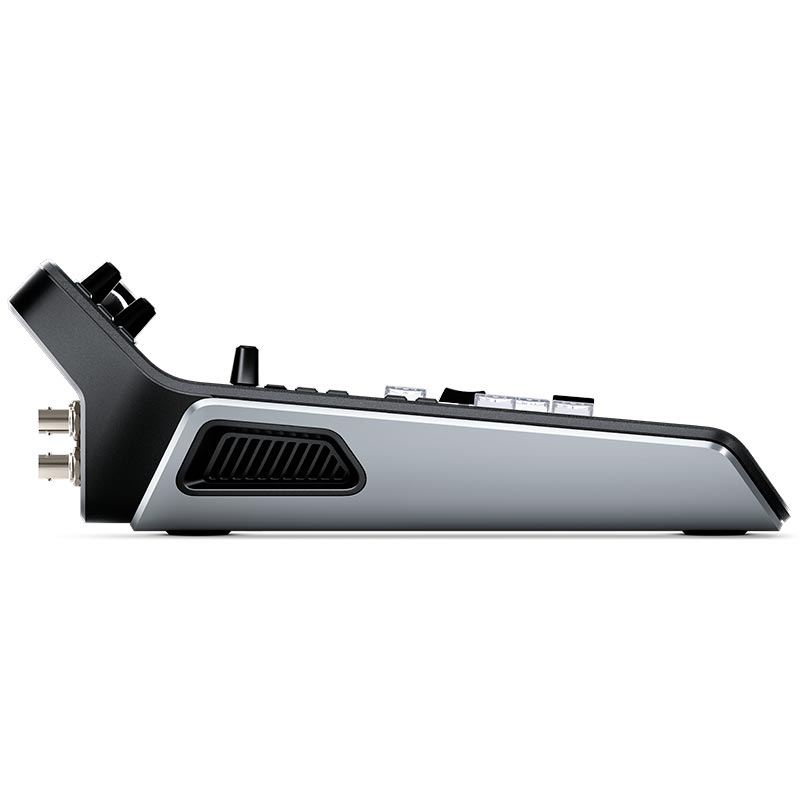

ATEM Television Studio Pro HD is a broadcast quality all in one live production switcher with integrated hardware control panel designed for both broadcast and professional AV users. ATEM Television Studio Pro HD features 8 inputs, multiview, auxiliary and program outputs, analogue audio inputs, built in talkback, two flash based media players, professional creative transitions, a DVE for effects and more.
ATEM Television Studio Pro HD combines a professional broadcast hardware control panel with a powerful 8 input switcher. It includes 4 SDI and 4 HDMI inputs, all with re-sync, so customers can connect a total of up to 8 different sources such as professional SDI broadcast cameras, consumer HDMI cameras, computers and even video game consoles.

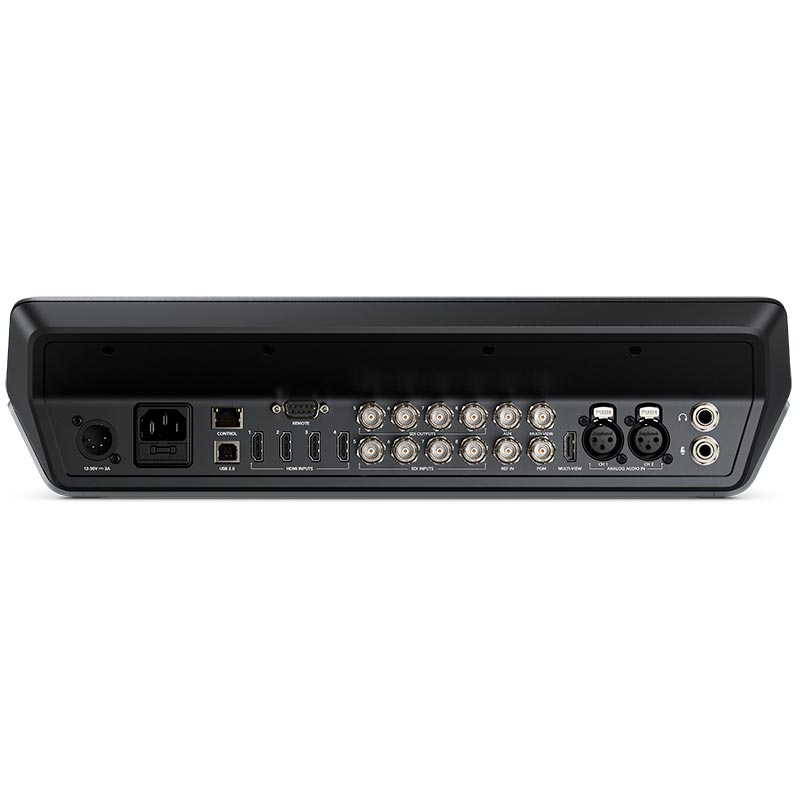

ATEM Television Studio Pro HD is compatible with all SD and HD formats up to 1080p60 and also features two channels of analogue audio in, RS-422, Ethernet and a built in IEC power supply, along with program and auxiliary outputs. Customers also get both SDI and HDMI multiview outputs so they can monitor all sources, preview and program outputs, along with labels, audio meters and more, all on a single big screen television or broadcast monitor.
ATEM Television Studio Pro HD is perfect for everything from professional broadcast studio shows and broadcast sports, to customers working on video blogs, gaming videos, internet talk shows, weddings, concerts, seminars and more. With resynchronization on every input, switching is completely glitch free which means that customers can even use it as a front end controller for AV systems and cleanly switch between sources with the press of a button.

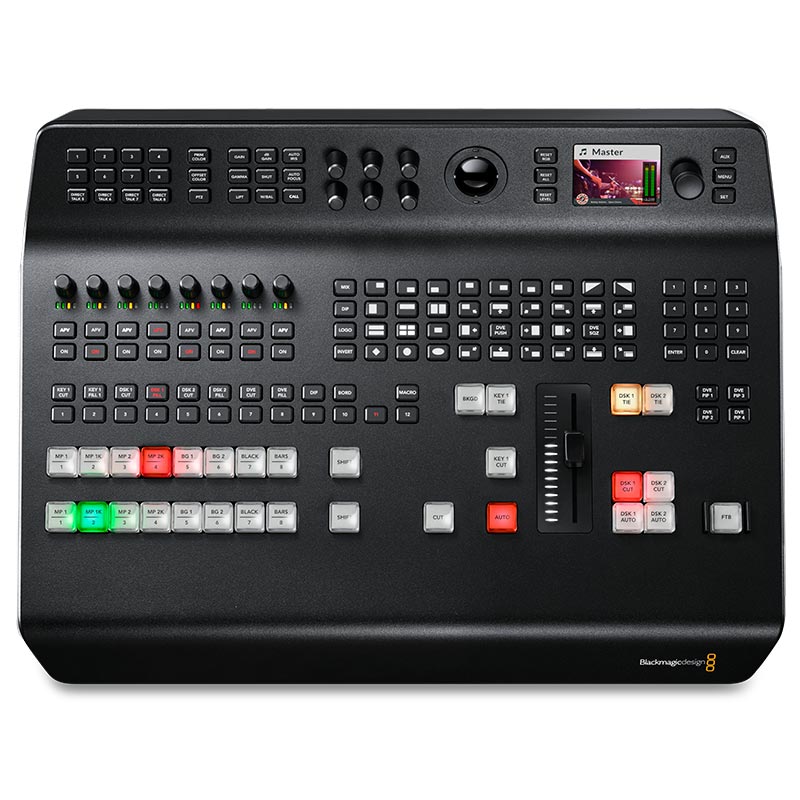

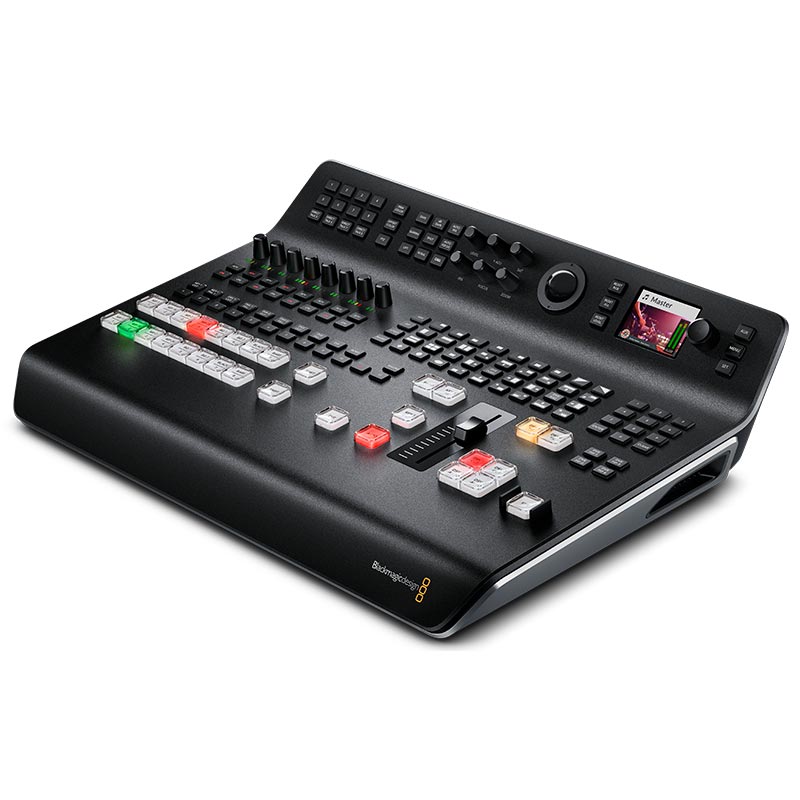

Featuring a portable design, ATEM Television Studio Pro HD is packed with high end broadcast features that make it possible to create an entire live switched program, complete with effects and transitions. The hardware panel features large illuminated buttons for switching between sources, along with corresponding audio buttons, one touch transition buttons, downstream keyers, fade to black, media player, cut buttons and more. There’s also a built in LCD screen for previewing source and program video, a spin knob and additional buttons for menus and to adjust settings. Customers simply press the button for the source that they want to see next in the program, then hit the cut or auto button to switch sources, add effects, or even key in graphics.
When used with Blackmagic Studio and URSA Mini cameras, customers get a complete remote control solution that includes talkback, tally, colour correction, camera control and more, without having to add any additional cables or proprietary control boxes. These cameras feature a built in colour corrector that can be remote controlled, making it possible to balance camera colour and create unique looks, all from the control panel. In addition, customers can adjust focus and iris on compatible lenses, change camera settings, and even remote control PTZ heads.
For maximum speed and flexibility in live productions, ATEM Television Studio Pro HD includes a free software control panel for Mac and Windows that allows multiple users to be connected at the same time. That means customers can have one person switching the program while another mixes the audio and another uploads or changes graphics, while another person remotely colour balances and controls the cameras.
The software control panel features an intuitive interface with different pages for switching, managing media, mixing audio, and remote controlling and colour correcting cameras. The Switcher page is modeled after a physical hardware control panel making it fast and easy for customers to switch between sources, adjust transitions, add upstream and downstream keyers, and more. The Media page lets customers drag and drop up to 20 RGBA graphics into the media pool and automatically upload them to the switcher’s flash memory so they can be recalled and used in realtime during a live program. The software control also features a 10 channel audio mixer that can be used to adjust and balance levels from all inputs, including the analogue audio inputs. The audio mixer displays meters, has sliders for adjusting levels, and controls for turning channels on or off, using the audio follows video feature and more.
ATEM Television Studio Pro HD gives customers true broadcast quality transitions, effects and graphics. Transitions such as mixes, wipes and dips are done by simply pressing a button on the control panel. There are 37 included transitions, giving customers massive creative options because they can customize things such as border, border colour and width, position, direction and more. In addition, there’s a built in 2D DVE for adding digital video effects that can position, resize and scale live video, all in realtime. That means customers can create professional picture-in-picture effects, use DVE powered transitions like squeeze and slide between sources, or create graphic wipe transitions with their own graphics.
ATEM Television Studio Pro HD has a built in media pool that can store 20 graphics that can be used with the two built in media players. The media pool uses flash memory, so images are saved even after the power is turned off. That means customers can create completely custom graphics to use in their own programs. In addition, there is an upstream keyer with full chroma keying for green screen shots so customers can add weather maps, graphics, or even virtual sets. The upstream keyer works with chroma, patterns, shapes and linear keys.
ATEM Television Studio Pro HD also features 2 downstream keyers for adding graphics, logos and bugs to video. Customers can use a HyperDeck Studio Mini with ATEM Television Studio Pro HD as a source for ProRes 4:4:4:4 motion graphics files with alpha channels. That means customers can get fill and key graphics composited over live video, or they can use motion graphics with alpha as transitions between sources, all in real time.
ATEM Television Studio Pro HD also includes a built in talkback converter for SDI cameras. The talkback information is sent back to the camera via the SDI program return feed on the rarely used SDI audio channels 15 and 16. When working live with a reporter in the field, there can be a slight delay that causes them to hear themselves as an echo in their headset. ATEM Television Studio Pro HD includes a new mix minus feature that sends back all the program audio except their own voice, so they don’t hear a distracting echo of themselves while reporting.
FEATURES
8
8
1
270Mb, 1.5G, 3G.
2 x XLR.
None, embedded audio only.
4 x 10-bit SD/HD switchable. 2 channel embedded audio.
4 x HDMI type A, 10-bit SD/HD switchable. 2 channel embedded audio.
Tri-Sync or Black Burst.
On all 8 inputs.
5 x 10-bit SD/HD switchable.
2 Ch embedded into SDI output.
1
1
1
525i59.94 NTSC 4:3 or 16:9, 625i50 PAL 4:3 or 16:9
720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p50, 1080p59.94, 1080i50, 1080i59.94
None
SMPTE 259M, 292M and 424M.
4:2:2 10-bit
4:2:2 10-bit
4:2:2 YUV
720 x 480i 59.94Hz, 720 x 576i 50Hz, 1280 x 720p 59.94Hz 50Hz and 1920 x 1080p 23.98, 24, 25, 29.97,30, 50, 59.94 and 1920 x1080i 50 and 59.94Hz 60Hz.
Hardware based real time.
6 Lines.
10 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering.
Master gain control. Headphone output level control with separate mix of Program, Talkback and Sidetone.
1 with Chroma/Linear/Luma key.
2
1
3
Built in, uses aviation headset.
Yes, on 4 camera PGM outputs.
DVE only.
5
2
2
1
Minimum monitor resolution of 1366 x 768.
1 x 10
8 routable and 2 fixed for Program and Preview.
Red for program and green for preview indication.

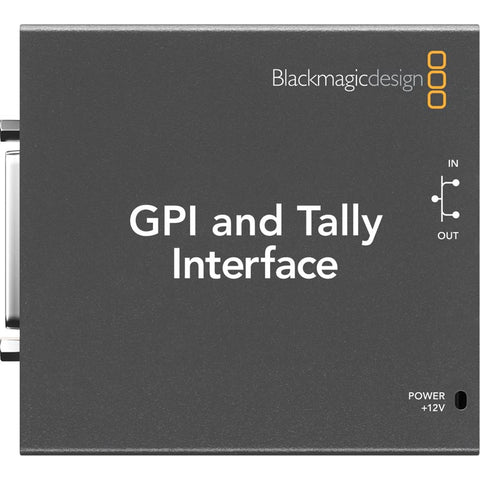

Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included)
Yes.
1 x 10 Views.
HD
2, with non volatile flash memory.
Fill and key for each Media Player.
20 with fill and key.
PNG, TGA, BMP, GIF, JPEG and TIFF.
Built in with camera control. Software panel included. Supports optional broadcast panel.
Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Broadcast Panel and ATEM 2 M/E Broadcast Panel.
ATEM Software Control Panel included free for Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra or later and Windows 8.1 64-bit or Windows 10 64-bit.
Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
macOS 10.12 Sierra,
macOS High Sierra 10.13 or later.
Windows 8.1 or
Windows 10.
1 x Internal 110 - 240V AC. 4 pin 12V DC.
40W
5° C to 40° C
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing
ATEM Television Studio Pro HD
SD card with software and manual
12 Months Limited Manufacturer's Warranty.
