Pro Tools | MTRX II features 64 channels of DigiLink I/O, 256 channels of Dante, and 64 channels of MADI in the base unit to get you started, with eight option card slots to configure the audio interface with the I/O you need. It also includes built-in SPQ Speaker Processing for easy room calibration to optimize your monitoring environment.
Mix and match up to eight analog I/O cards to support up to 64 analog channels per MTRX II interface, design an all-digital box with up to eight digital I/O cards (supporting up to 576 DigiLink channels, 1,280 Dante channels, or 1,088 MADI channels when maxed out with all available cards and modules), or configure it with any combination of analog and digital I/O.

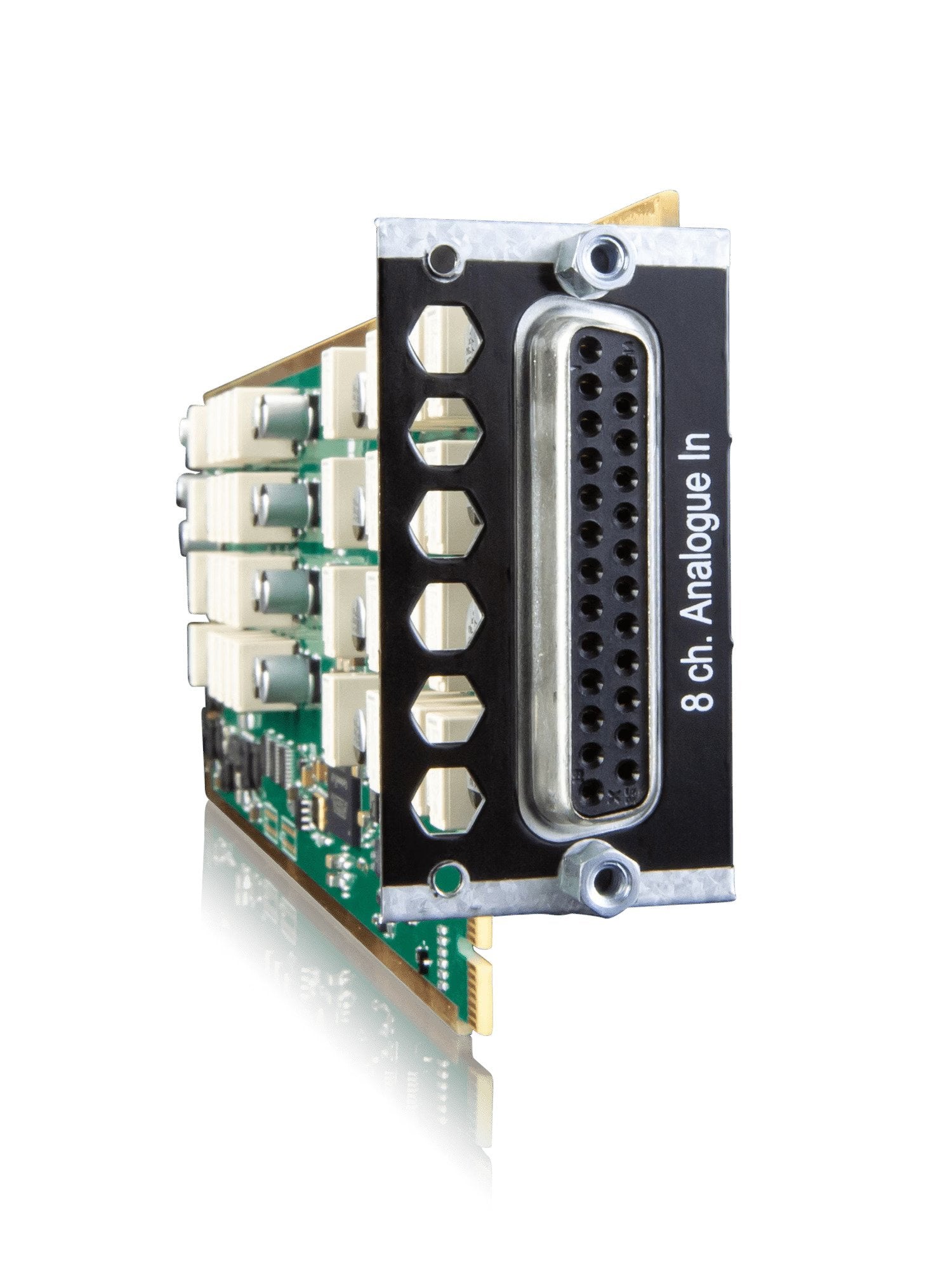

8 Line Pristine AD Card (input)
Add eight channels of line-level analog inputs for connecting preamps, keyboards, signal processors, mixers, and other gear.
8-LINE PRISTINE AD OPTION CARD
|
ANALOG INPUTS |
8 LINE-LEVEL |
|
Input gain |
Adjustable from -18 to +70 dB, in steps of 0.1 dB, ± 0.25 dB accuracy |
|
Max input level |
Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB |
|
Sampling, resolution |
5-bit sigma/delta @ 5.645 or 6.144 MHz, 24-bit PCM |
|
DSD sample rates |
2.8224 and 5.6448 Mhz (64 and 128 fs) |
|
THD+N (A) |
< -117 dB @ -3 dB FS / 0.00014% |
|
Crosstalk |
< -120 dB |
|
Input Impedance |
> 10 k Ohm |
