Pro Tools | MTRX II features 64 channels of DigiLink I/O, 256 channels of Dante, and 64 channels of MADI in the base unit to get you started, with eight option card slots to configure the audio interface with the I/O you need. It also includes built-in SPQ Speaker Processing for easy room calibration to optimise your monitoring environment.
Mix and match up to eight analog I/O cards to support up to 64 analog channels per MTRX II interface, design an all-digital box with up to eight digital I/O cards (supporting up to 576 DigiLink channels, 1,280 Dante channels, or 1,088 MADI channels when maxed out with all available cards and modules), or configure it with any combination of analog and digital I/O.

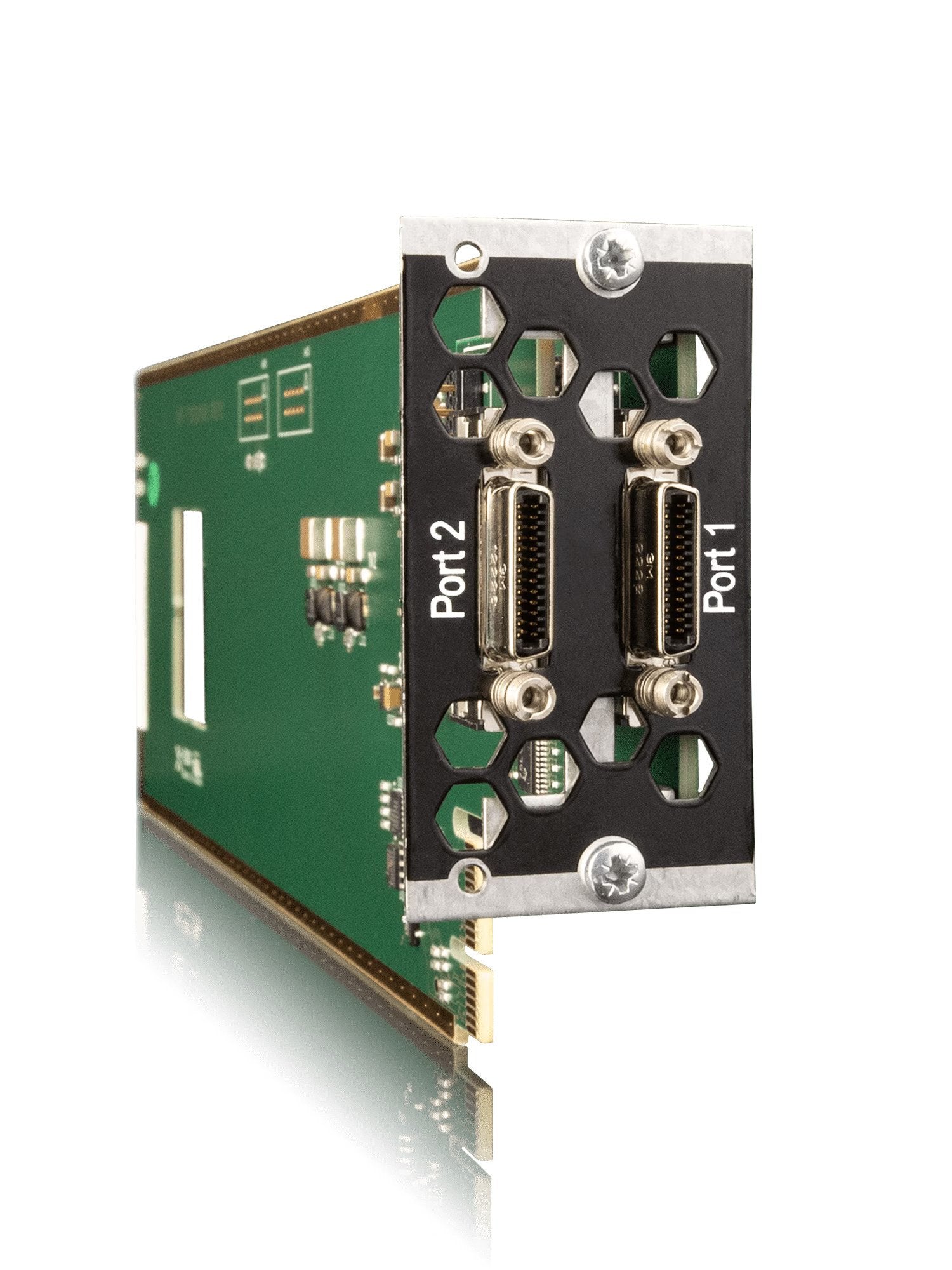

DigiLink I/O Card
Add 64 channels of DigiLink I/O through two DigiLink Mini ports.
Includes one Pro Tools | DigiLink I/O License per card
DIGILINK I/O CARD
|
ADDITIONAL DIGILINK I/O |
|
|
Supported sample rates |
44.1 kHz—192 kHz |
|
Channels |
Up to 64—2 x 32 channels at 44.1 kHz–96 kHz; 1 x 32 channels at 176.4 kHz–192 kHz |
|
Connectivity |
Two DigiLink Mini ports |
|
Maximum I/O |
Supports up to 576 total DigiLink I/O channels in a single MTRX II interface (base I/O + eight DigiLink I/O Cards) |
|
Licensing |
Includes one Pro Tools | DigiLink I/O License per card |
