Pro Tools | MTRX II features 64 channels of DigiLink I/O, 256 channels of Dante, and 64 channels of MADI in the base unit to get you started, with eight option card slots to configure the audio interface with the I/O you need. It also includes built-in SPQ Speaker Processing for easy room calibration to optimise your monitoring environment.
Mix and match up to eight analog I/O cards to support up to 64 analog channels per MTRX II interface, design an all-digital box with up to eight digital I/O cards (supporting up to 576 DigiLink channels, 1,280 Dante channels, or 1,088 MADI channels when maxed out with all available cards and modules), or configure it with any combination of analog and digital I/O.

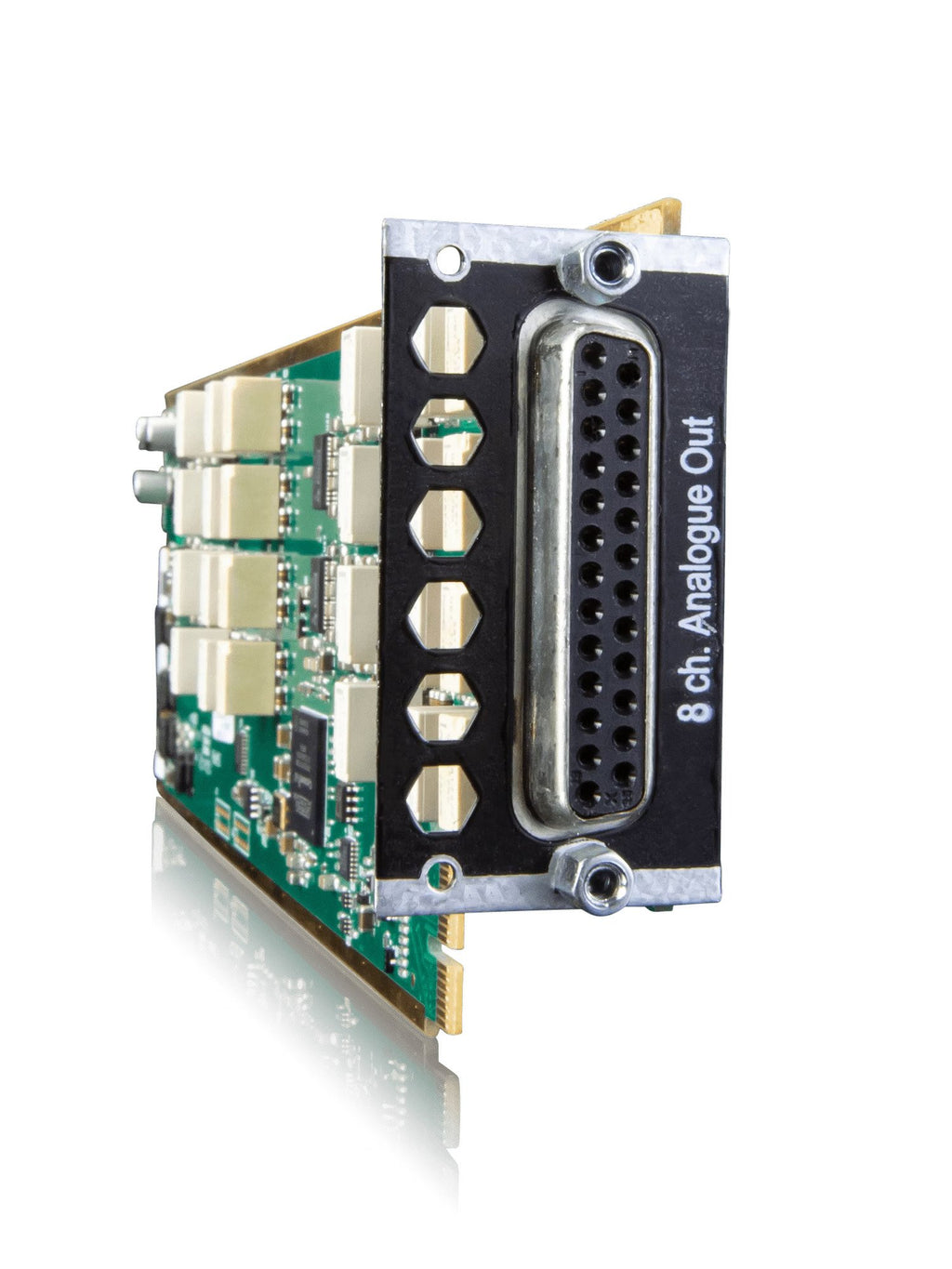

8 Pristine DA Card (output)
Add eight channels of line-level analog outputs with an output level control, delivering the utmost audio transparency and clarity.
8-PRISTINE DA OPTION CARD
|
ANALOG OUTPUTS |
8 LINE-LEVEL |
|
Modulator resolution, format |
32x oversampling, 1-bit DSD, 24-bit PCM |
|
PCM (DXD) sample rates |
44.1, 48, 88.2, 96, 174.4, 192, 352.8, 384 kHz |
|
DSD sample rates |
2.8224 and 5.6448 Mhz (64 and 128 fs) |
|
Dynamic range (A) |
> 128 dB |
|
THD+N (A) |
< -110 dB @ -3dB FS |
|
Crosstalk |
< -120 dB |
|
Max output level |
Adjustable from -60 dBu to 24 dBu in steps of 0.1 dB |
