Pro Tools | MTRX II features 64 channels of DigiLink I/O, 256 channels of Dante, and 64 channels of MADI in the base unit to get you started, with eight option card slots to configure the audio interface with the I/O you need. It also includes built-in SPQ Speaker Processing for easy room calibration to optimise your monitoring environment.
Mix and match up to eight analog I/O cards to support up to 64 analog channels per MTRX II interface, design an all-digital box with up to eight digital I/O cards (supporting up to 576 DigiLink channels, 1,280 Dante channels, or 1,088 MADI channels when maxed out with all available cards and modules), or configure it with any combination of analog and digital I/O.

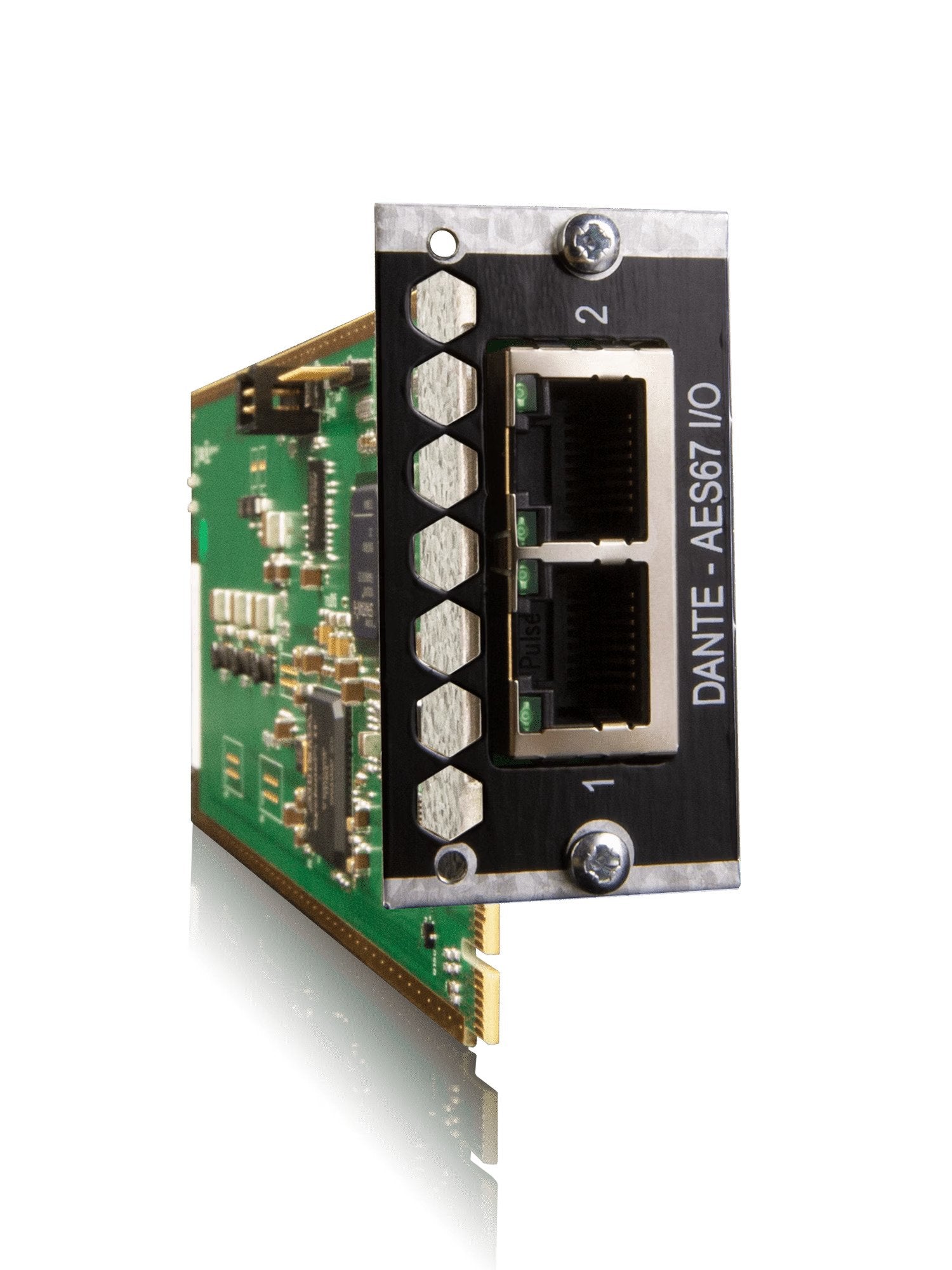

128-Channel IP Audio Dante Card
Add up to 128 channels of high-density, low-latency digital audio using Dante (128 channels at 44.1 kHz or 32 channels at 192 kHz).
128-CHANNEL IP AUDIO DANTE CARD
|
DANTE AUDIO OVER IP |
|
|
Supported sample rates |
44.1 kHz—192 kHz |
|
Channels |
128 channels at 44.1 kHz, 32 channels at 192 kHz per card; supports up to 1,024 Dante channels with eight cards installed |
|
Connectivity |
Dual Ethernet, switched or redundant |
|
Sample rate conversion |
Bi-directional |
