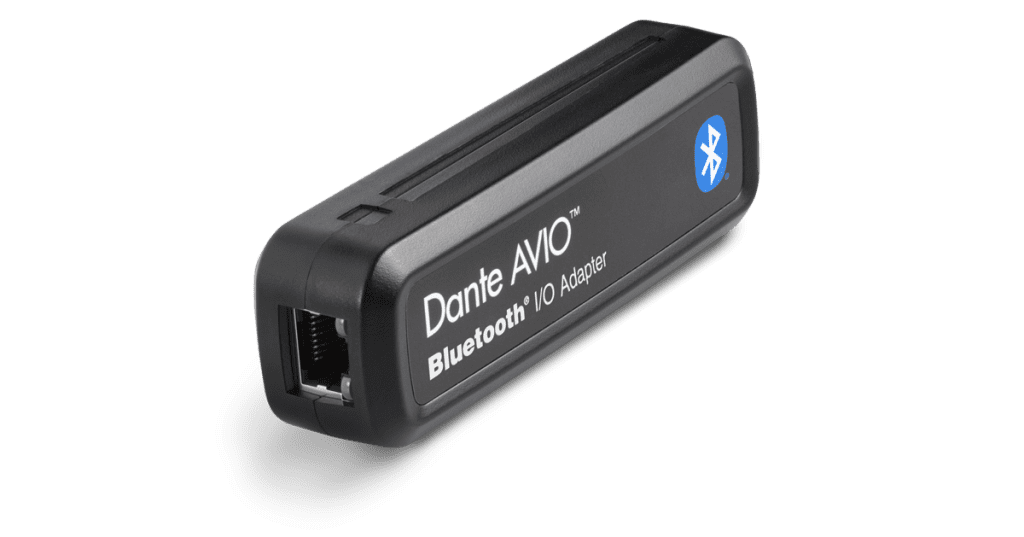

The Dante AVIO Bluetooth adaptor provides wireless connectivity to Dante networks for mobile devices and computers.
It is ideal for both playback from smartphones to larger sound systems, and for connecting networked speakers and microphones to conferencing software.
Once configured, a user may rely upon Bluetooth to switch from local smartphone audio to a complete conferencing system to share what is being said with others.
- Connect any Bluetooth source to your Dante network
- Stream wirelessly from your smartphone, tablet or computer to your Dante network
- Allow smartphones to connect to conferencing systems without wires
- 2 audio channels & 1 return channel (headset function)
- Bluetooth 5 with support for A2DP (AAC and AptX) and HFP profiles
- Dante audio over IP and AES67 RTP transport formats
- Power supply via Power over Ethernet (PoE)
- Dante domain manager compatible
- Plug & Play
|
Feature Matrix |
Analog Input 1 Ch |
Analog Input 2 Ch |
Analog Output 1 Ch |
Analog Output 2 Ch |
AES I/O 2 In 2 Out |
USB I/O 2 In 2 Out |
USB-C I/O 2 In 2 Out |
Bluetooth 2 In 1 Out |
|
Max signal level (balanced)* |
+24dBu / +4dBu / 0dBu 0dBV /-10dBV |
+18dBu / +4dBu / 0dBu 0dBV /-10dBV |
- |
- |
- |
- |
||
|
Frequency Response |
20Hz to 20kHz (-/+0.5dB) |
20Hz to 20kHz (-/+0.5dB) |
- |
- |
- |
- |
||
|
Impedance |
20k Ohm balanced 10k Ohm unbalanced |
150 Ohm balanced 75 Ohm unbalanced |
110 Ohm balanced |
- |
- |
- |
||
|
Dynamic Range |
> 100dB |
> 100dB |
- |
- |
- |
- |
||
|
Signal to Noise Ratio |
> 100dB |
> 100dB |
> 135dB |
- |
- |
- |
||
|
Total Harmonic Distortion |
< 0.01% at +4dBu |
< 0.01% at +4dBu |
- |
- |
- |
- |
||
|
Connectors |
RJ45 & 1 XLR-F |
RJ45 & 2 XLR-F |
RJ45 & 1 XLR-M |
RJ45 & 2 XLR-M |
RJ45, 1 XLR-M, 1 XLR-F |
RJ45 & USB Type A |
RJ45 & USB Type C |
RJ45 |
|
Asynchronous Sample Rate Conversion |
- |
- |
Yes |
- |
- |
- |
||
|
Sample Rates |
44.1, 48, 96 kHz |
48 kHz |
||||||
|
Bit Depths |
16, 24, 32 |
24 |
||||||
|
Dante Device Latency |
1, 2, or 5ms (configurable using Dante Controller) |
1, 2, or 5ms |
||||||
|
Network Transport |
Dante Audio over IP, AES67 RTP |
|||||||
|
USB |
- |
- |
- |
Class compliant USB 2.0 device |
- |
|||
|
Part Number |
ADP-DAI- AU-1X0 |
ADP-DAI- AU-2X0 |
ADP-DAO- AU-0X1 |
ADP-DAO- AU-0X2 |
ADP-AES3- AU-2X2 |
ADP-USB- AU-2X2 |
ADP-USBC-AU-2X2 |
ADP-BT-AU-2X1 |
