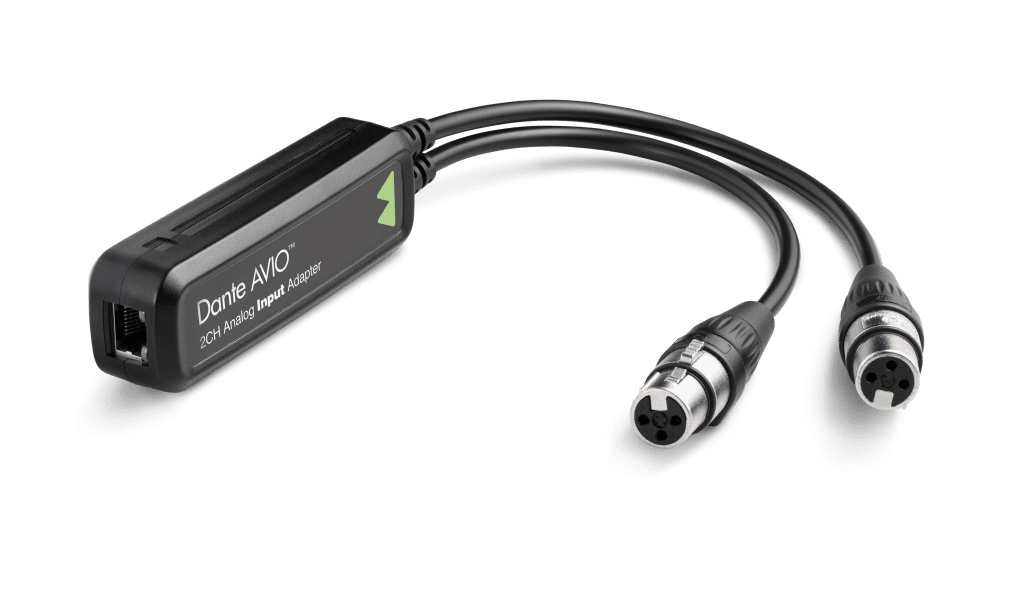

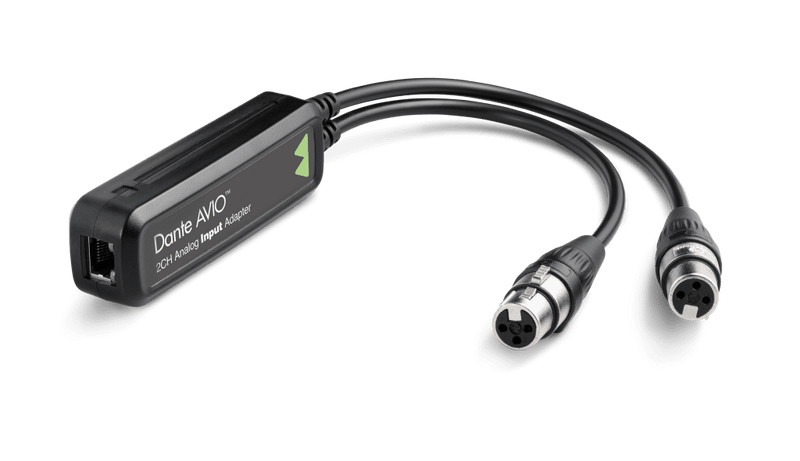

Don’t abandon trusted mixing consoles, wireless mics and other analog sources - adapt them to the world of audio networking with Dante AVIO. Available in 1- and 2-channel versions.

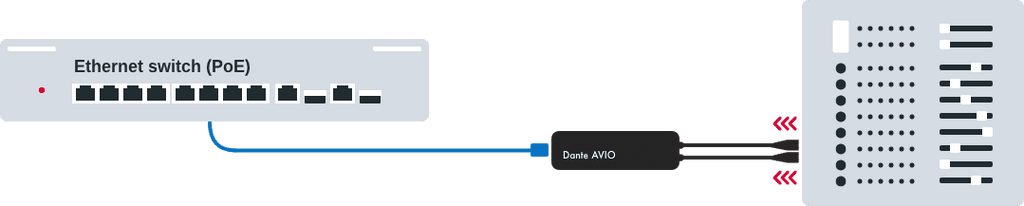

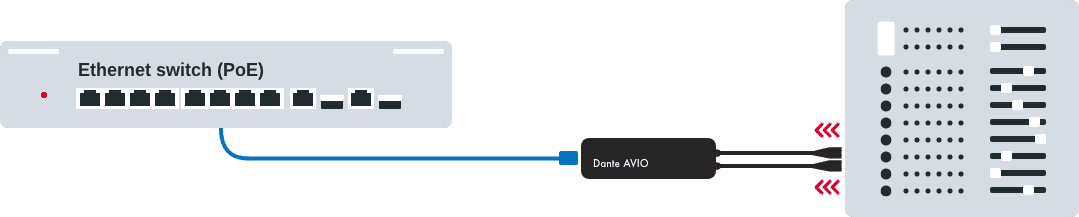

- Connect legacy mixers and consoles to a Dante network
- Patch DSPs, analog compressors and equalizers into a Dante system using a combination of Dante AVIO Input and Output adapters
- Connect stage DI boxes and keyboard instruments directly to a Dante network
- Sampling rates up to 96 kHz
- Support for 16, 24 and 32-bit audio
- Excellent dynamic range, signal to noise ratio and distortion factor
- Adjustable output level (max): + 24 / + 4/0 dBu, 0 / -10 dBV (via Dante controller)
- Dante audio over IP and AES67 RTP transport formats
- Power supply via Power over Ethernet (PoE)
- Dante domain manager compatible
- Plug & Play
|
Feature Matrix |
Analog Input 1 Ch |
Analog Input 2 Ch |
Analog Output 1 Ch |
Analog Output 2 Ch |
AES I/O 2 In 2 Out |
USB I/O 2 In 2 Out |
USB-C I/O 2 In 2 Out |
Bluetooth 2 In 1 Out |
|
Max signal level (balanced)* |
+24dBu / +4dBu / 0dBu 0dBV /-10dBV |
+18dBu / +4dBu / 0dBu 0dBV /-10dBV |
- |
- |
- |
- |
||
|
Frequency Response |
20Hz to 20kHz (-/+0.5dB) |
20Hz to 20kHz (-/+0.5dB) |
- |
- |
- |
- |
||
|
Impedance |
20k Ohm balanced 10k Ohm unbalanced |
150 Ohm balanced 75 Ohm unbalanced |
110 Ohm balanced |
- |
- |
- |
||
|
Dynamic Range |
> 100dB |
> 100dB |
- |
- |
- |
- |
||
|
Signal to Noise Ratio |
> 100dB |
> 100dB |
> 135dB |
- |
- |
- |
||
|
Total Harmonic Distortion |
< 0.01% at +4dBu |
< 0.01% at +4dBu |
- |
- |
- |
- |
||
|
Connectors |
RJ45 & 1 XLR-F |
RJ45 & 2 XLR-F |
RJ45 & 1 XLR-M |
RJ45 & 2 XLR-M |
RJ45, 1 XLR-M, 1 XLR-F |
RJ45 & USB Type A |
RJ45 & USB Type C |
RJ45 |
|
Asynchronous Sample Rate Conversion |
- |
- |
Yes |
- |
- |
- |
||
|
Sample Rates |
44.1, 48, 96 kHz |
48 kHz |
||||||
|
Bit Depths |
16, 24, 32 |
24 |
||||||
|
Dante Device Latency |
1, 2, or 5ms (configurable using Dante Controller) |
1, 2, or 5ms |
||||||
|
Network Transport |
Dante Audio over IP, AES67 RTP |
|||||||
|
USB |
- |
- |
- |
Class compliant USB 2.0 device |
- |
|||
|
Part Number |
ADP-DAI- AU-1X0 |
ADP-DAI- AU-2X0 |
ADP-DAO- AU-0X1 |
ADP-DAO- AU-0X2 |
ADP-AES3- AU-2X2 |
ADP-USB- AU-2X2 |
ADP-USBC-AU-2X2 |
ADP-BT-AU-2X1 |
