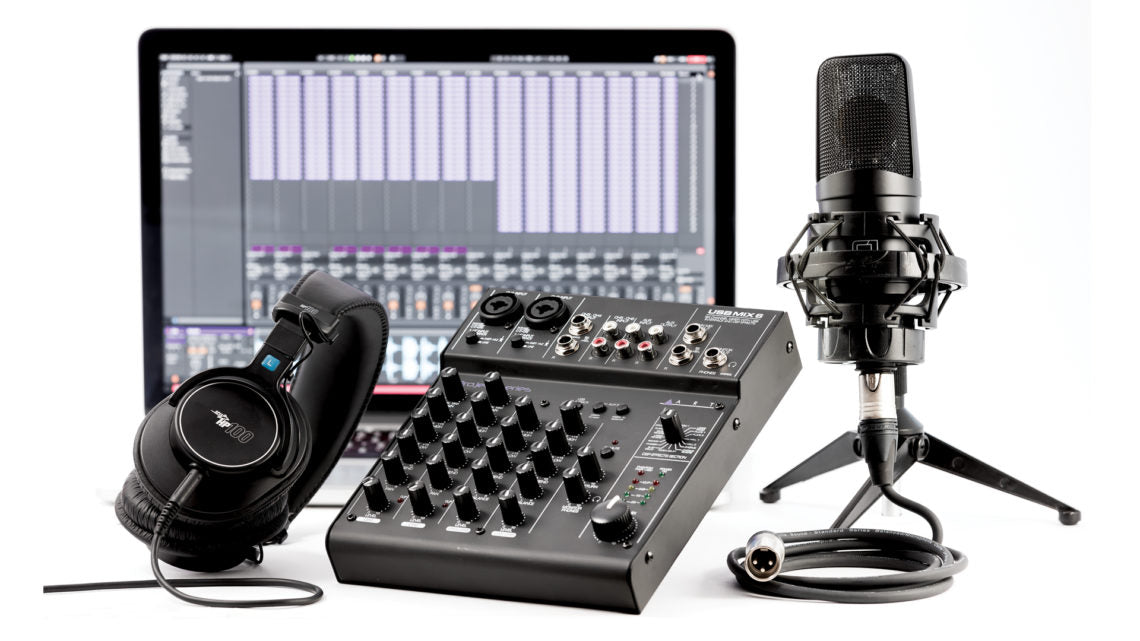

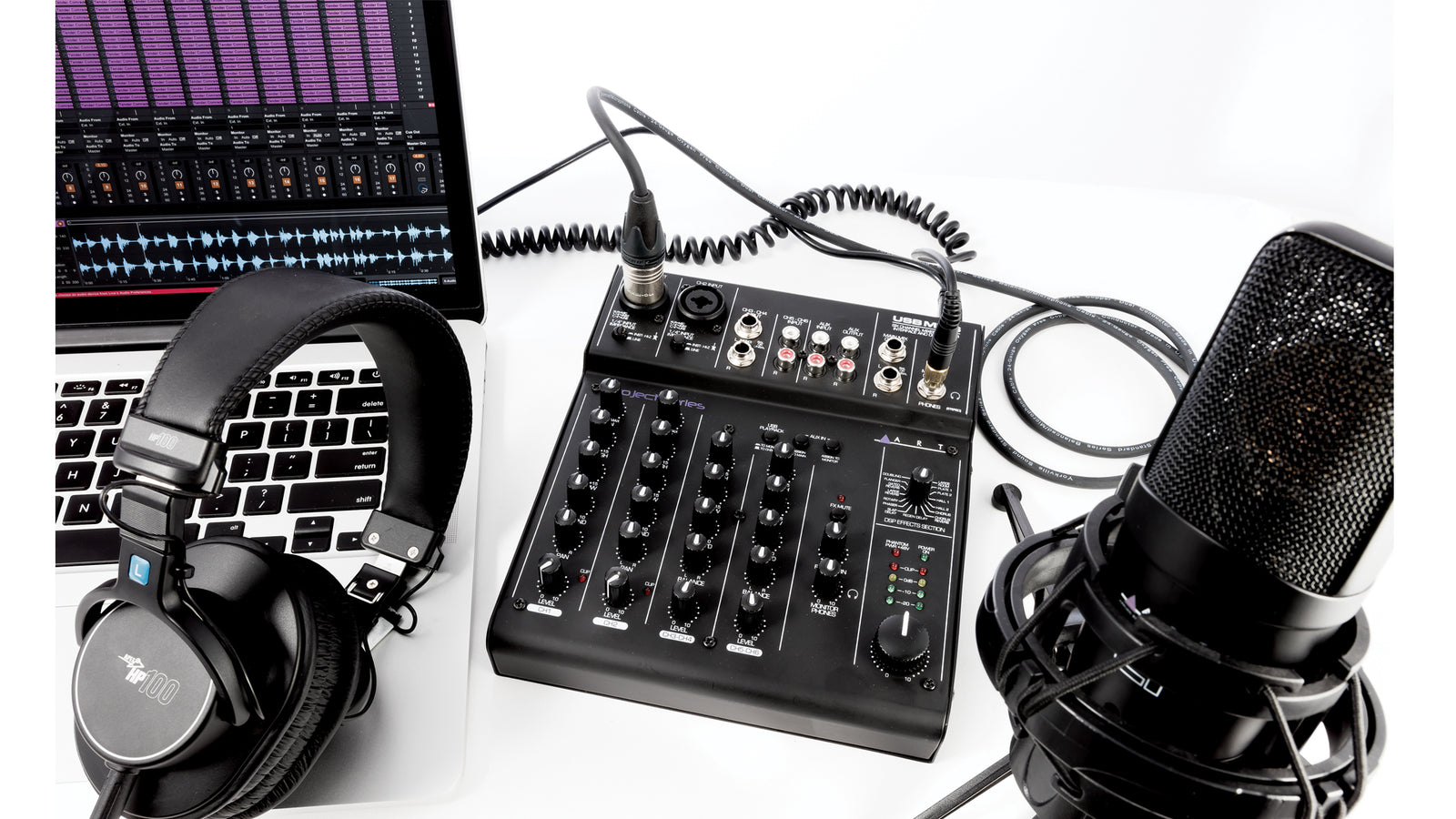

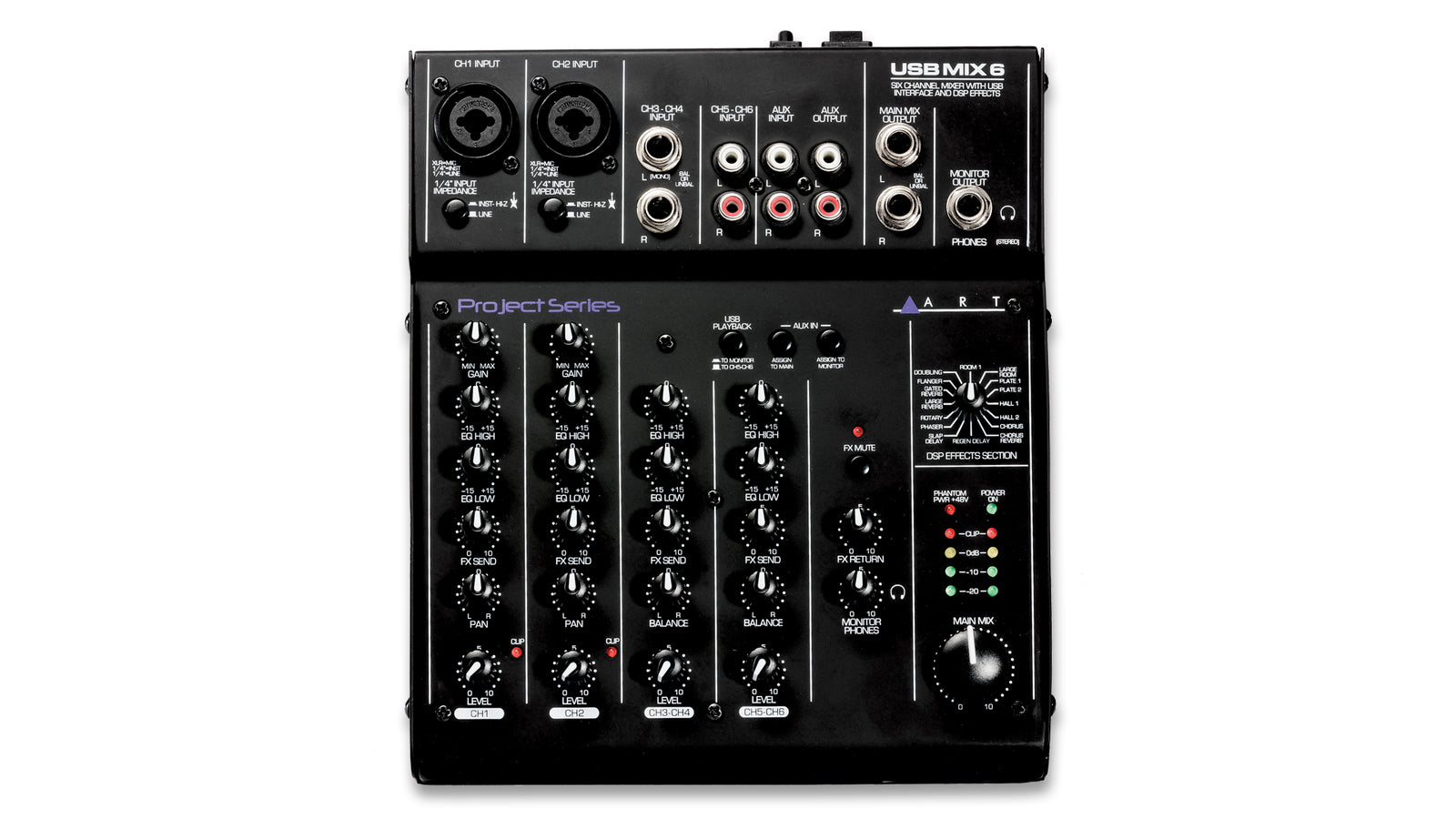

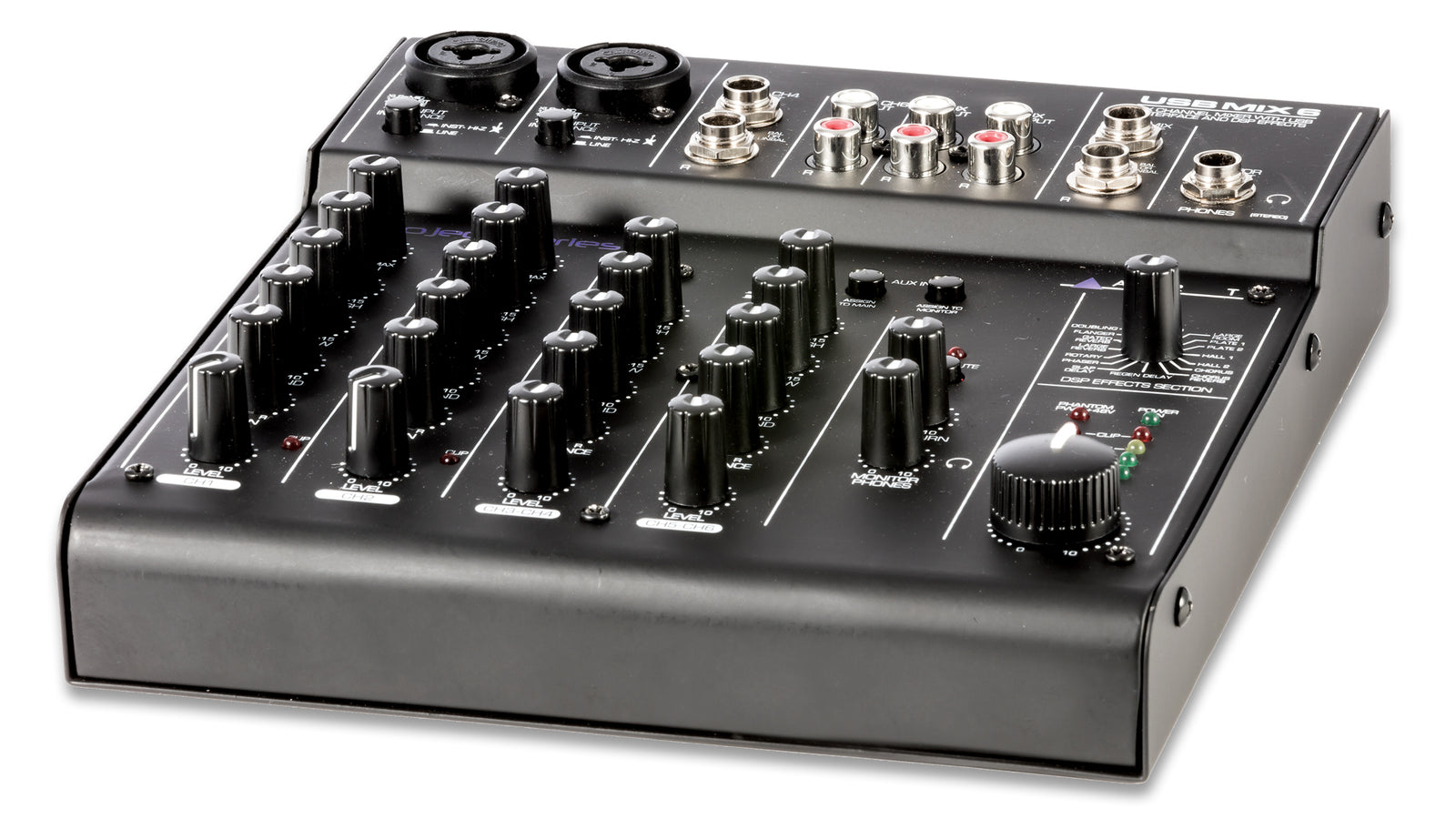

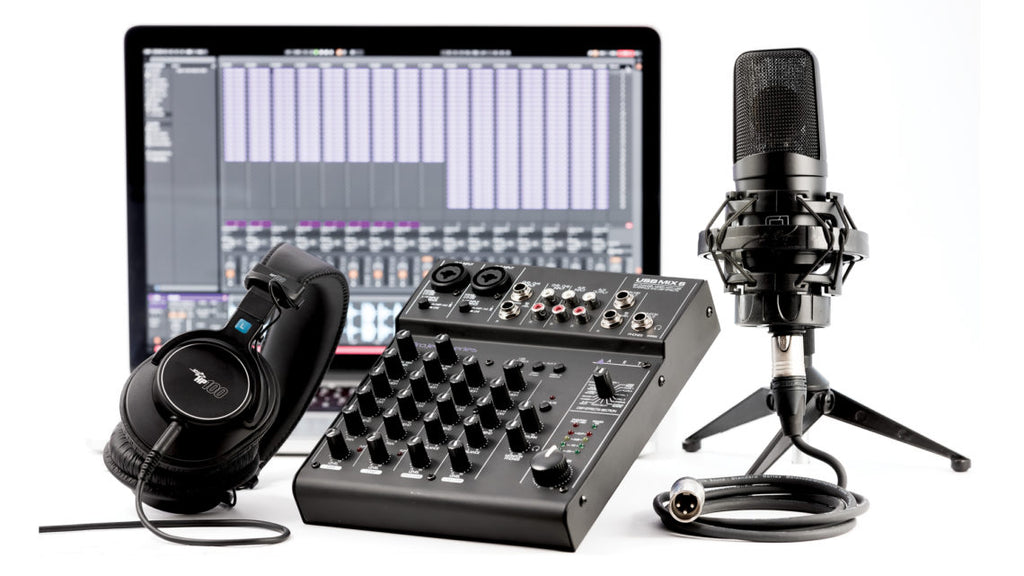

The ART USBMIX6 Microphone, Instrument, and Line Mixer / Computer Interface is a compact versatile audio interface for your computer that converts analog signals from a variety of audio sources to a digital audio. The built-in low latency stereo digital effects add to the versatility. It can also be used as a standalone mixer through the main mix outputs. The USBMIX6 provides a great starting point for personal home studio recording or for anyone wanting to do mobile location recording. Use the USBMIX6 to record podcasts, capture your latest idea for a song, make voiceovers for your home movies, or record a jam with a friend – whenever and wherever your creativity takes you!
Key Features
- High Performance Low Noise Design
- Six Discrete Inputs (2 x Mic / 2 x Stereo Line Level)
- Switchable +48v Phantom Power (CH1 & CH2)
- High and Low EQ on Each Input Channel
- Integrated Stereo Multi-FX with Adjustable Sends & Returns
- Stereo LED Metering
- Independent Level Controls for Main and Headphone/Monitor Outputs
- Integrated Class Compliant Plug-and-Play USB Audio for Mac & PC
Specifications
|
Input Connections |
XLR & ¼-inch Balanced Combi-jack (CH 1 & CH2) ¼-inch TRS Balanced (CH3 & CH4) RCA Unbalanced (CH5 & CH6), RCA Aux Loop In (L & R) |
|

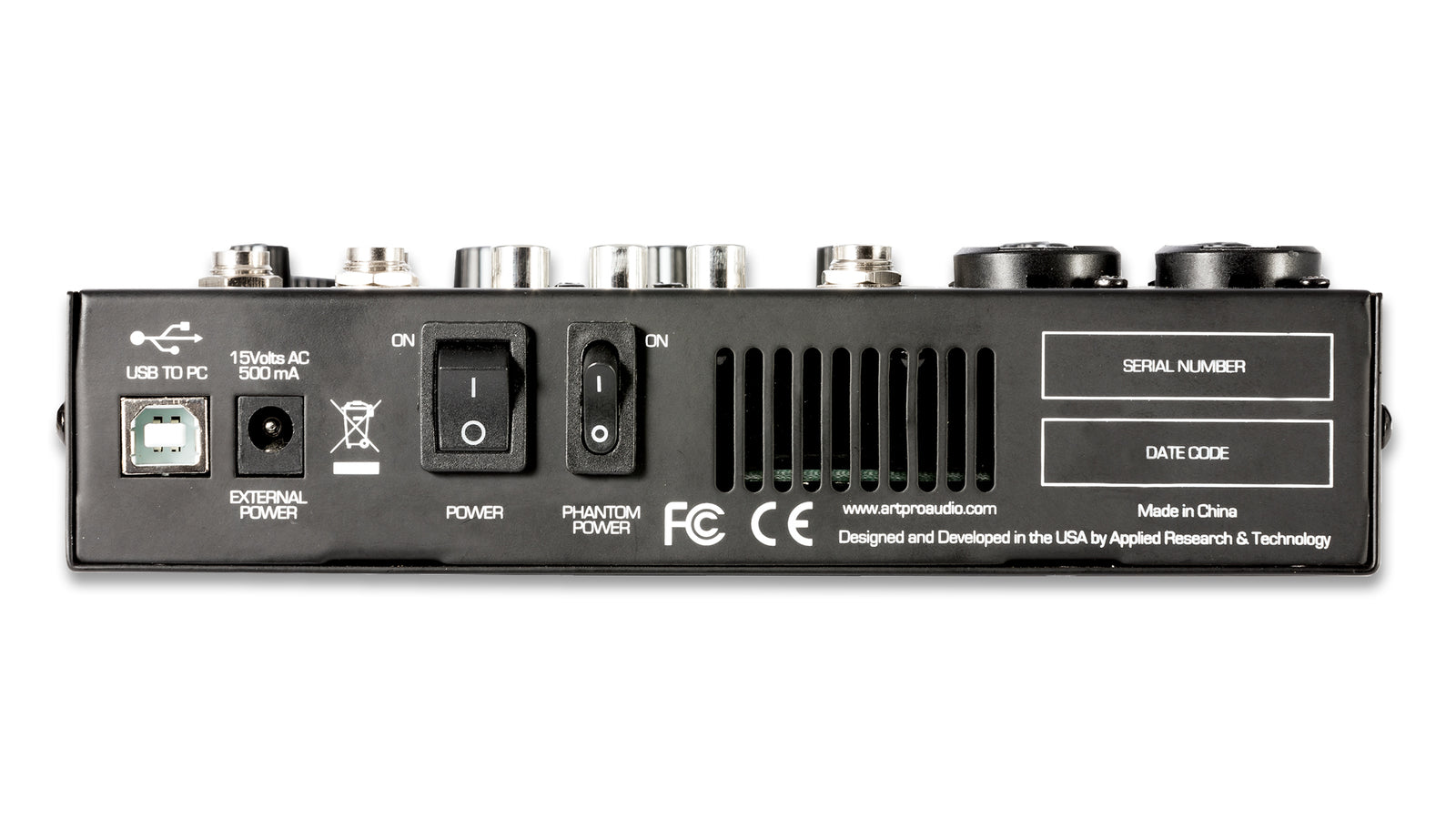

Output Connections |
¼-inch TRS Balanced Main Mix Outputs ¼-inch TRS Stereo Output & Monitor Outputs RCA Loop Out (L & R) |
|
Signal to Noise Ratio |
>90dB Typical (Ref 0dBu) |
|
Maximum Input Level |
+4dBu (Mic), +20dBu (1/4-inch Input) |
|
Maximum Output Level |
+15dBu Main Mix Outputs |
|
Maximum Gain |
>54dB (Mic), >39dB (Instrument), 10dB (Stereo Monitor & Line Out) |
|
USB Computer Interface |
USB Class Compliant plug-and-play Mac / PC Interface |
|
Power |
15VAC @ 500mA (Adaptor Included) |
|
Dimensions |
1.9″H x 7.4″W x 8.5″D (47mm x 186mm x 215mm) |
|
Weight |
3.24 lbs (1.47 kg) |
