Base Spec:
- Apple M2 Ultra with 24-core CPU, 60-core GPU, 32-core Neural Engine
- 64GB unified memory
-
1TB SSD storage
-
Stainless steel frame with feet
-
Magic Mouse
-
Magic Keyboard with Touch ID and Numeric Keypad - British English
Mind-blowing performance now comes as standard.
The new Mac Pro is a game-changing combination of Apple silicon performance and PCIe expansion for specialised workflows. And every configuration comes with the incredible new M2 Ultra — our most powerful and capable chip ever.
A seismic chip.
M2 Ultra puts our most powerful CPU in every Mac Pro. Its GPU with massive unified memory does things other GPUs can’t. And its Media Engine has the performance of seven Afterburner cards built in. Now pros can tackle the most demanding workflows with unprecedented speed and efficiency.
Thousands of pro apps optimised for Apple silicon.
Because macOS was designed to scale with Apple silicon, M2 Ultra brings a huge boost in app performance and capability to Mac Pro. And there are thousands of apps optimised to unlock the full power of Apple silicon. From rendering effects to compositing 8K scenes to analysing enormous data sets, your go-to apps run faster and smoother than ever — so you can go all out.
Expand the capabilities.
For the first time, breakthrough Apple silicon performance is combined with the versatility of PCI expansion. The new Mac Pro features seven expansion slots, six of which are PCIe gen 4 — providing twice the bandwidth for audio and video I/O, networking and storage cards. The latest PCIe gen 4 SSD cards, for example, are capable of a colossal 26GB/s.
Stacked with high-performance I/O.
With an even wider array of advanced connectivity, Mac Pro now has eight Thunderbolt ports. The two HDMI ports support high-bandwidth 48Gb/s HDMI, enabling resolutions up to 8K and refresh rates up to 240Hz. And wireless connectivity enhancements support Wi‑Fi 6E and Bluetooth 5.3.

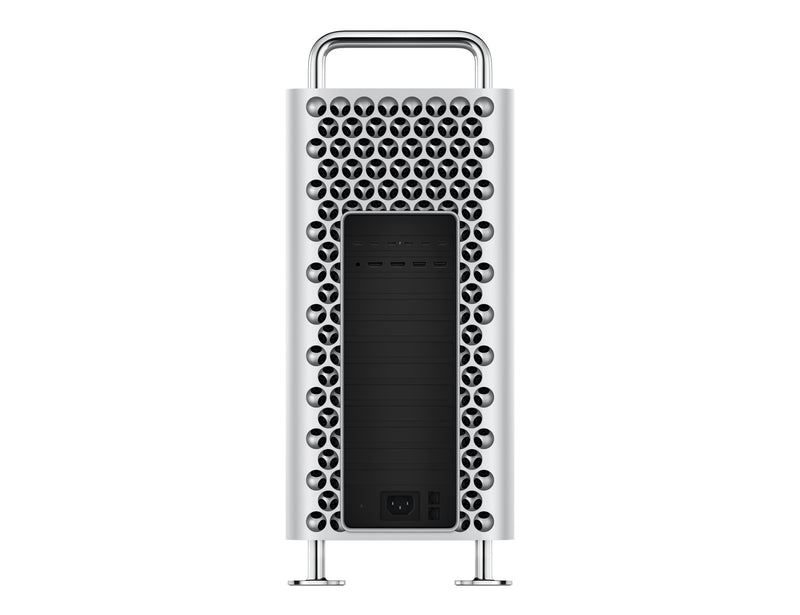

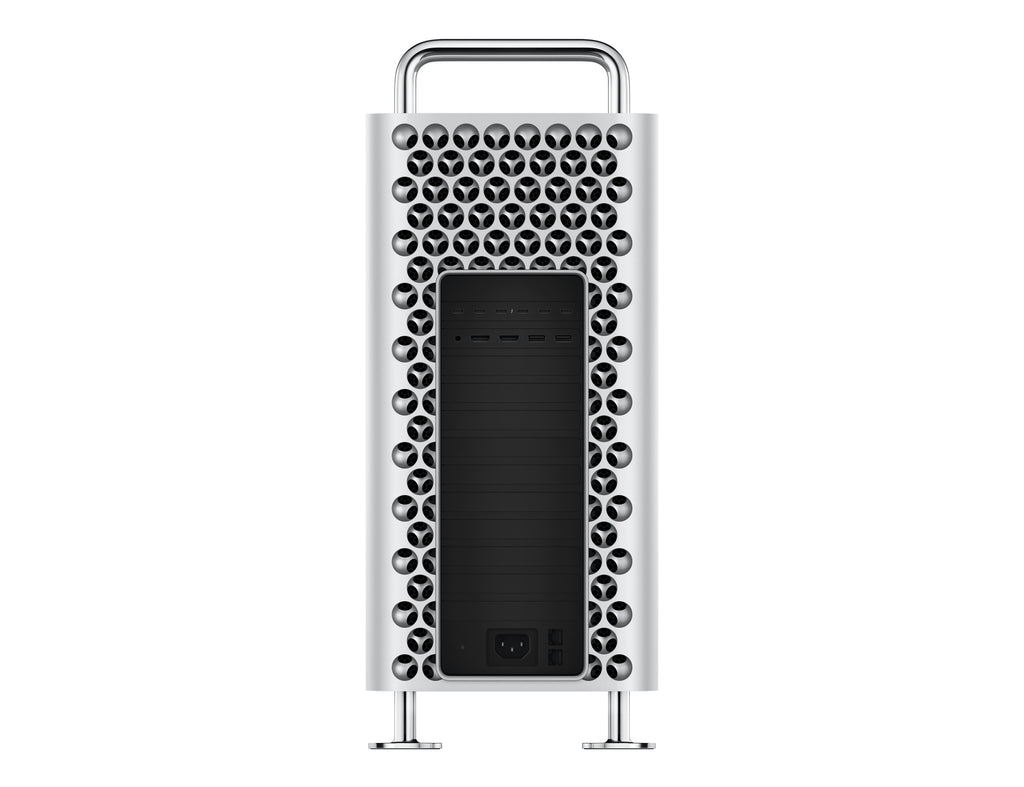

Back
- 6x Thunderbolt 4
- 2x 10Gb Ethernet
- 1x 3.5mm headphone jack
- 2x USB‑A
- 2x HDMI

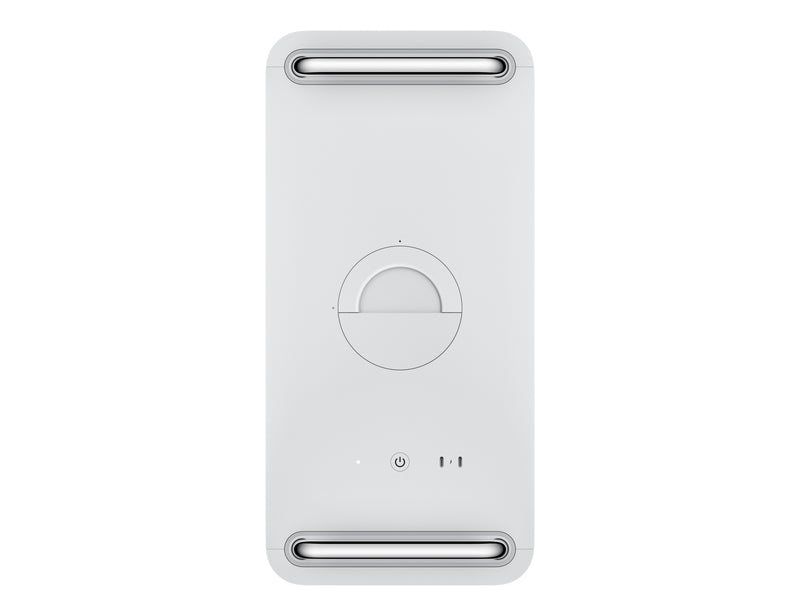

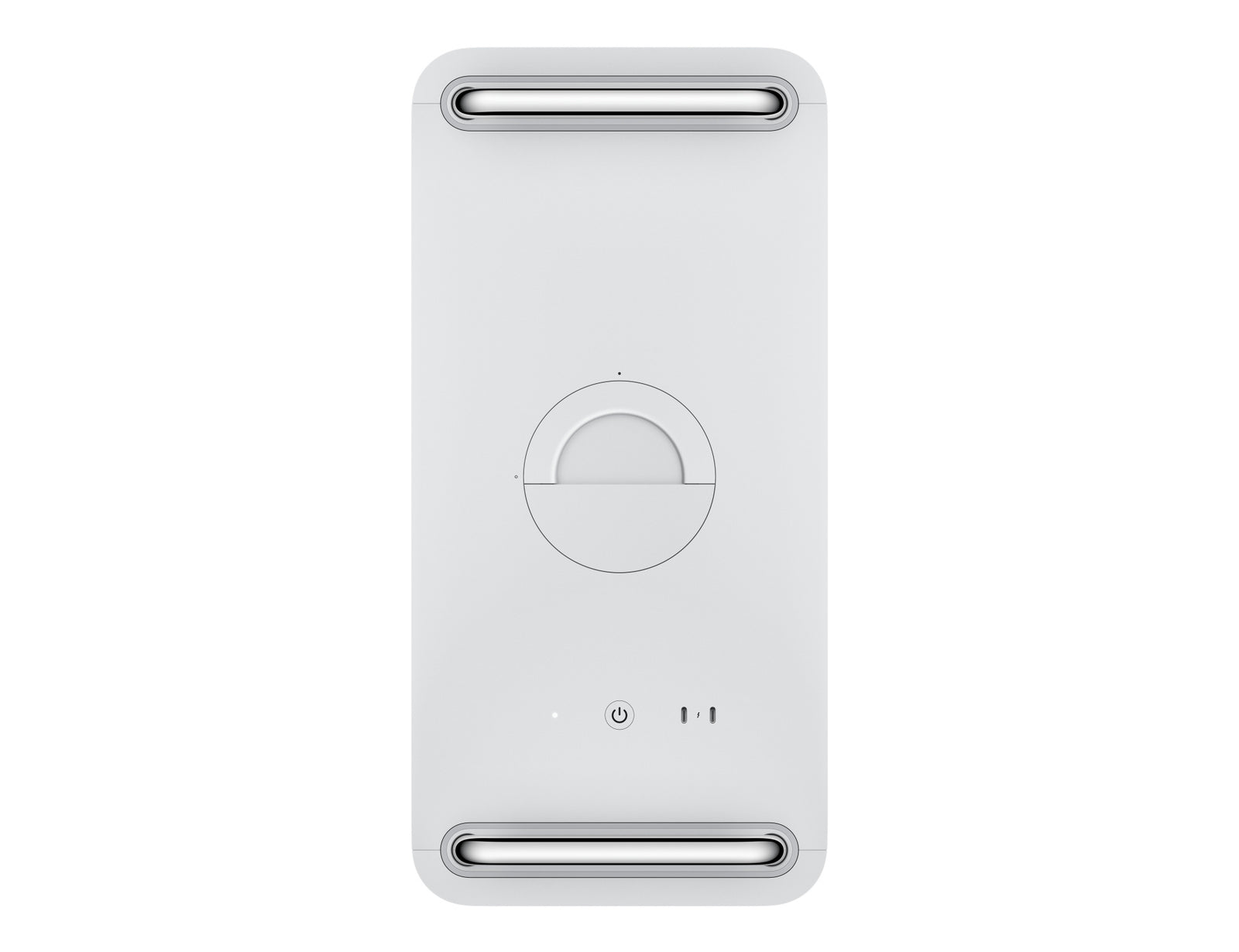

Top
- 2x Thunderbolt 4
New brains. Ingenious design.

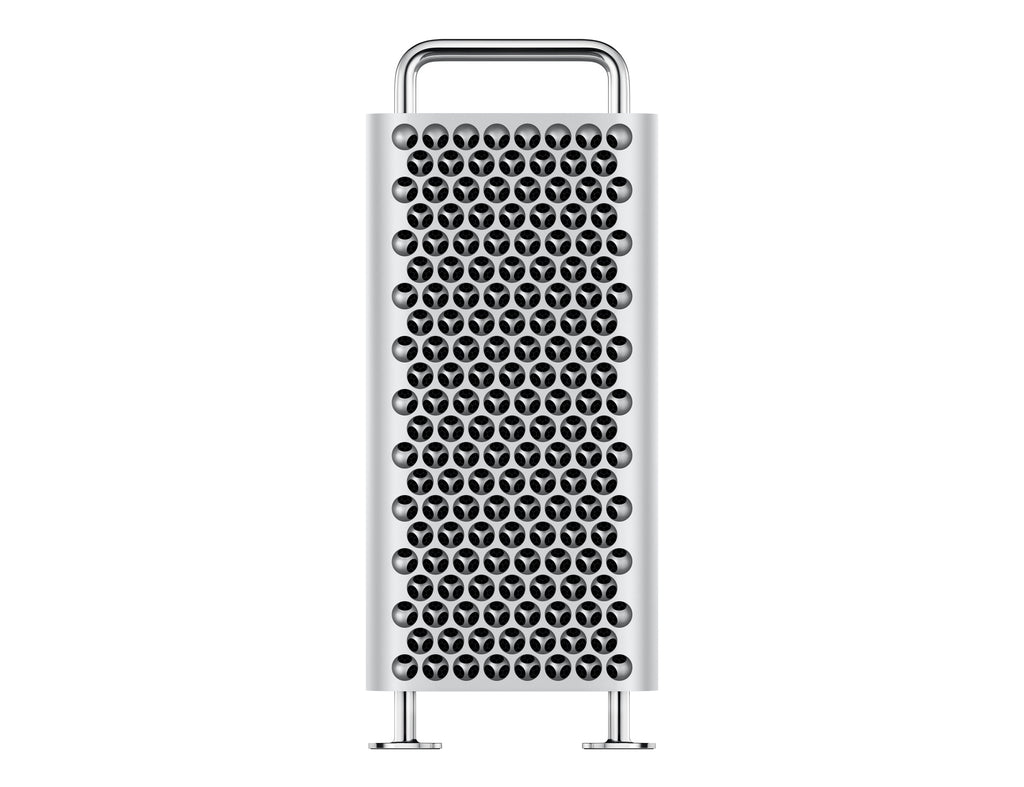

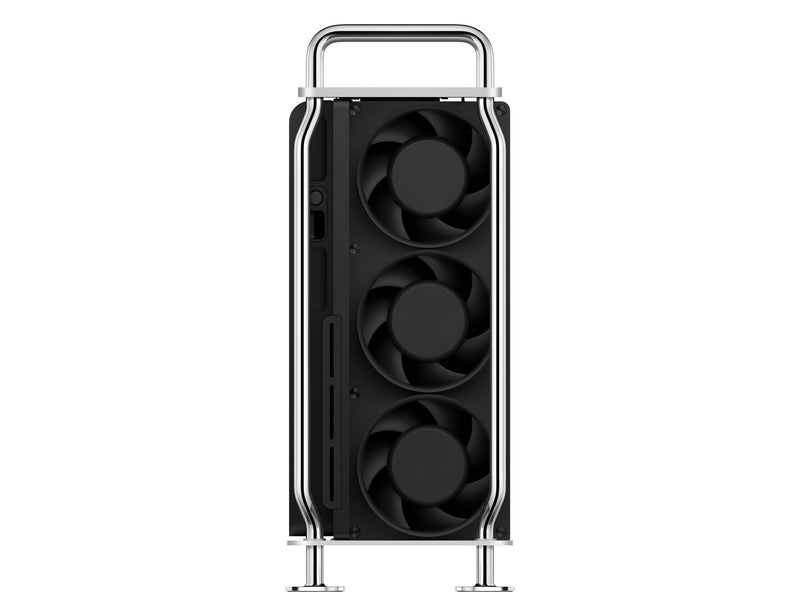

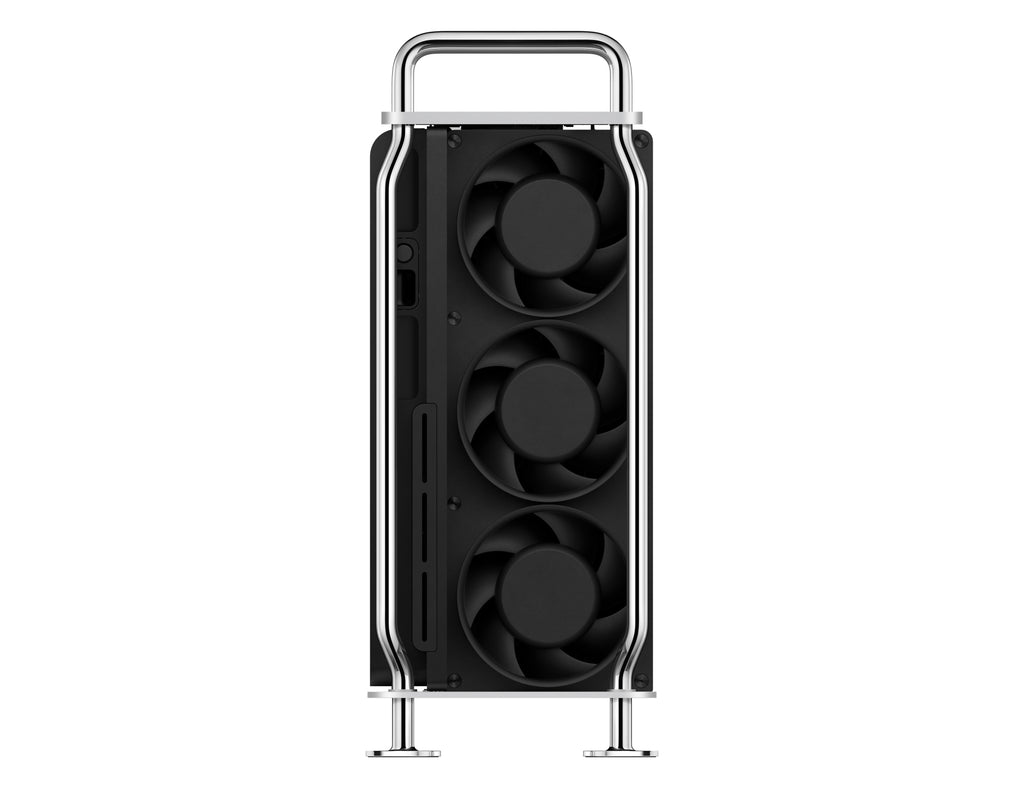

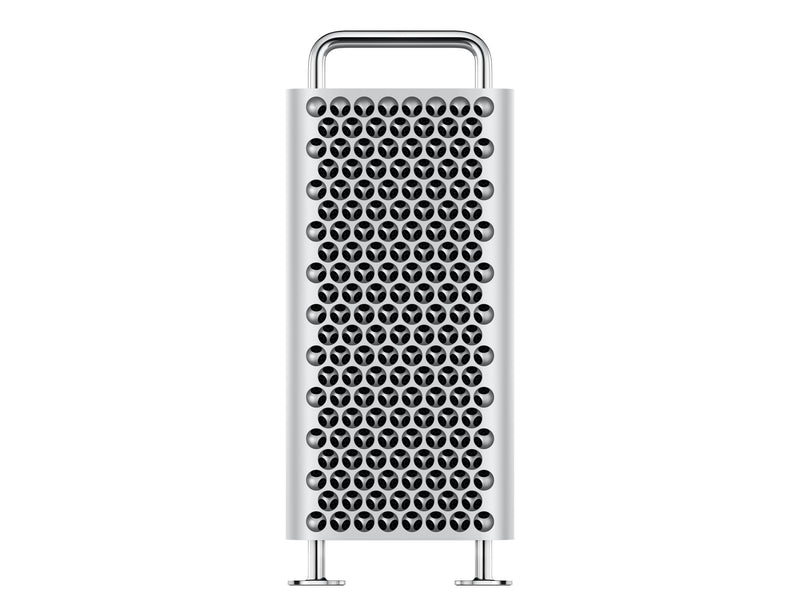

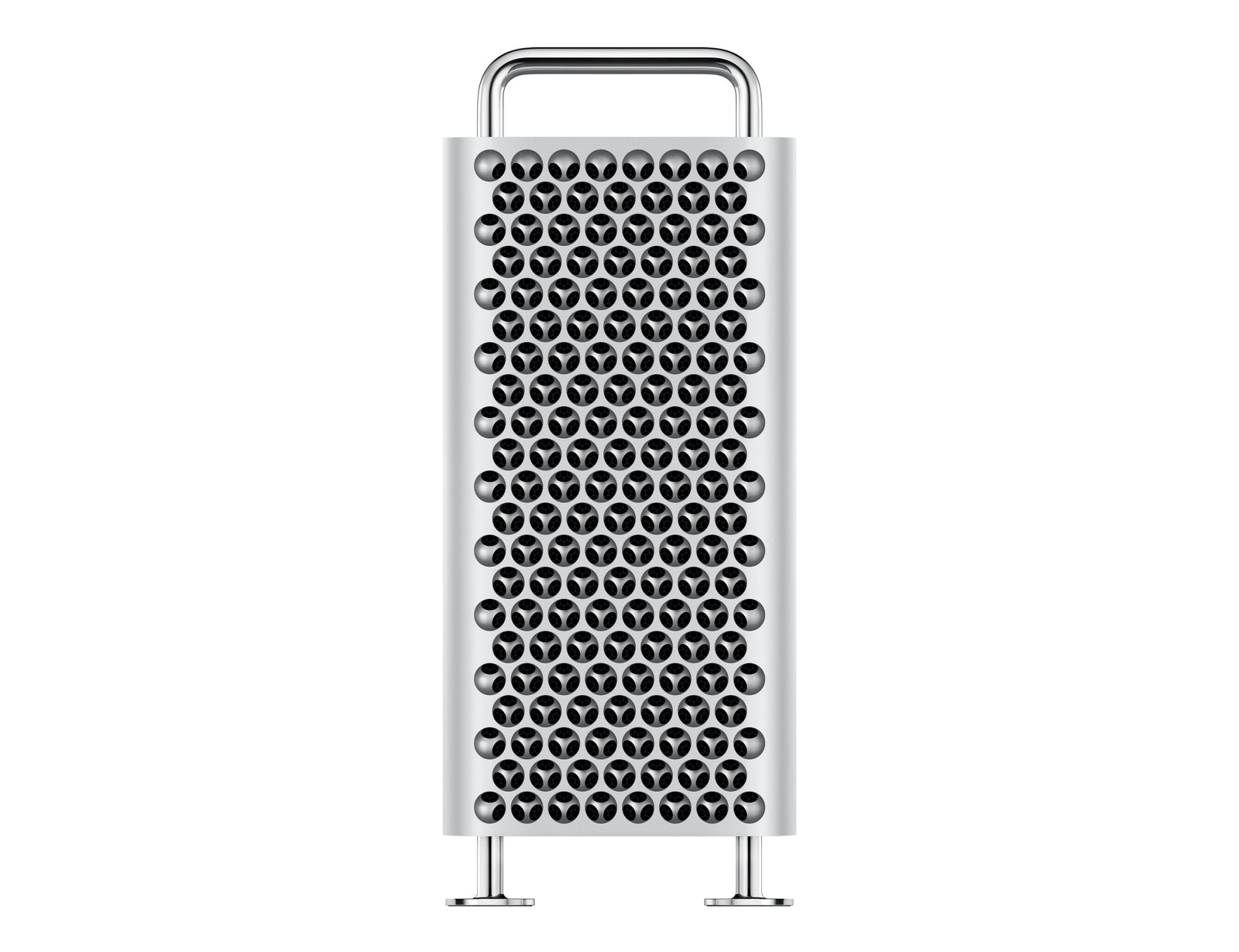

Transformed by M2 Ultra, Mac Pro maintains its striking stainless steel space frame, removable aluminium housing and advanced thermal system. It’s exceptionally solid and stable when rolled, racked or reconfigured. And thanks to the power efficiency of Apple silicon, the new Mac Pro runs even cooler and quieter under heavy workloads — truly a workstation you can work next to.
Touch ID included.
Mac Pro includes the latest Magic accessories and now supports Touch ID for fast, easy and secure authentication for logins and purchases.
ALL-NEW DESIGN

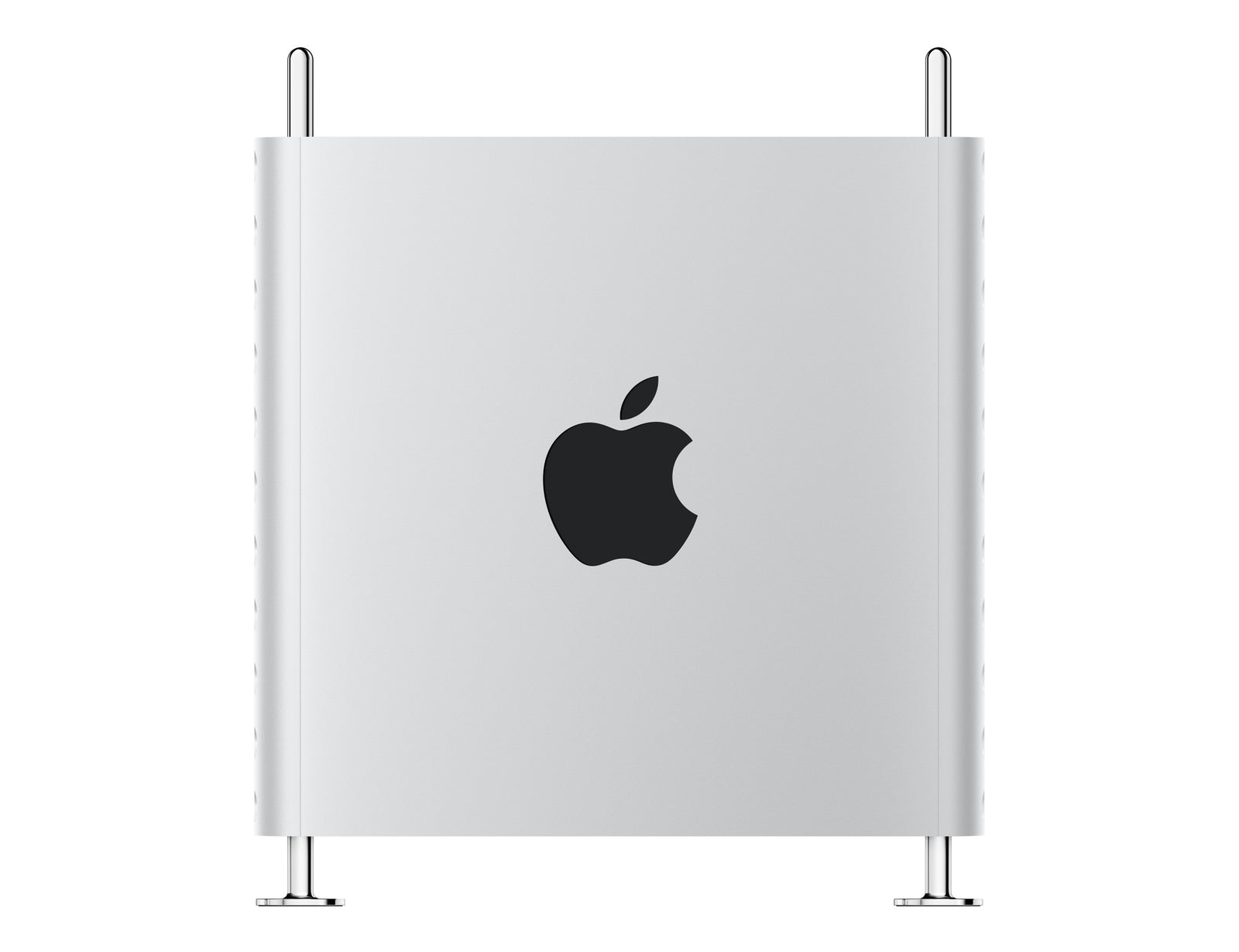

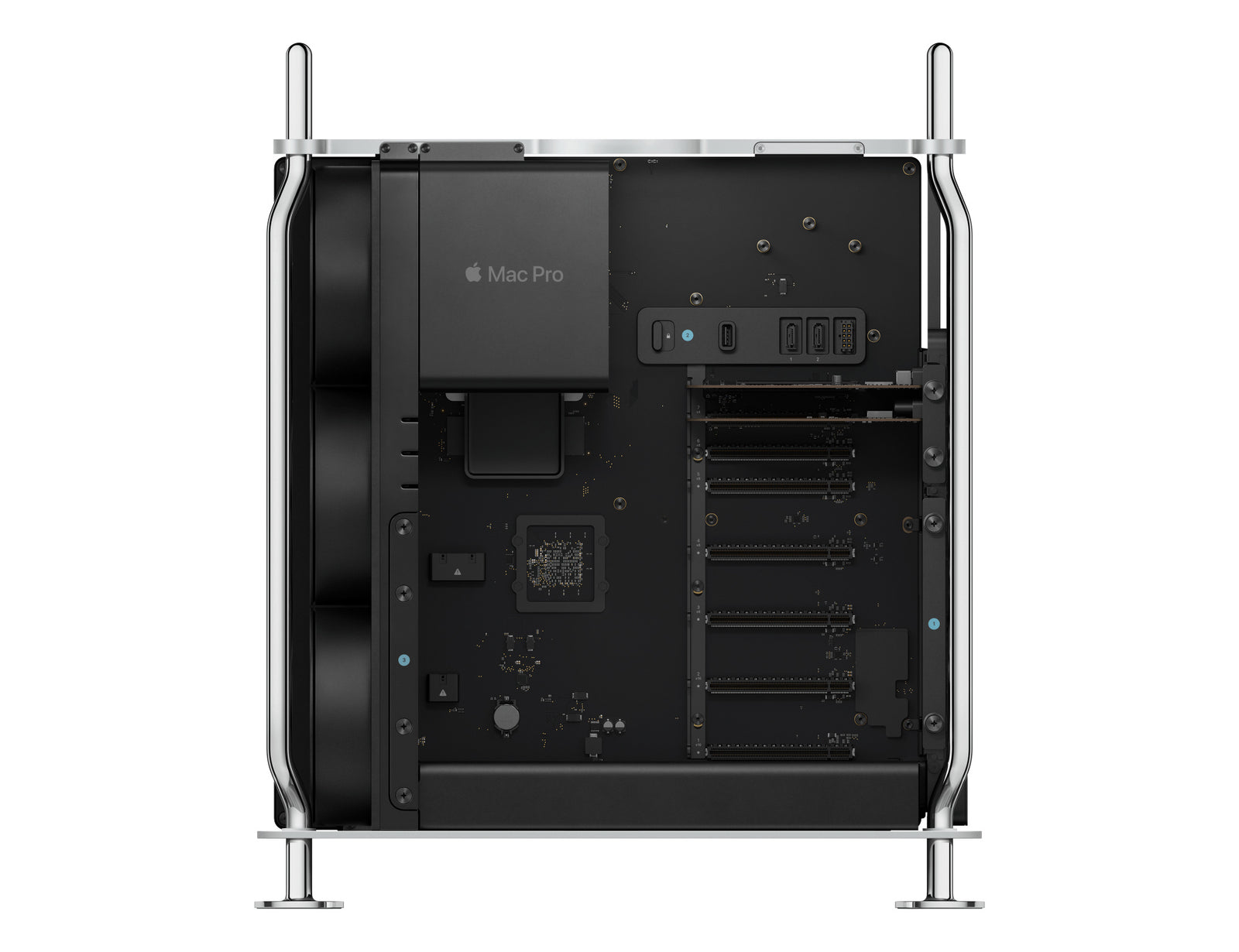

Every aspect of Mac Pro is designed in pursuit of performance. Built around a stainless steel space frame, an aluminium housing lifts off, allowing 360-degree access to every component and vast configuration. From there anything is possible.
In the Box:
- Mac Pro
- Magic Keyboard with Touch ID and Numeric Keypad
- Magic Mouse
- USB‑C to Lightning Cable (1m)
- Power lead (2m)
Chip
Apple M2 Ultra chip
- 24-core CPU with 16 performance cores and 8 efficiency cores
- 60-core GPU
- 32-core Neural Engine
- 800GB/s memory bandwidth
Media engine
- Hardware-accelerated H.264, HEVC, ProRes and ProRes RAW
- Two video decode engines
- Four video encode engines
- Four ProRes encode and decode engines
Configurable to:
- M2 Ultra with 24-core CPU, 76-core GPU and 32-core Neural Engine
Memory
- 64GB unified memory
Configurable to:
- 128GB or 192GB
Storage
- 1TB SSD
Configurable to:
- 2TB, 4TB or 8TB
Display Support
Simultaneous support for up to eight displays:
- Eight displays with up to 4K resolution at 60Hz
- Six displays with up to 6K resolution at 60Hz
- Three displays with up to 8K resolution at 60Hz
Thunderbolt 4 digital video output
- Support for native DisplayPort output over USB‑C
HDMI display video output (per port)
- Support for one display with up to 8K resolution at 60Hz or 4K resolution at 240Hz
- Support for variable refresh rate (VRR), HDR and multi-channel audio
Audio
- Built-in speaker
- 3.5mm headphone jack with advanced support for high-impedance headphones
- HDMI port supports multi-channel audio output
Expansion
Six full-length PCI Express gen 4 slots
- Two x16 slots
- Four x8 slots
One half-length x4 PCI Express gen 3 slot with Apple I/O card installed
300W auxiliary power available:
- Two 6-pin connectors delivering 75W of power each
- One 8-pin connector delivering 150W of power
Connections
Eight Thunderbolt 4 (USB‑C) ports
- Six ports on the back of the enclosure and two ports on the top of the tower enclosure o
- Support for:
- Thunderbolt 4 (up to 40Gb/s)
- DisplayPort
- USB 4 (up to 40Gb/s)
- USB 3.1 Gen 2 (up to 10Gb/s)
Internal connections
- One USB‑A port (up to 5Gb/s)
- Two Serial ATA ports (up to 6Gb/s)
Additional connections
- Two USB‑A ports (up to 5Gb/s)
- Two HDMI ports
- Two 10Gb Ethernet ports
- 3.5mm headphone jack
Communications
- Wi‑Fi 6E (802.11ax)
- Bluetooth 5.3
Two 10Gb Ethernet ports
- 10Gb Ethernet (Nbase-T Ethernet with support for 1Gb, 2.5Gb, 5Gb and 10Gb Ethernet using RJ‑45 connector)

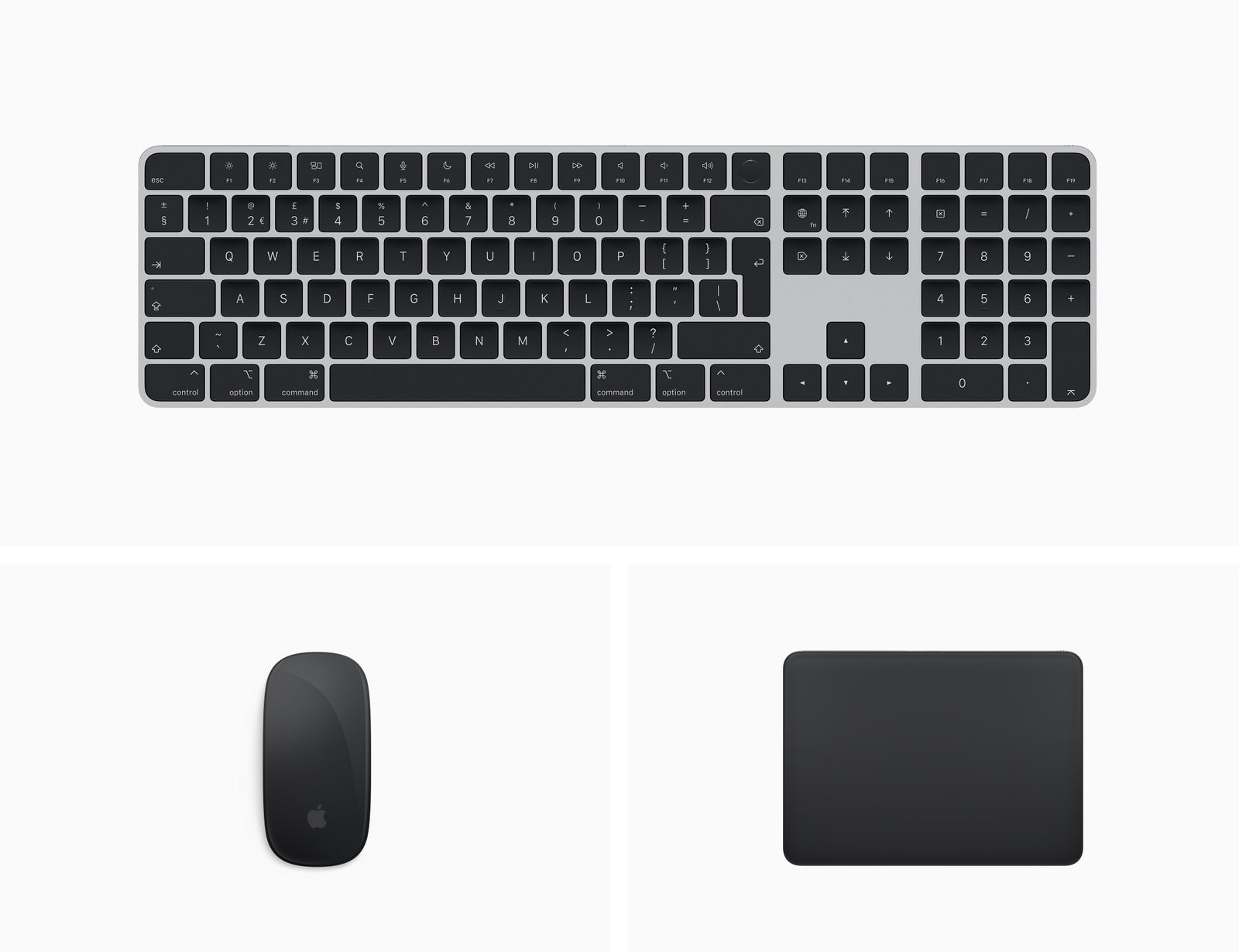

Input Devices
- Magic Keyboard with Touch ID and Numeric Keypad
- Magic Mouse
- Optional Magic Trackpad
Enclosure
Tower
- Mac Pro tower enclosure with feet; configurable to tower with wheels
Size and Weight
Tower
Height: 52.9 cm (20.8 inches)
Height with optional wheels: 55.7 cm (21.9 inches)
Width: 21.8 cm (8.58 inches)
Depth: 45.0 cm (17.7 inches)
Weight: 16.86 kg (37.2 pounds)
(20.8 inches)
width:45.0 cm
(17.7 inches) depth:21.8 cm
(8.58 inches)
Electrical and Operating Requirements
Line voltage: 100–240V AC at 12A; 220–240V AC at 6A
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 1280W at 108–125V or 220–240V; 1180W at 100–107V
Operating temperature: 10° to 35° C (50° to 95° F)
Storage temperature: –40° to 47° C (–40° to 116° F)
Relative humidity: 5% to 95% non-condensing
Maximum altitude: tested up to 5,000 metres (16,400 feet)
Typical acoustical performance: sound pressure level (operator position): 5 dBA at idle
