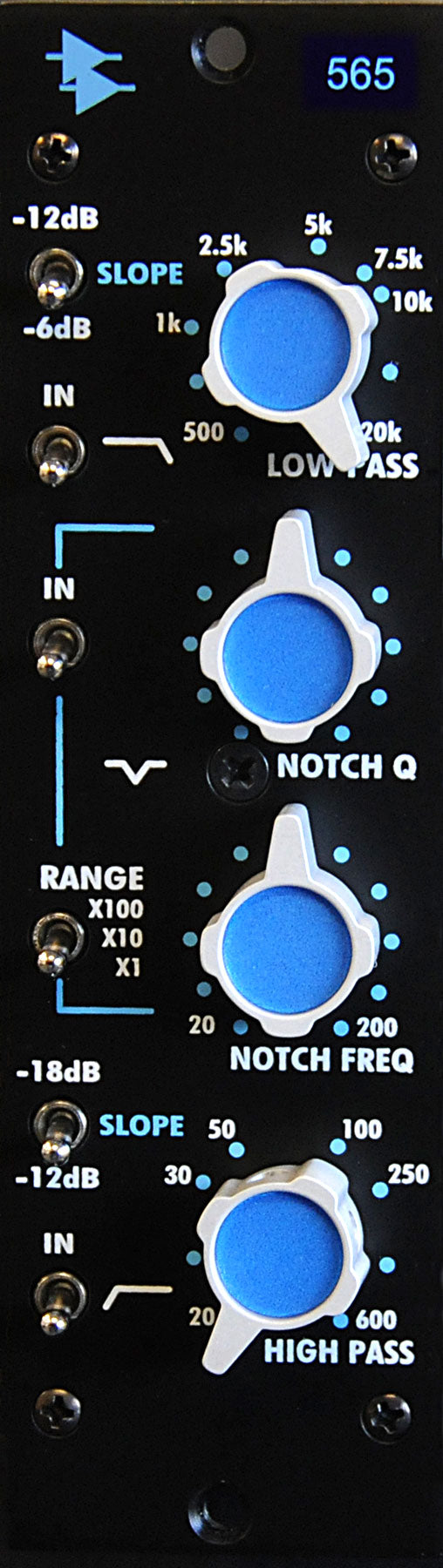

The 565 Filter Bank module has circuits that are true to the musical filters of the famed 215 module found in large format API consoles.
Features
- Sweepable low-pass filter (500Hz to 20kHz, -6 or -12dB slope)
- Sweepable high-pass filter (20Hz to 400Hz, -12 or -18dB slope)
- Variable notch filter with adjustable Q (fully sweepable between 20Hz and 20kHz)
- Individual bypass switches for each filter section
- Transformer Balanced Output to +28 dBu
- Traditional API fully discrete circuit design
- Uses API 2520 and 2510 Op-Amps as well as the same discrete transistor buffers used in the famous 550 series equalizers
| Specifications | |
| Number of Bands: | Three |
| Filter Types: | Sweepable Shelf Low Pass Sweepable Shelf High Pass Adjustable Active Twin-T Notch |
| Filter Frequencies: | Low Pass: 500Hz to 20kHz High Pass: 20Hz to 600Hz Notch: 20Hz to 20kHz (3 selectable ranges) |
| Notch Filter Q: | Variable from 0.95 to 15.3 |
| Notch Filter Cut: | > 40dB at minimum Q setting |
| Input Impedance: | > 20K Ohms, Balanced |
| Output Impedance: | 75 Ohms, Transformer Coupled, Balanced |
| Nominal Levels: | -15dBu to +15dBu |
| Clipping Level: | +28dBu |
| Frequency Response: | +.2, -.4, 20Hz to 20kHz |
| THD+N: | 0.02% (+4dBu output @ 2kHz) |
| Connector: | 15 position .156" sp. edge connector |
| Power Consumption: | +/-16VDC, 100mA max at +24dBu out |
| Size: | 1.5" x 5.25" x 6.75" Deep |
