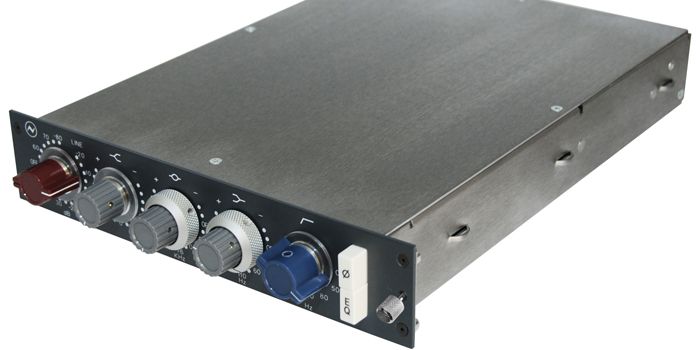

Launched in 1970, the Neve 1073® Classic soon became the first choice mic preamp for leading producers and artists.
Designed and built in England, the modern-day 1073N is produced to the exact specifications of the original, matching components to ensure the sound remains true. The Class A design 1073N microphone preamplifier has 3-band EQ (fixed HF plus two switchable bands with cut/boost capability) and a high pass filter. The Neve 1073N mic pre and EQ combination adds warmth and depth to recordings, brings out subtle ambience, maintains spatial positioning, and captures a more precise image – embodying, think many engineers and producers, the essence of the Neve sound.

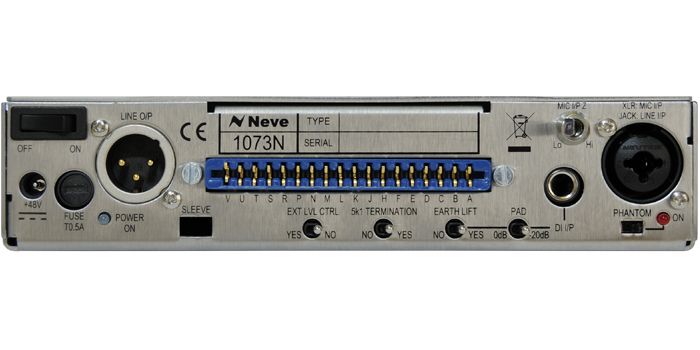

Building on the Neve 1073® classic module features, the 1073N introduces extra functionality with an integrated DI input, I/O connectors for direct connection of microphones and instruments and other equipment, phantom power for powered microphones and a PSU for standalone use. It can also be fitted into compatible racks/housings or retrofit into 80 Series Neve classic consoles. Neve – no question.
FEATURES:
- Classic transformer microphone preamp amp (Class A design) with integral DI input and Phantom Power.

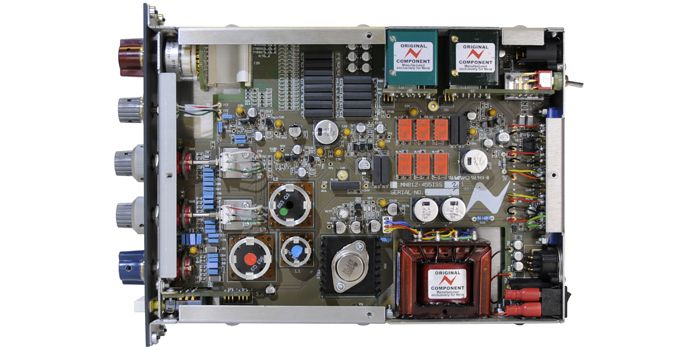

- Exclusive Neve Marinair™ transformers used on input and output stages.
- 3 EQ bands & HP filter.
- Can be used as a standalone module or inserted into a compatible rack or console.
- Mic & Line inputs are transformer balanced and earth free.

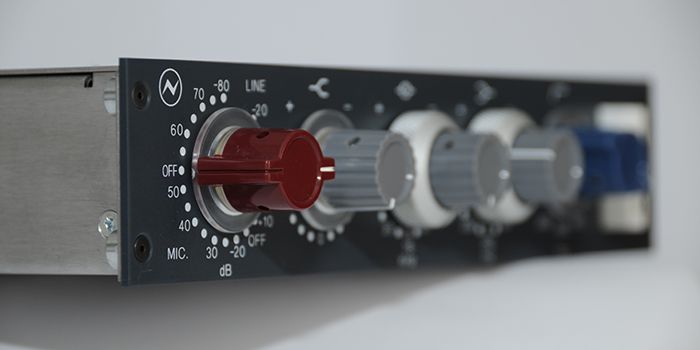

- Microphone Input: Gain +80db to +20dB in 5dB steps.
- Designed and built in England.
- Line Input: Input impedance 10k ohms, gain +20dB to -10dB in 5dB steps.
- DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps.
- Output: Maximum output is >+26dBu into 600Ω.
- Output is transformer balanced and earth free.
- Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output.
- (80kHz bandwidth) into 600Ω.
- Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
SPECIFICATIONS
Mic Amplifier Section:
- Microphone Input: Input impedance 300 Ohms or 1200 Ohms, gain +80dB to +20dB in 5dB steps.Input is transformer balanced and earth free.
- Line Input: Input impedance 10K Ohms bridging, gain +20dB to -10dB in 5dB steps.Input is transformer balanced and earth free.
- DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on)Gain +80dB to +20dB in 5dB steps.
- Output: Maximum output is >+26dBu into 600 Ohms. Output impedance is 75 Ohms @ 1kHzOutput is transformer balanced and earth free.
- Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output (80kHz bandwidth) into 600 Ohms
- Frequency Response: +/-0.5dB 20Hz to 20kHz, -3dB at 40kHz, EQ out.
- Noise: Not more than -83dBu at all Line gain settings, EQ In/Out (22Hz to 22kHz bandwidth)
- EIN: Better than -125dBu @ 60dB gain.

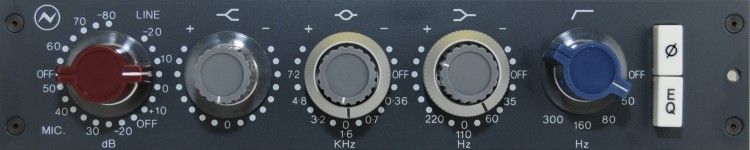

EQ Section:
- High Frequency: Smooth +/- 16dB fixed frequency shelving at 12kHz
- Mid Frequency: Smooth +/- 18dB peaking, fixed 'Q' with selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
- Low Frequency: Smooth +/- 16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
- High Pass Filter: 18dB per octave slope, switchable between 50Hz, 80Hz, 160Hz & 300Hz
- EQL Button: Switches the equaliser in or out of circuit.
- Phase Button: Gives 180 degree phase change at balanced output
- Module Dimensions:
- Width: 45mm (1.8 inches)
- Height: 222mm (8.75 inches)
- Depth: 254mm (10 inches)
- Approx. Weight: 2.5kg (5.5 pounds)
