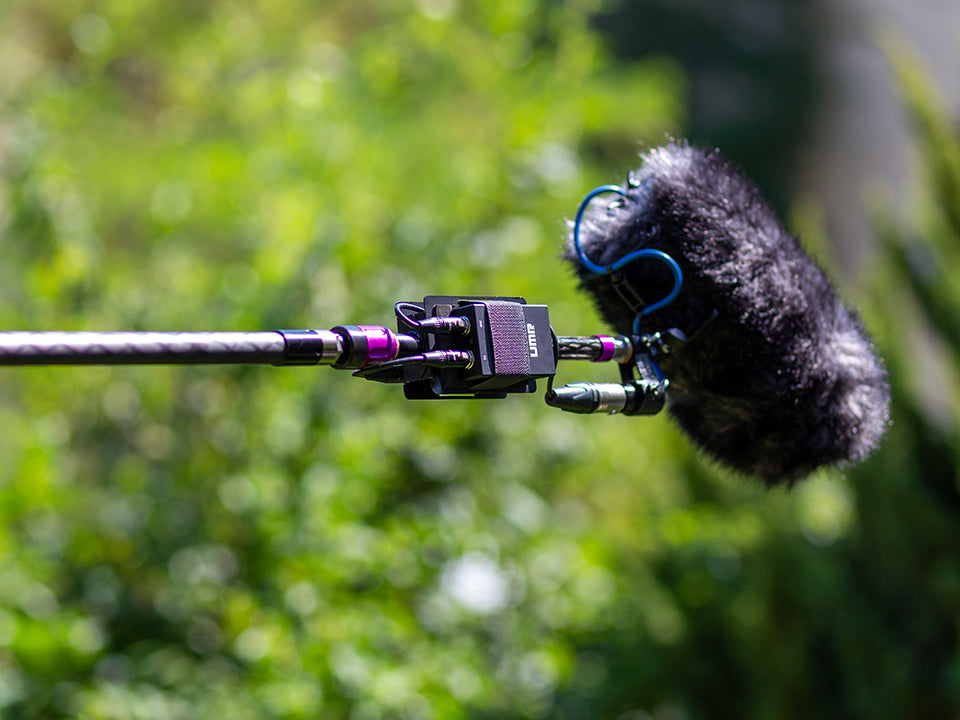

The UMP II was consequently designed for using Phantom or T-powered microphones on a “wireless boom” with typical belt pack transmitters.

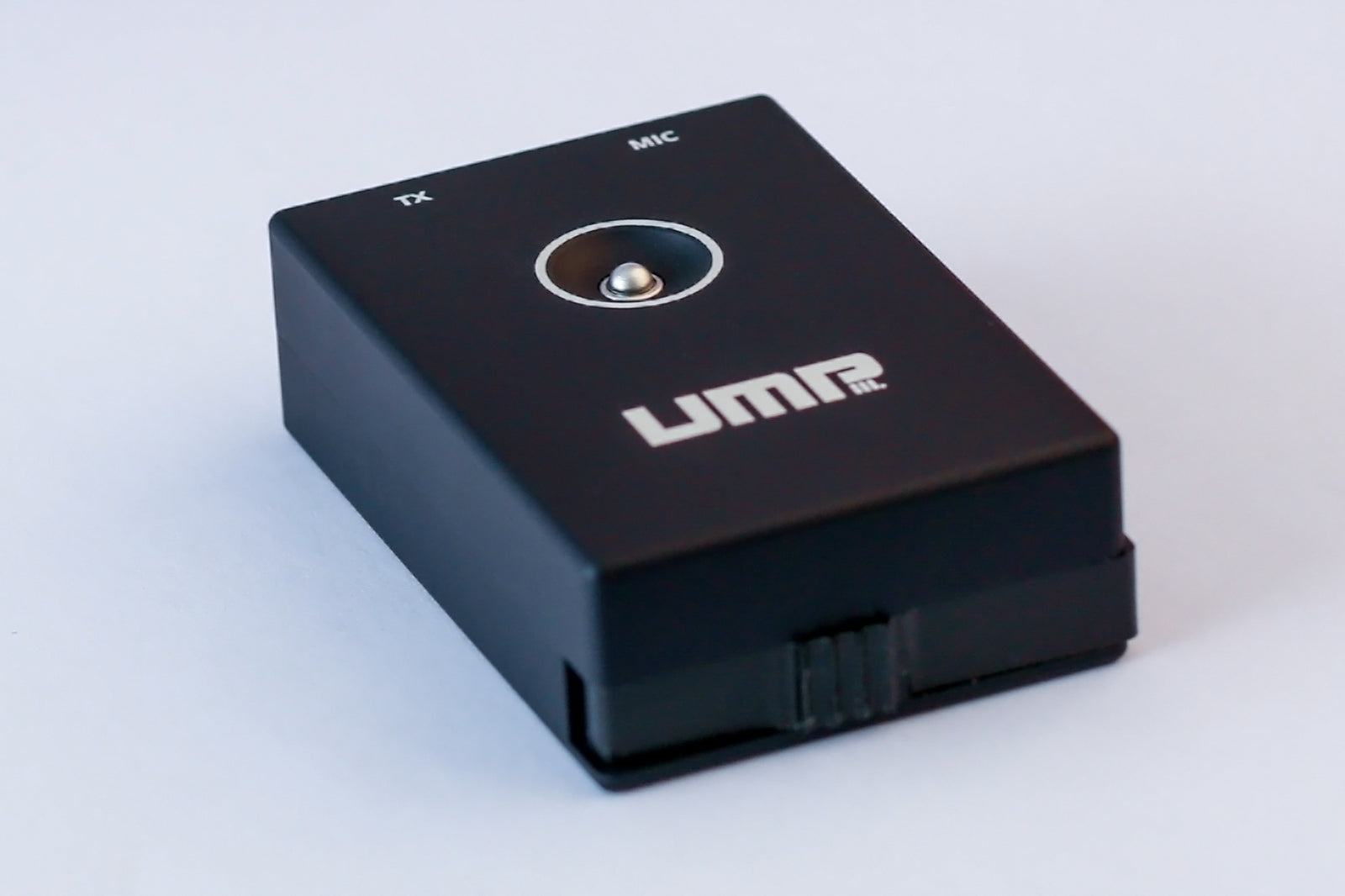

The case is very light and uses 2 AA cells avoiding drain of the transmitters batteries and can be mounted either on the boom tip or carried on the belt with an optional clip (UMP-BC).
The autonomous supply avoids additional drain of the belt pack’s batteries and thus ensures long battery lifetime plus making the unit compatible with any transmitter with mike-level input.

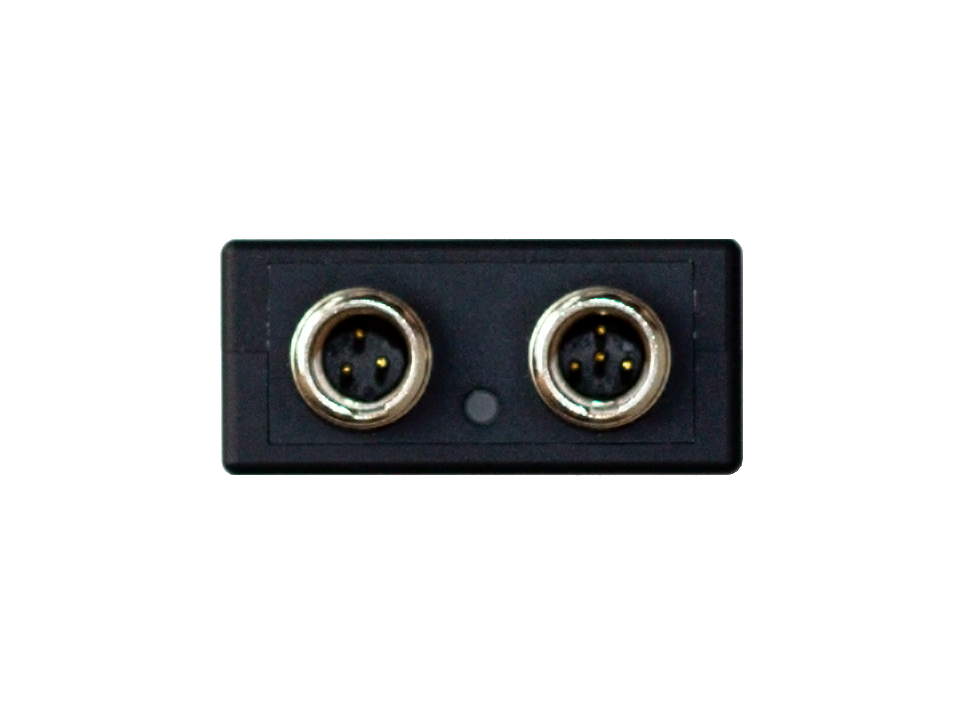

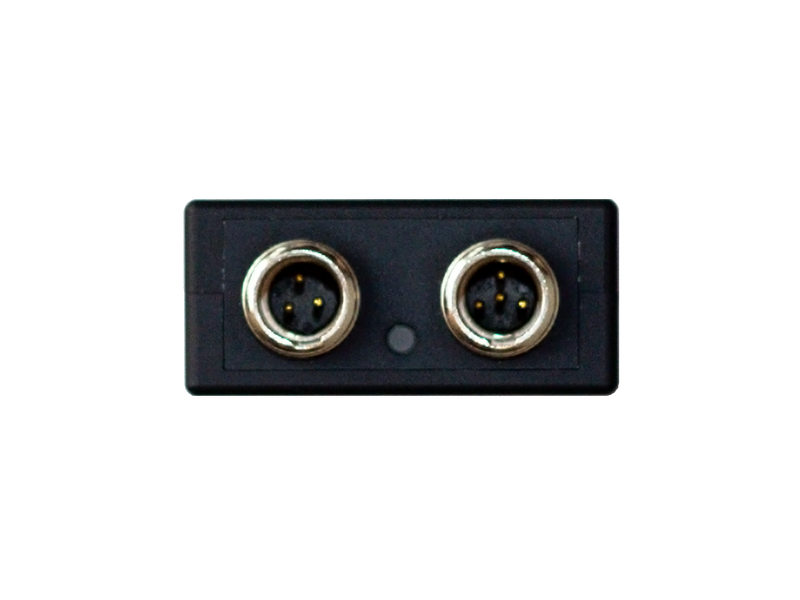

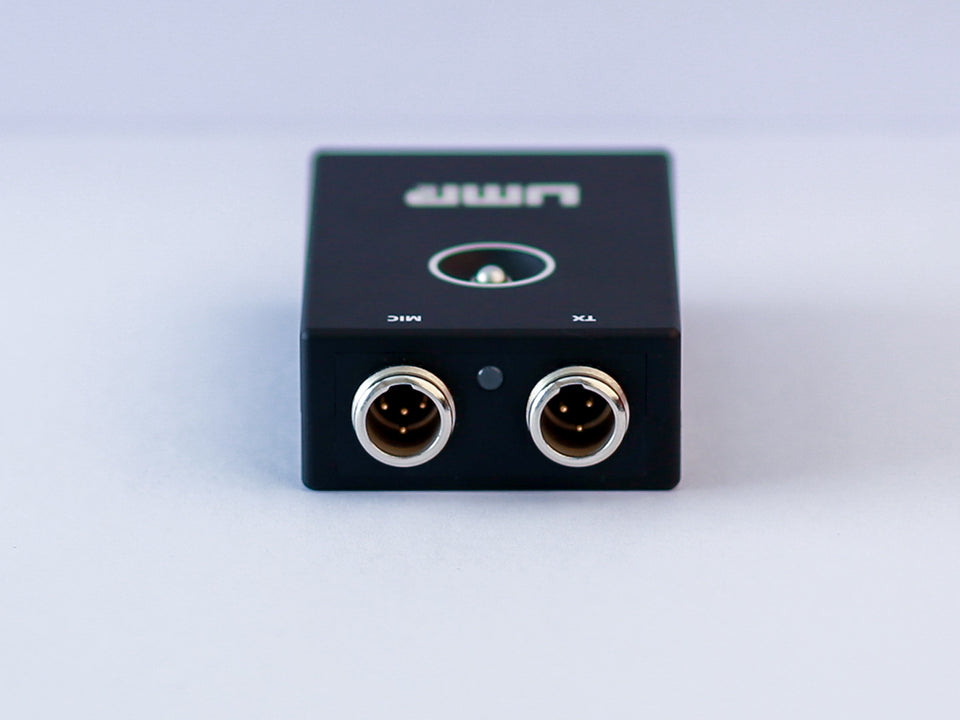

The UMP II is compatible with any transmitter with mic-level input. In- and output connectors allow for individual configuration and are keyed against accidental interchange.

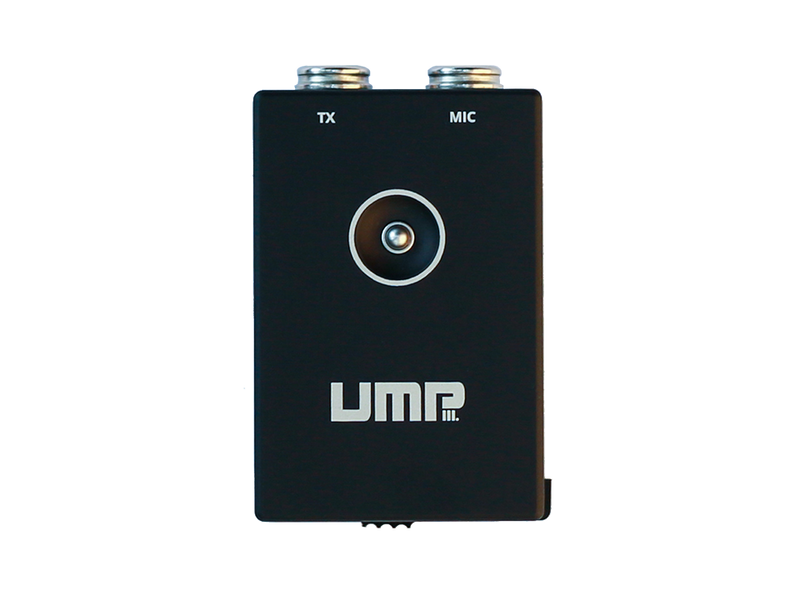

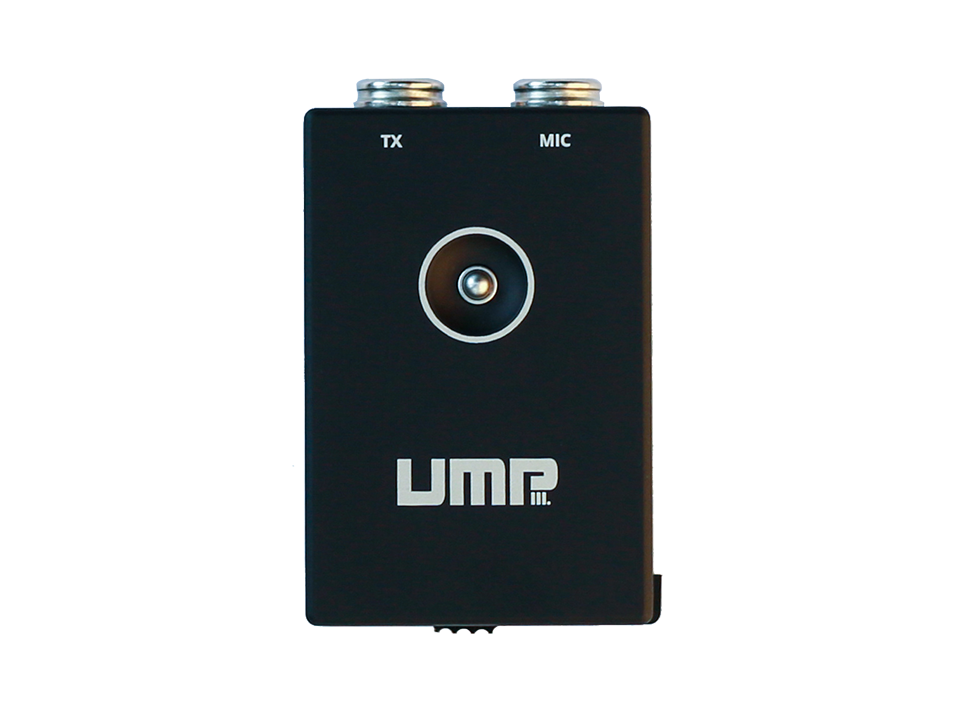

A 4 coloured LED interface indicates battery status and selected powering mode that covers 12 and 48 Volt Phantom plus 12 V T-power.
In The Box:
- Microphone power supply, UMP II
- Microphone input cable, UMP-EMC
- Transmitter connector cable, UMP-OUT/NC
| Dimensions (WHD): 57 x 92 x 18 mm |
| Weight (unit only): 100 g |
| Material: Anodised aluminum |
| Powering: 48Volt Phantom | 12Volt Phantom | 12Volt T-power |
| Power supply: 3 Volt, 2 x AA-Batteries (Mignon battery, each 1.5V) |
