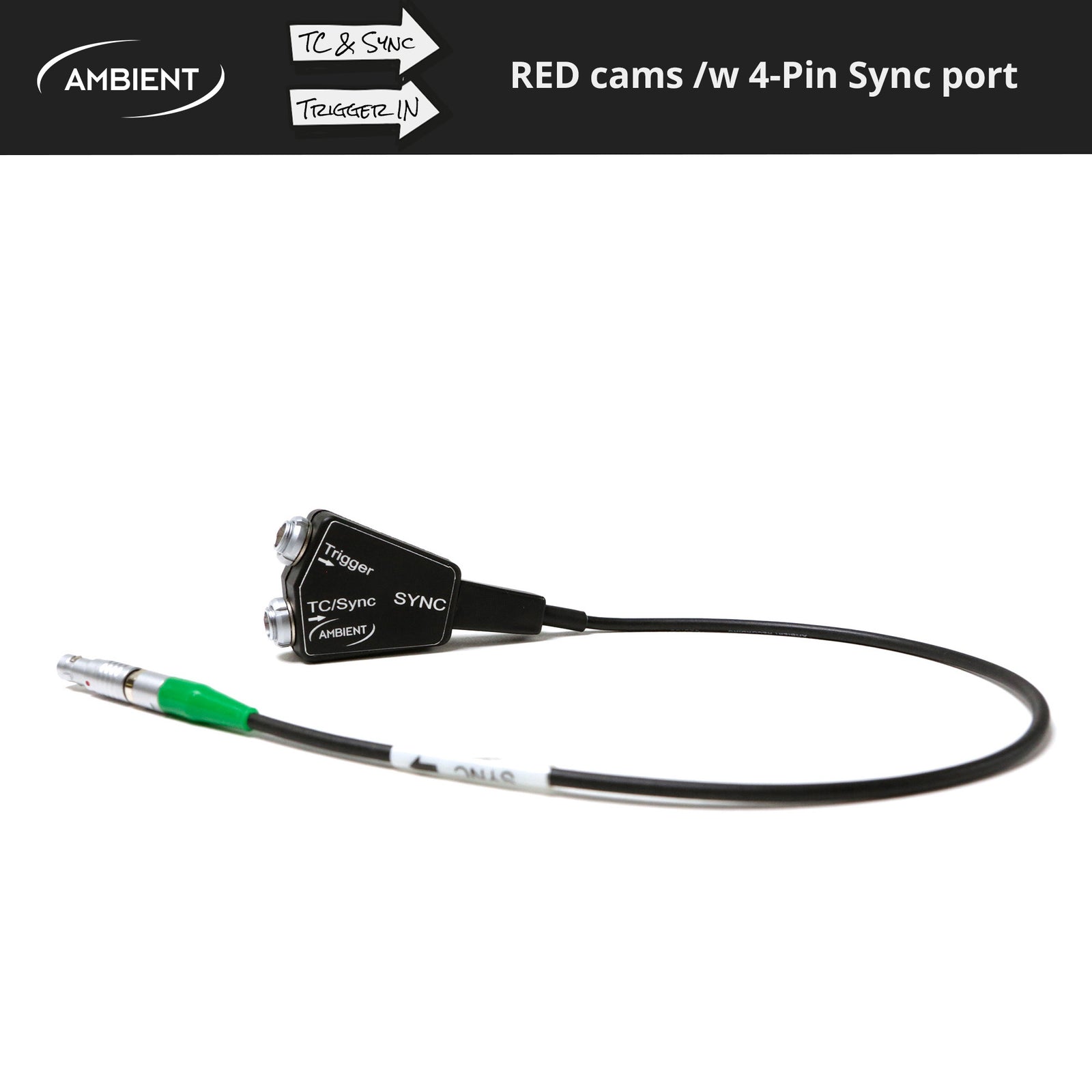

TC & Sync + Trigger IN for RED cameras with 4-pin Sync port
- For RED cameras with 4-pin Sync port (DSMC2 + Expander /w 4-pin Sync port)

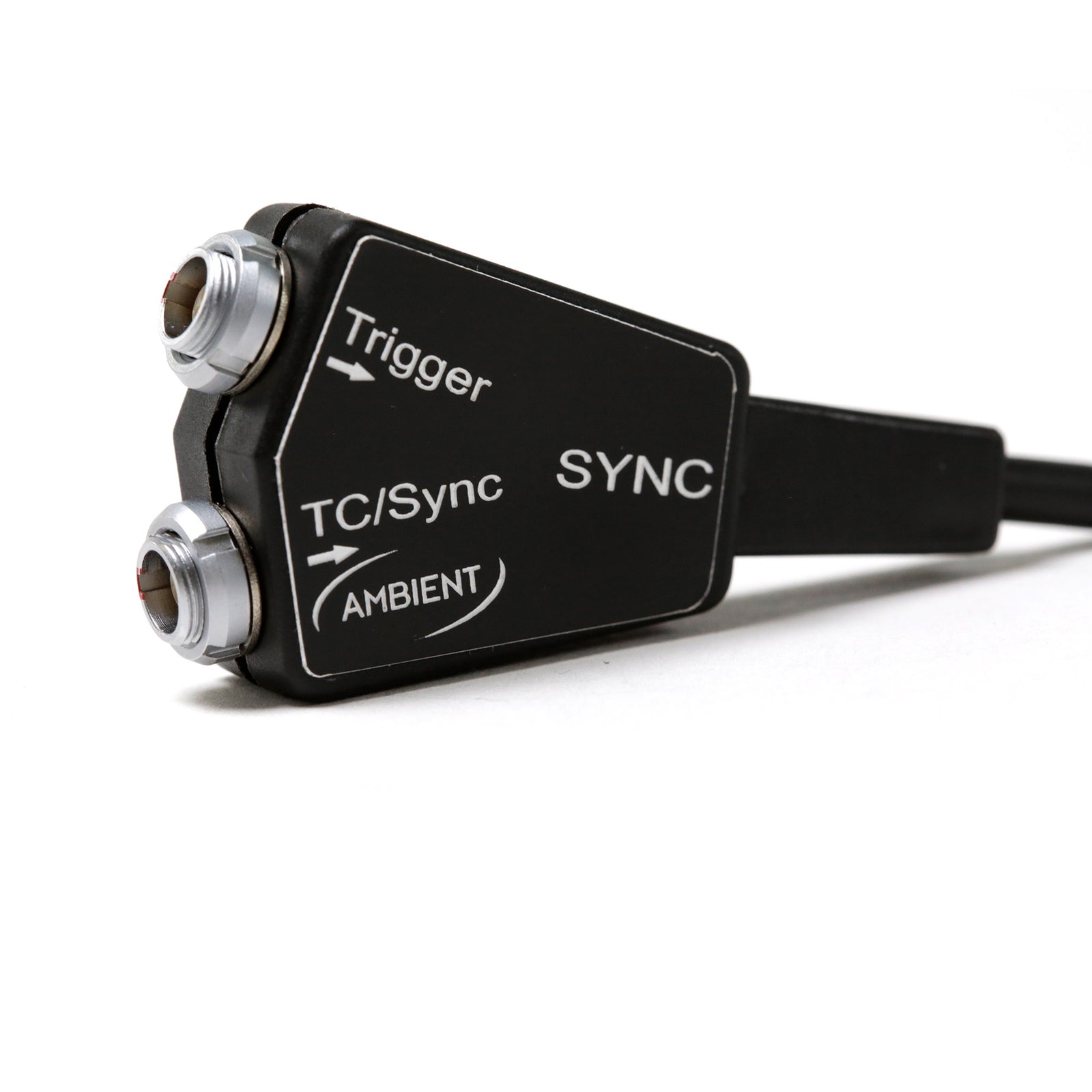

- Connector 1: Timecode IN & Sync IN (Genlock) from Lockit devices
- Connector 2: Trigger IN from motor controllers
WHY CABLES BY AMBIENT?
- Quite simply: because they are better. We rely on premium quality and high-end material.
- Better shielding: We use a braided shield instead of the usual wrapped shield. It is denser and therefore shields better against interference.
- Greater stability: Instead of PVC - as is common with cheap cables - we use polyurethane. Even after frequent untwisting and twisting, the plug and cable will not break off.
- Metadata interface cable for RED cameras

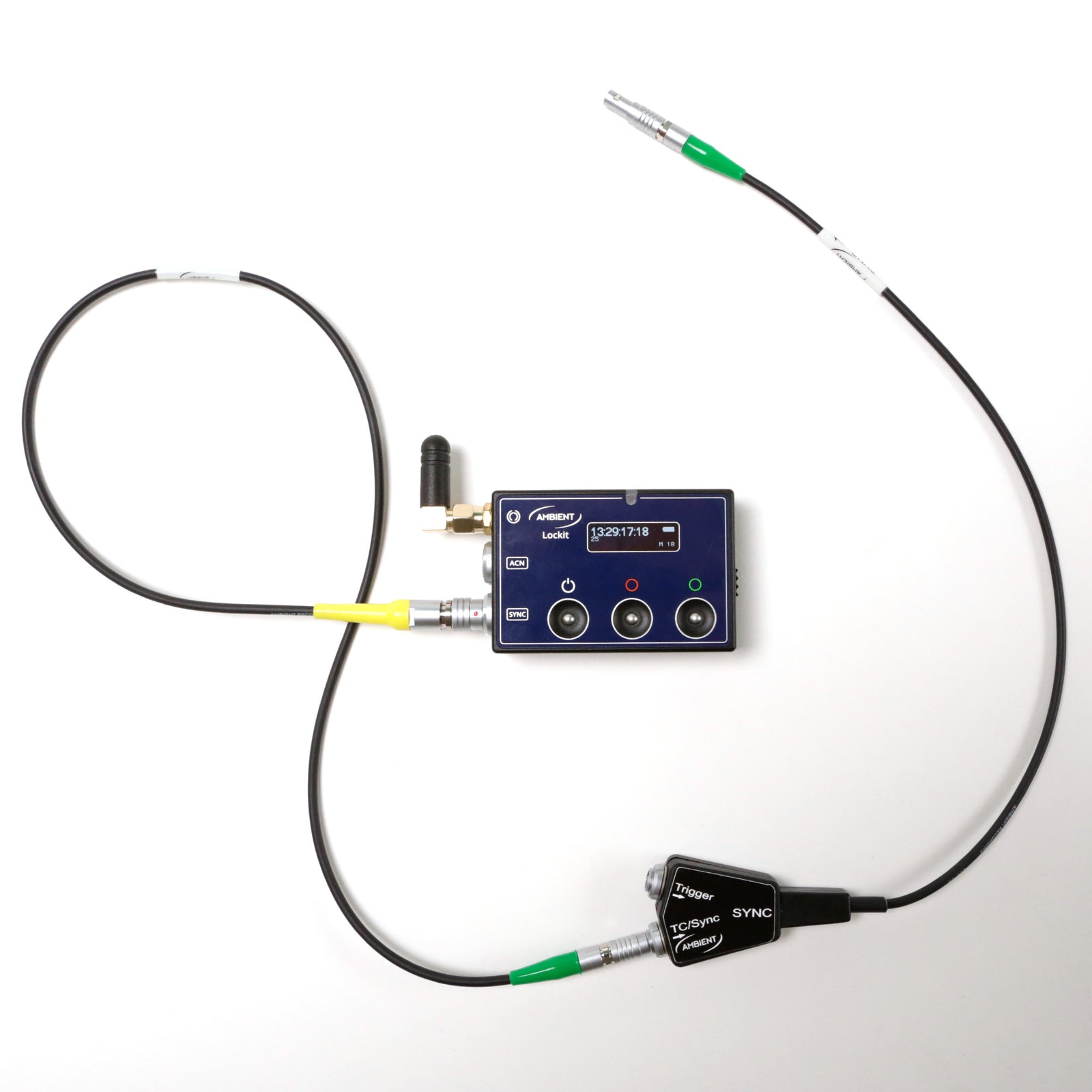

- Connecting timecode and metadata from Lockit (ACN-CL) or NanoLockit (ACN-NL-L) to Red Cameras (CTRL and Sync)

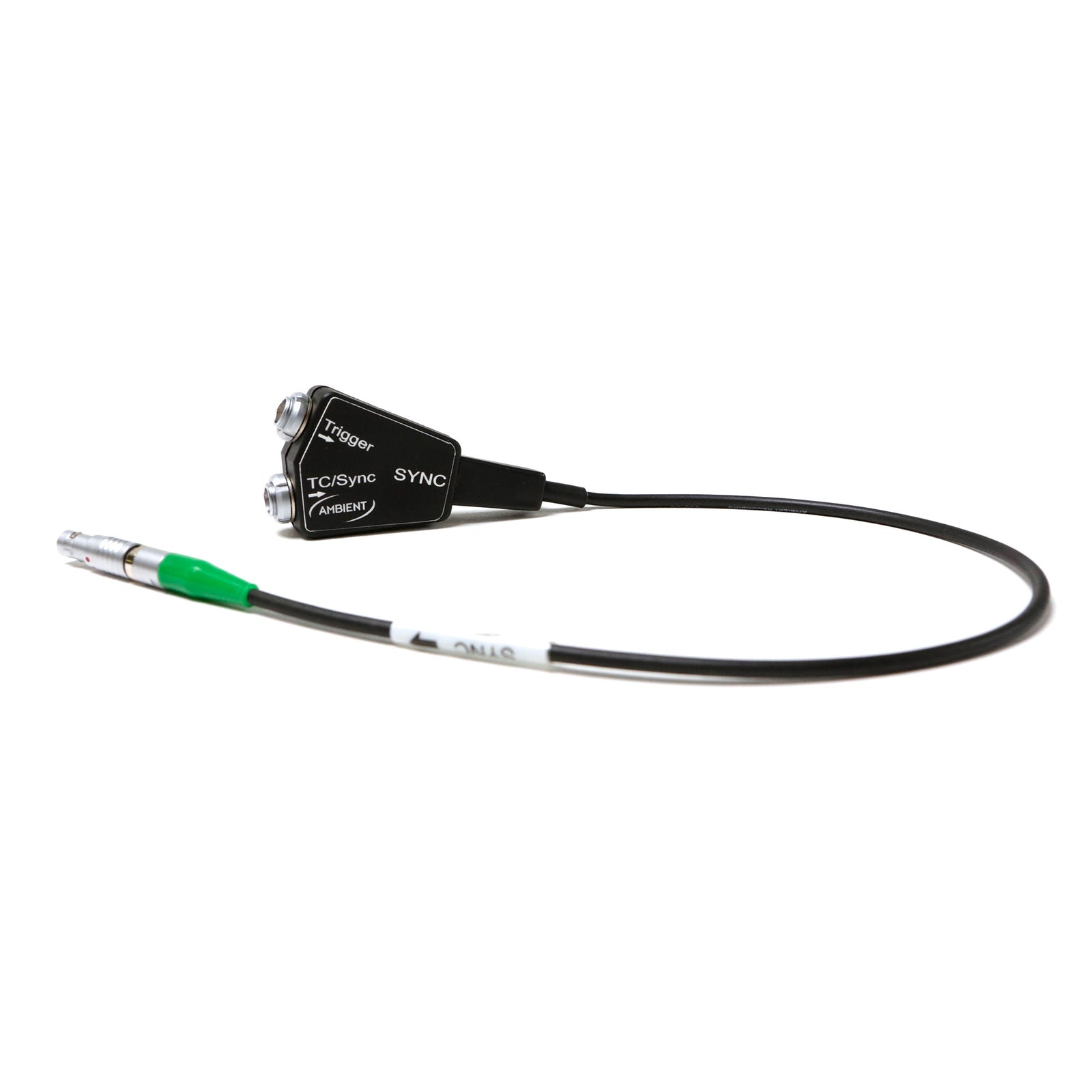

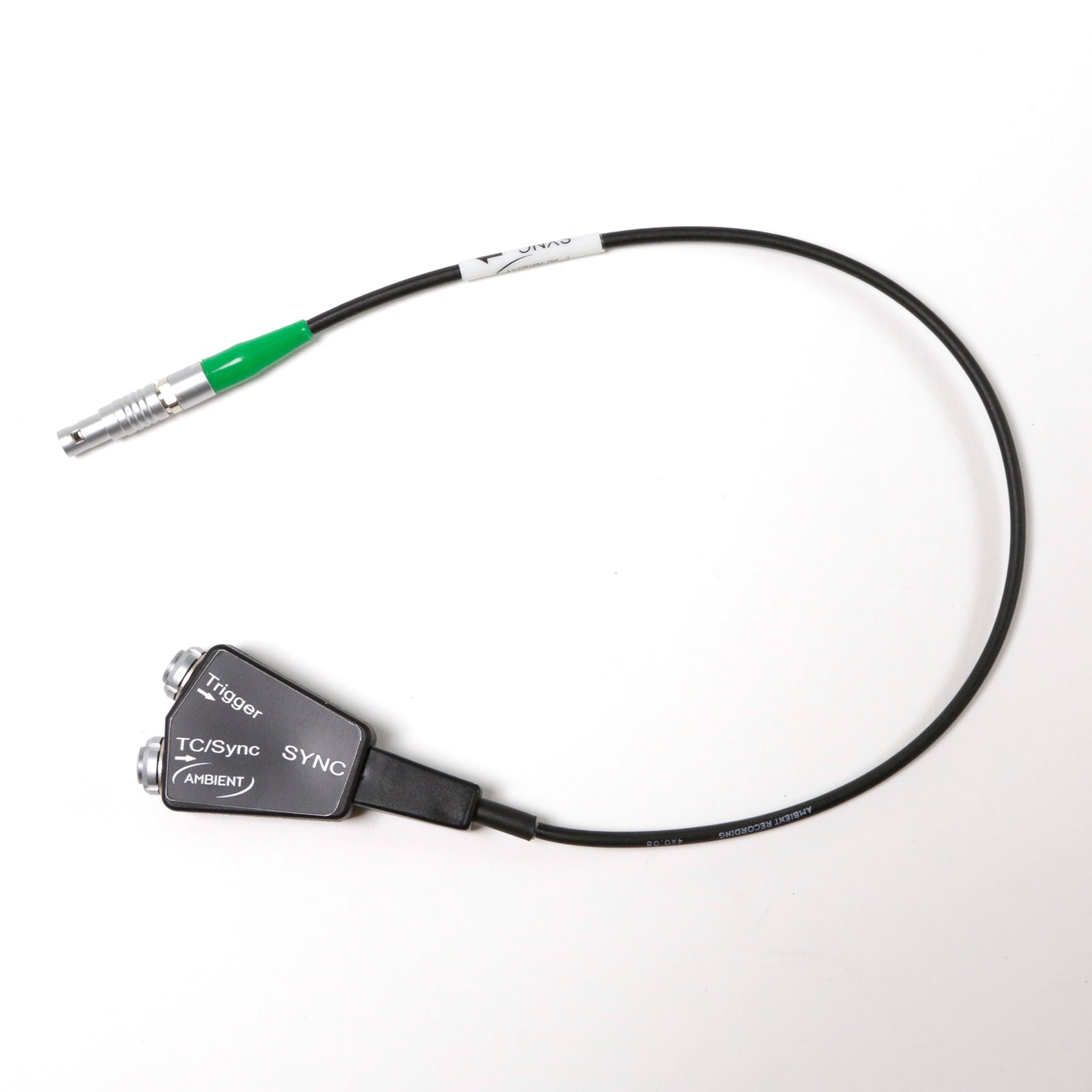

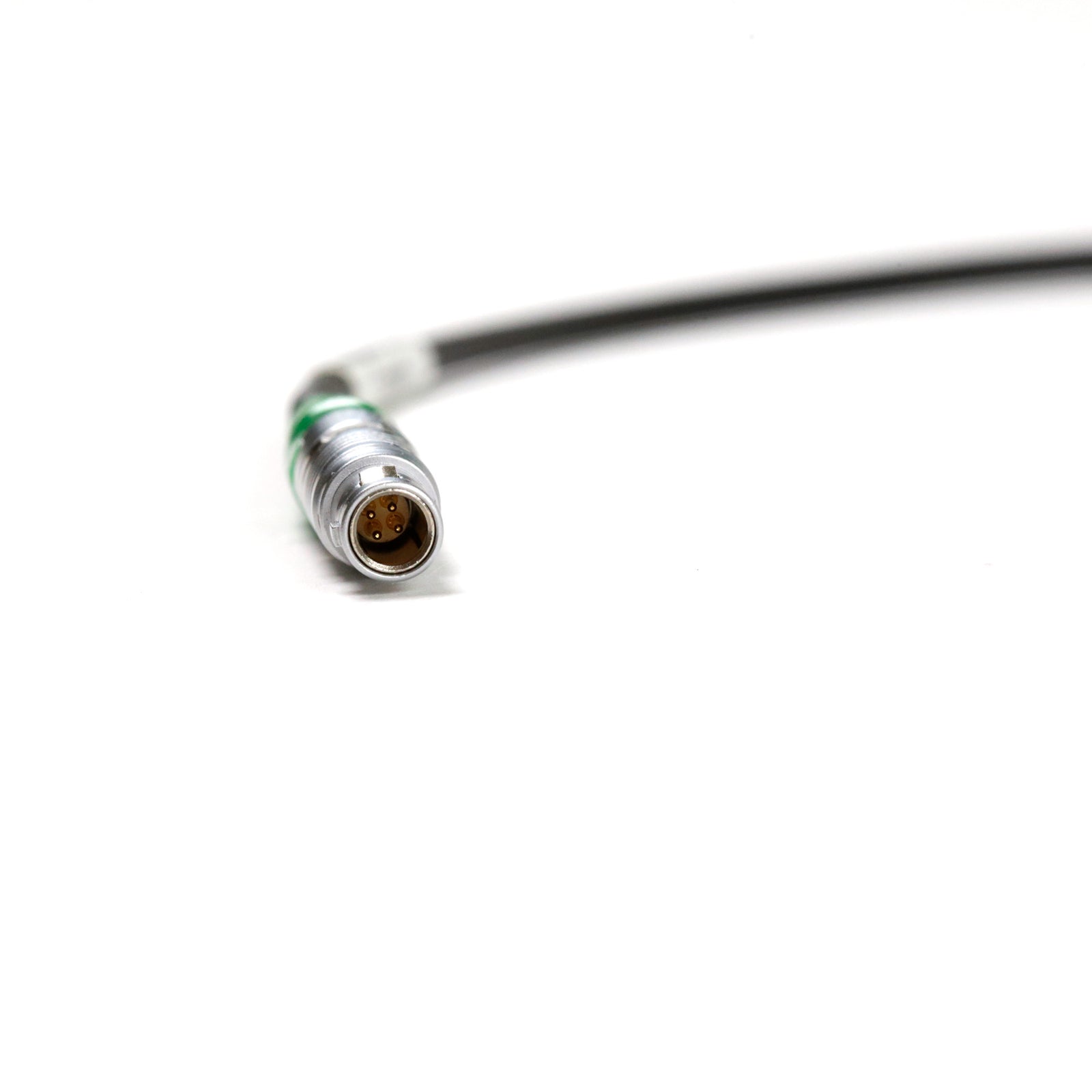

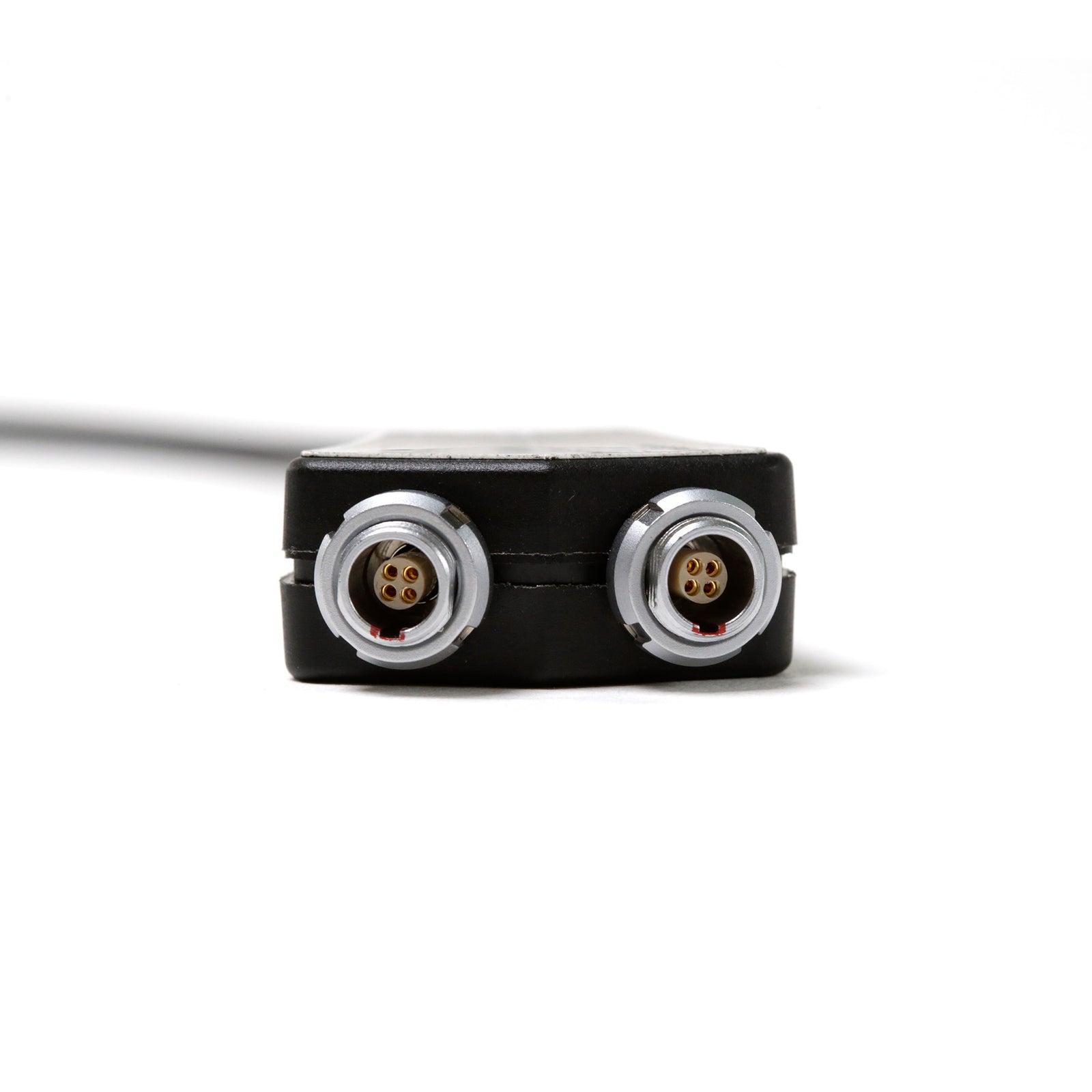

- 5-pin Push-Pull connector to 2x 4-pin Push-Pull connector (Lemo compatible)
- Plus Trigger-In via BNC
- Length approx. 60 cm
