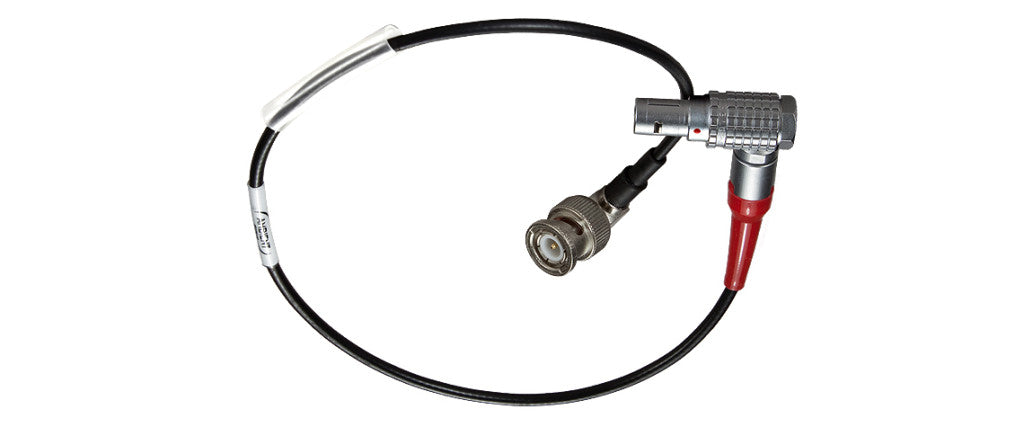

Timecode output cable with Lemo 5-pin RA, outlet 9 o’clock, to BNC RA
Because different Lemo connectors are needed for differing cable outlet directions, it is mandatory to specify the required direction of the cable outlet.
Viewing the plugged connector from back with the red dot on top, 9 o’clock (270 degrees).
The direction of outlet can not be changed.
Signal flow / wiring from Lemo to BNC connector
| Technical Details |
|---|
| Lemo 5-pin 90 right angle to BNC 90 right angle |
| Length approx. 40 cm |
| Weight approx. 30 g |
