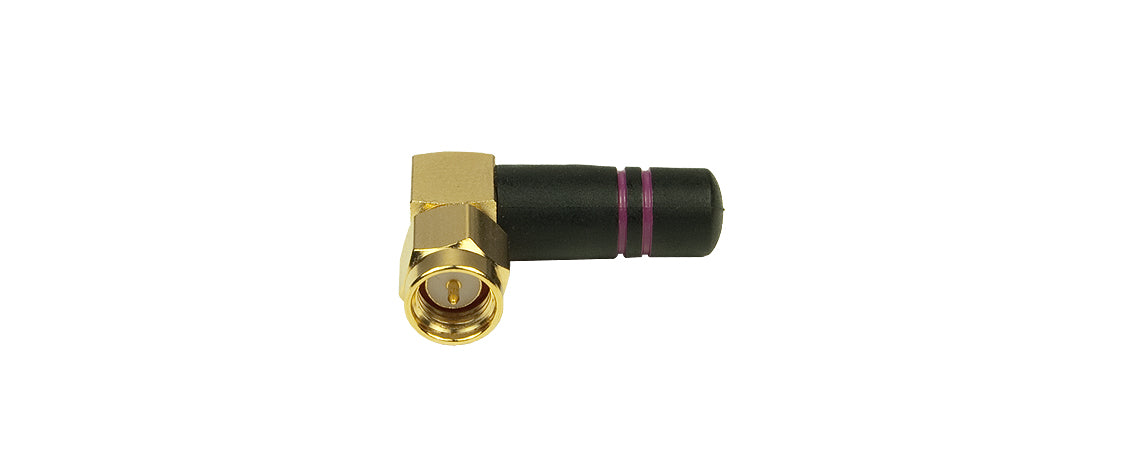

This antenna utilizes a helical element togreatly reduce the physical length of the antenna housing.
They are ideal for products requiring an ultra-compact, aesthetically pleasing antenna in a right angle form factor.
Despite their tiny size, they are ruggedly constructed and able to withstand punishing environments just like our larger whips.
The 2.45 GHz version attach with a standard SMA connector.
|
Technical Details |
|
Ultra-compact |
|
Right angle mount |
|
Excellent performance |
|
Omnidirectional pattern |
|
Fully weatherised |
|
Flexible main shaft |
|
Rugged & damage-resistant |
|
Metal enclosures |
|
Center Frequency 2.45GHz |
|
Bandwidth 300MHz |
|
Wavelength 1/4-wave |
|
VSWR <2.0 typ. at center |
|
Impedance 50 ohms |
|
Connector SMA plug |
